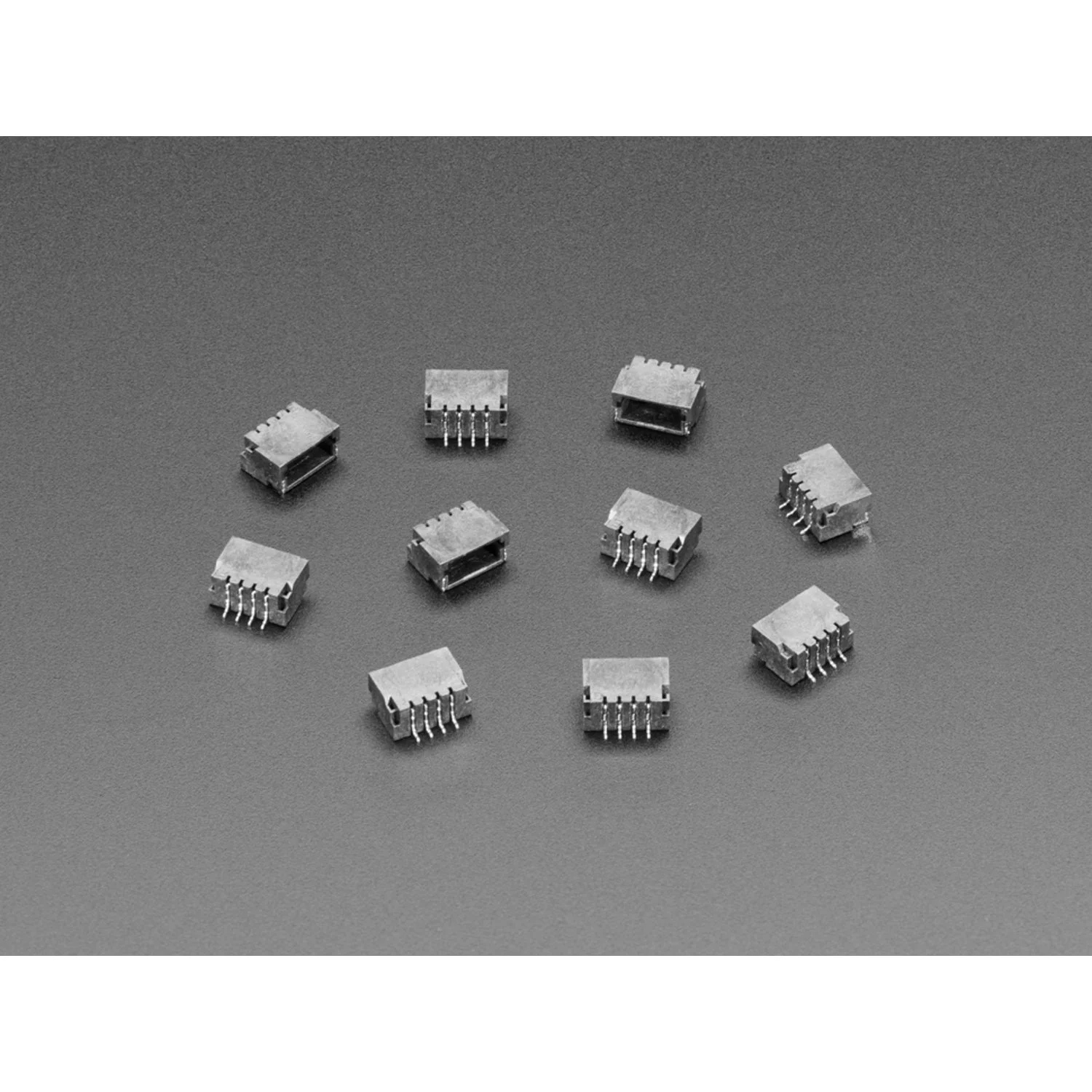

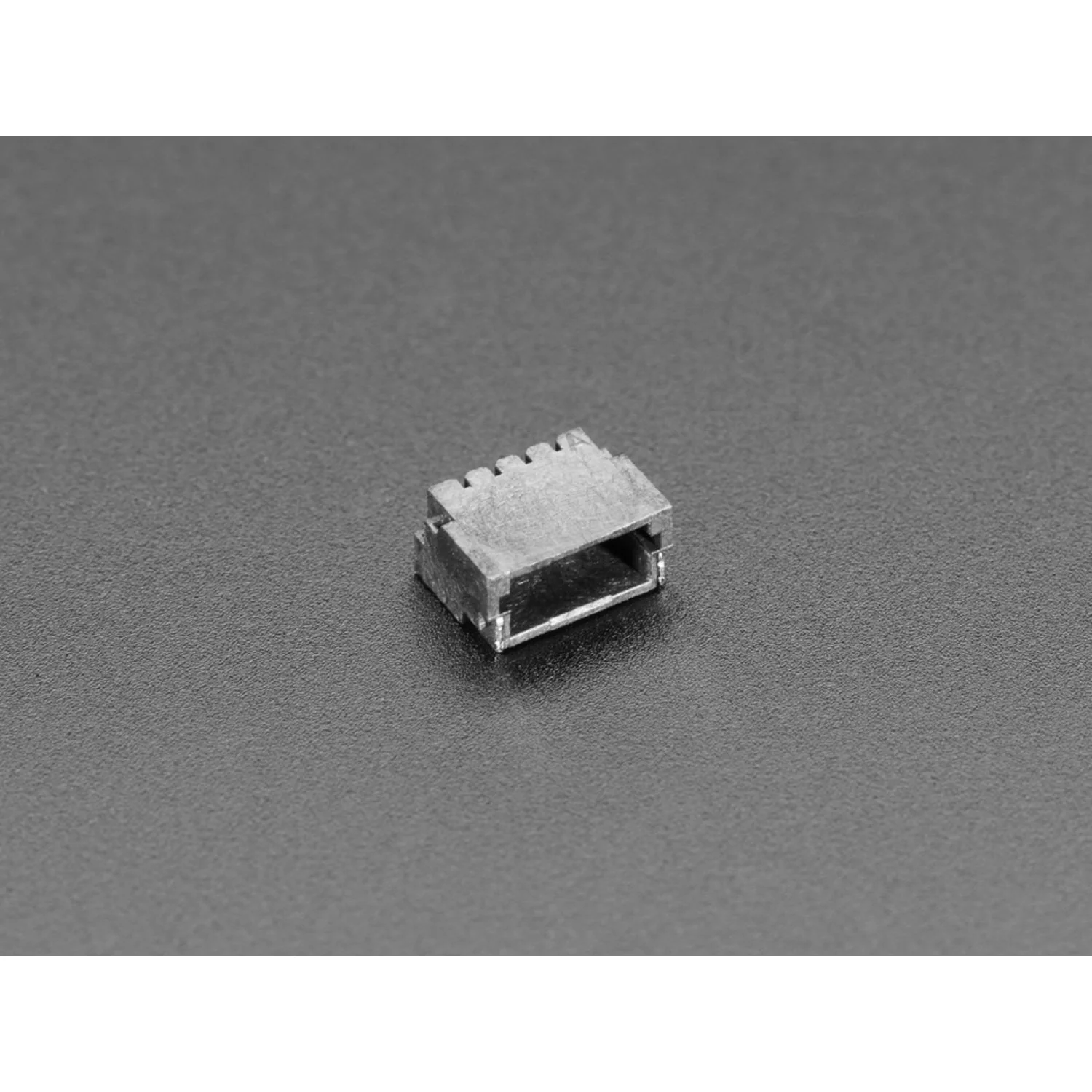

A 10-pack of JST SH 4-pin right-angle connectors with 1 mm pitch through-hole mounting tabs. These are the standard connectors used with the Qwiic and STEMMA QT ecosystems, making it easy to add I2C connectivity to your own PCB designs.

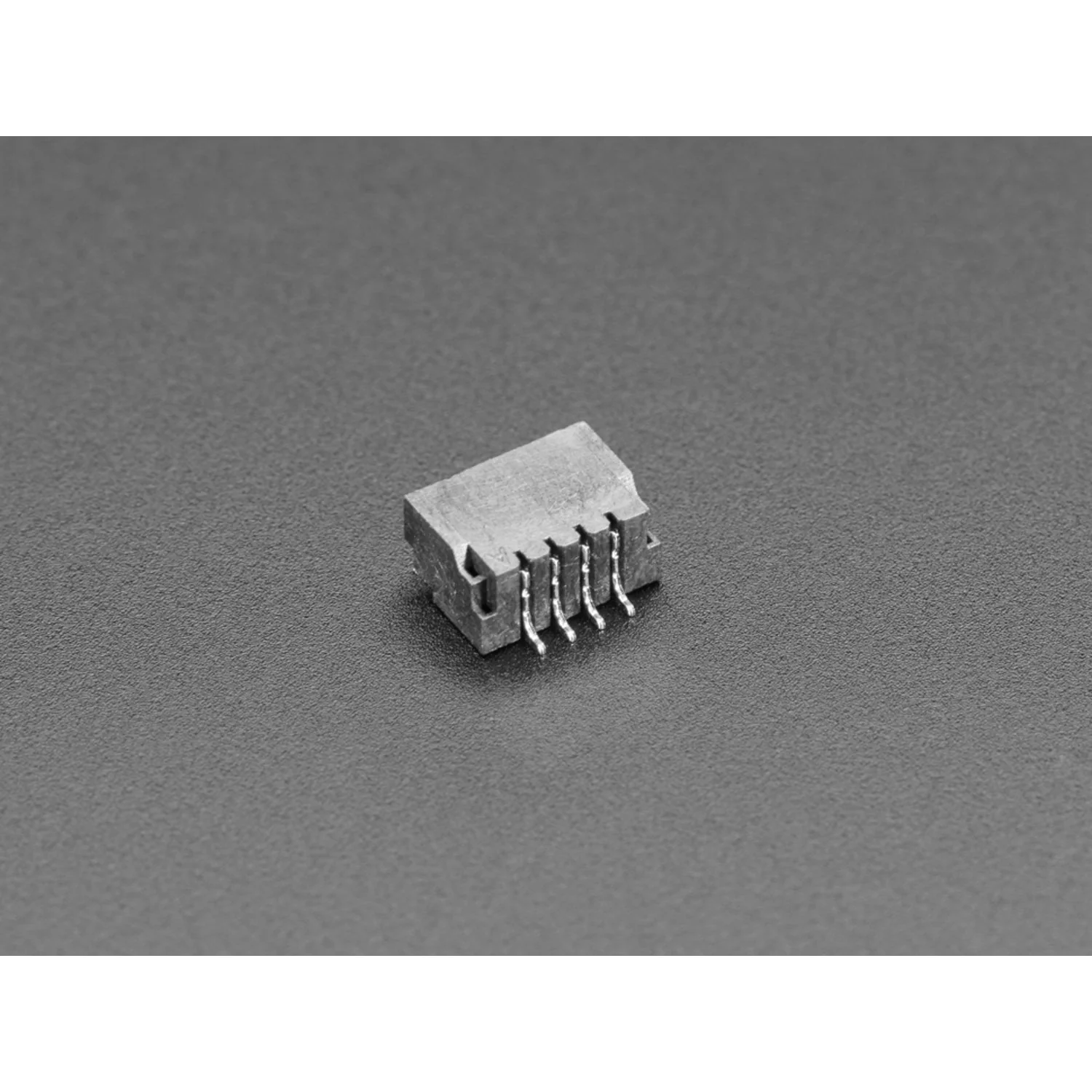

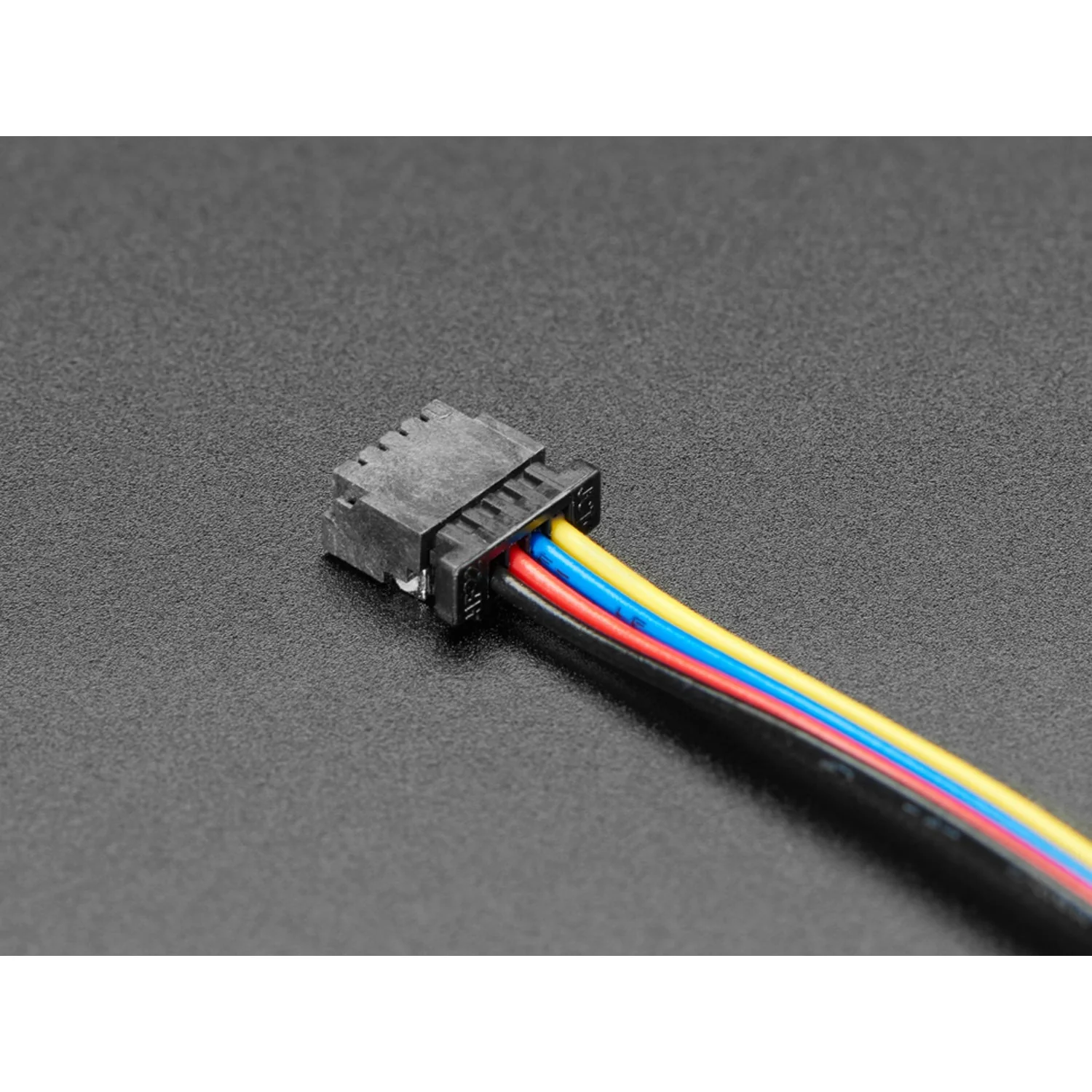

The solid plastic housing accepts standard Qwiic cables, and the through-hole pins can also be paste-soldered in an SMT line by soldering over the pads.

Key Features

• Qwiic / STEMMA QT Compatible – Standard 4-pin JST SH connector for I2C
• Right-Angle Mounting – Through-hole tabs for easy PCB integration
• 1 mm Pitch – Compact footprint for space-constrained designs
• 10-Pack – Stock up for multiple boards and projects

Qwiic Pinout

• Pin 1 – 3.3V Power (red wire)
• Pin 2 – Ground (black wire)
• Pin 3 – I2C SDA Data (blue wire)
• Pin 4 – I2C SCL Clock (yellow wire)

Ideal For

• Custom PCBs with Qwiic/STEMMA QT connectivity
• I2C sensor and driver breakout boards
• Prototyping and small-batch production

Package Contents

• 10× JST SH 4-pin Right-Angle Connector

Resources

• JST SH Connector Series – JST Website
