JST SH 4-pin Vertical Connector (10-pack)

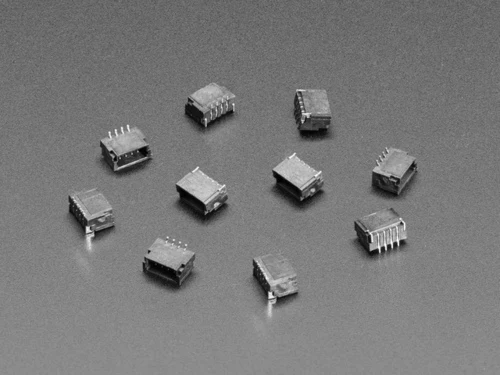

Product image 1

JST SH 4-pin Vertical Connector (10-pack)

A 10-pack of JST SH 4-pin vertical connectors with 1 mm pitch through-hole mounting tabs. These micro connectors are compatible with the Qwiic/STEMMA QT ecosystem, making them perfect for adding I²C connectivity to custom PCBs.

The solid plastic housings feature through-hole pins that can also be used in SMT reflow — simply paste over the through-holes and the pads will solder in place.

Key Features

  • JST SH Series – 1 mm pitch, 4-pin vertical connector
  • Qwiic/STEMMA QT Compatible – Works with standard Qwiic cables and boards
  • Through-Hole Mounting – Also compatible with SMT reflow soldering
  • Quantity: 10 connectors per pack

Qwiic Pinout

  • Pin 1: GND (black wire)
  • Pin 2: 3.3 V (red wire)
  • Pin 3: SDA (blue wire)
  • Pin 4: SCL (yellow wire)
Tip: Qwiic cables are wired symmetrically, so either end can be plugged in to either connector.

Ideal For

  • Adding Qwiic/STEMMA QT connectors to custom PCBs
  • I²C sensor and driver breakout boards
  • Prototyping with modular I²C connections

Package Contents

  • 10× JST SH 4-pin vertical connectors
$2.43

Original: $8.09

-70%
JST SH 4-pin Vertical Connector (10-pack)—

$8.09

$2.43
