JST SH Compatible 1mm Pitch 3-pin Plug-Plug Cable

Product image 1
1 / 5

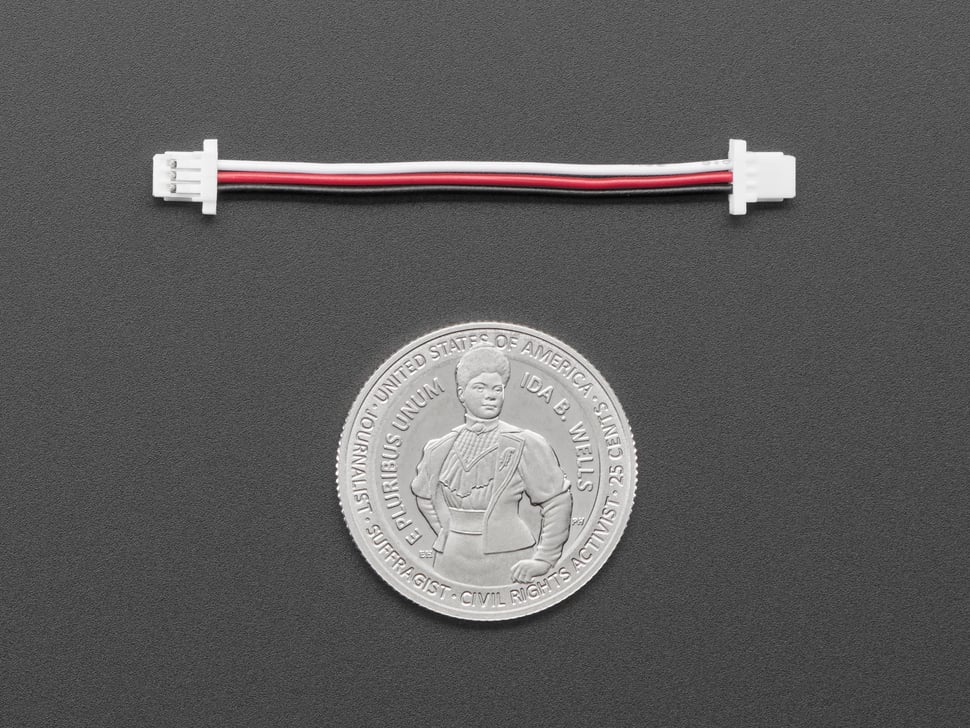

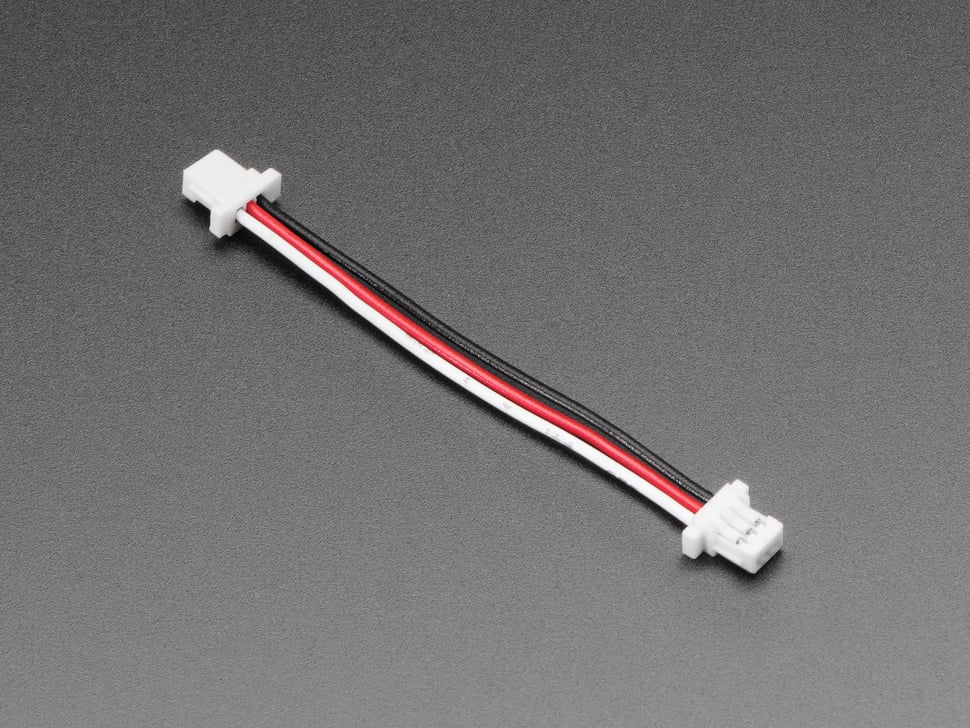

JST SH Compatible 1mm Pitch 3-pin Plug-Plug Cable

This JST SH compatible cable features 1 mm pitch 3-pin connectors on both ends, making it ideal for chaining boards together or connecting to debug ports. It's perfect for use with NeoPixel JST breakout boards, UPDI programmers, or any board with a JST SH 3-pin connector for simple digital or analogue I/O.

The cable also works with the debug port on a Raspberry Pi Pico WH or dedicated debug probes. Note that the wire colours match as follows for debug use:

  1. White – SWCLK or UART TX
  2. Red – Ground
  3. Black – SWDIO or UART RX

Key Features

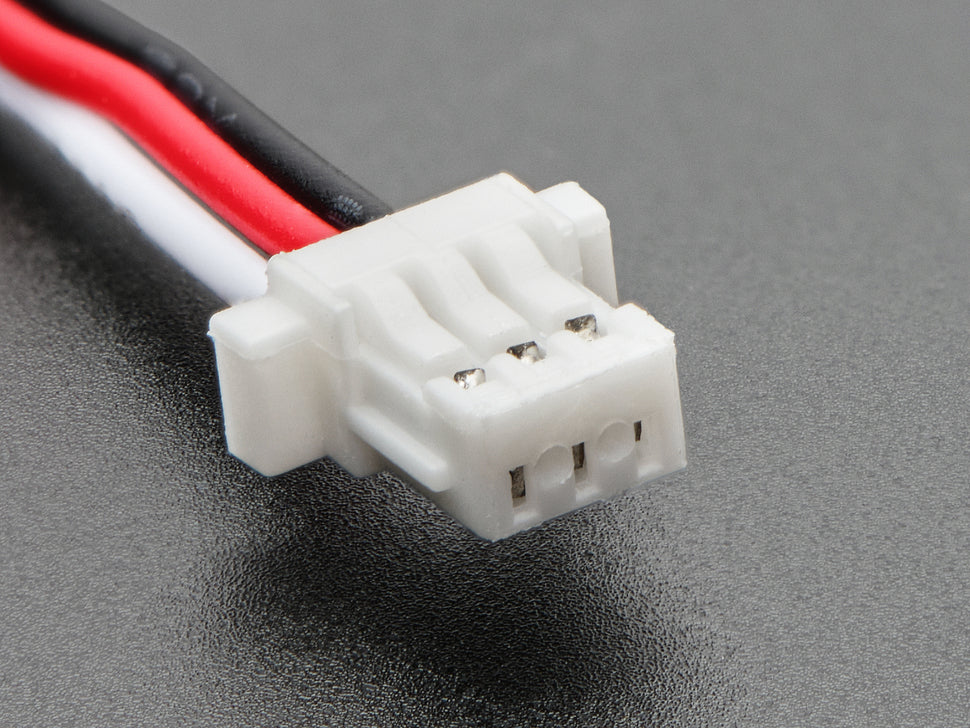

  • 1 mm Pitch JST SH Connectors – Compatible plug on both ends
  • 3-Pin Configuration – Suitable for simple digital and analogue connections
  • Plug-to-Plug Design – Chain boards together without soldering

Ideal For

  • Connecting JST SH breakout boards
  • Debug port connections on Raspberry Pi Pico
  • Chaining sensor or LED boards with JST SH connectors

Package Contents

  • 1× JST SH compatible 1 mm pitch 3-pin plug-to-plug cable
Note: When used with a debug probe, the red wire is ground — not power. Take care when wiring to avoid damage.
