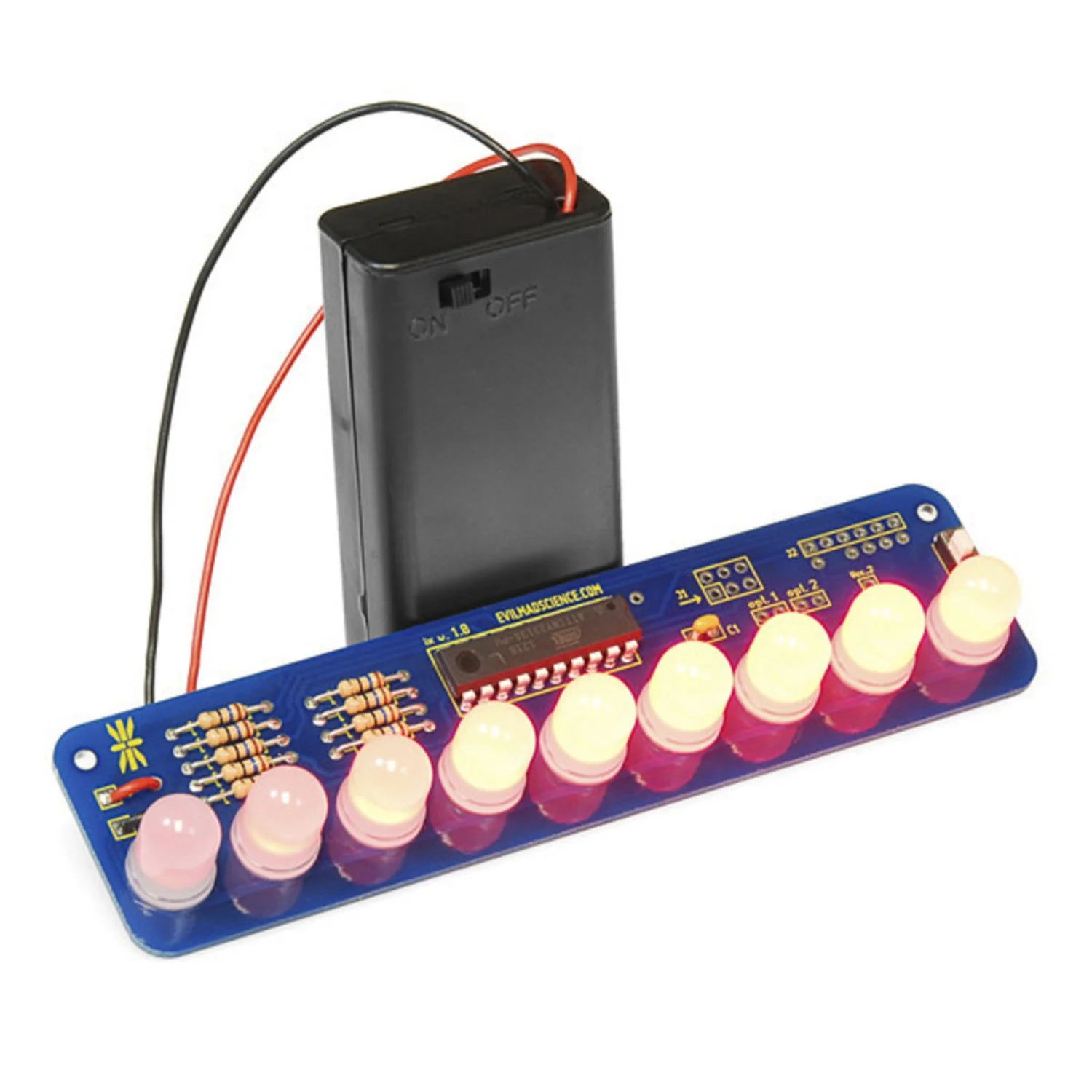

The Larson Scanner kit creates the iconic sweeping LED light effect seen in Knight Rider's KITT and the Cylons from Battlestar Galactica. Named after producer Glen A. Larson, this easy-to-solder through-hole kit uses nine large diffused red LEDs driven by a pre-programmed ATtiny2313 microcontroller.

No programming required — the microcontroller comes pre-loaded with the scanning animation. All components are through-hole, making this an excellent first soldering project. Source code and design files are available for those who want to customise the effect.

Key Features

• Pre-Programmed – ATtiny2313A loaded with scanning animation, ready to solder and go
• 9 Large LEDs – 10 mm diffused red LEDs for a bold sweeping effect
• Through-Hole Components – No surface mount, beginner-friendly soldering
• AA Battery Powered – Portable with built-in battery holder and switch
• Open Source – Source code and design files available for hacking

Ideal For

• Learning to solder
• Costume and cosplay lighting effects
• Sci-fi props and decorations

Package Contents

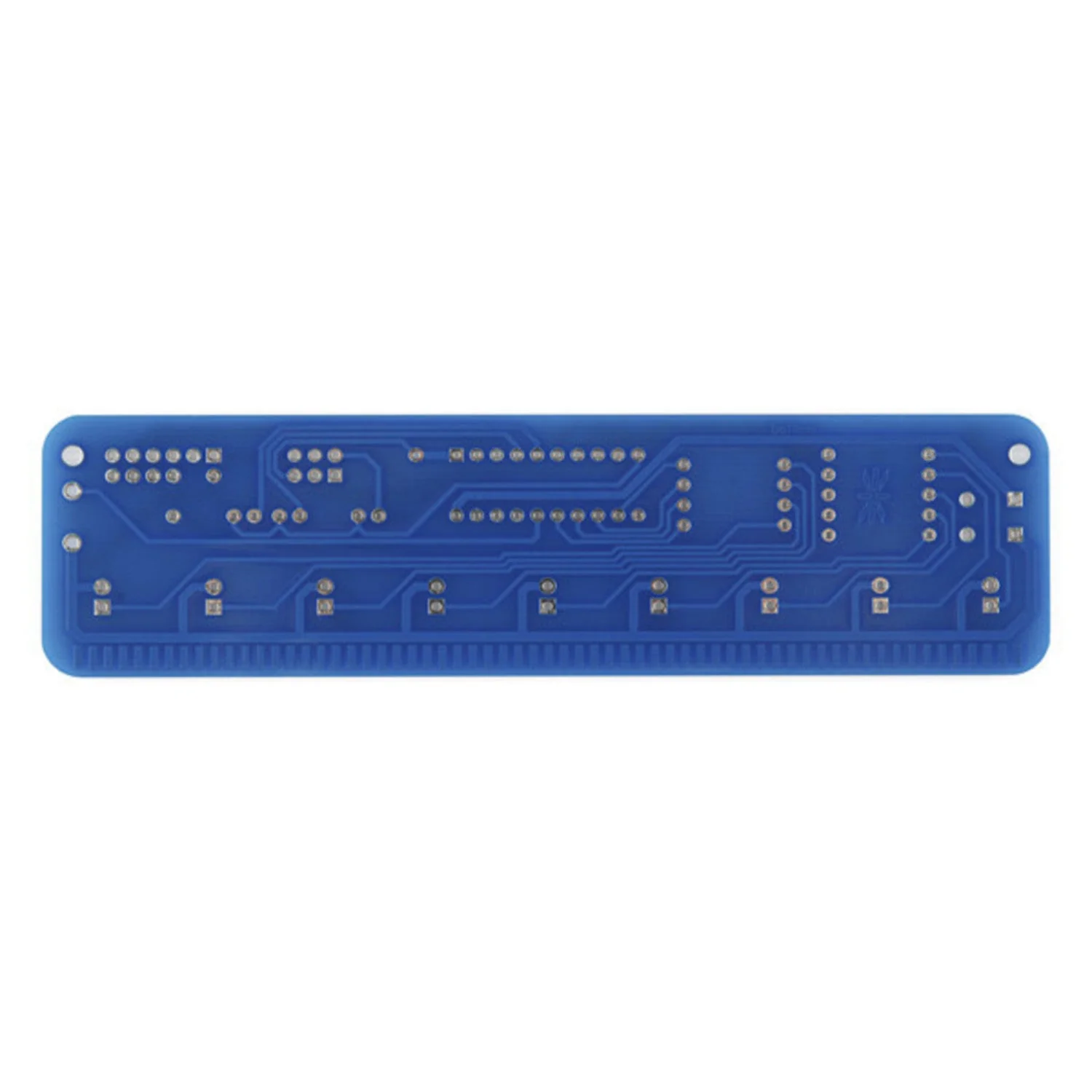

• 1× Larson Scanner PCB

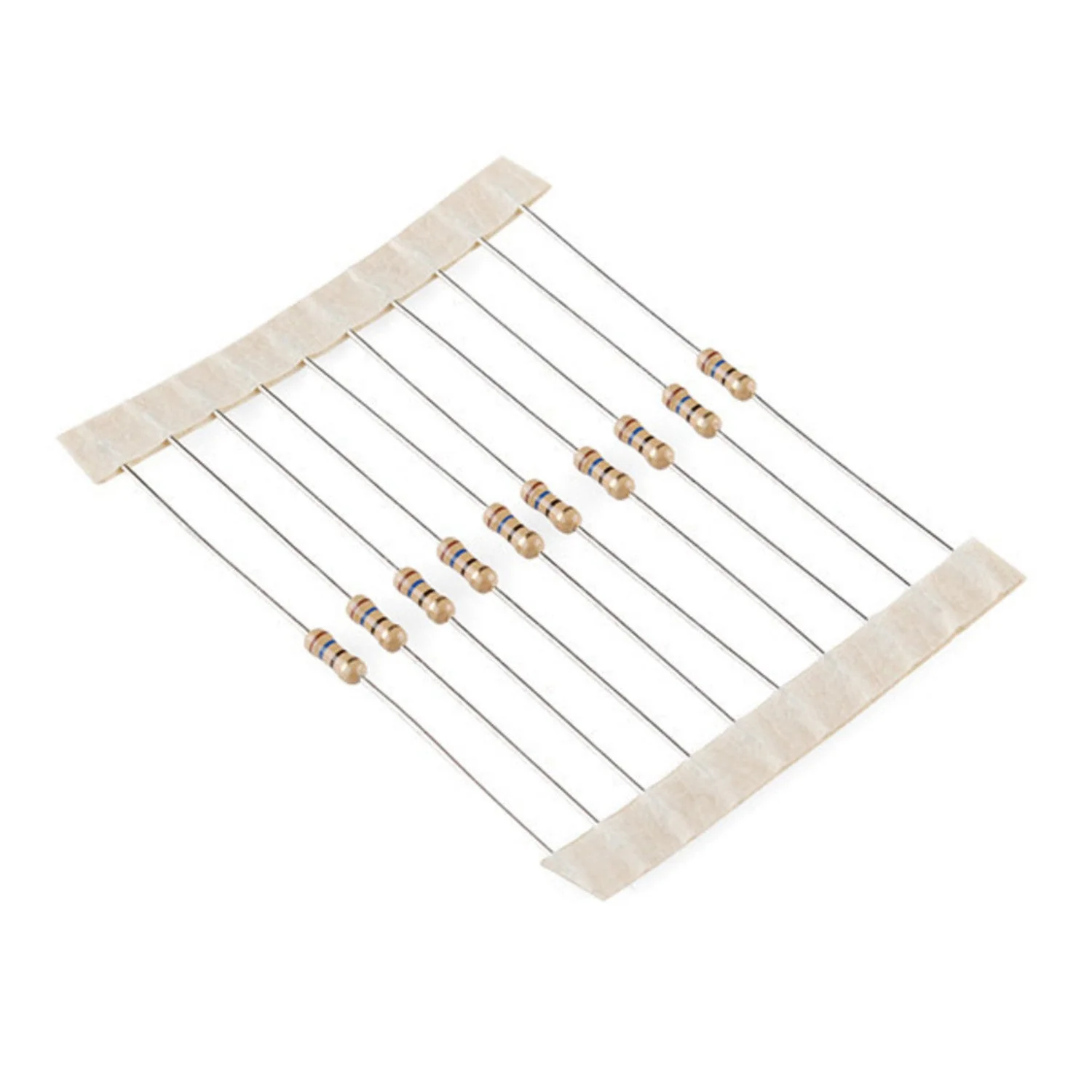

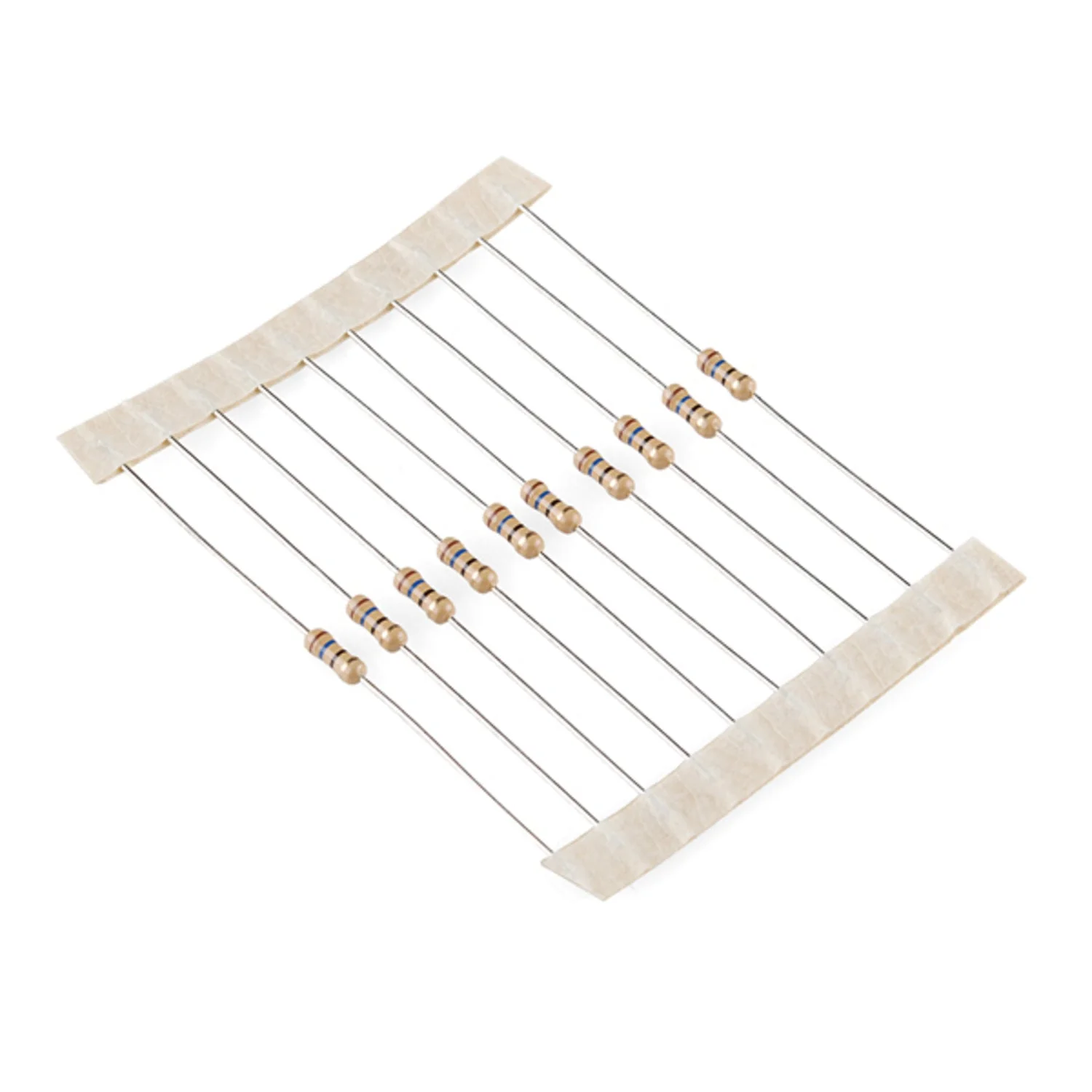

• 9× 16 Ω resistors

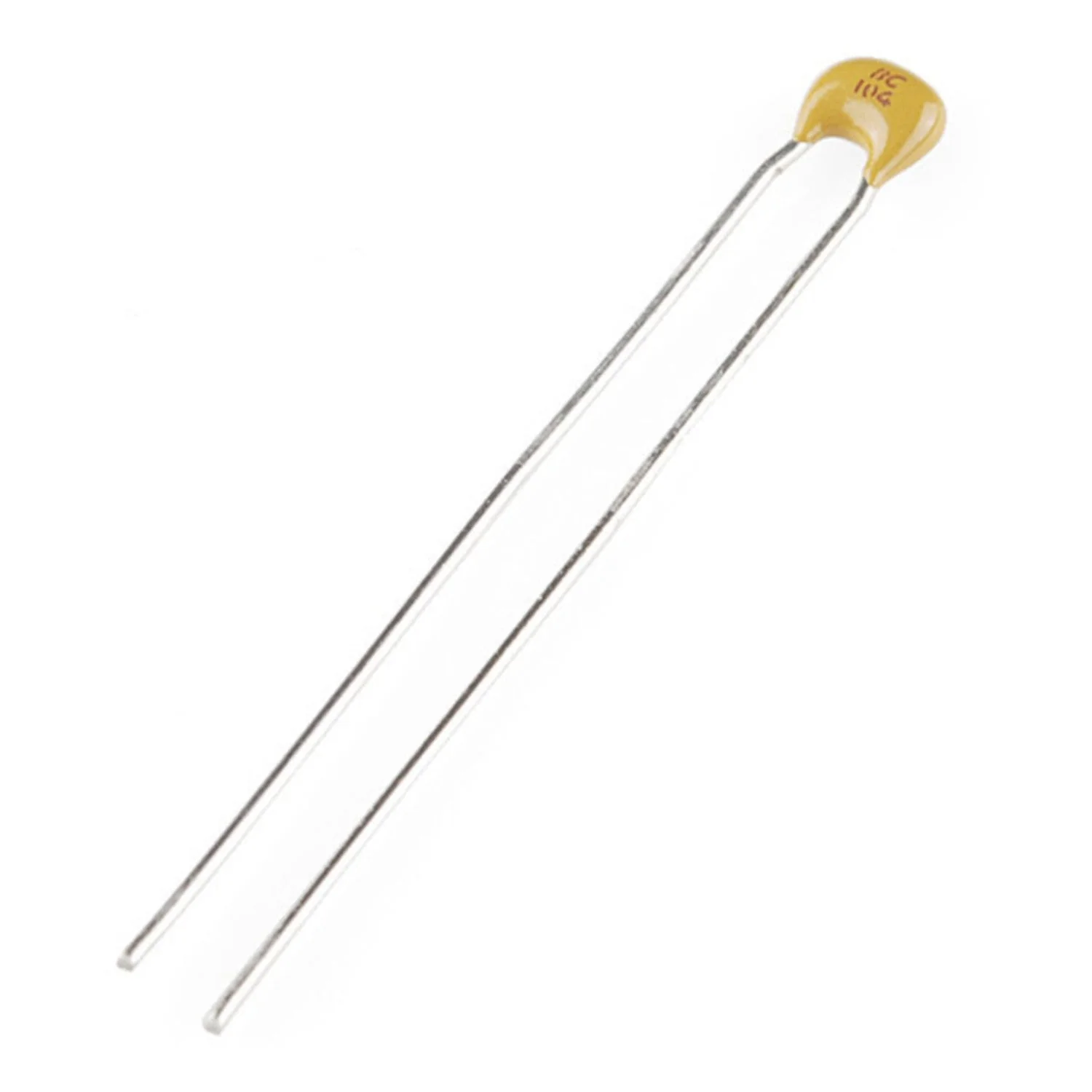

• 1× 0.1 µF capacitor
• 1× Pushbutton switch

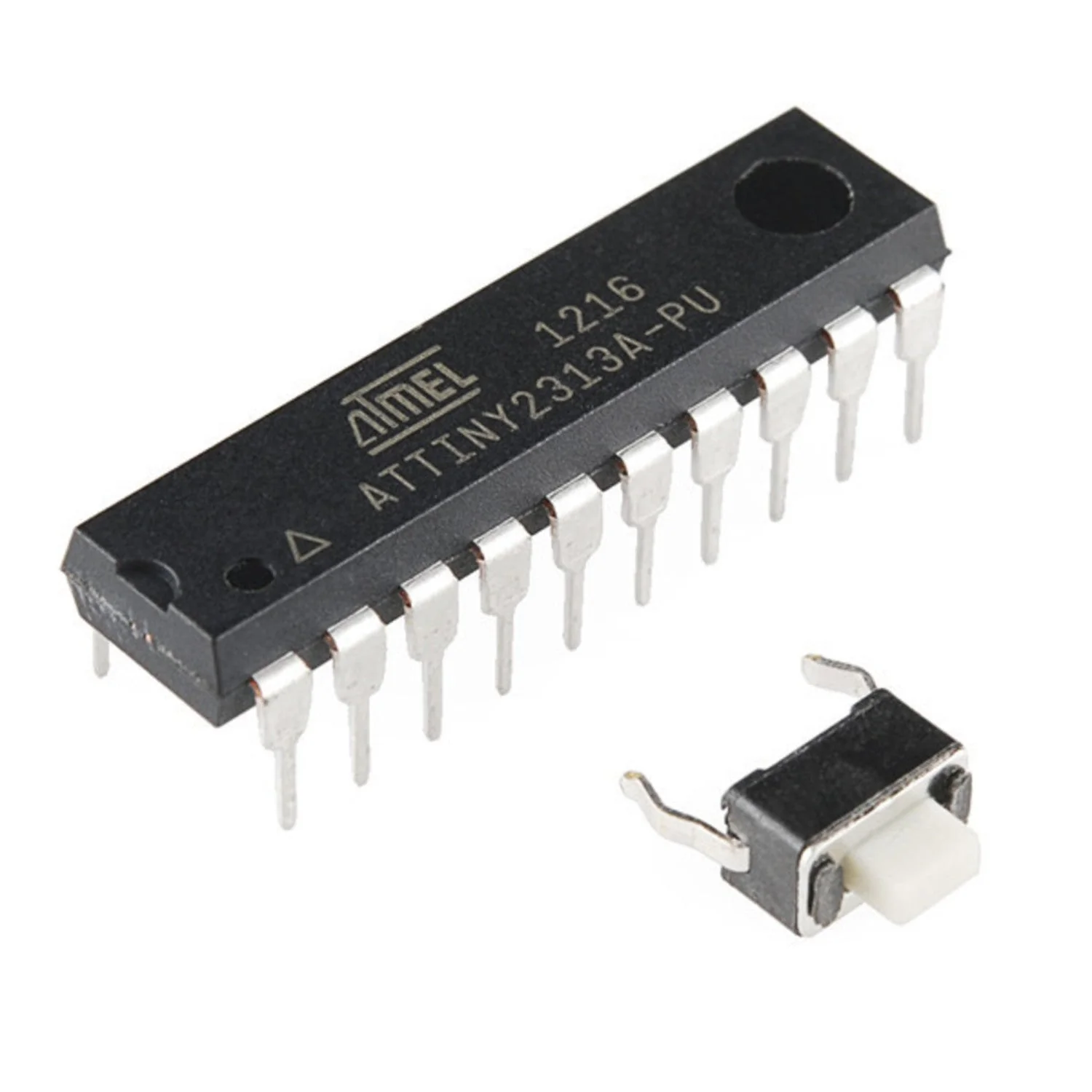

• 1× ATtiny2313A microcontroller (pre-programmed)

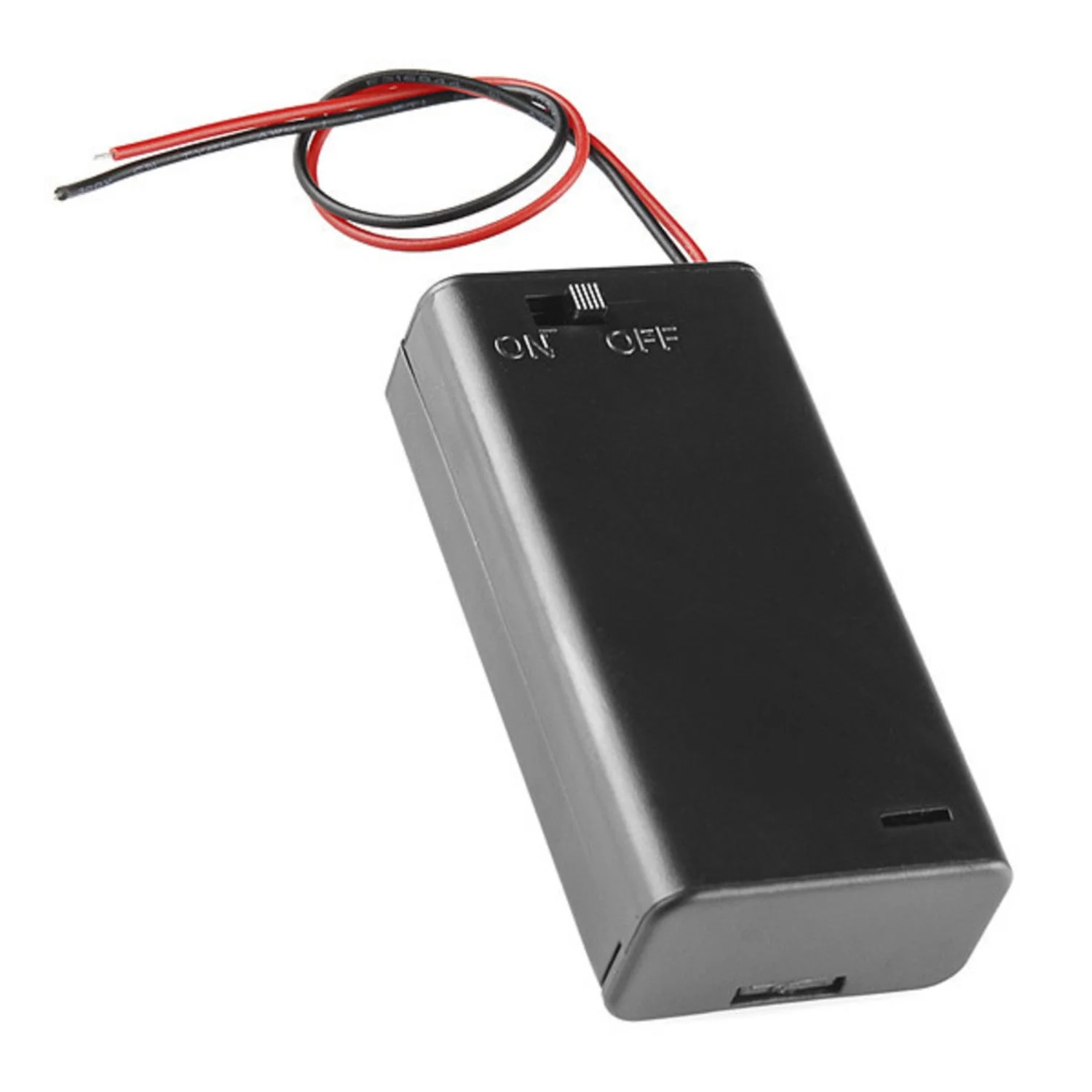

• 1× AA battery holder with switch

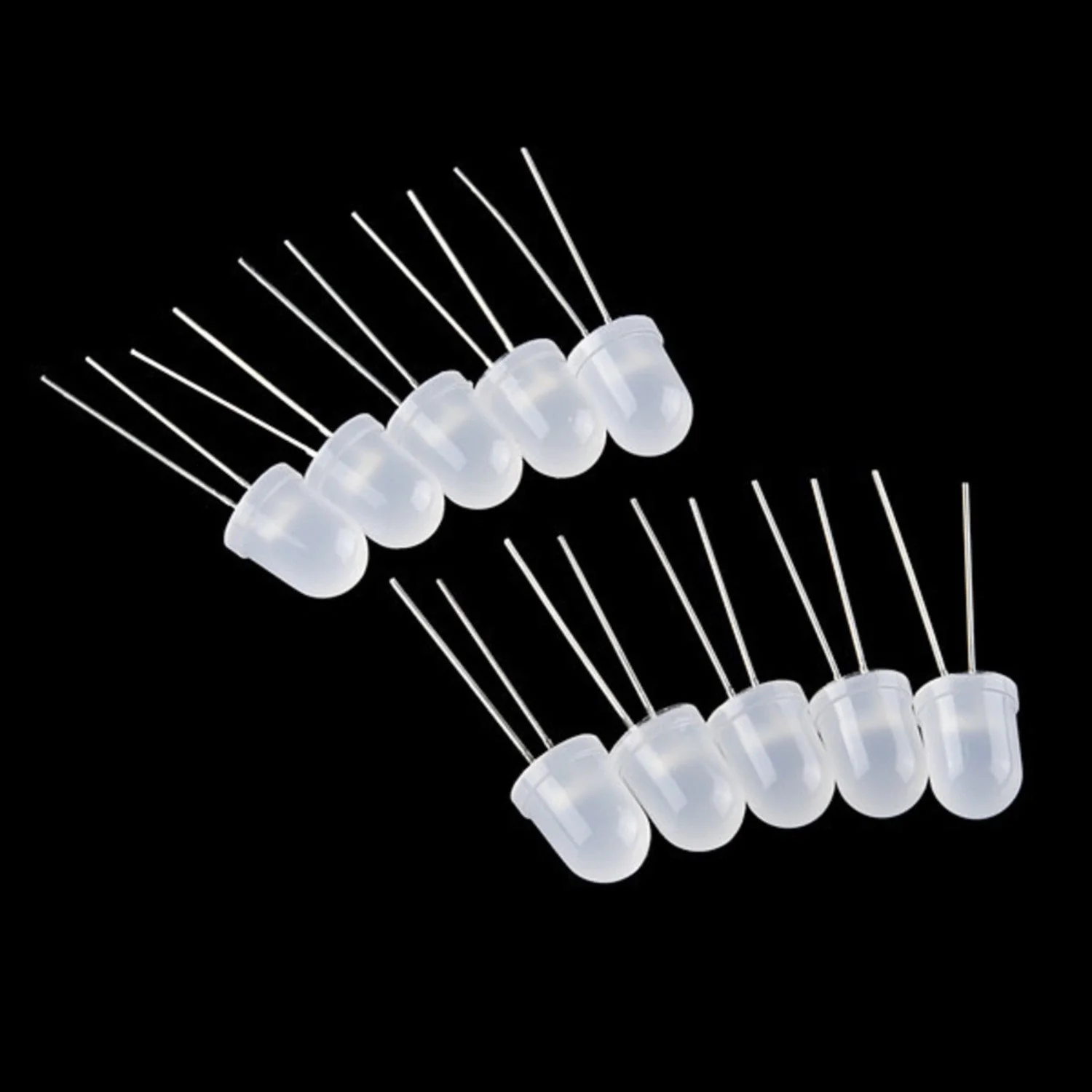

• 9× 10 mm diffused red LEDs

Resources

• Assembly Guide (PDF)
• Evil Mad Scientist Wiki
• Schematic (PDF)
• Design Files (gEDA)
