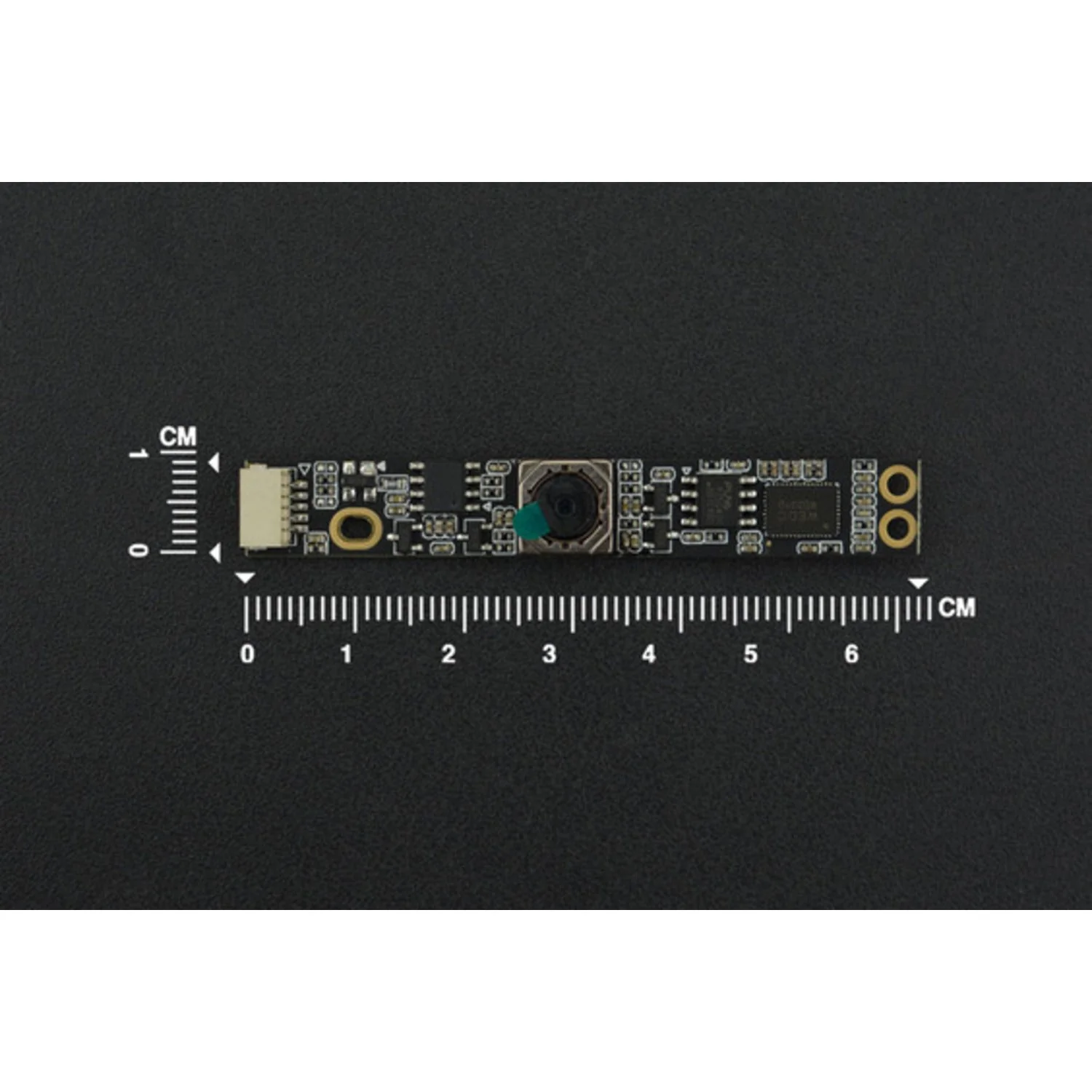

The LattePanda 5MP UVC Camera is a compact, high-quality USB camera module built around the OV5640 image sensor. As a UVC (USB Video Class) device, it requires no driver installation on Windows, Linux, or Android — just plug in and go.

With auto-focus, automatic low-light correction, and OTG support, this camera is ready for face and object recognition projects, machine vision applications, or everyday use as a webcam. Its small form factor makes it easy to integrate into custom enclosures and embedded builds.

Key Features

• 5 Megapixel Sensor – OV5640 with 2592 × 1944 pixel still image capture
• UVC Compliant – Driverless operation on Windows, Linux, and Android
• Auto-Focus – Sharp images without manual adjustment
• Auto Low-Light Correction – Improved performance in dim environments
• OTG Support – Connect directly to mobile devices
• Compact Size – 9 × 62 mm module for easy integration

Specifications

• Sensor – OV5640
• Resolution – 2592 × 1944 pixels (5 MP)
• Field of View – 72°
• Supported Formats – MJPEG, YUV
• Interface – USB 2.0
• Power Supply – 5V
• Operating Current – 140 mA
• Operating Temperature – −30°C to 70°C
• Module Size – 9 × 62 mm

Ideal For

• Face and object recognition projects
• Machine vision and computer vision
• Embedded systems and SBC webcam use
• LattePanda and Raspberry Pi builds

Package Contents

• 1× LattePanda 5MP UVC Camera Module

Resources

• UVC Windows Implementation Guide
• UVC Linux Guide
• UVC Android Guide (GitHub)
