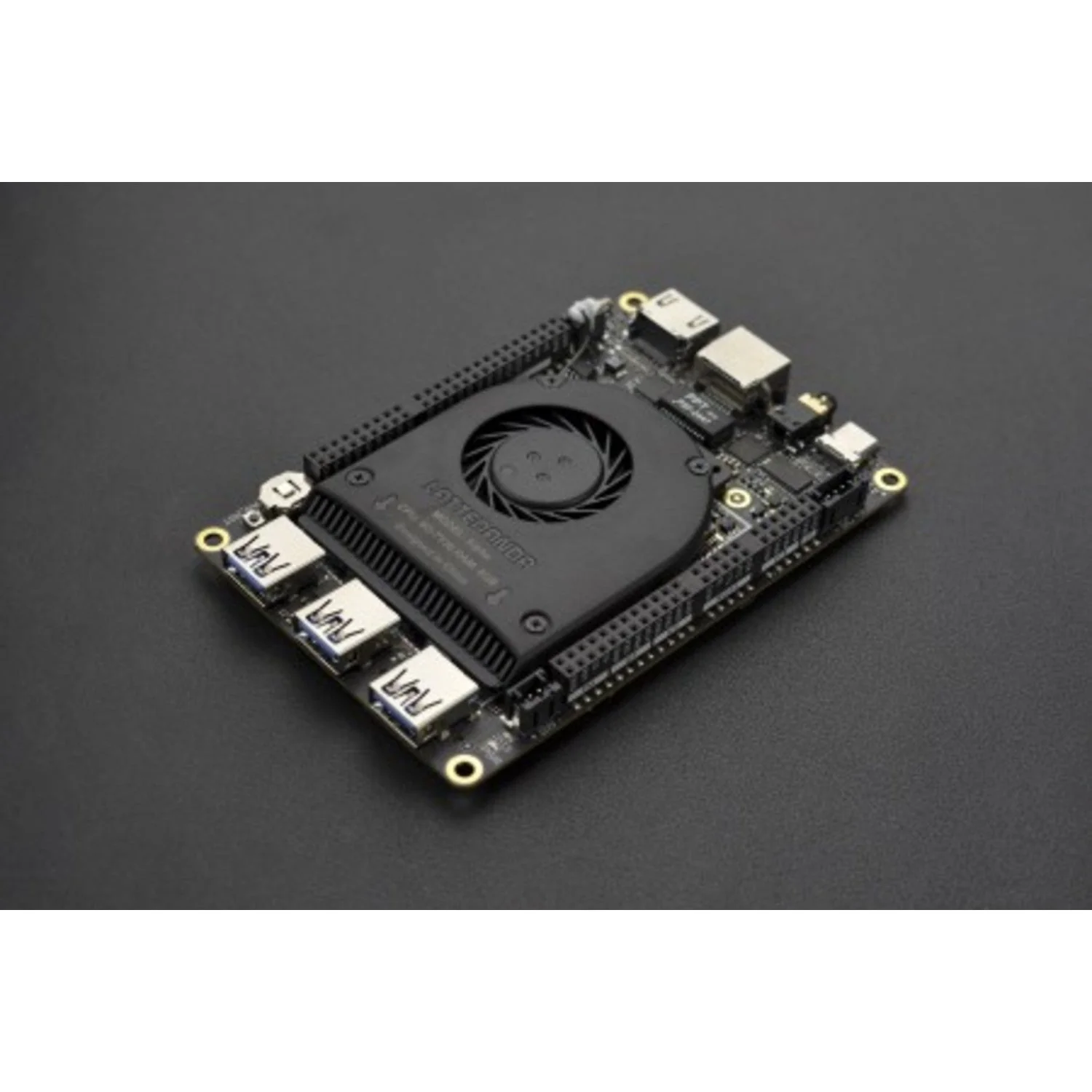

The LattePanda Alpha 864 is a compact single-board computer powered by an Intel Core m3-7Y30 dual-core processor with 8GB RAM and 64GB eMMC storage. It runs Windows 10 Pro or Linux Ubuntu and features Wi-Fi AC, Bluetooth 4.2, Gigabit Ethernet, USB 3.0, USB-C with Power Delivery and DisplayPort, and HDMI output.

An integrated Arduino Leonardo co-processor provides direct GPIO access for hardware projects, while two M.2 slots (M Key for NVMe/SATA SSD, E Key for expansion) offer flexible storage and connectivity options. The ultra-thin design measures just 115 × 78 × 14mm.

Key Features

• Intel Core m3-7Y30 – Dual-core, quad-thread, 1.6–2.6GHz with Intel HD 615 graphics
• 8GB LPDDR3 – Dual-channel 1866MHz RAM
• 64GB eMMC – On-board storage, expandable via M.2 NVMe/SATA SSD
• Dual OS – Windows 10 Pro and Linux Ubuntu supported
• USB-C with PD & DP – Power Delivery, DisplayPort, and USB 3.0 on one port
• 3× USB 3.0 Type-A – Full-size USB ports
• Arduino Leonardo Co-Processor – On-board for GPIO and hardware interfacing
• M.2 Expansion – M Key (PCIe 4x) + E Key (PCIe 2x) slots

Specifications

• CPU: Intel Core m3-7Y30, 1.6–2.6GHz dual-core/quad-thread
• Graphics: Intel HD Graphics 615, 300–900MHz
• RAM: 8GB LPDDR3, dual-channel 1866MHz
• Storage: 64GB eMMC v5.0
• Wi-Fi: 802.11ac, 2.4GHz & 5GHz
• Bluetooth: 4.2
• Ethernet: Gigabit
• USB: 3× USB 3.0 Type-A, 1× USB-C (PD/DP/USB 3.0)
• Display: HDMI, USB-C DisplayPort, eDP
• GPIO: 2× 50-pin headers (I²C, I²S, USB, RS232, UART, RTC)
• Dimensions: 115 × 78 × 14 mm

Ideal For

• Compact desktop computing and thin clients
• IoT gateways and edge computing
• Digital signage and kiosk applications
• Hardware projects combining x86 and Arduino

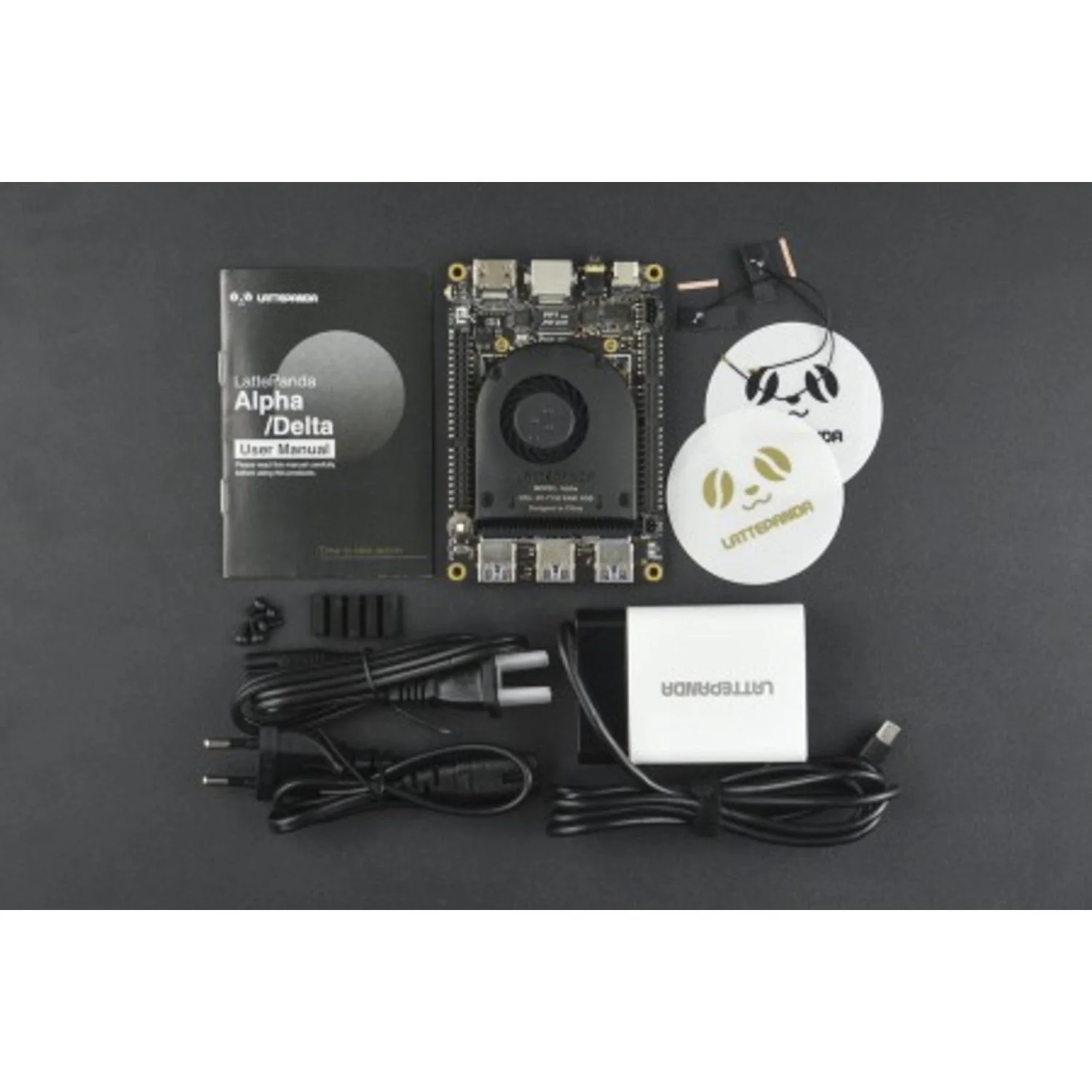

Package Contents

• 1× LattePanda Alpha 864
• 1× Active cooling fan
• 1× 45W PD power adapter
