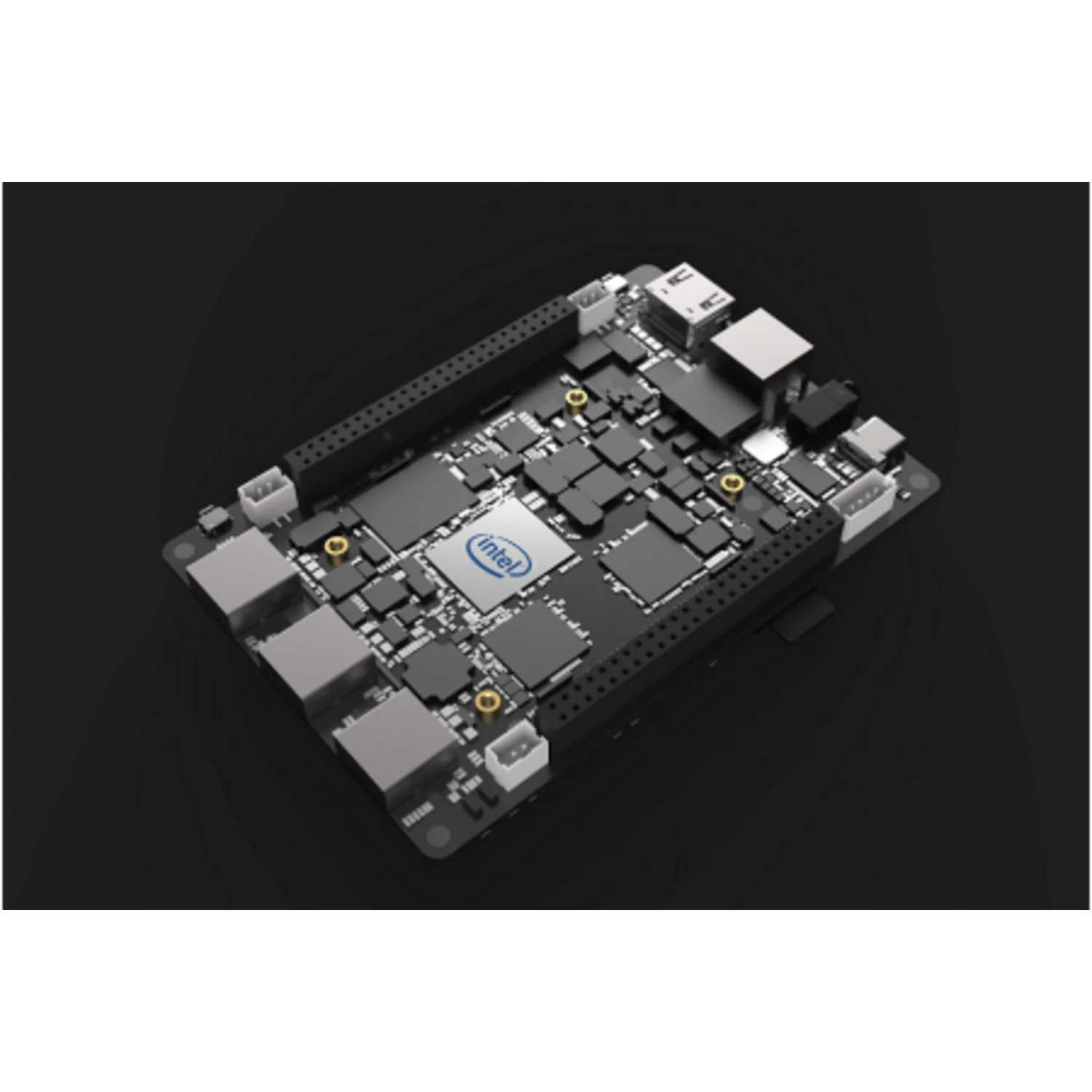

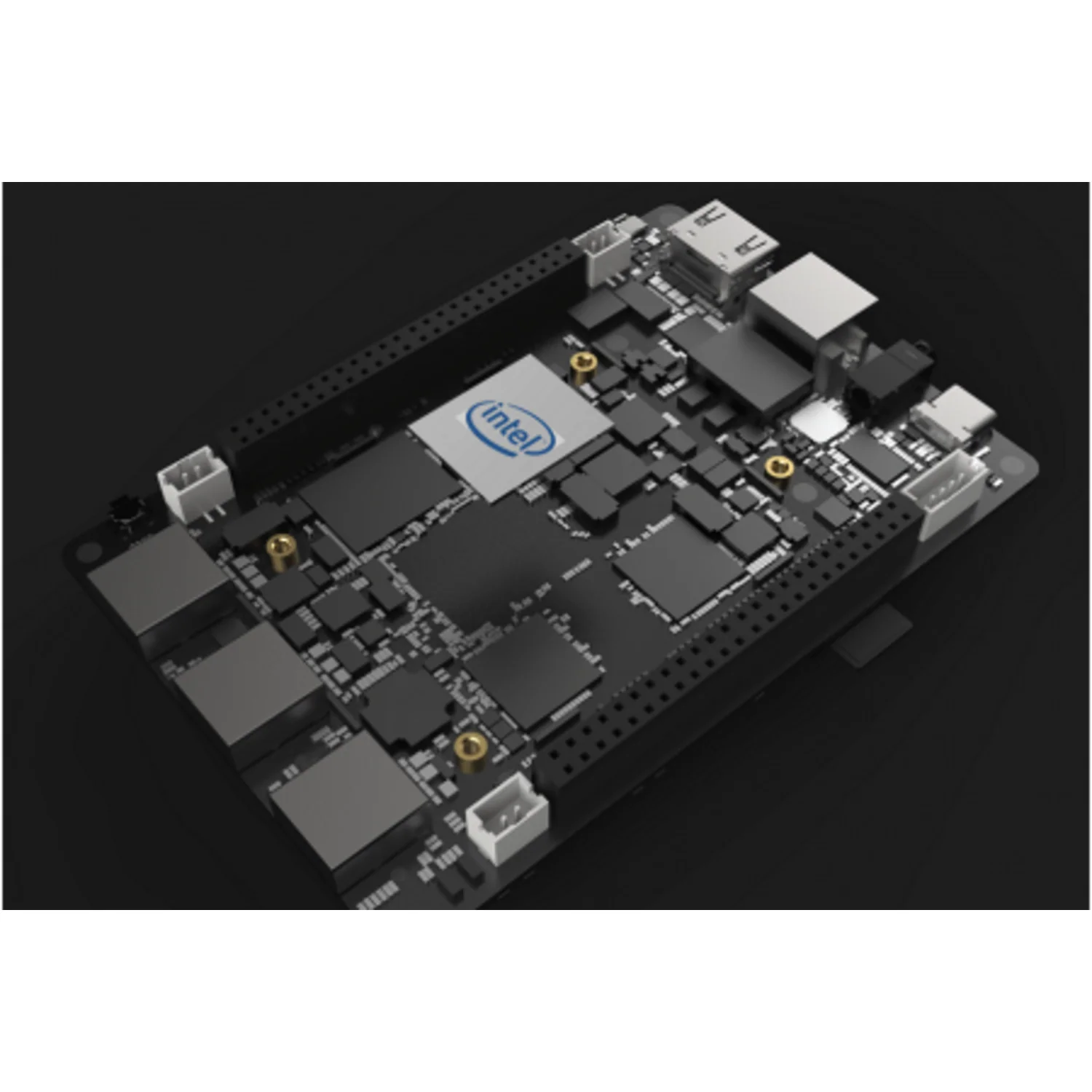

The LattePanda Alpha 8G is a compact single-board computer powered by an Intel Core m3-7Y30 dual-core processor with 8 GB RAM and 64 GB eMMC storage. It runs Windows 10 Pro or Linux Ubuntu, making it a capable mini PC for development, edge computing, and embedded applications.

The board features an integrated Arduino Leonardo co-processor, dual M.2 expansion slots (NVMe/SATA SSD + Wi-Fi/BT), Gigabit Ethernet, Wi-Fi AC, Bluetooth 4.2, and USB-C with Power Delivery and DisplayPort. Two 50-pin GPIO headers provide extensive expansion for I2C, I2S, UART, RS232, and more.

Key Features

• Intel Core m3-7Y30 – Dual-core, four-thread, 1.6–2.6 GHz
• 8 GB LPDDR3 RAM – 1866 MHz dual-channel
• 64 GB eMMC 5.0 – On-board storage
• Dual OS Support – Windows 10 Pro and Linux Ubuntu
• Arduino Leonardo Co-Processor – Integrated for hardware I/O projects
• Dual M.2 Expansion – M Key (PCIe 4×, NVMe/SATA SSD) + E Key (PCIe 2×, USB 2.0, UART)
• USB-C – Supports Power Delivery, DisplayPort, and USB 3.0
• Extensive GPIO – 2× 50-pin headers with I2C, I2S, USB, RS232, UART, RTC, and power management

Specifications

• Processor: Intel Core m3-7Y30, 1.6–2.6 GHz, dual-core/four-thread
• Graphics: Intel HD Graphics 615, 300–900 MHz
• RAM: 8 GB LPDDR3, 1866 MHz dual-channel
• Storage: 64 GB eMMC 5.0
• Wi-Fi: 802.11ac, 2.4 GHz and 5 GHz dual-band
• Bluetooth: 4.2
• Ethernet: Gigabit
• USB: 3× USB 3.0 Type-A, 1× USB-C (PD, DP, USB 3.0)
• Display Output: HDMI, USB-C DisplayPort, eDP (extendable touch displays)
• Co-Processor: Arduino Leonardo

Ideal For

• Compact desktop and thin client applications
• Edge computing and IoT gateways
• Embedded systems and kiosks
• Robotics and hardware prototyping with Arduino integration

Package Contents

• 1× LattePanda Alpha 8G

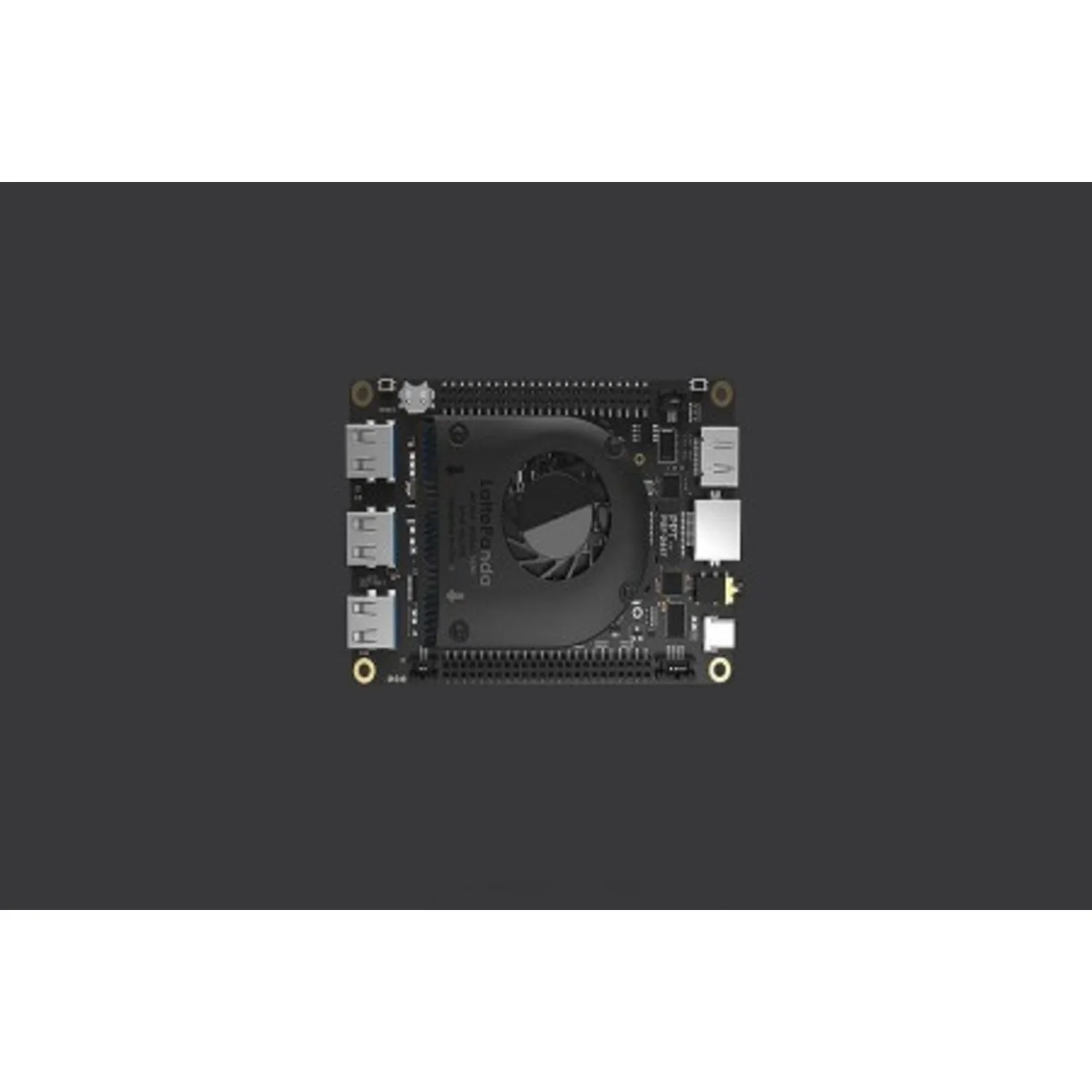

• 1× Active cooling fan
• 1× 45 W USB-C PD power adapter

Resources

• LattePanda Website
