The LC76G is a multi-GNSS positioning module that supports GPS, BeiDou (BDS), GLONASS, Galileo, and QZSS satellite systems. It allows multi-system combined or single-system independent positioning for fast, accurate location data. The module communicates via UART or I2C, making it compatible with a wide range of microcontrollers and single-board computers.

With built-in EPO (Extended Predictive Orbit) and EASY (Embedded Assist System) functions, the module achieves faster time-to-first-fix. An on-board rechargeable lithium battery preserves ephemeris data for hot starts, and two status LEDs indicate module operation.

Key Features

• Multi-GNSS Support – GPS, BeiDou (BDS), GLONASS, Galileo, and QZSS
• UART & I2C Interfaces – UART baud rate configurable from 9600 to 921600bps (115200bps default)
• Built-In LNA – Low-noise amplifier for improved reception sensitivity
• EPO & EASY Functions – Extended predictive orbit and embedded assist for faster fixes
• 1PPS Output – Pulse-per-second timing output
• On-Board Backup Battery – Rechargeable MS621FE for preserving ephemeris and hot starts
• Status LEDs – Two LEDs for module working status indication

Platform Compatibility

• Raspberry Pi
• Raspberry Pi Pico
• Jetson Nano
• Arduino
• ESP32

Package Contents

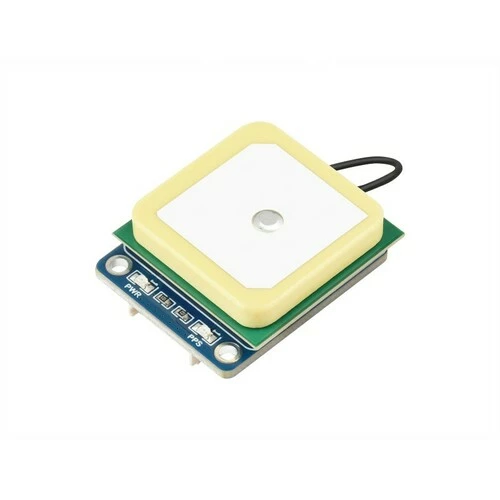

• 1× LC76G GNSS Module (with active GPS ceramic antenna)
• 1× GH1.25 8-pin cable

Resources

• Wiki Documentation – Demos, tutorials, and user manuals
