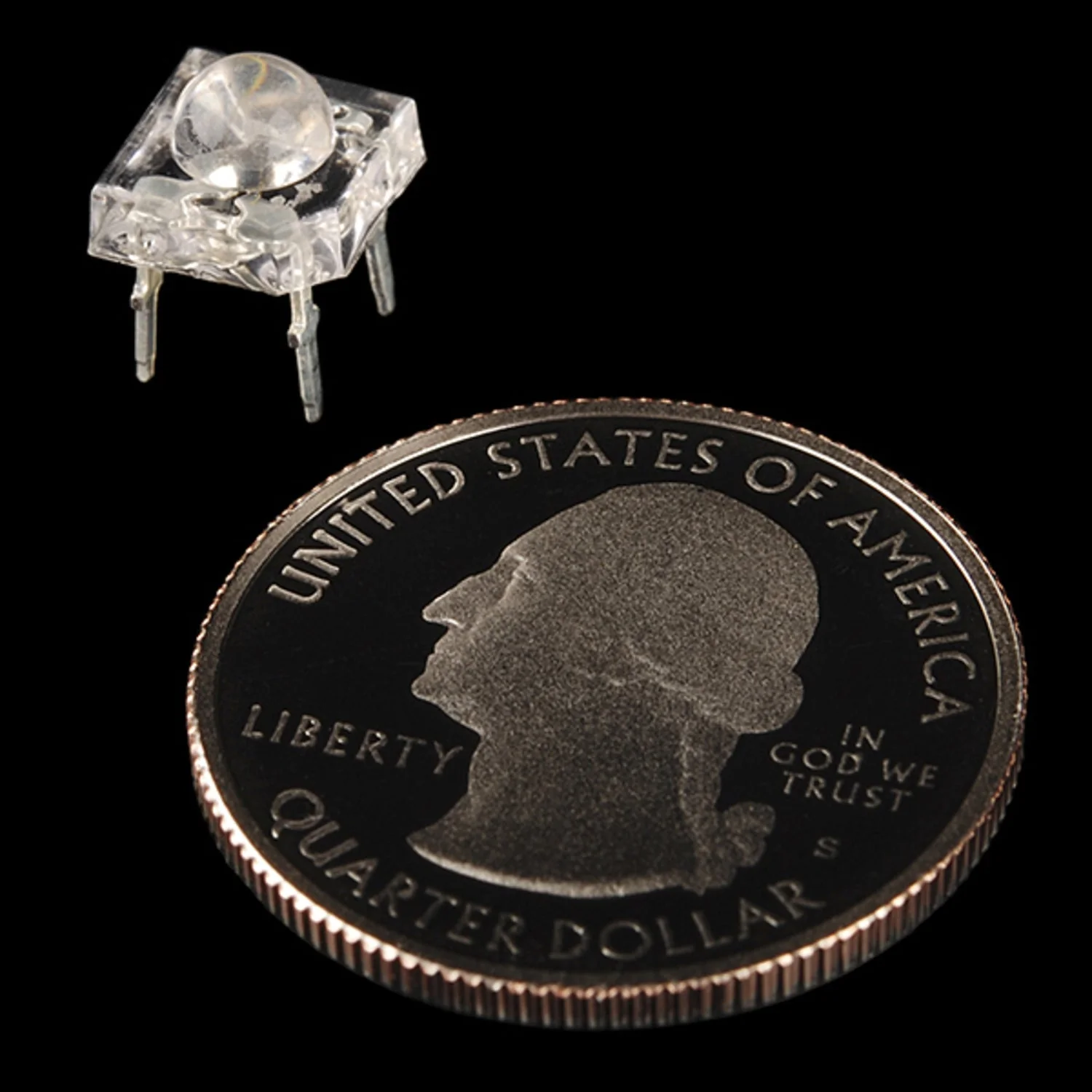

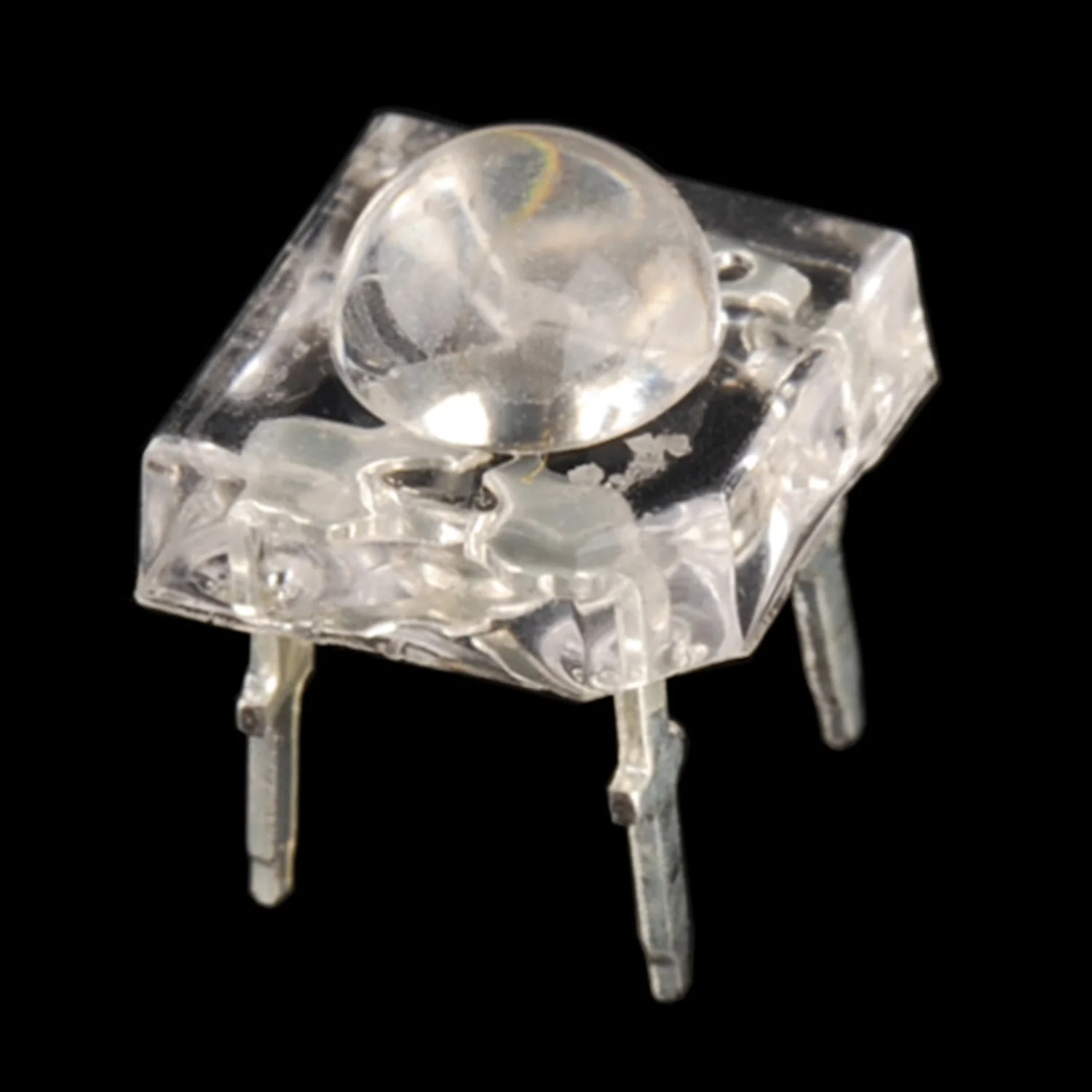

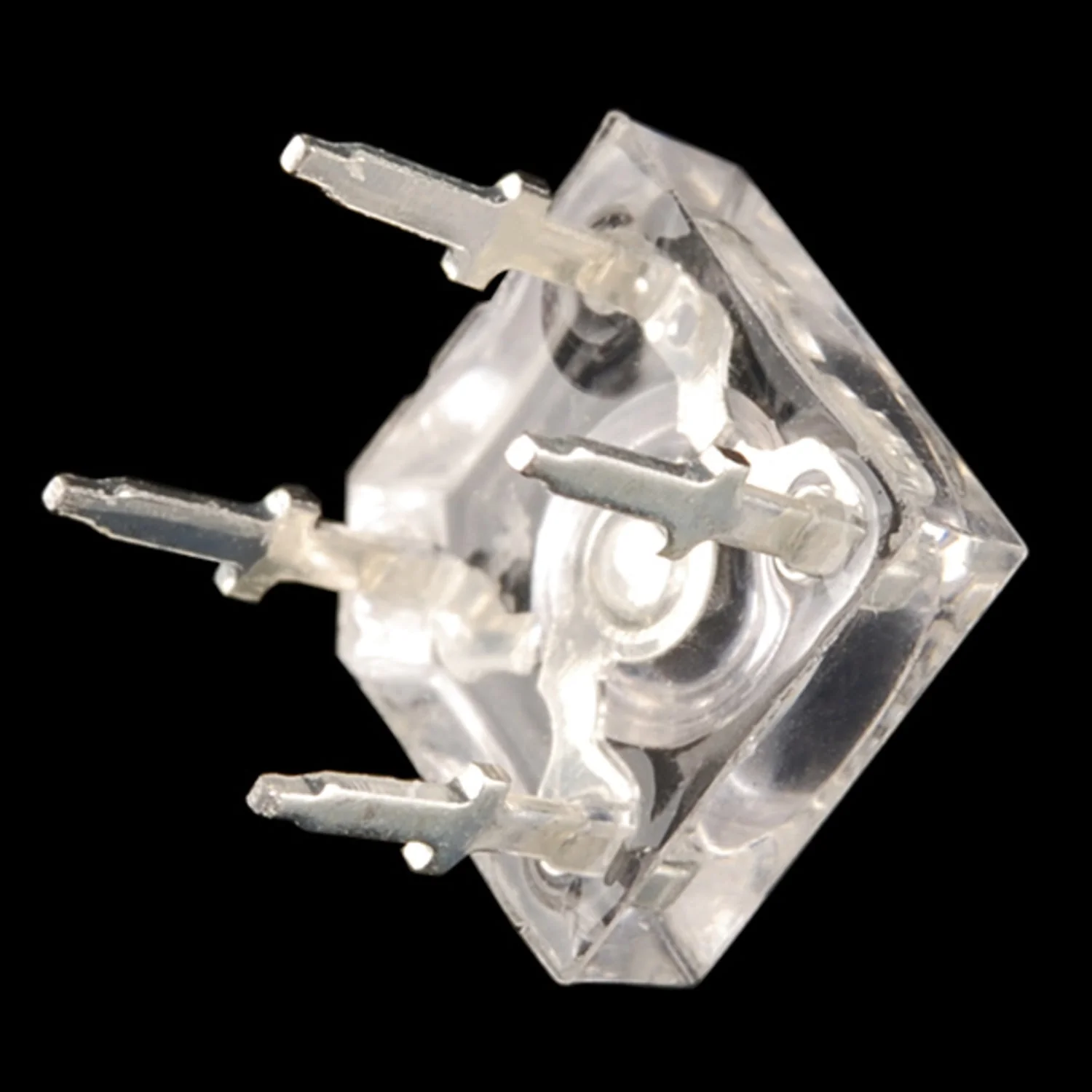

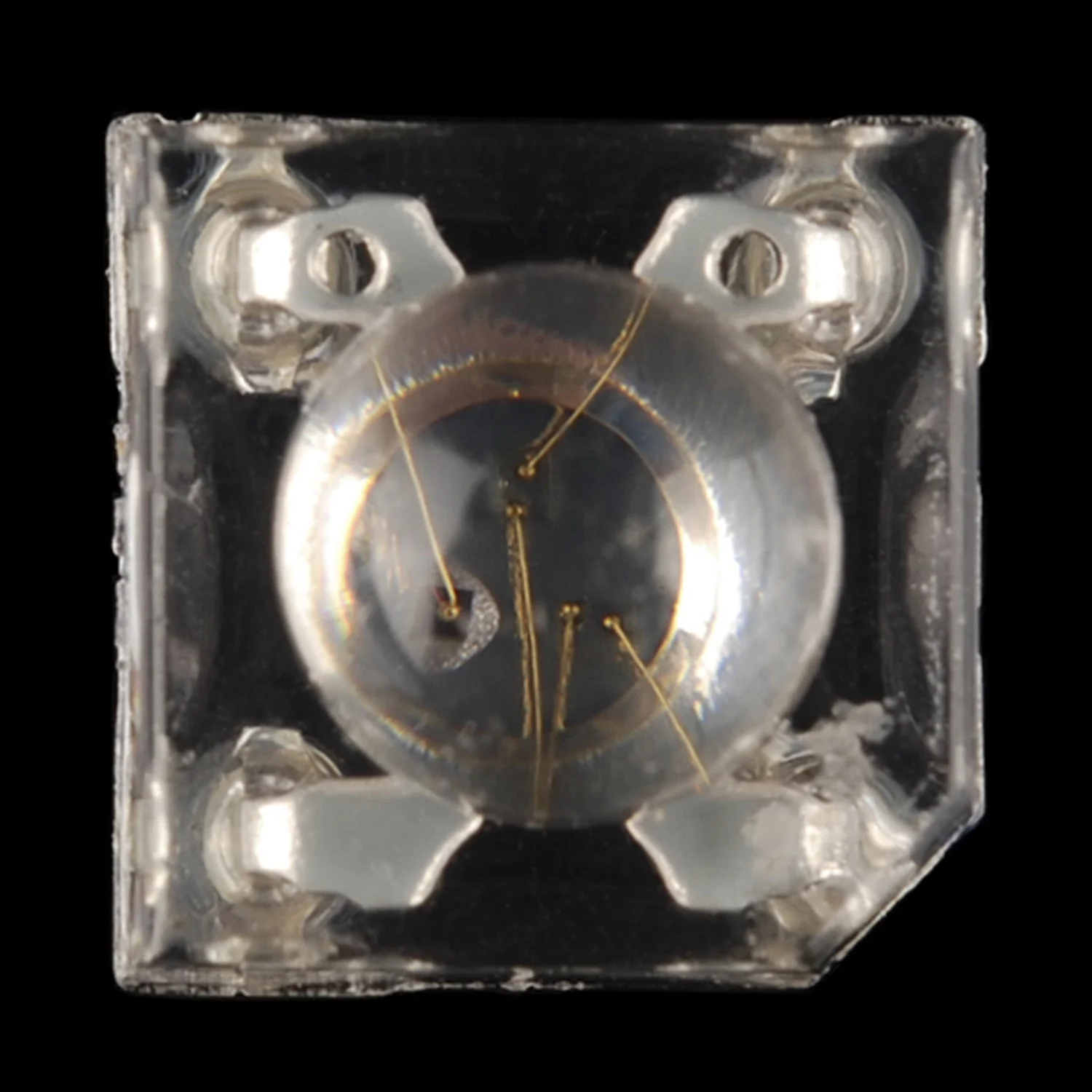

Thanks to their square shape, these RGB LEDs can sit flush against a PCB saving you precious vertical space in projects where space is a luxury. They may not be huge, but these common cathode piranha LEDs are bright!

Features:

• Common Cathode
• Forward Voltage:
  • Red: 1.8 - 2.4V
  • Green: 2.9 - 3.3V
  • Blue: 3.0 - 3.4V
• Luminous Intensity:
  • Red: 1000 - 1500mcd
  • Green: 3000 - 4000mcd
  • Blue: 1000 - 1500mcd

Documents:

• Datasheet
• LED Tutorial
