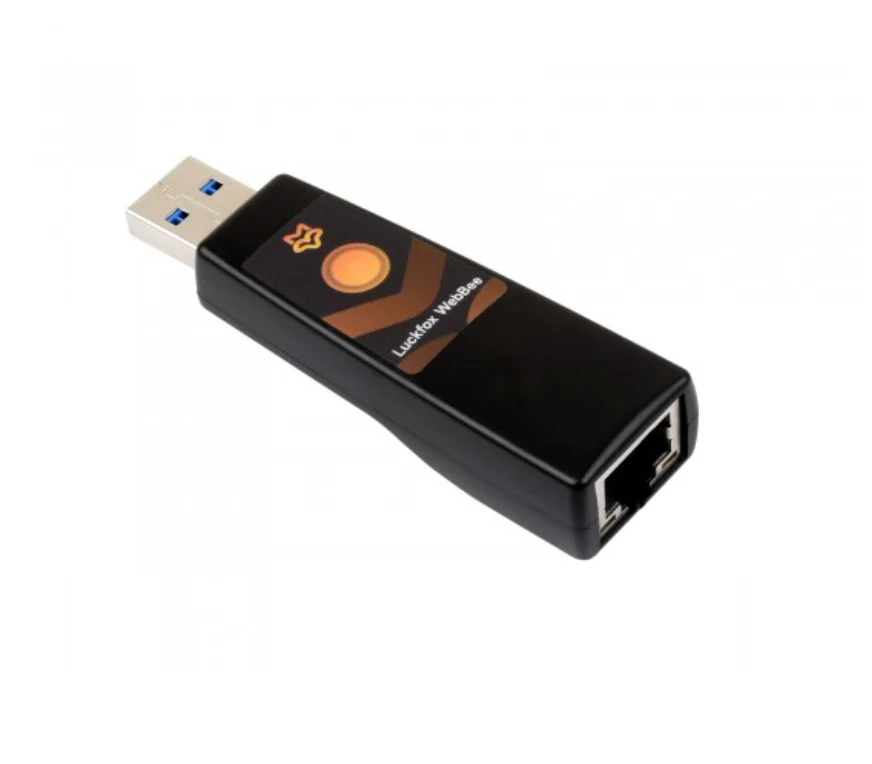

The Luckfox Pico WebBee is a compact Linux development board built around the Rockchip RV1103 chip, combining an ARM Cortex-A7 core clocked at 1.2GHz with a RISC-V MCU. It comes bundled with a custom ABS protective case, making it ready for both bench development and embedded deployment.

With 64MB DDR2 RAM, 128MB onboard flash, a 10/100Mbps Ethernet port, and a USB Type-A connector for plug-and-play development, the WebBee is a versatile and affordable platform for lightweight servers, automation tools, and smart home prototyping.

Key Features

• Rockchip RV1103 Processor – ARM Cortex-A7 at 1.2GHz with RISC-V MCU, NEON, and FPU
• 64MB DDR2 RAM – Sufficient for running Linux-based applications
• 128MB SLC NAND Flash – Onboard storage with TF card expansion support
• 10/100Mbps Ethernet – Built-in Ethernet controller with embedded PHY for reliable networking
• USB 2.0 Type-A – Host/Device port for development, debugging, and peripherals
• ABS Protective Case – Custom-fit enclosure included for durability

Ideal For

• Lightweight web servers
• USB scripting and automation tools
• Smart home device prototyping
• Embedded Linux learning and development

Specifications

• CPU: Rockchip RV1103 G1 (Cortex-A7 1.2GHz + RISC-V)
• RAM: 64MB DDR2
• Storage: 128MB SLC NAND Flash (expandable via TF card)
• Connectivity: USB 2.0 Host/Device, 10/100M Ethernet
• Weight: 13g

Package Contents

• 1× Luckfox Pico WebBee Development Board
• 1× ABS Protective Case

Resources

• Luckfox WebBee Wiki
• Luckfox GitHub Repository
