The M.2 2.5G Network Card adds high-speed Ethernet connectivity to devices with an M.2 B+M Key slot. Powered by the Intel I225-V chipset, it supports adaptive data rates up to 2500 Mbps and is compatible with LattePanda Alpha, LattePanda 3 Delta, LattePanda Sigma, and other M.2-equipped single-board computers running Windows 10/11 or Linux.

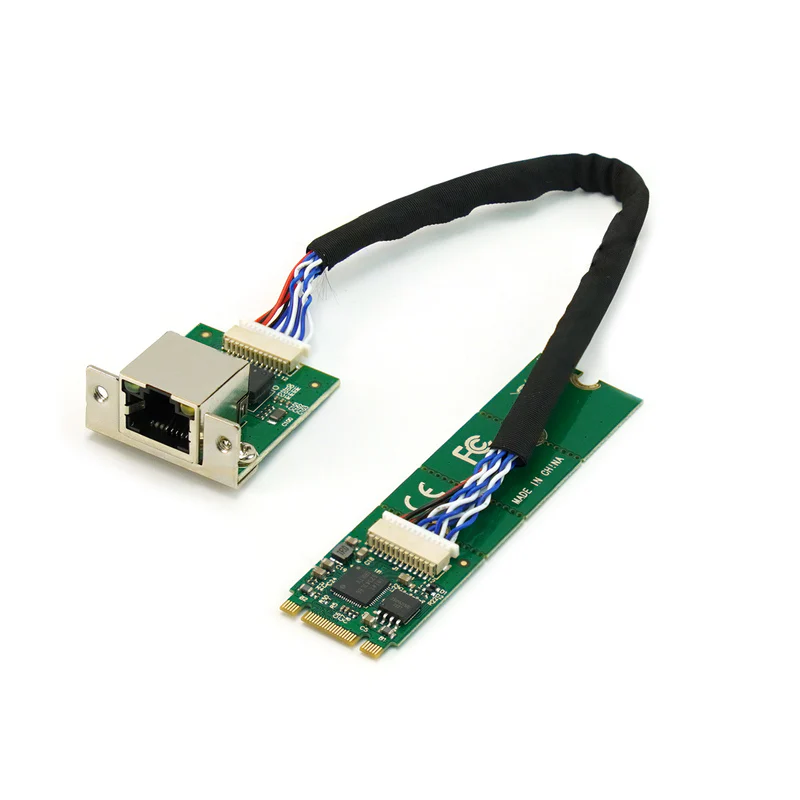

The card consists of an M.2 module connected via a 210 mm cable to a separate RJ45 Ethernet port board, allowing flexible placement within your enclosure. Plug-and-play installation requires no additional configuration.

Key Features

• Intel I225-V Chipset – Reliable, energy-efficient 2.5 Gigabit Ethernet
• 2500 Mbps Adaptive – Auto-negotiates 10/100/1000/2500 Mbps
• M.2 B+M Key Interface – Standard slot for broad device compatibility
• Plug and Play – No additional drivers needed on supported operating systems
• Separate RJ45 Board – Flexible mounting via 210 mm cable

Specifications

• Chipset – Intel I225-V
• Interface – M.2 B+M Key
• Transmission Rate – 10/100/1000/2500 Mbps (adaptive)
• Network Topology – 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE
• Standards – IEEE 802.3bz, 802.3, 802.3x, 1588, 802.3az
• Network Interface – RJ45
• Operating System – Windows 10/11, Linux
• Operating Temperature – 0 to 55 °C
• Storage Temperature – −40 to 70 °C
• Cable Length – 210 mm
• M.2 Board Size – 22 × 80 mm
• RJ45 Board Size – 33 × 30 mm

Compatibility

• LattePanda Alpha
• LattePanda 3 Delta
• LattePanda Sigma
• Other devices with M.2 B+M Key slots

Package Contents

• 1× M.2 (B+M Key) network card
• 1× 2.5G Ethernet RJ45 port board
• 1× Data cable (210 mm)
