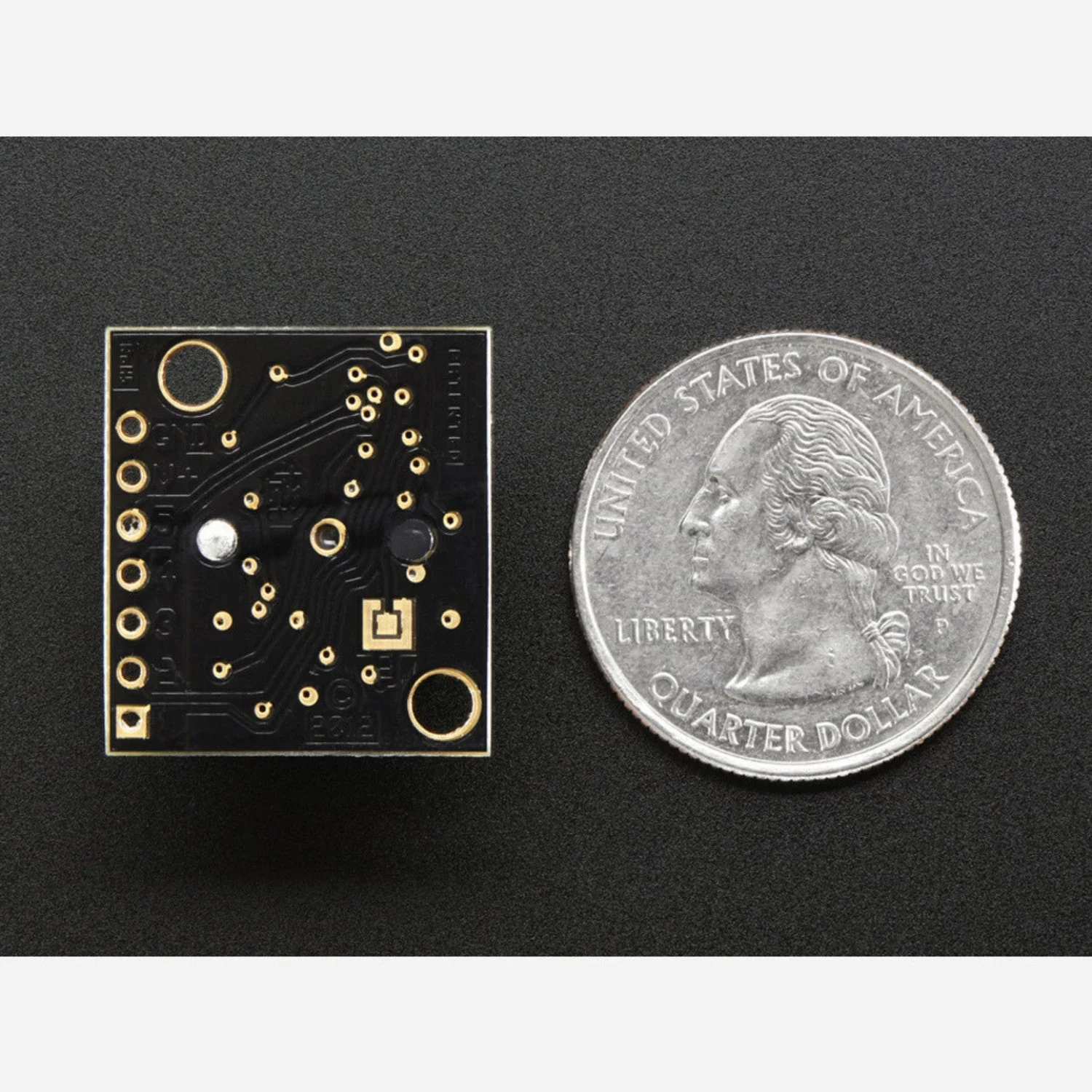

Maxbotix Ultrasonic Rangefinder - HRLV-EZ0 [HRLV-EZ0]
The HRLV-MaxSonar-EZ0 is a high-accuracy, high-resolution ultrasonic rangefinder from MaxBotix. It provides precision distance measurement from 30 cm to 5 m in a compact package, making it ideal for robotics, automation, and proximity-sensing applications.
This sensor features 1 mm resolution with built-in target-size and operating-voltage compensation for improved accuracy. Internal speed-of-sound temperature compensation ensures consistent readings across varying conditions, and factory calibration comes standard.
Key Features
- 1 mm Resolution – High-resolution distance measurement for precise ranging
- 30 cm to 5 m Range – Reliable sensing with objects closer than 30 cm reported as 30 cm
- Object Detection from 1 mm – Detects presence of objects as close as 1 mm
- Multiple Output Formats – Pulse width, analogue voltage, and serial digital (RS-232 or TTL)
- Temperature Compensation – Internal speed-of-sound compensation with optional external input
- Noise Rejection – Superior rejection of outside noise sources for reliable operation
- Factory Calibrated – Ready to use out of the box
- Compact Form Factor – Less than one cubic inch in size
Specifications
- Model – HRLV-EZ0 (widest beam pattern in the HRLV series)
- Detection Range – 1 mm to 5 m
- Sensing Range – 30 cm to 5 m
- Resolution – 1 mm
- Outputs – Pulse width, analogue voltage, RS-232 serial, TTL serial
- Default Output – RS-232 logic level
Ideal For
- Robotics and autonomous navigation
- Proximity detection and object avoidance
- Level measurement and tank monitoring
- Interactive installations and art projects
Package Contents
- 1× MaxBotix HRLV-EZ0 Ultrasonic Rangefinder
