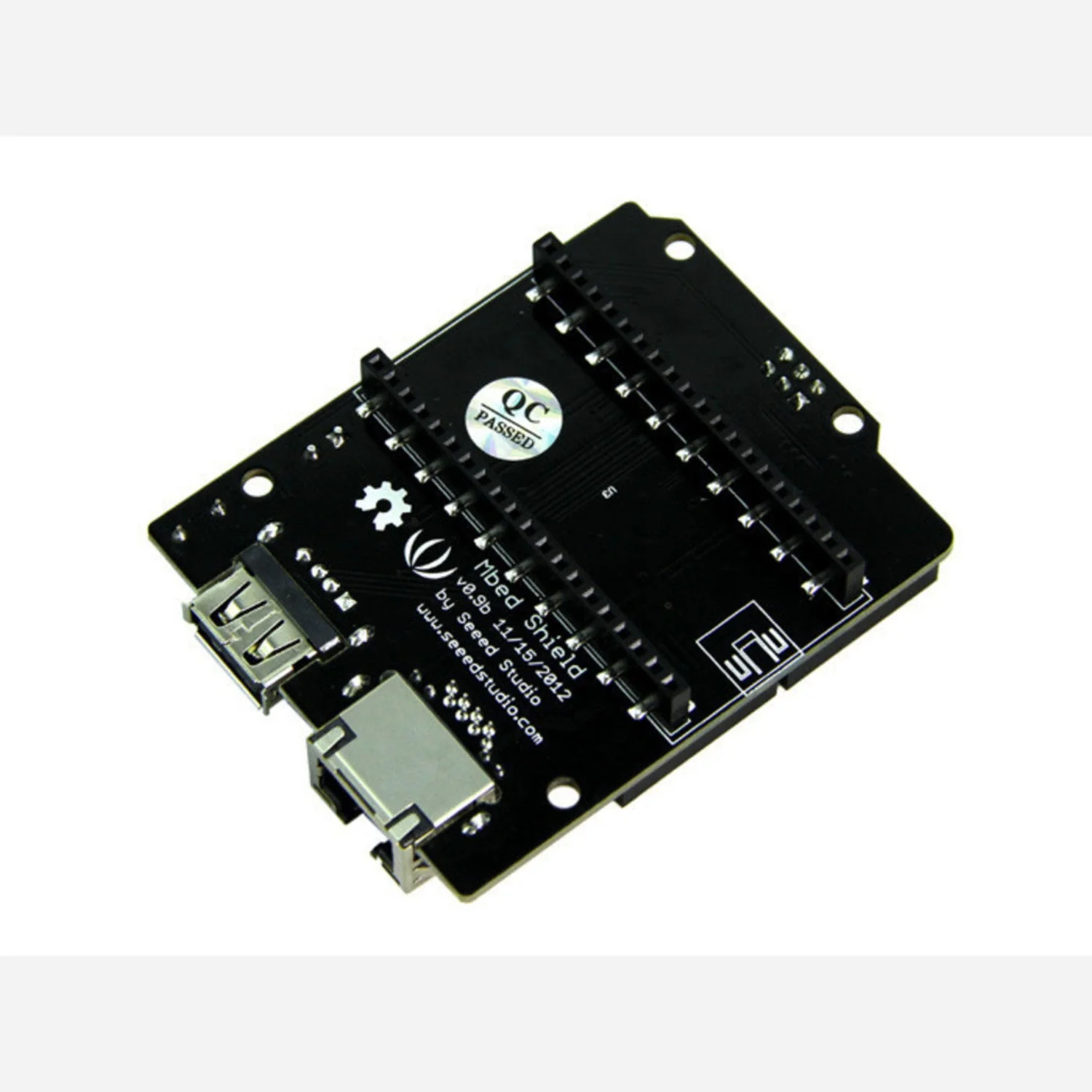

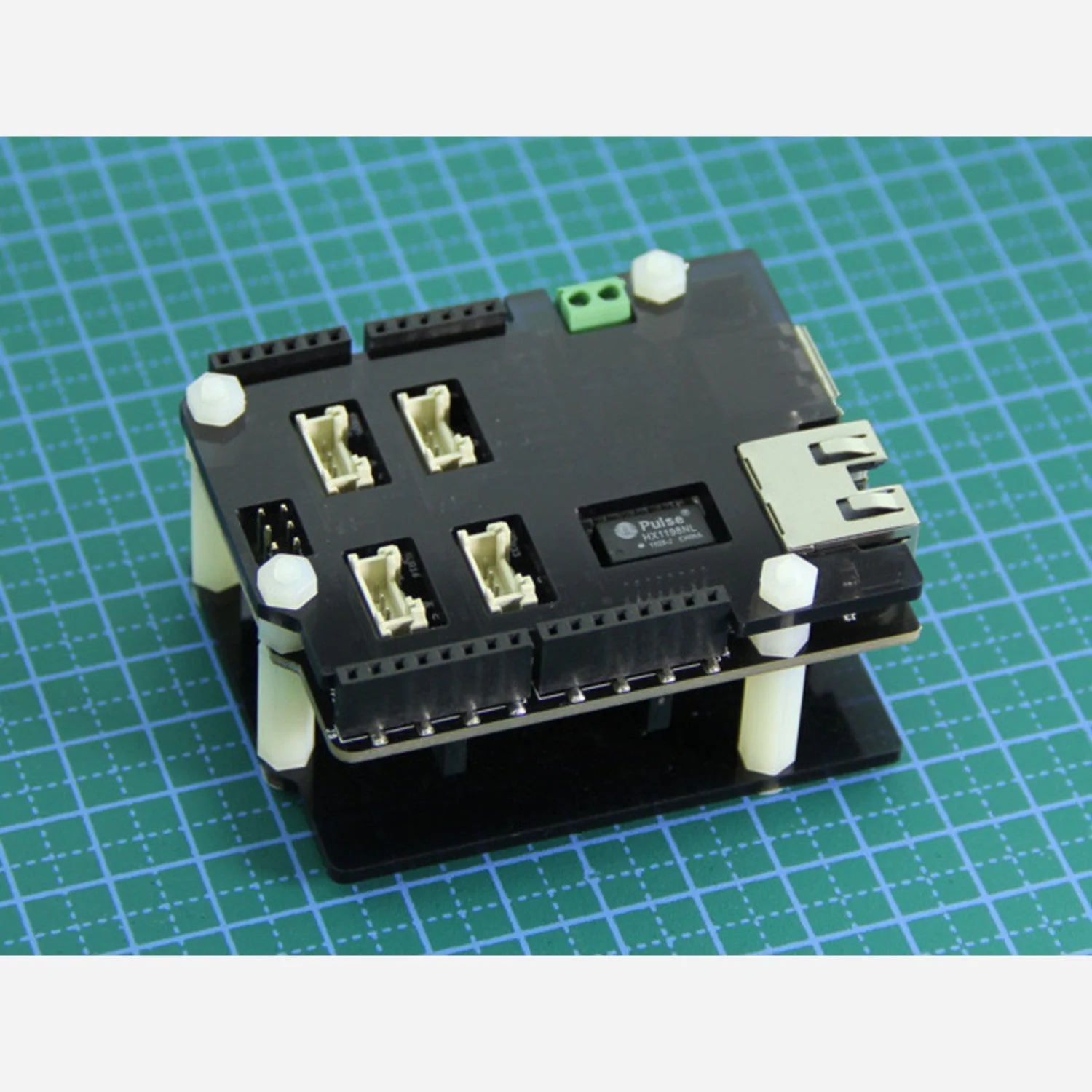

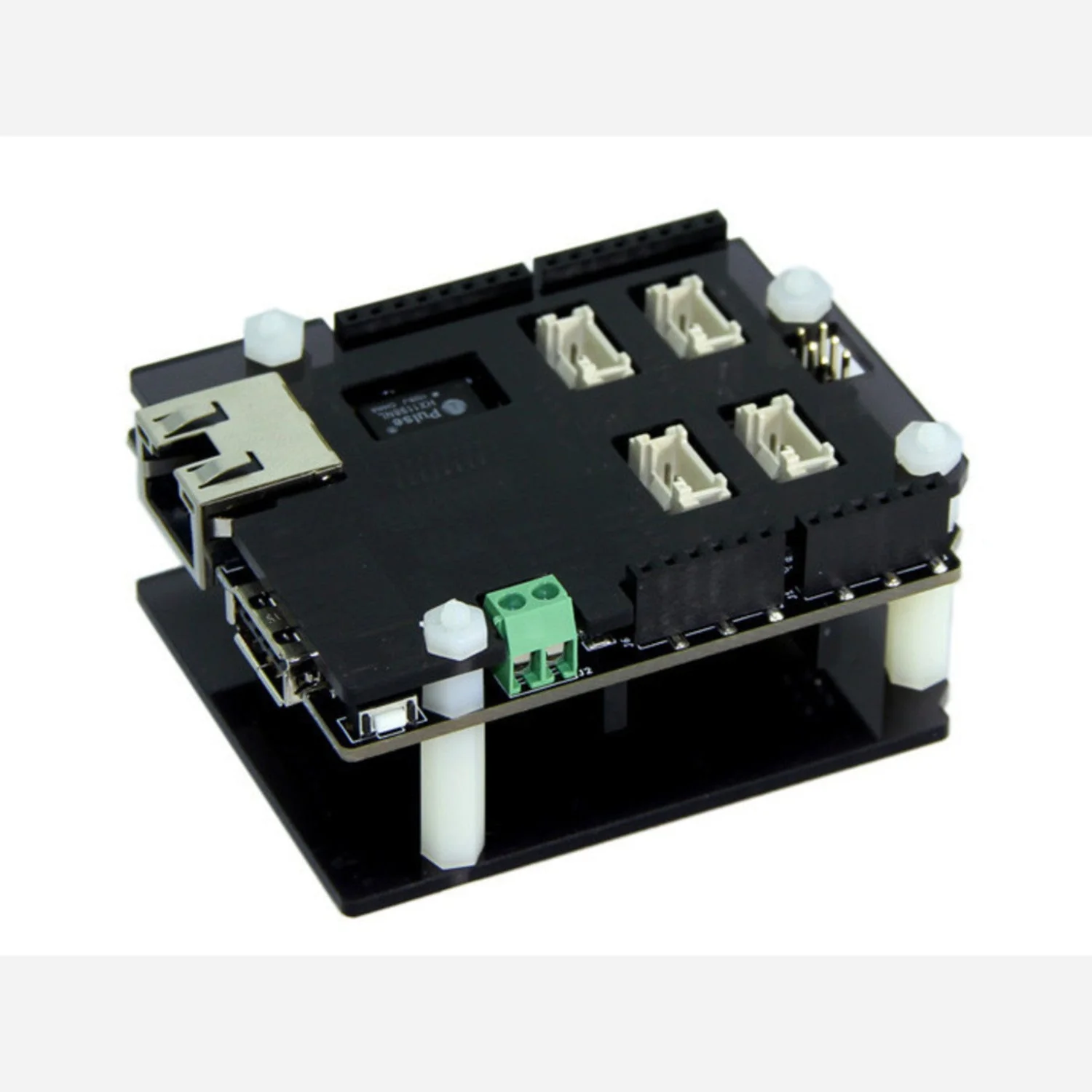

The mbed Shield is an application board designed for the mbed LPC1768 prototyping platform. It brings together CAN, Ethernet, USB, and four standard Grove connectors on a single board, making it easy to connect sensors, actuators, and communication interfaces to your mbed projects.

With a standard Arduino shield form factor and compatible base pins, it also works with other Arduino-compatible shields for extended functionality.

Key Features

• Multiple Communication Interfaces – CAN bus, Ethernet, and USB all on one board
• 4 Grove Sockets – Plug-and-play connection for Grove sensors and modules
• Arduino Shield Compatible – Standard form factor and base pins for stacking with Arduino shields
• Designed for mbed LPC1768 – Direct compatibility with the mbed prototyping platform
• USB Host Support – Read from USB storage devices with included firmware examples

Ideal For

• mbed IoT and networking projects
• CAN bus and Ethernet communication experiments
• Rapid prototyping with Grove sensors
• Expanding mbed capabilities with Arduino-compatible shields

Package Contents

• 1× mbed Shield

Resources

• Seeed Studio Wiki – mbed Shield
