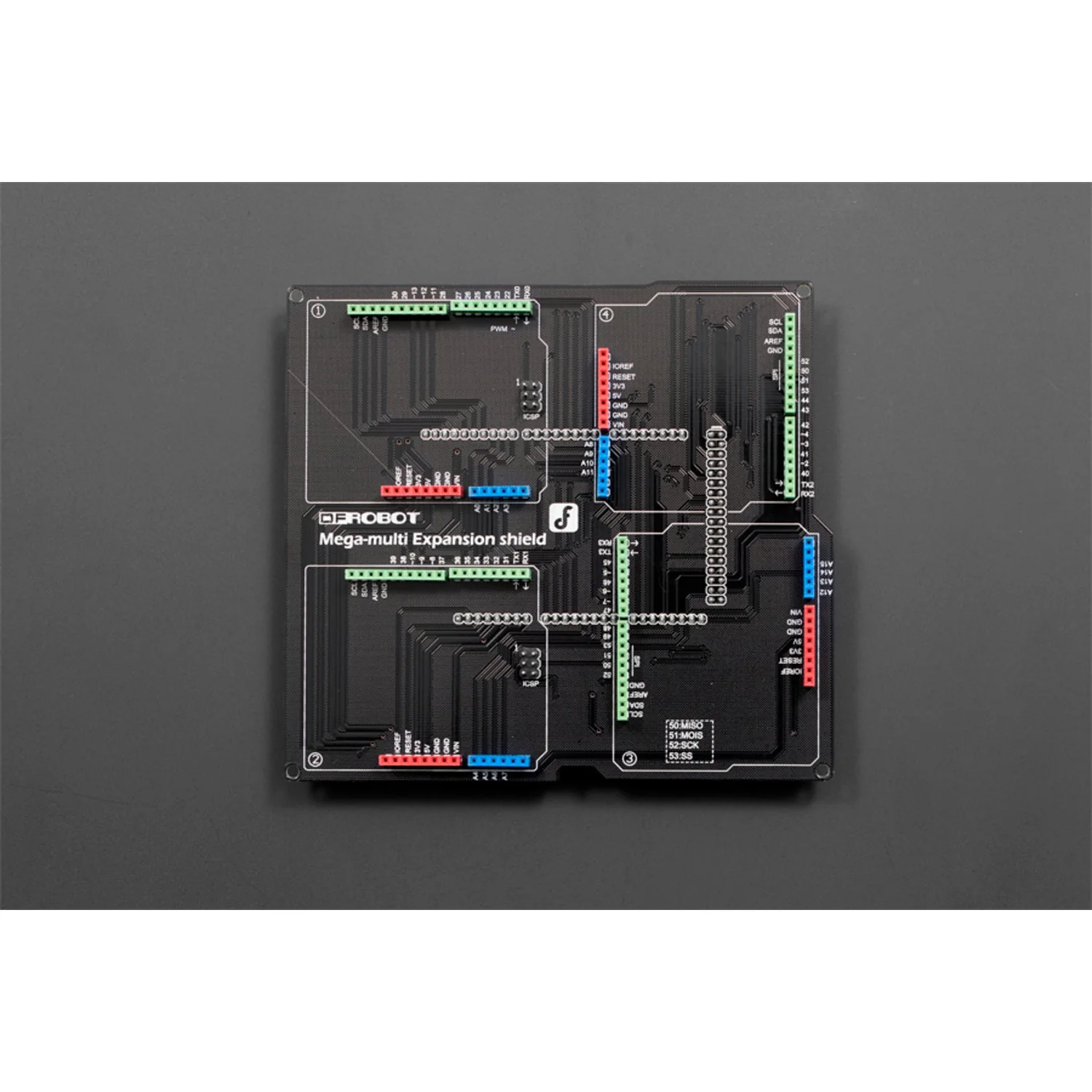

The Mega Multi IO Expansion Shield lets you stack up to four shields simultaneously on an Arduino Mega or Due without worrying about I/O pin conflicts. All Mega I/O pins are expanded and routed to four separate shield slots, keeping your project clean and tidy with organised cabling.

Key Features

• 4 Shield Slots – Stack up to four shields at the same time
• Full I/O Expansion – All Mega pins routed to each slot
• No Pin Conflicts – Use multiple shields without worrying about overlapping pins
• Clean Wiring – Organised layout keeps cables tidy

Specifications

• Compatibility – Arduino Mega 1280, Mega 2560, ADK, Due
• Shield Capacity – Up to 4 shields
• Dimensions – 144 × 130 mm (5.67 × 5.12″)

Ideal For

• 3D printer controller builds
• 4WD robotic platforms
• Multi-shield prototyping
• Complex Arduino Mega projects

Package Contents

• 1× Mega Multi IO Expansion Shield

Resources

• DFRobot Wiki
