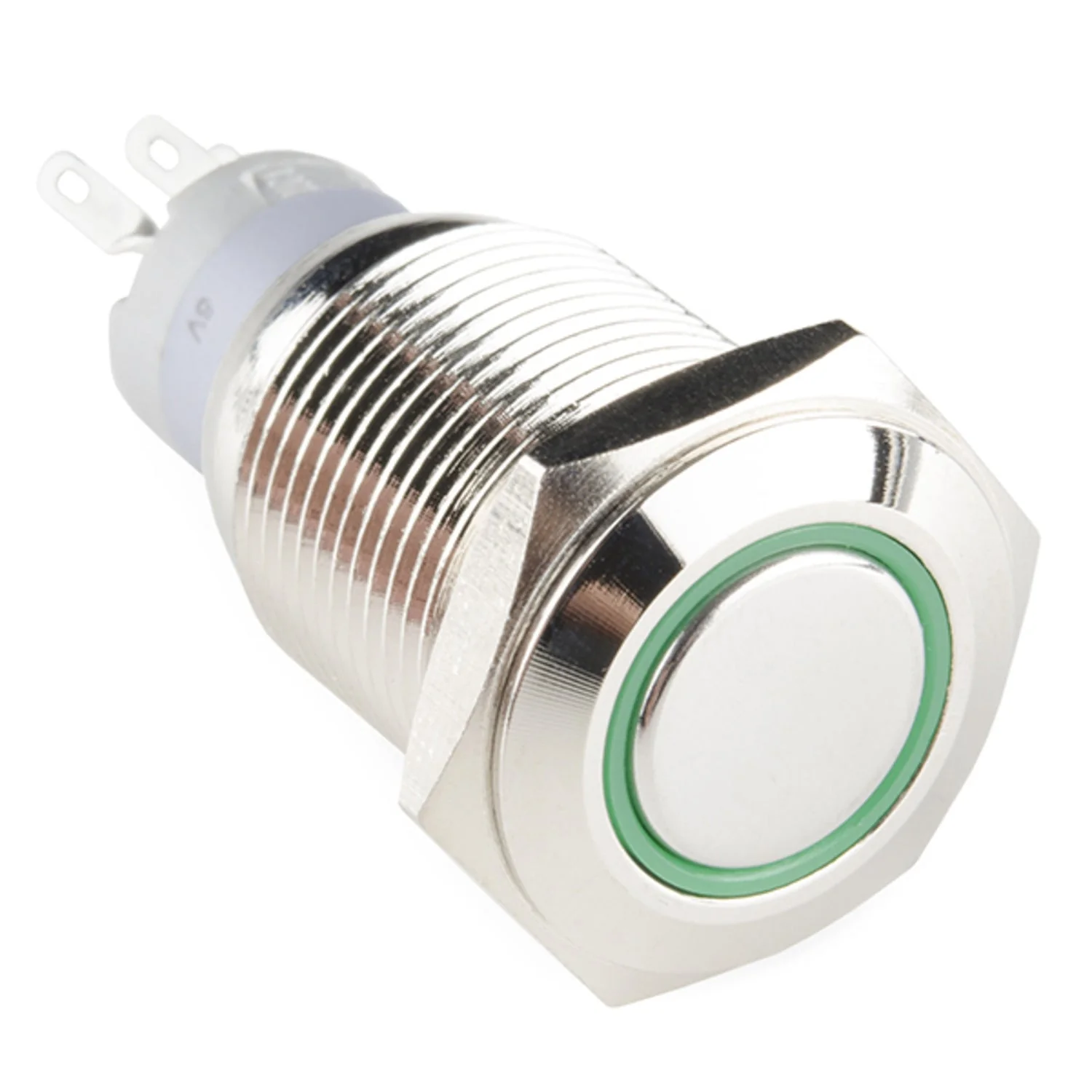

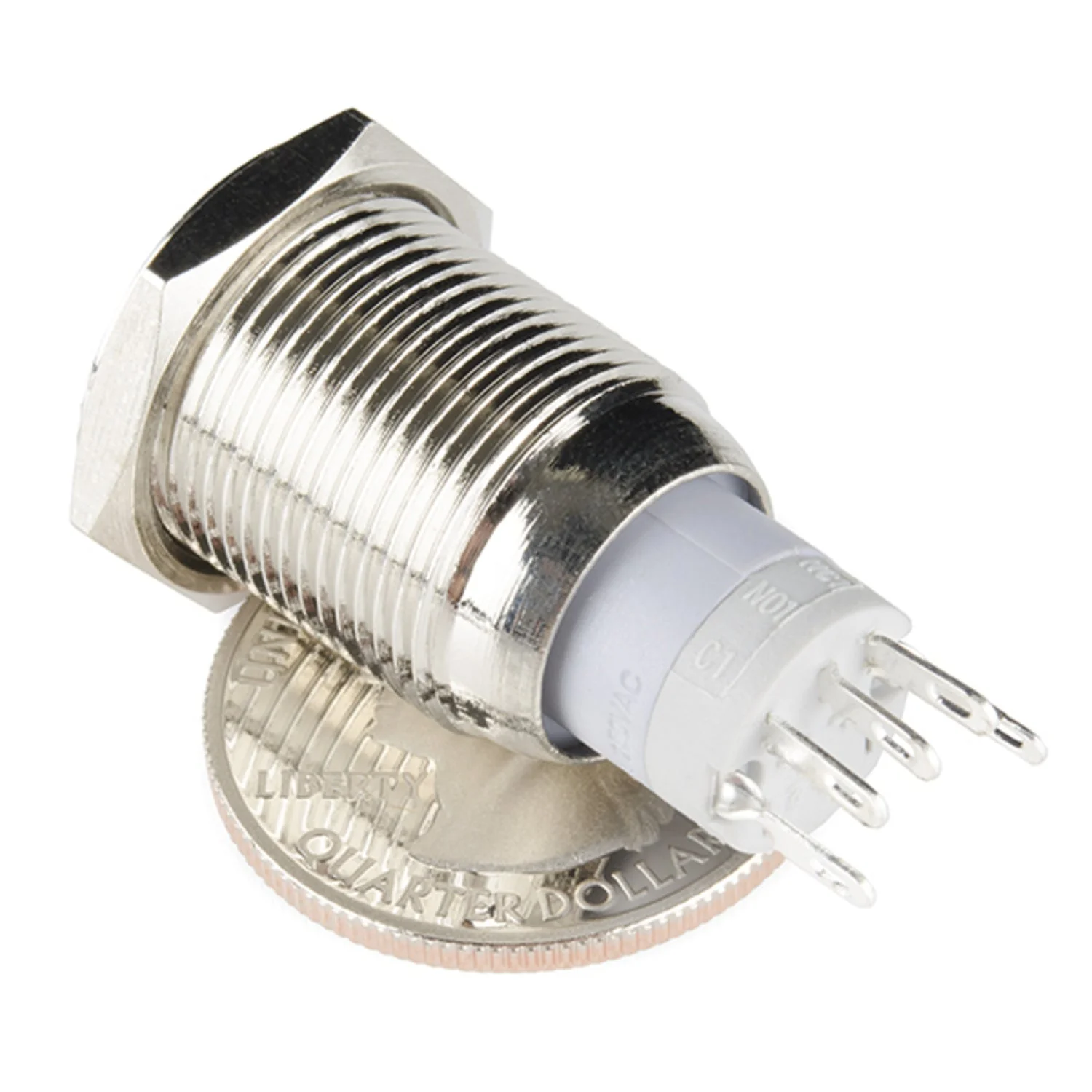

This heavy-duty 16 mm metal pushbutton features a latching (on/off) mechanism with an illuminated green LED ring. Built from stainless steel with an IP65 weatherproof rating, it is designed for panel-mount applications where durability and tamper resistance are essential.

The button uses an SPDT switching configuration and is rated for up to 3A at 250 VAC. The integrated LED ring operates on 5–12V, providing clear visual feedback of the switch state. Solder lug terminals make wiring straightforward.

Key Features

• Latching Operation – Push on, push off; ideal for power and mode switches
• Green LED Ring – Illuminated indicator rated for 5–12V
• Stainless Steel Body – Durable and tamper resistant
• IP65 Weatherproof – Suitable for outdoor and harsh environments
• SPDT Switching – Single pole, double throw configuration
• 16 mm Thread – Standard panel-mount size with 1 mm pitch
• Rated Current – Up to 3A at 250 VAC
• Solder Lug Terminals – Overall length including leads approximately 38 mm (1.5″)

Ideal For

• Panel-mount on/off controls for projects and enclosures
• Outdoor or weatherproof installations
• Robotics, automotive, and industrial applications

Package Contents

• 1× Metal Pushbutton – Latching, 16 mm, Green LED

Resources

• Datasheet (PDF)
