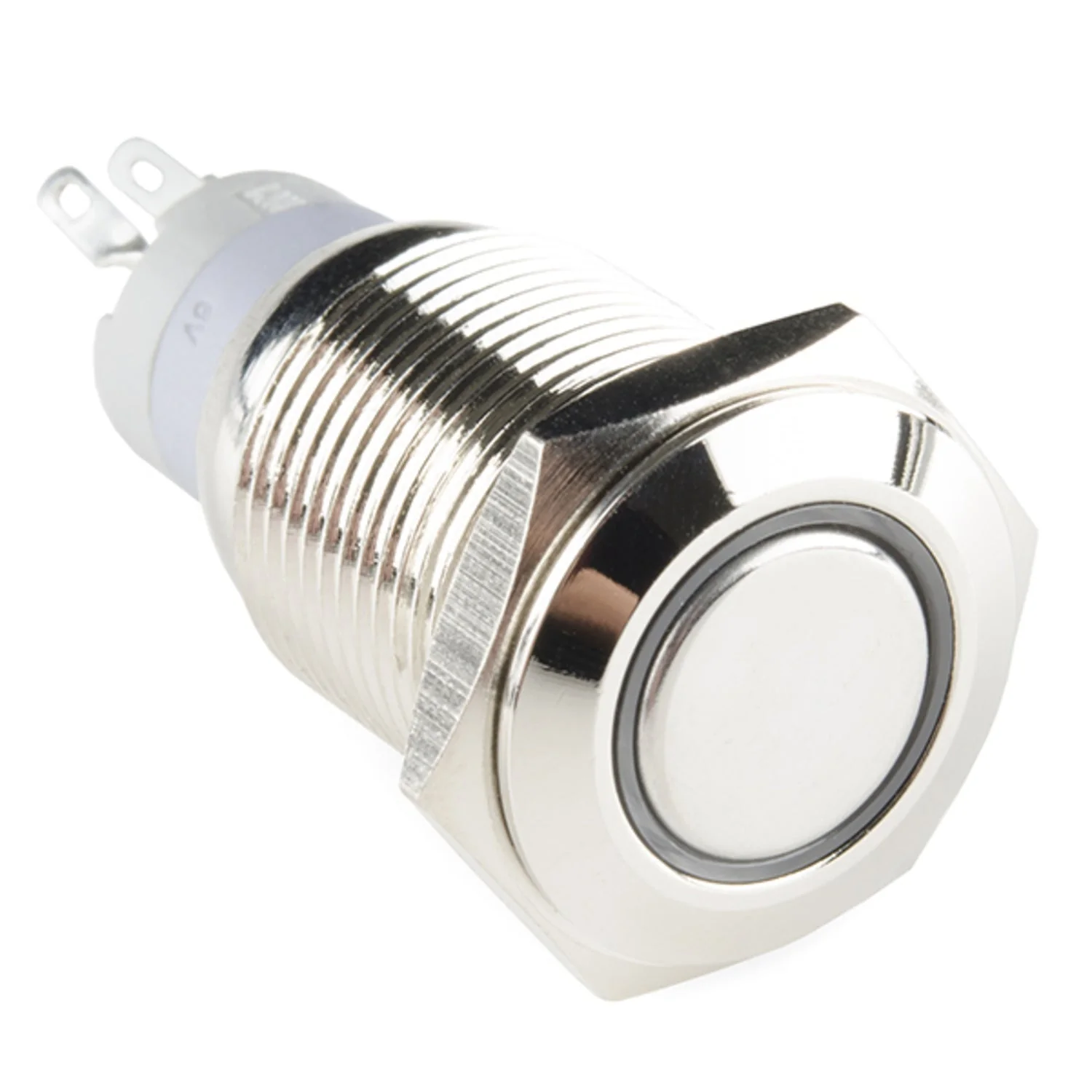

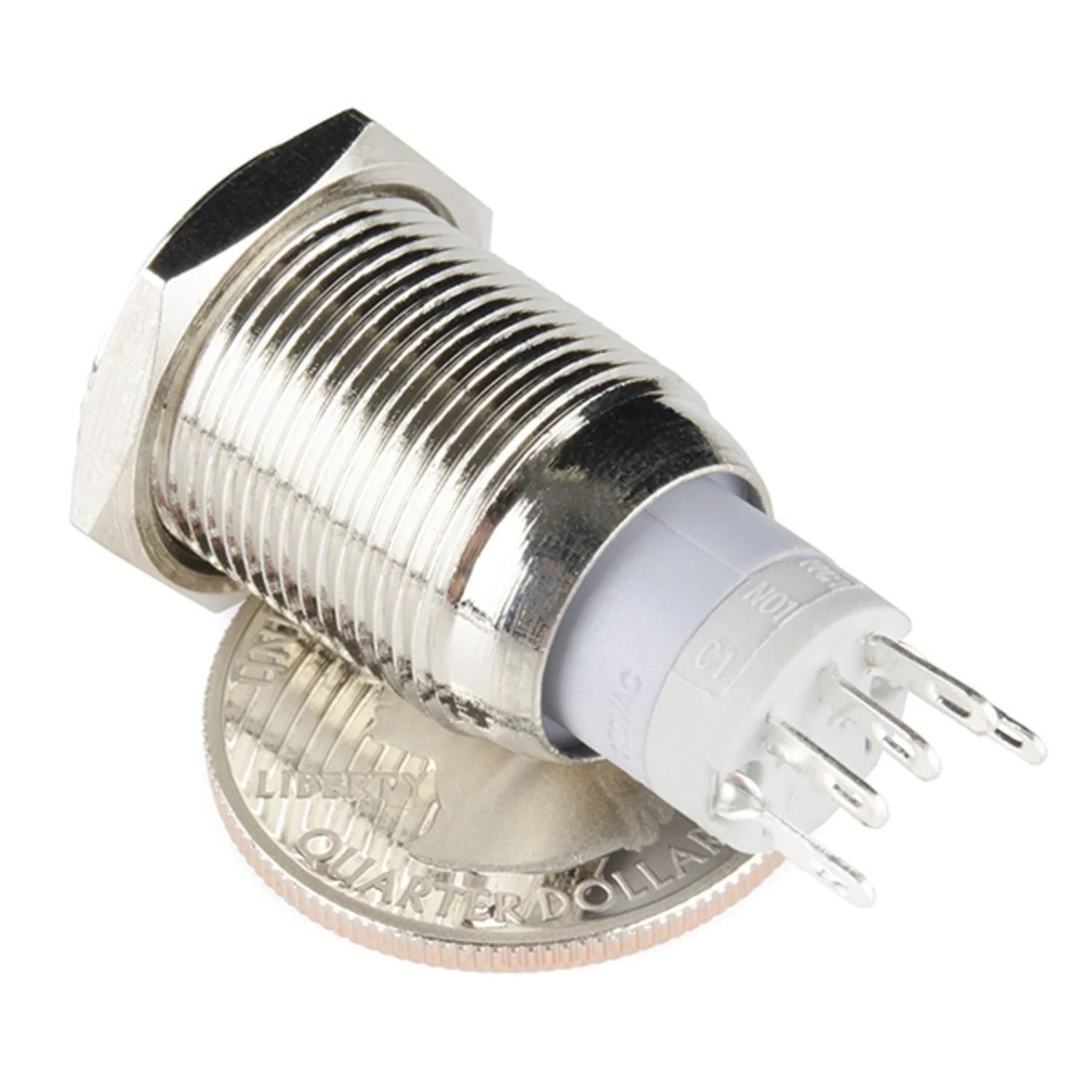

A heavy-duty, panel-mount latching pushbutton with an illuminated white LED ring. Built from stainless steel with IP65 weatherproofing, this 16mm threaded switch is designed to withstand tough environments while delivering reliable on/off control.

This SPDT latching switch features 16mm threading with a 1mm pitch and small solder lugs for easy connection. The LED ring operates on 5–12V, and the switch is rated for up to 3A at 250VAC.

Key Features

• Stainless Steel Body – Durable and corrosion-resistant construction
• IP65 Weatherproof – Sealed against dust and water jets for outdoor or harsh environments
• Tamper Resistant – Secure installation that resists unauthorised removal
• Latching Operation – Push to toggle on/off, maintains state without holding
• White LED Ring – Illuminated indicator rated for 5–12V
• Compact Form Factor – 16mm panel cutout, 1.5" overall length including leads

Ideal For

• Panel-mount on/off controls for electronics projects
• Outdoor or weatherproof enclosures
• Industrial and automotive applications
• Custom control panels and equipment

Resources

• Datasheet
• Product Video
