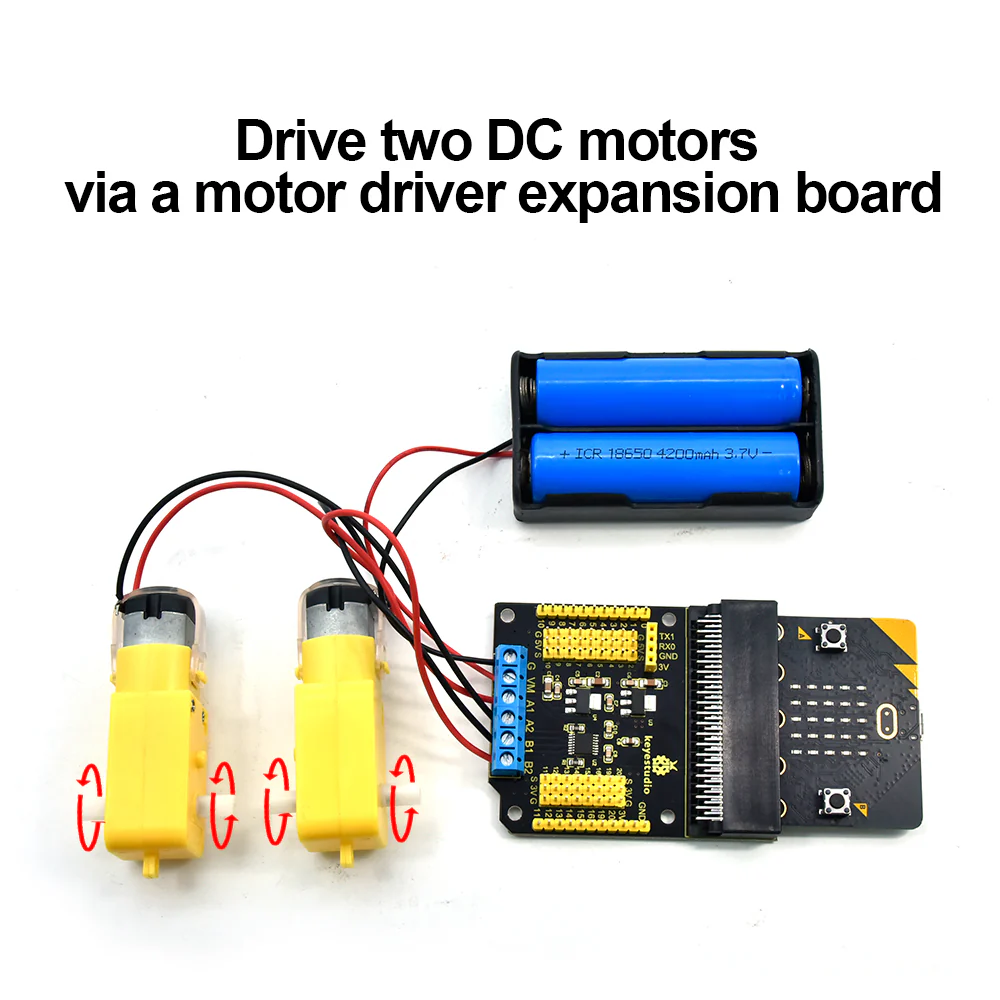

The micro:bit DRV8833 Motor Driver Expansion Board adds dual DC motor control to the BBC micro:bit. Built around the DRV8833CPWP motor driver IC, it can output up to 700 mA per channel with four control modes: clockwise rotation, anticlockwise rotation, brake, and stop.

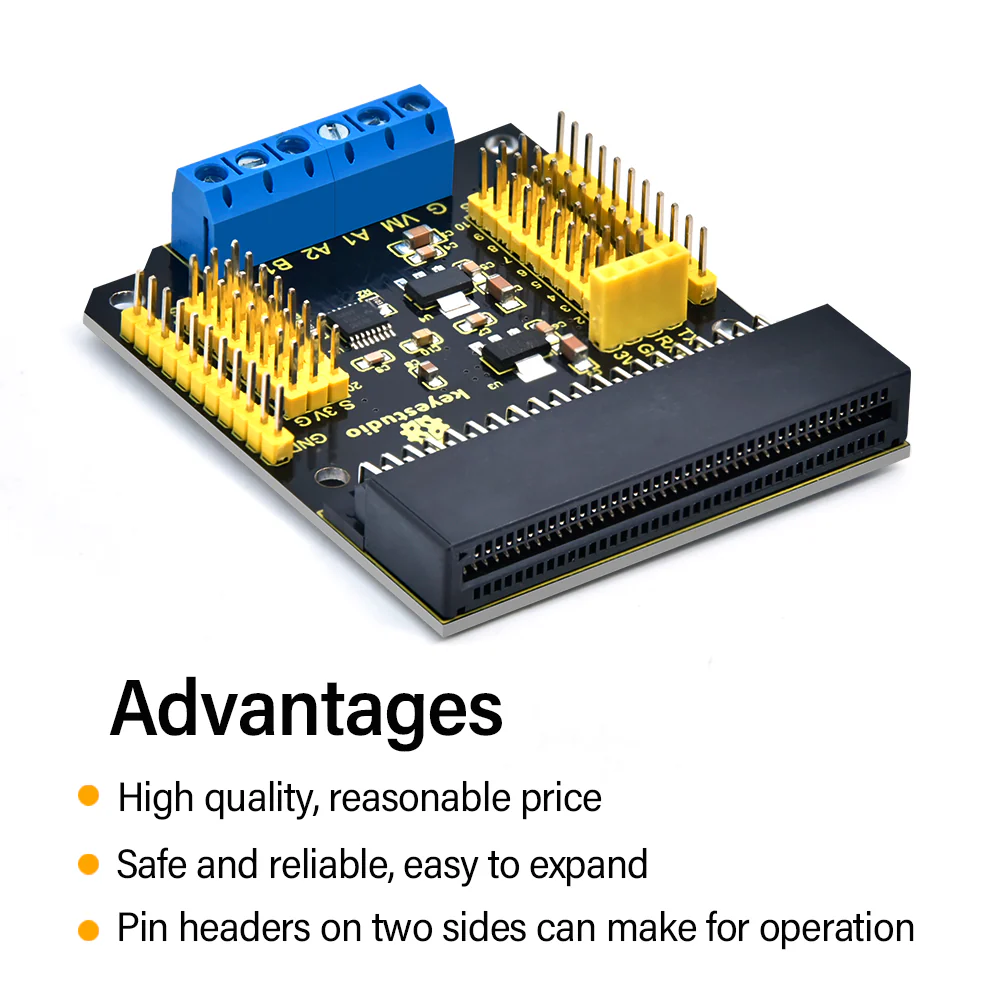

The board includes on-board 3.3 V and 5 V voltage regulators, a serial communication interface for connecting Bluetooth modules, and 3-pin sensor interfaces for expanding your project. Motor pins A1, A2, B2, and B1 connect to micro:bit pins P13, P12, P15, and P16 respectively.

Key Features

• DRV8833CPWP Motor Driver – Dual H-bridge driver with up to 700 mA output per channel
• Four Motor Control Modes – Clockwise, anticlockwise, brake, and stop
• PWM Support – Frequencies up to 100 kHz for smooth motor control
• On-Board Voltage Regulators – 3.3 V and 5 V regulated outputs
• Serial Communication Interface – For connecting Bluetooth modules
• 3-Pin Sensor Interfaces – Easily connect additional sensors and peripherals

Specifications

• Motor Driver IC – DRV8833CPWP
• Max Output Current – 700 mA per channel
• PWM Frequency – Up to 100 kHz
• Regulated Outputs – 3.3 V and 5 V
• Motor Pin Mapping – A1→P13, A2→P12, B2→P15, B1→P16
• Compatibility – BBC micro:bit (V1 and V2)

Ideal For

• Micro:bit-powered robotics projects
• Educational motor control experiments
• Motorised vehicles and line-following robots
• STEM and coding workshops

Package Contents

• 1× DRV8833 Motor Driver Expansion Board for micro:bit
