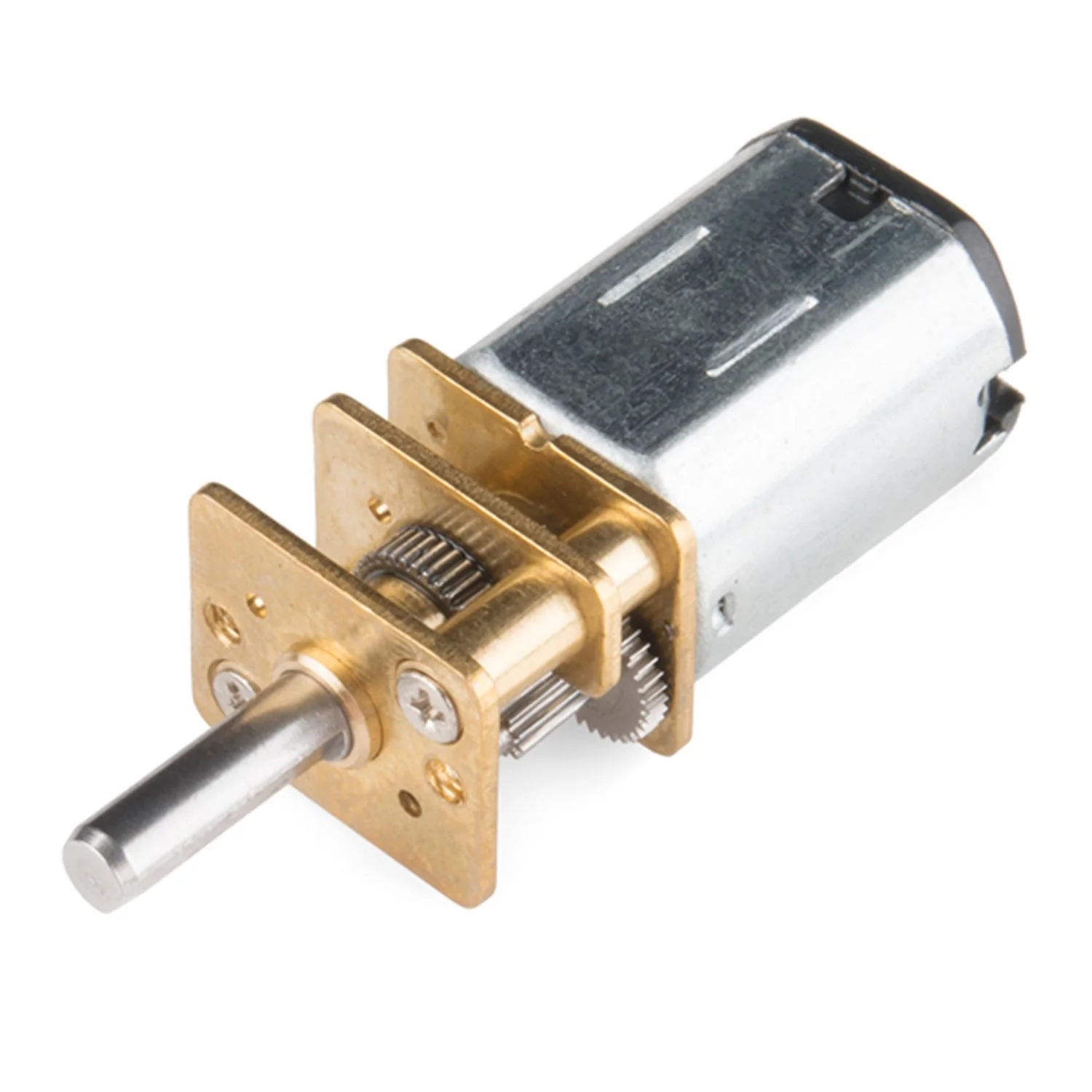

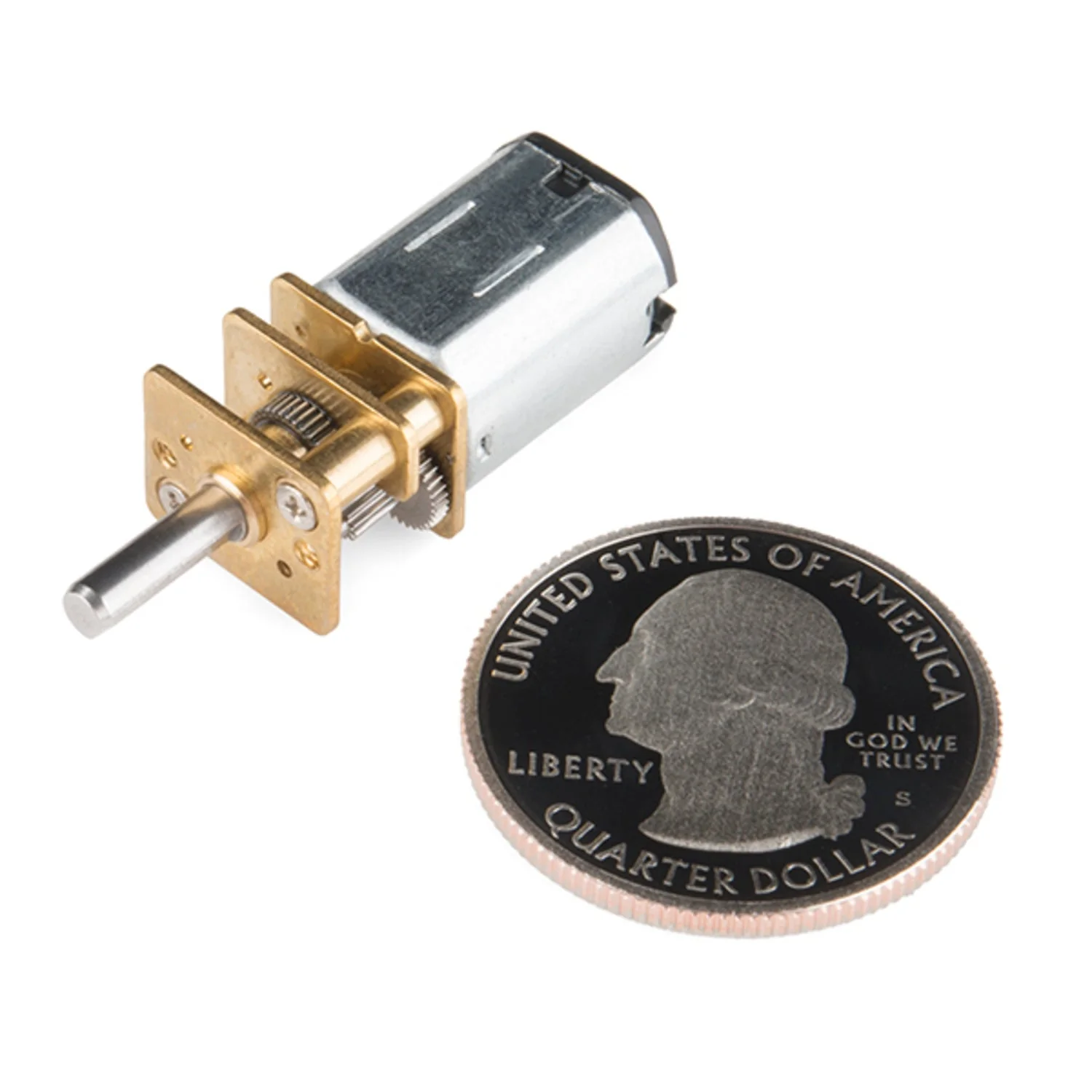

A compact micro gearmotor with full metal gears and a 210:1 gear ratio. Operates from 6–12 V with a maximum speed of 130 RPM at 12 V and a stall torque of 35 N·cm (50 oz-in). Features a 3 mm D-shaft output and DC reversible operation.

Specifications

• Voltage – 6–12 V
• Gear Ratio – 210:1
• Speed – 65 RPM (6 V) / 130 RPM (12 V)
• Stall Torque – 19 N·cm (6 V) / 35 N·cm (12 V)
• No-Load Current – 40 mA (6 V) / 70 mA (12 V)
• Stall Current – 360 mA (6 V) / 1600 mA (12 V)
• Shaft – 3 mm diameter D-shaft, 10 mm length
• Motor Size – 26 × 12 × 10 mm
• Weight – 17 g
• Reversible – DC reversible by swapping polarity

Ideal For

• Small robotics and mobile platforms
• Motorised mechanisms and actuators
• Educational projects and prototyping
