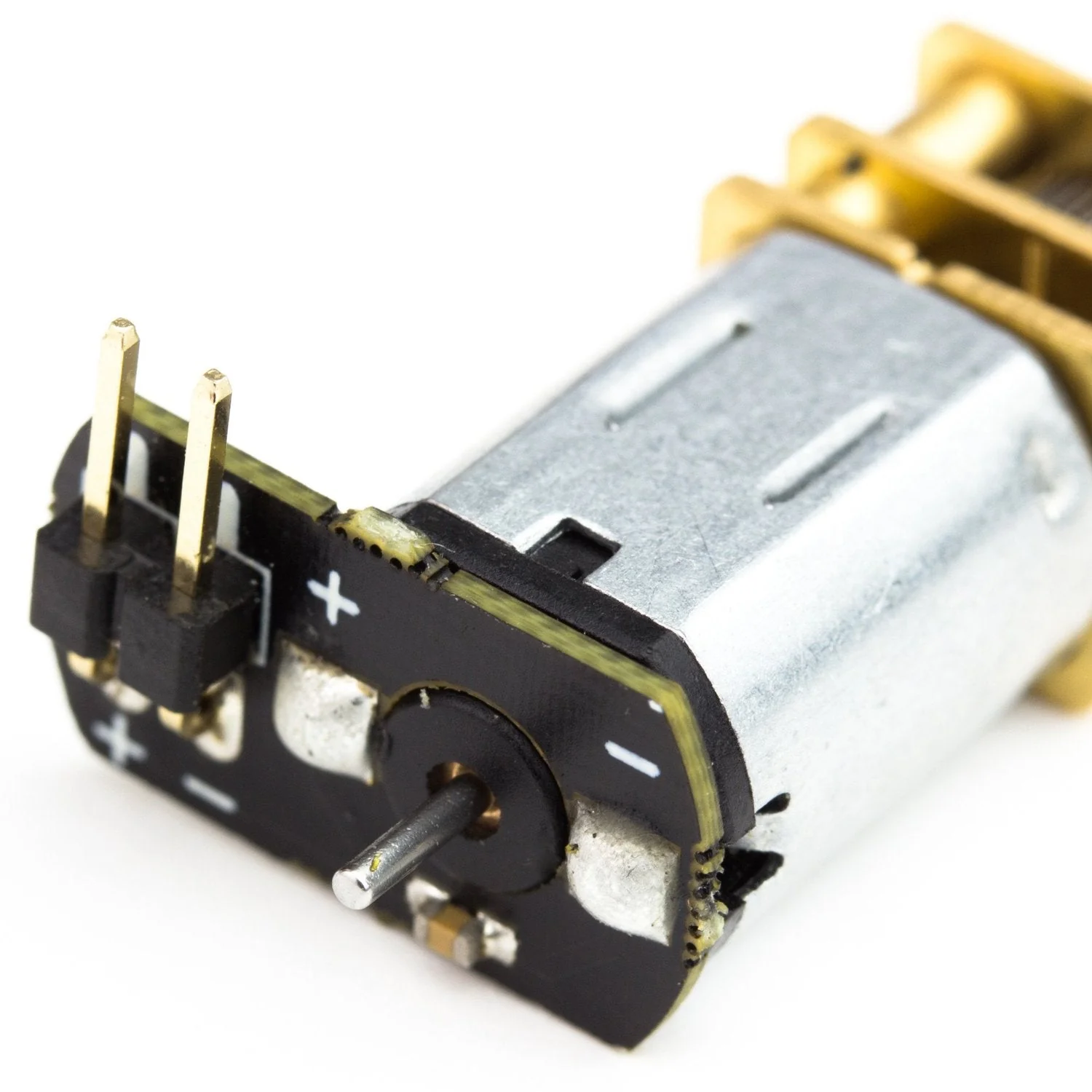

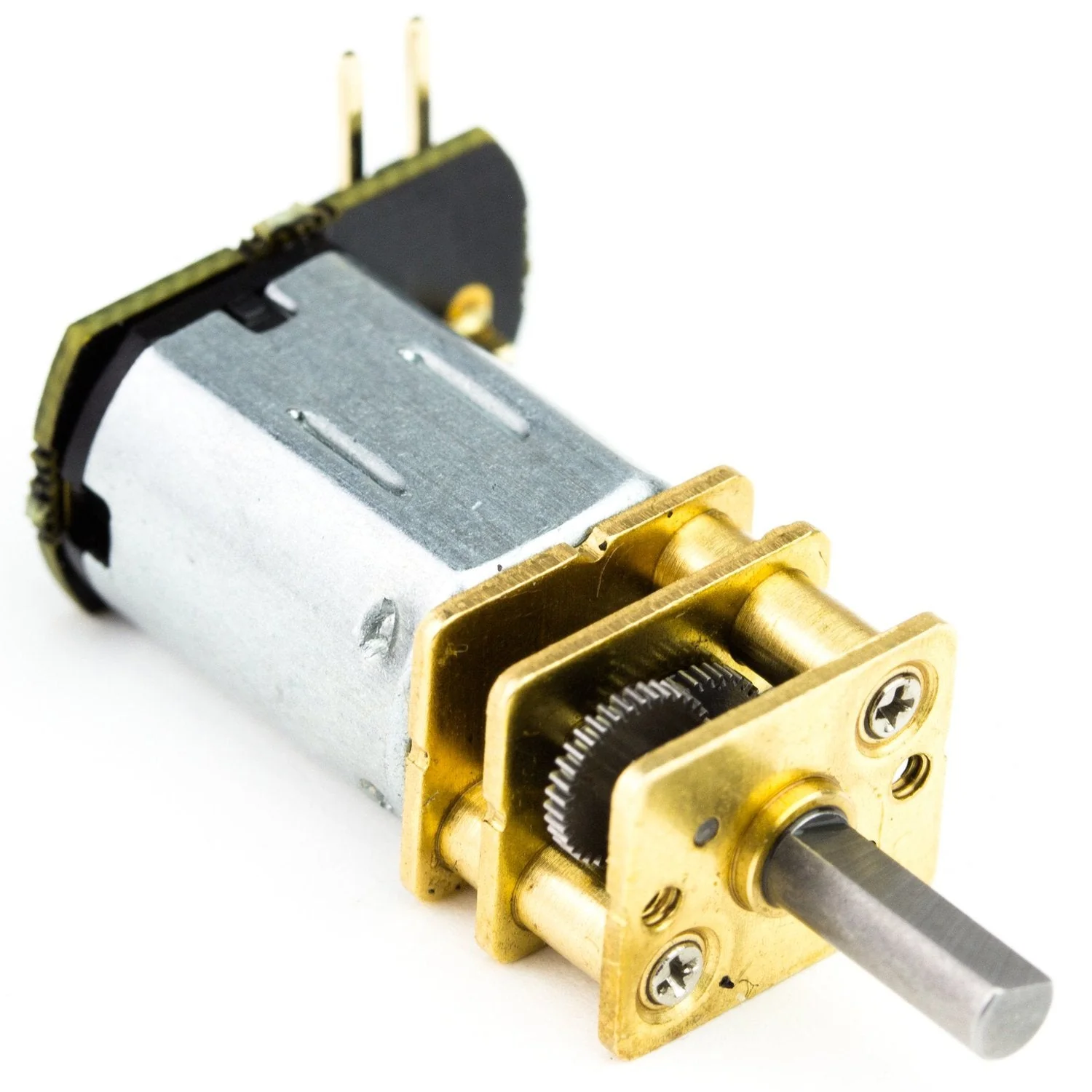

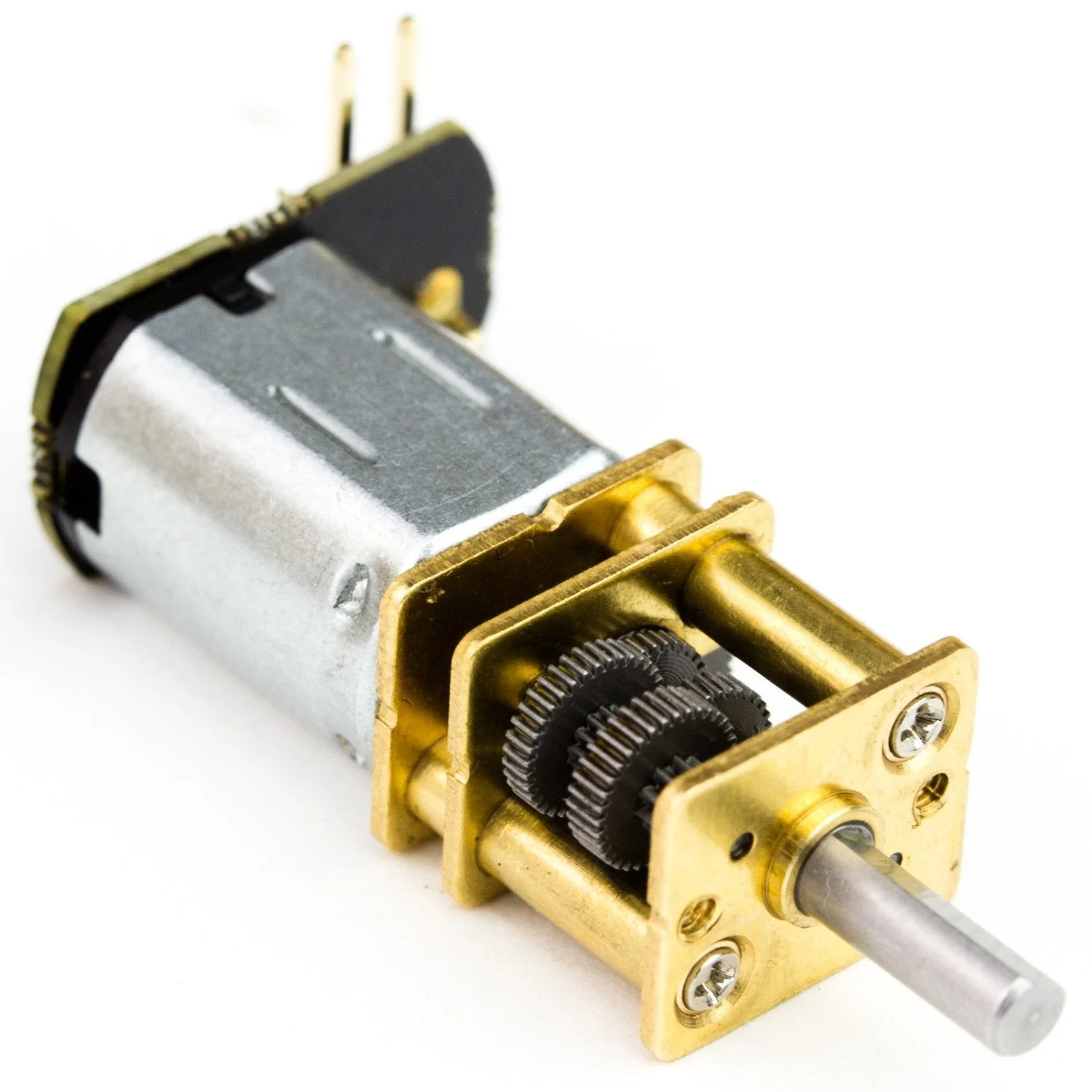

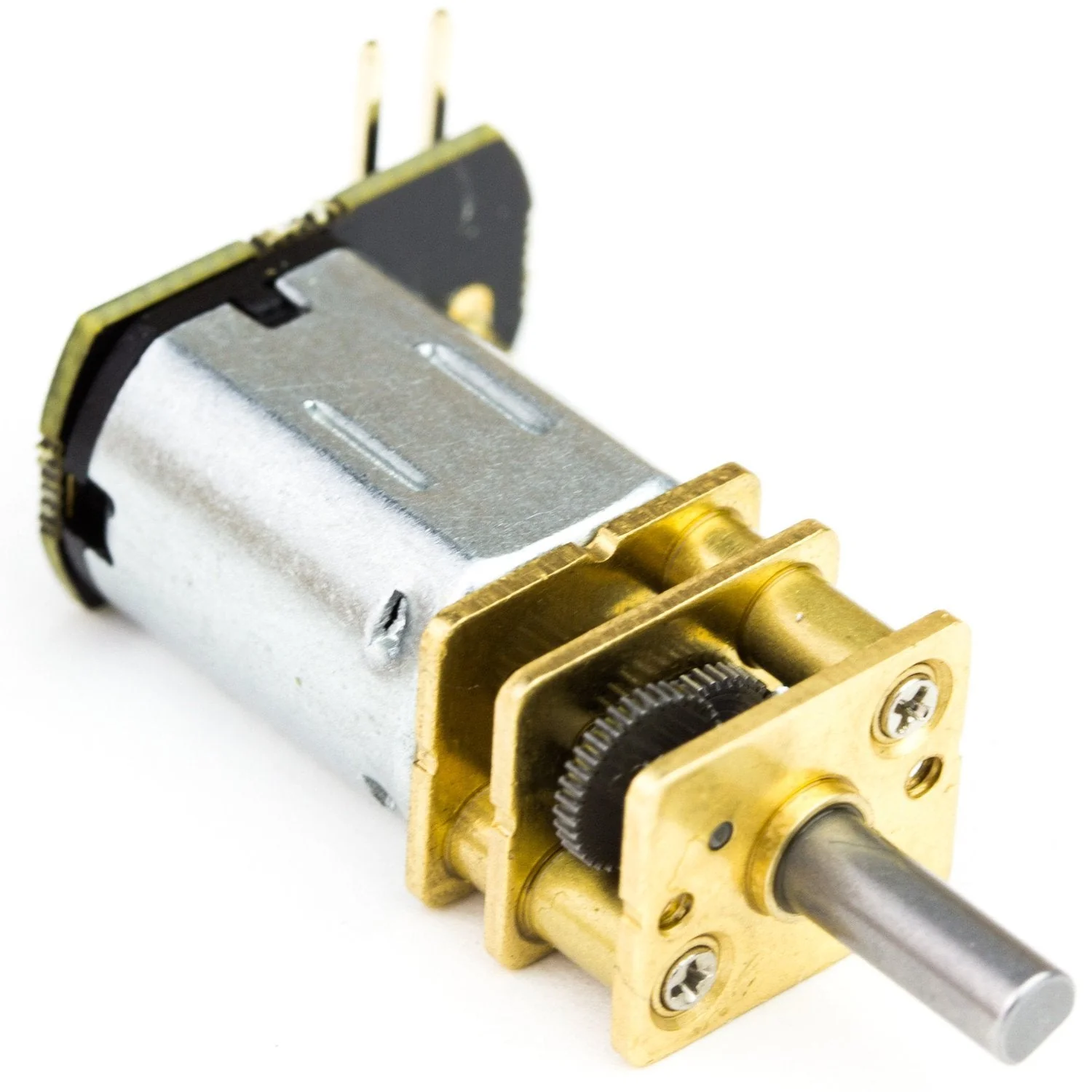

A miniature brushed DC motor with an 11:1 metal gearbox, fitted with a solderless push header shim for easy prototyping — no soldering required. Simply connect with jumper wires and you're ready to go. The compact form factor and D-shaped metal output shaft make it ideal for small robotics and mechatronics projects.

All micro metal gearmotors share the same physical dimensions, so you can easily swap between gear ratios as your design requirements change.

Key Features

• 11:1 Metal Gearbox – High-speed ratio for fast-spinning applications
• Push Header Shim – Solderless connection for quick prototyping
• D-Shaped Output Shaft – 3 mm diameter, 9 mm long metal shaft
• Interchangeable – Same physical dimensions across all gear ratios

Specifications (at 6 V)

• Speed – 1800 ±10% RPM
• Free-Run Current – 80 mA (160 mA max)
• Stall Torque – 0.12 kg·cm
• Stall Current – 650 mA
• Output Shaft – 3 mm diameter, 9 mm long, D-shaped

Ideal For

• Small robotics and rover projects
• Rapid prototyping with solderless connections
• Mechatronics and motion control experiments
• Educational STEM projects

Also Available

• Push Header Shim – 20:1
• Push Header Shim – 50:1
• Push Header Shim – 298:1
• Micro Metal Gearmotor Bracket (Pair)
• Magnetic Encoder Pair Kit

Resources

• 11:1 Datasheet (PDF)
