Mini Power Meter with Voltage, Current, Watts, mAh mWh Display
This Mini Power Meter with Voltage, Current, Watts, mAh & mWh Display (whew that is a mouth-full) is a lot like the USB In-Line Voltage and Current Meter we carry but canĀ be used with a wide range of voltages (not just USB connections). Measure the working voltage and current output for anyĀ project with this really fancy power meter.

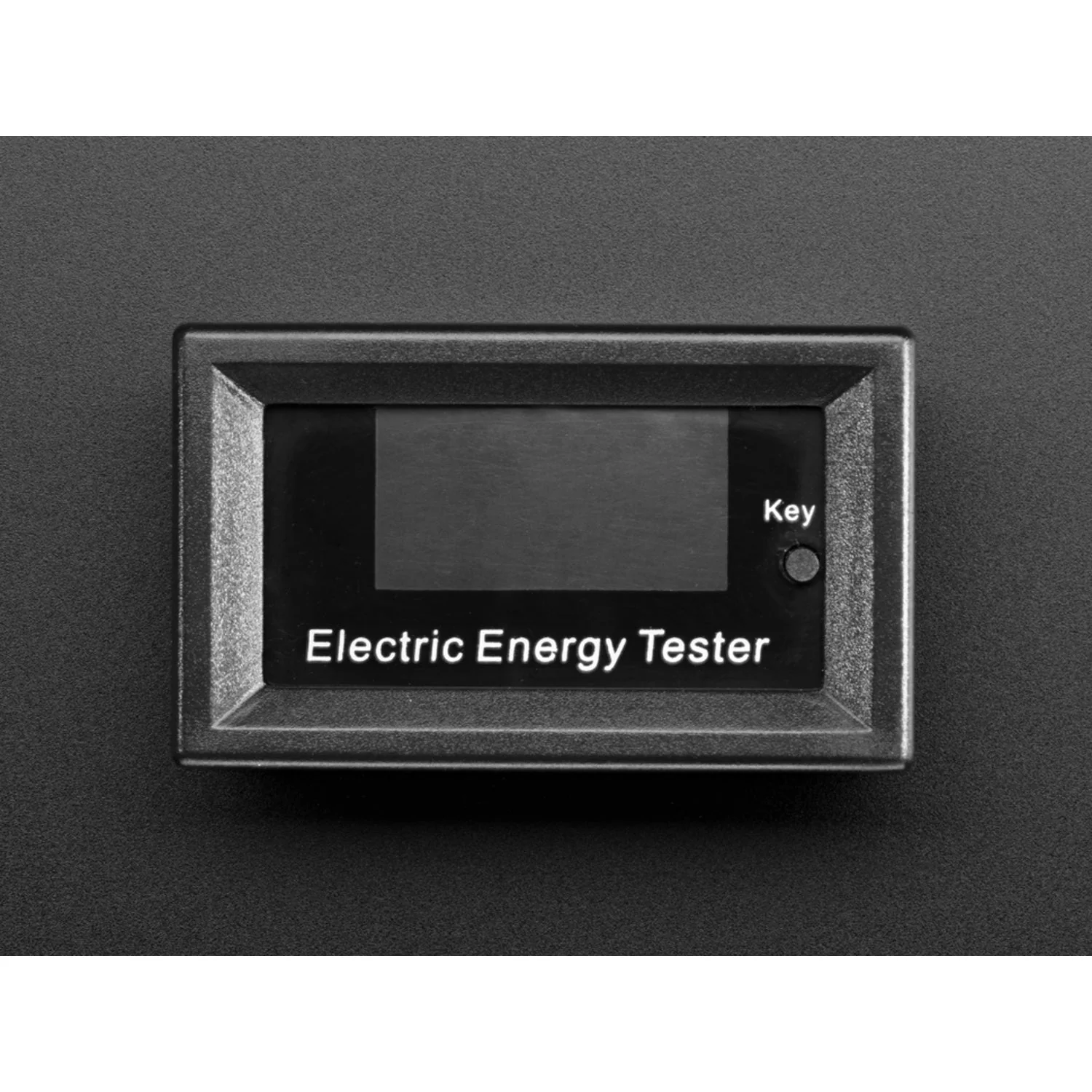

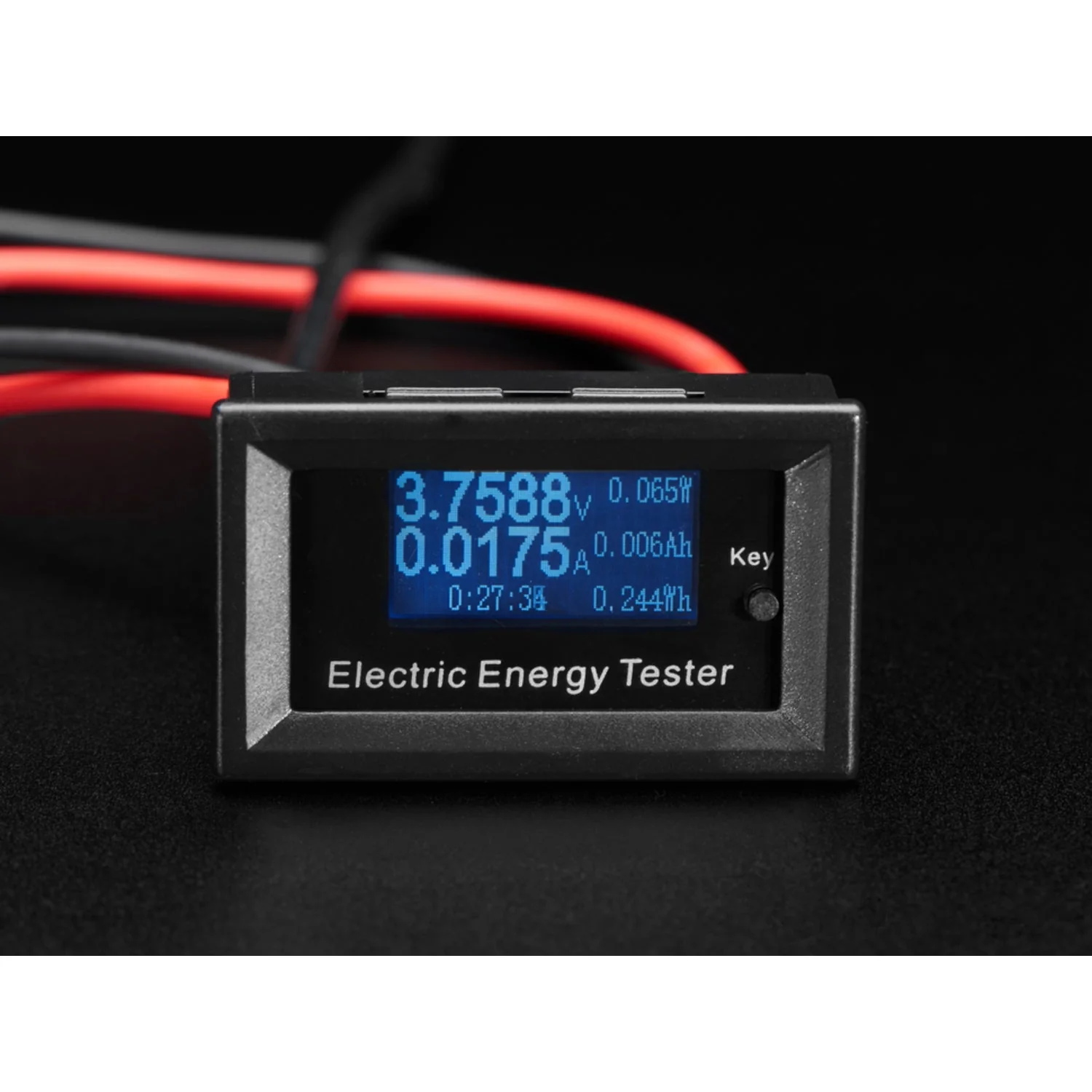

This power meter has aĀ small LCD display that shows off voltage, watts, amps, and mAH and instantly reads the numbers out for testing devices, such as chargers, cables, and cell phones. There areĀ a few nice extras in this very fancy monitor, such as showing the ambient temperature and calculating the cumulative Watt-hours and milliAmp-hours over a running time. Basically it's an all-in-one power management solution that doesn't require any calculation or data logging on your part.

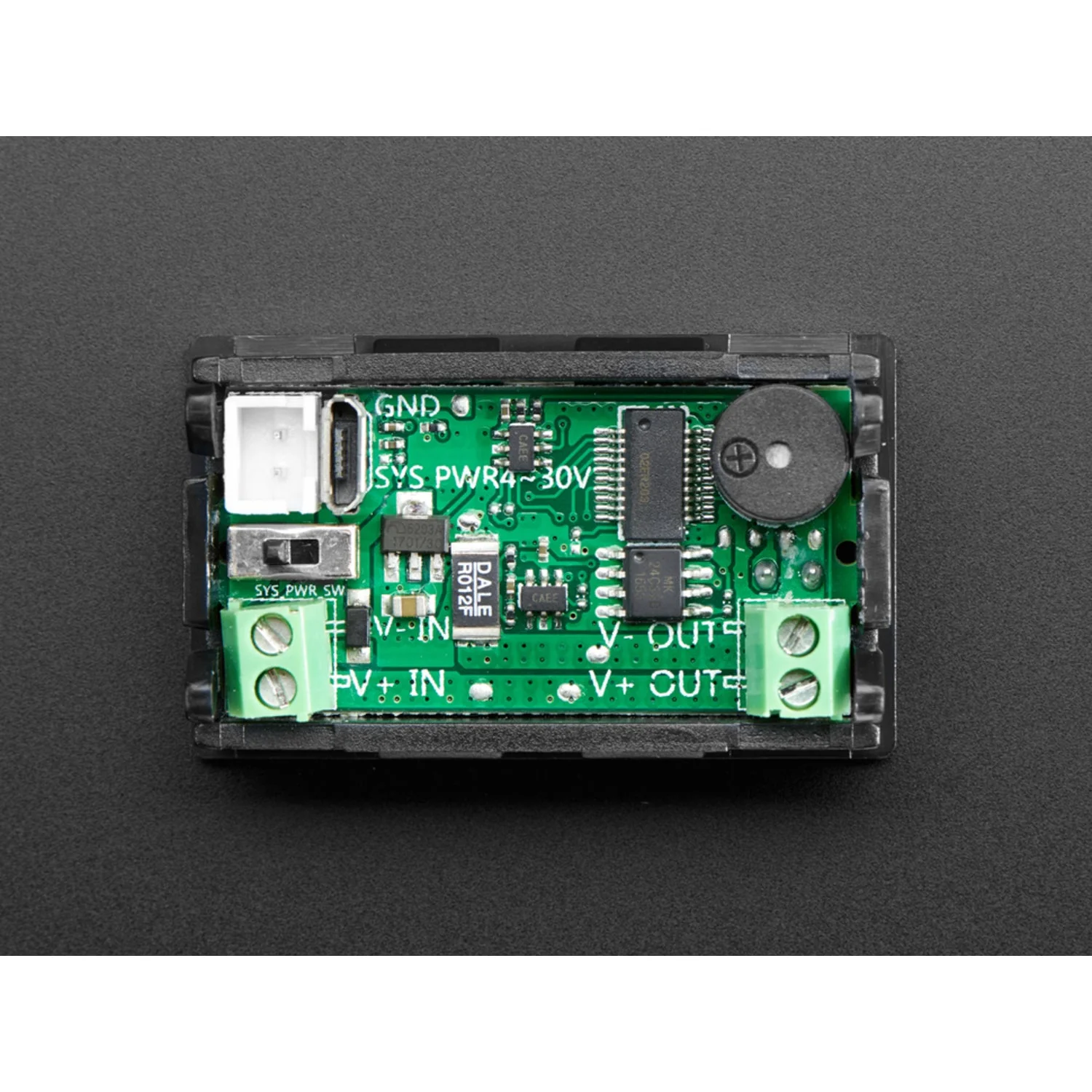

You can have it self-power from the power source it's measuring (it has a quiescent of about 20mA and requires at least 3V), or you can power separately from a JST connector or power-only micro USB socket.

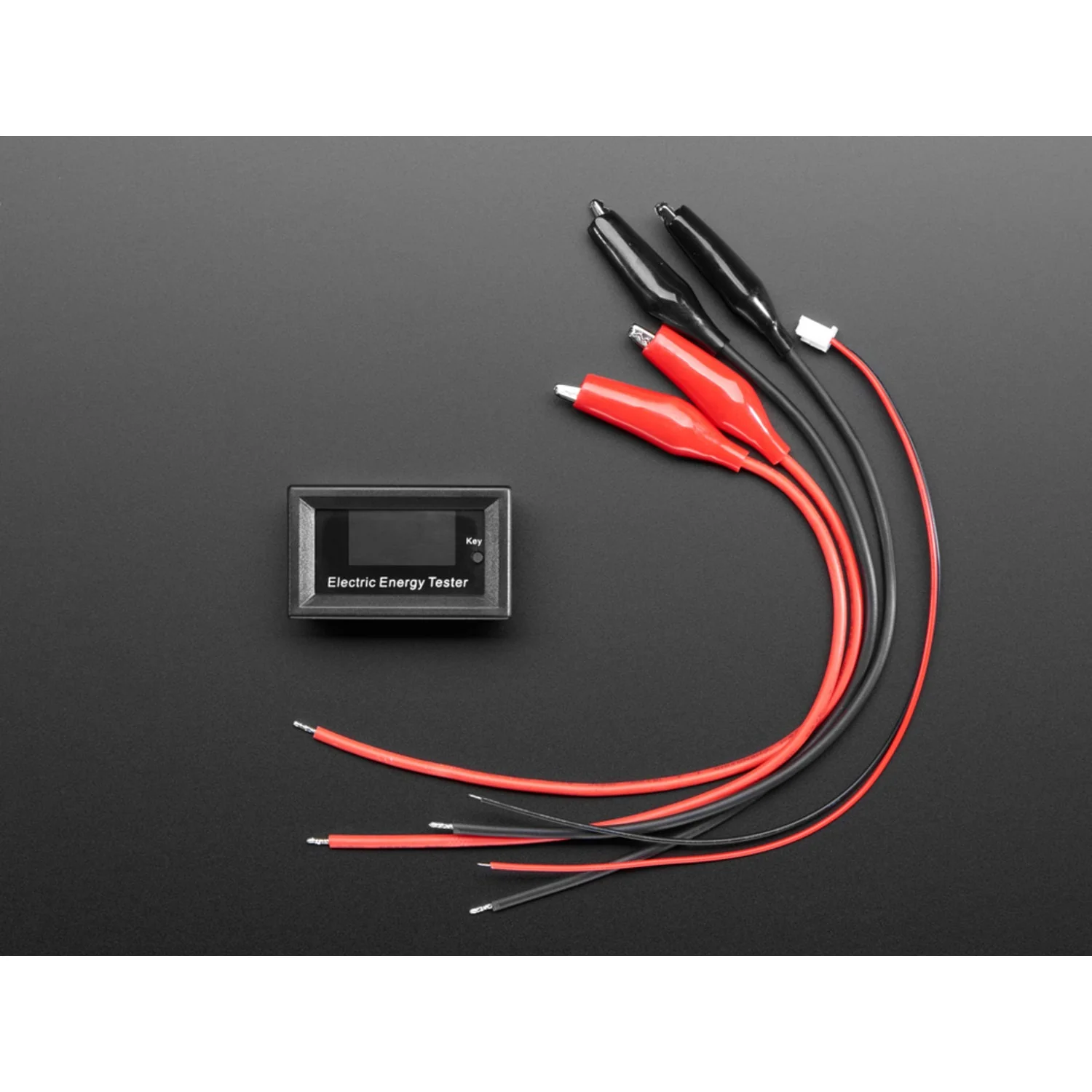

Comes with
- 1 x 2-pin JST ConnectorĀ
- 2 x PositiveĀ Alligator Test Clips
- 2 x Negative Alligator Test Clips
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This Mini Power Meter with Voltage, Current, Watts, mAh & mWh Display (whew that is a mouth-full) is a lot like the USB In-Line Voltage and Current Meter we carry but canĀ be used with a wide range of voltages (not just USB connections). Measure the working voltage and current output for anyĀ project with this really fancy power meter.
This power meter has aĀ small LCD display that shows off voltage, watts, amps, and mAH and instantly reads the numbers out for testing devices, such as chargers, cables, and cell phones. There areĀ a few nice extras in this very fancy monitor, such as showing the ambient temperature and calculating the cumulative Watt-hours and milliAmp-hours over a running time. Basically it's an all-in-one power management solution that doesn't require any calculation or data logging on your part.
You can have it self-power from the power source it's measuring (it has a quiescent of about 20mA and requires at least 3V), or you can power separately from a JST connector or power-only micro USB socket.
Comes with
- 1 x 2-pin JST ConnectorĀ
- 2 x PositiveĀ Alligator Test Clips
- 2 x Negative Alligator Test Clips
