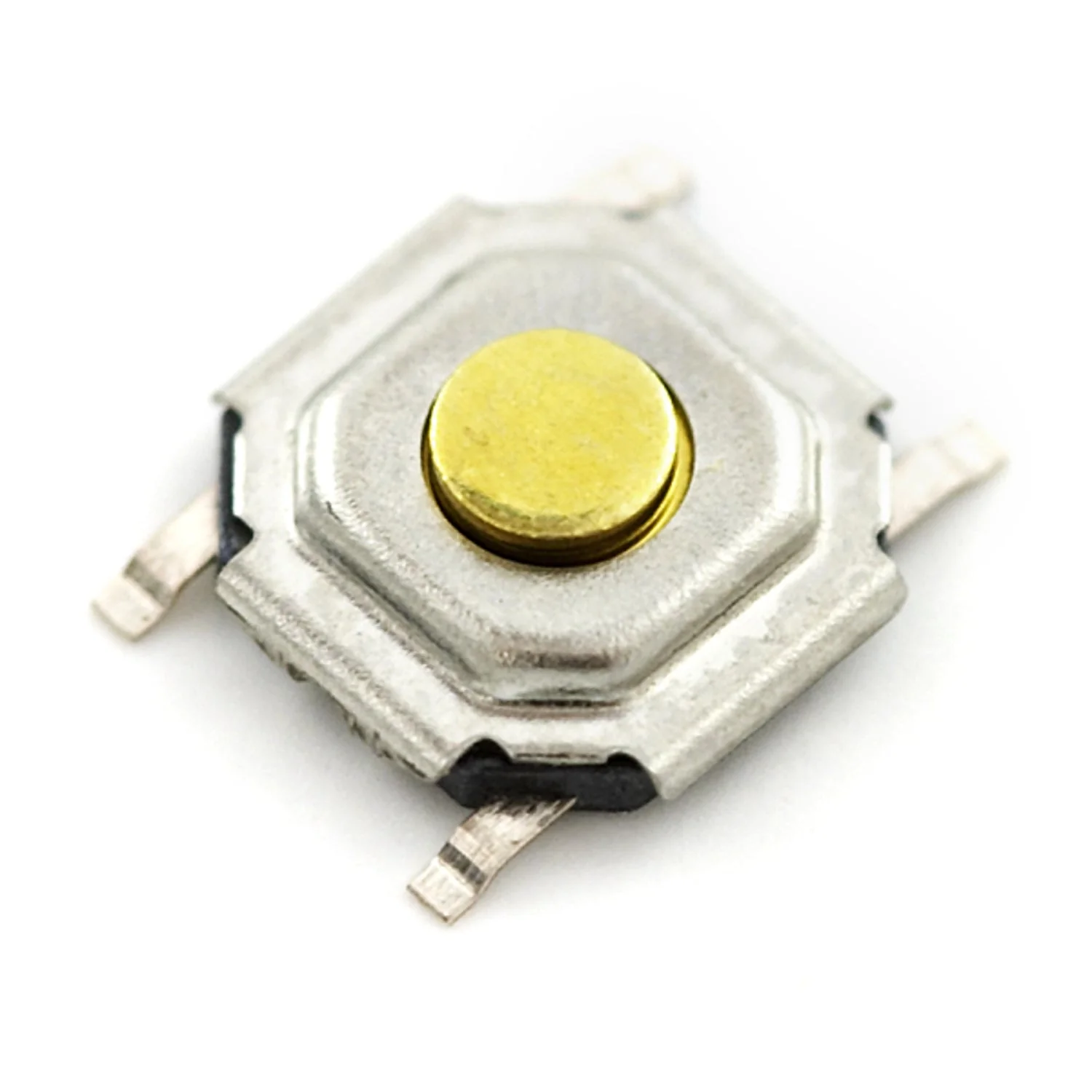

A miniature surface-mount momentary pushbutton switch with a low-profile design. Ideal for use as a tactile reset button or general-purpose input on custom PCBs. Rated up to 50 mA.

Key Features

• Surface Mount (SMD) – Low-profile for compact PCB designs
• Momentary Action – Normally open, closes on press
• Tactile Feedback – Clear click feel when pressed
• 50 mA Rating – Suitable for logic-level switching

Specifications

• Type – Momentary pushbutton (normally open)
• Mounting – Surface mount (SMD)
• Max Current – 50 mA

Ideal For

• Reset buttons on custom PCBs
• User input on compact circuits
• Prototyping surface-mount designs

Resources

• Dimensional Drawing (PDF)
