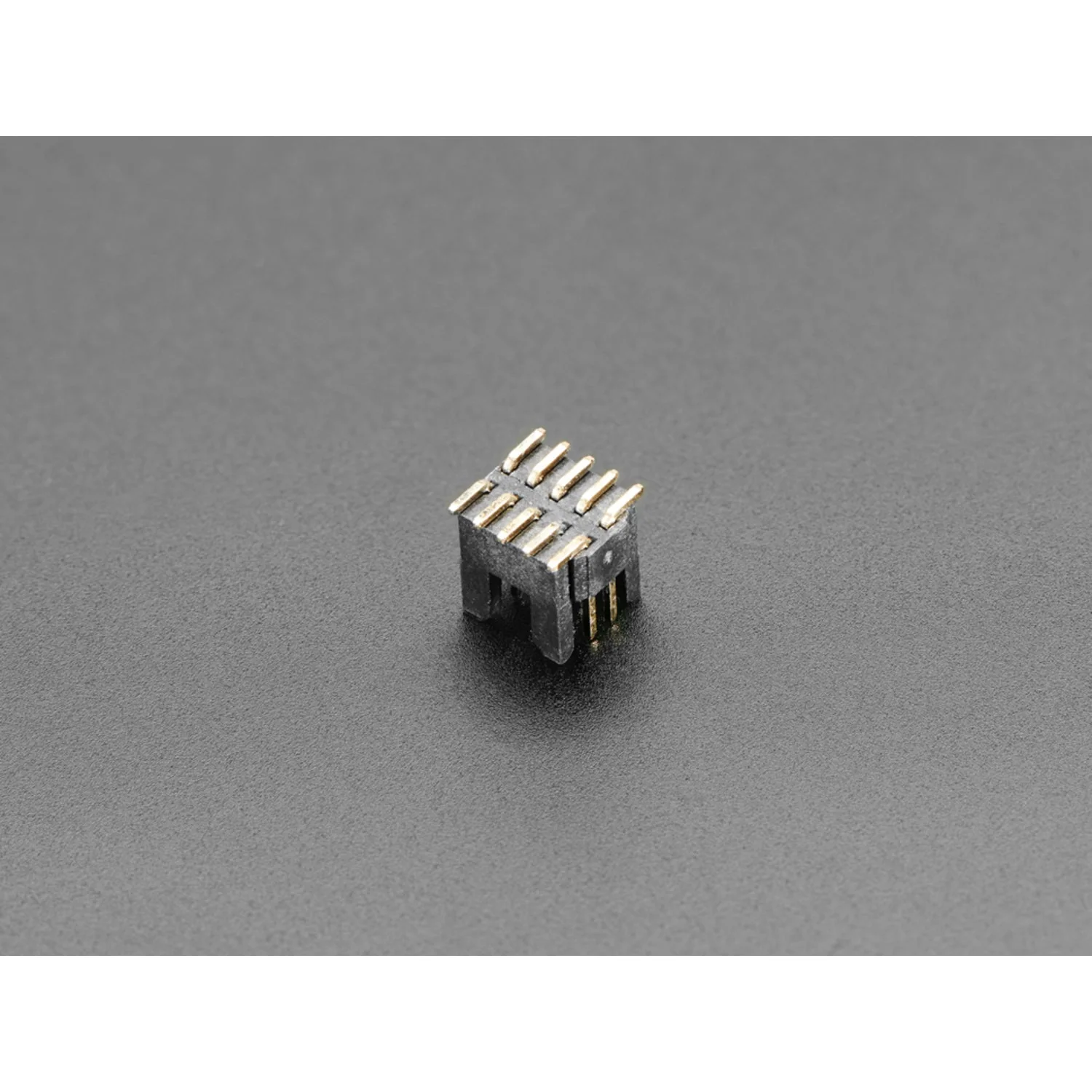

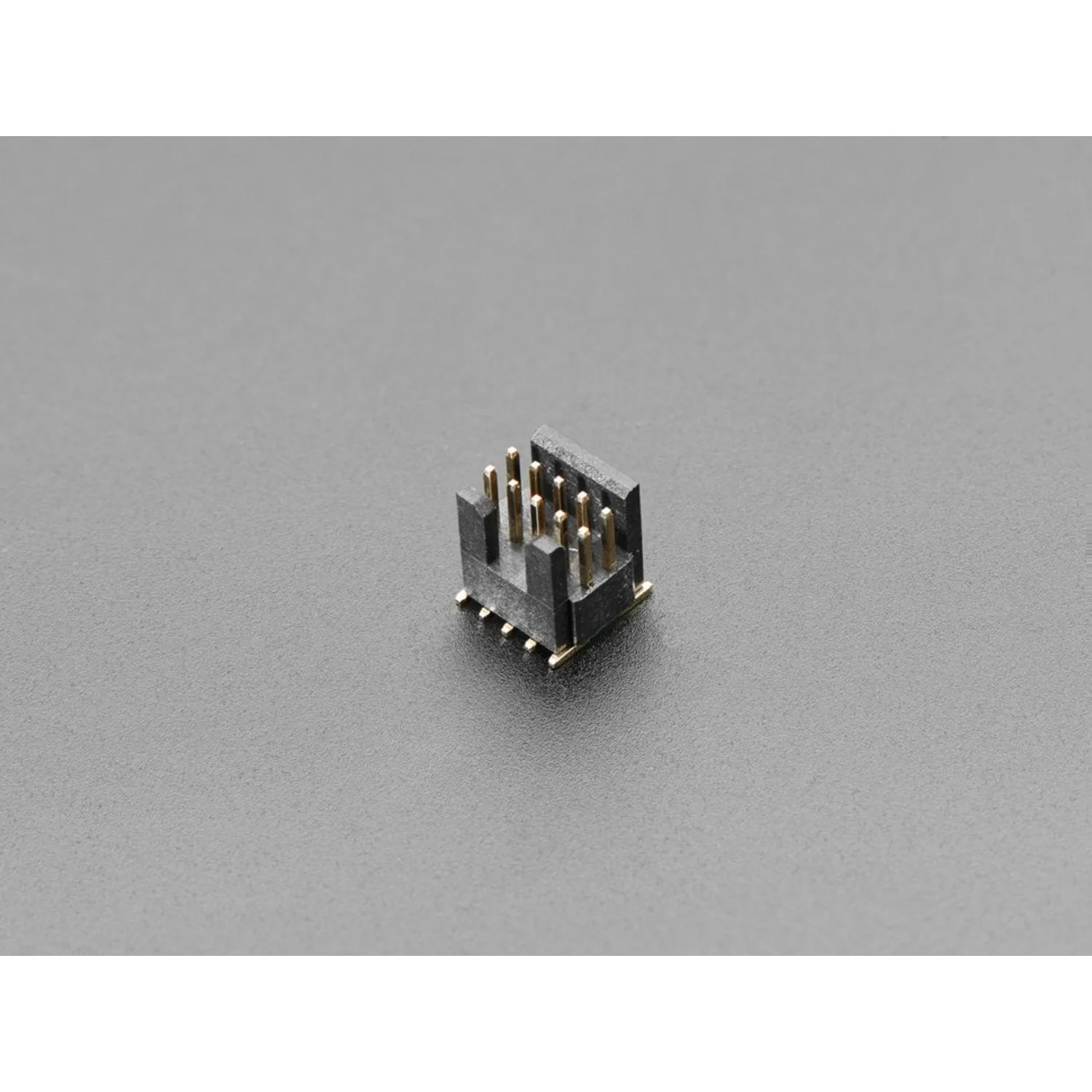

A compact 1.27 mm (0.05") pitch 2×5 mini SWD box header with a half-shroud and key-notch. A smaller alternative to full-shroud SWD headers, taking up much less board space while remaining compatible with standard 10-pin 1.27 mm IDC (SWD) cables.

Commonly found on ARM Cortex development kits, this connector is ideal for adding SWD debug and programming capabilities to compact boards. The SMT pins can also be straightened for through-hole soldering if needed.

Key Features

• 1.27 mm (0.05") Pitch – 2×5 pin configuration
• Half-Shroud Design – Keyed notch for correct cable orientation
• SMT Mounting – Surface-mount with option to straighten pins for through-hole

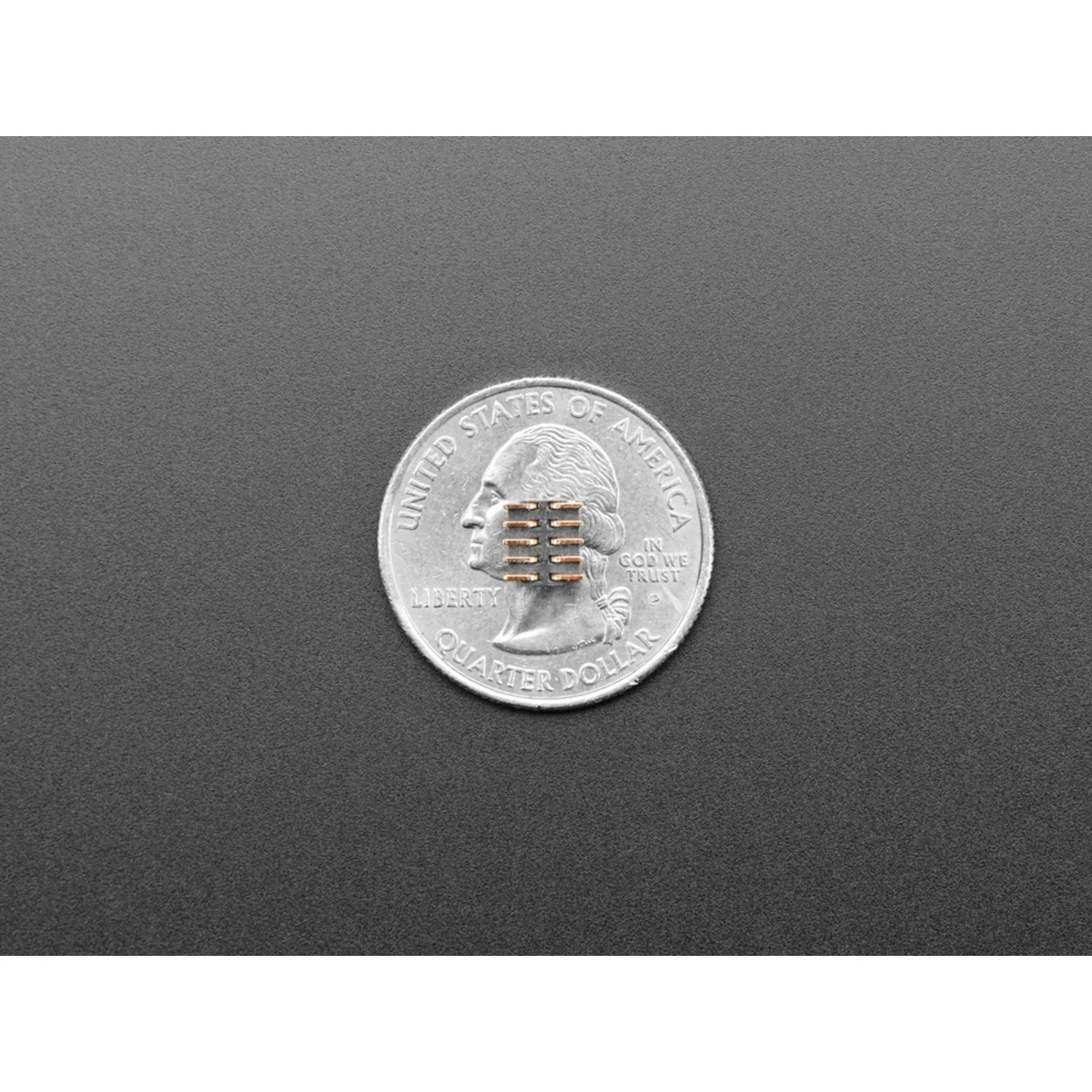

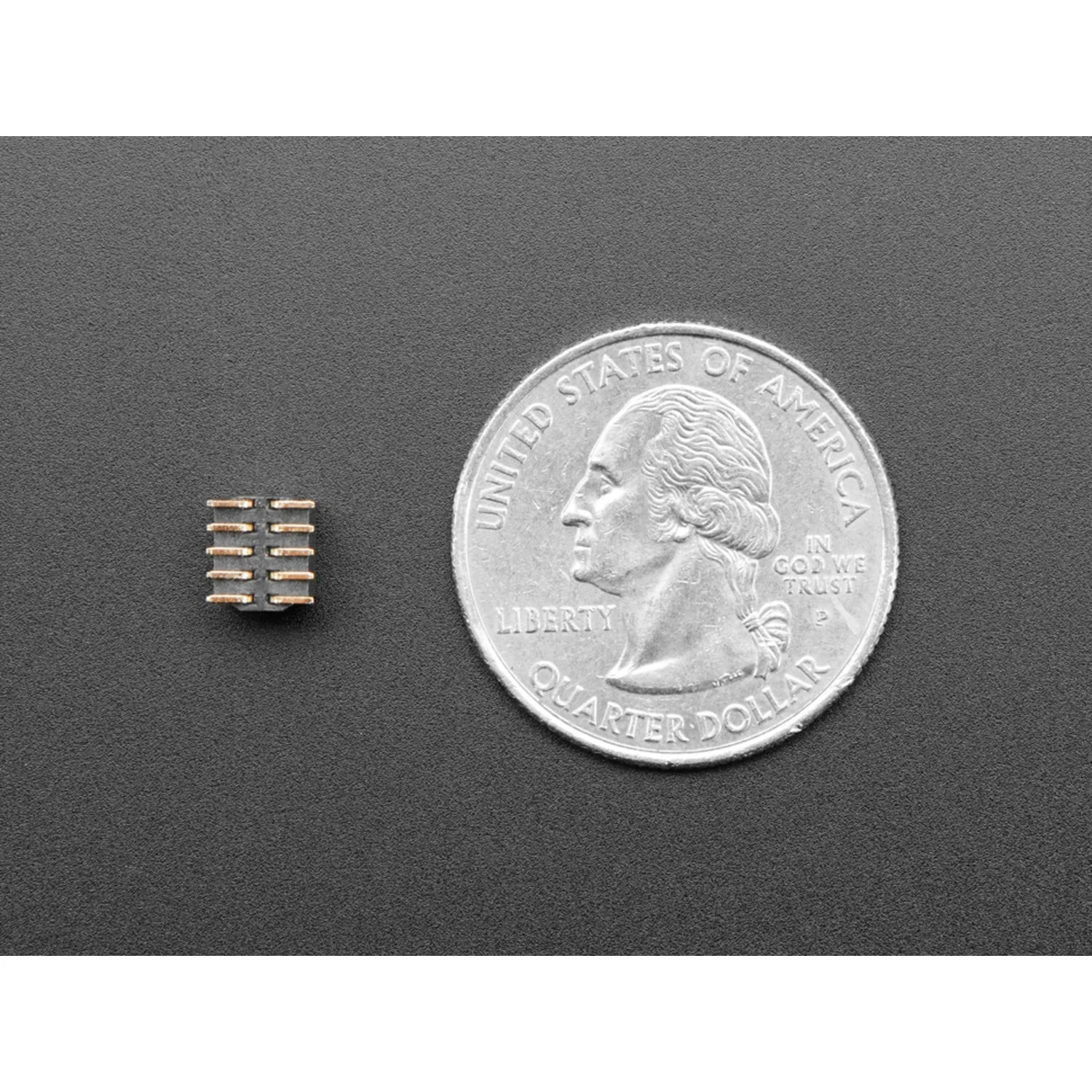

• Compact Footprint – Significantly smaller than full-shroud SWD headers

Ideal For

• Adding SWD debug/programming to Adafruit nRF52 Feather and similar boards
• ARM Cortex development and debugging
• Space-constrained PCB designs requiring SWD access

Package Contents

• 1× Mini SWD 10-pin SMT box header
