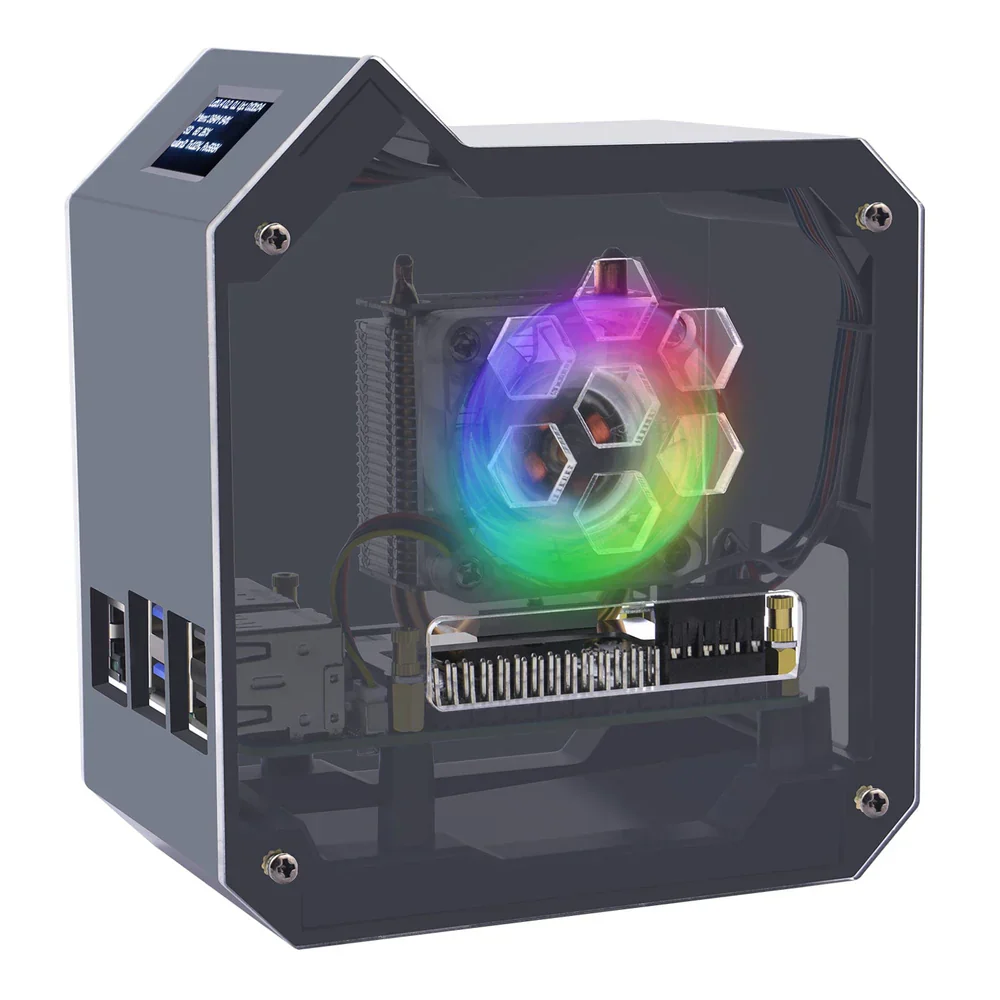

The Mini Tower Kit from 52Pi is an all-in-one enclosure for the Raspberry Pi 5, featuring an LED ICE Tower cooler, 0.96" OLED display, sturdy ABS frame, and full port access. An updated design based on customer feedback from the previous Pi 4 tower kit.

The Pi 5 sits within a strong ABS central frame, sandwiched between two acrylic side panels that provide a clear view of the board and access to all ports including the microSD slot and GPIO pins. A 0.96" SSD1306 OLED display on the front shows system status information such as temperature and CPU usage.

Key Features

• ICE Tower Cooler – Included tower cooler with multi-colour LED fan keeps the Pi 5 cool under load
• 0.96" OLED Display – Pre-fitted SSD1306 display (128 × 64 pixels, I2C) for real-time system monitoring
• Moulded ABS Frame – Durable central frame with heat-insert screw threads and embedded mounting points
• Acrylic Side Panels – Clear panels provide visibility of internal components and full port access
• JST Fan Connector – PWM-adjustable fan plugs directly into the Raspberry Pi 5 fan header

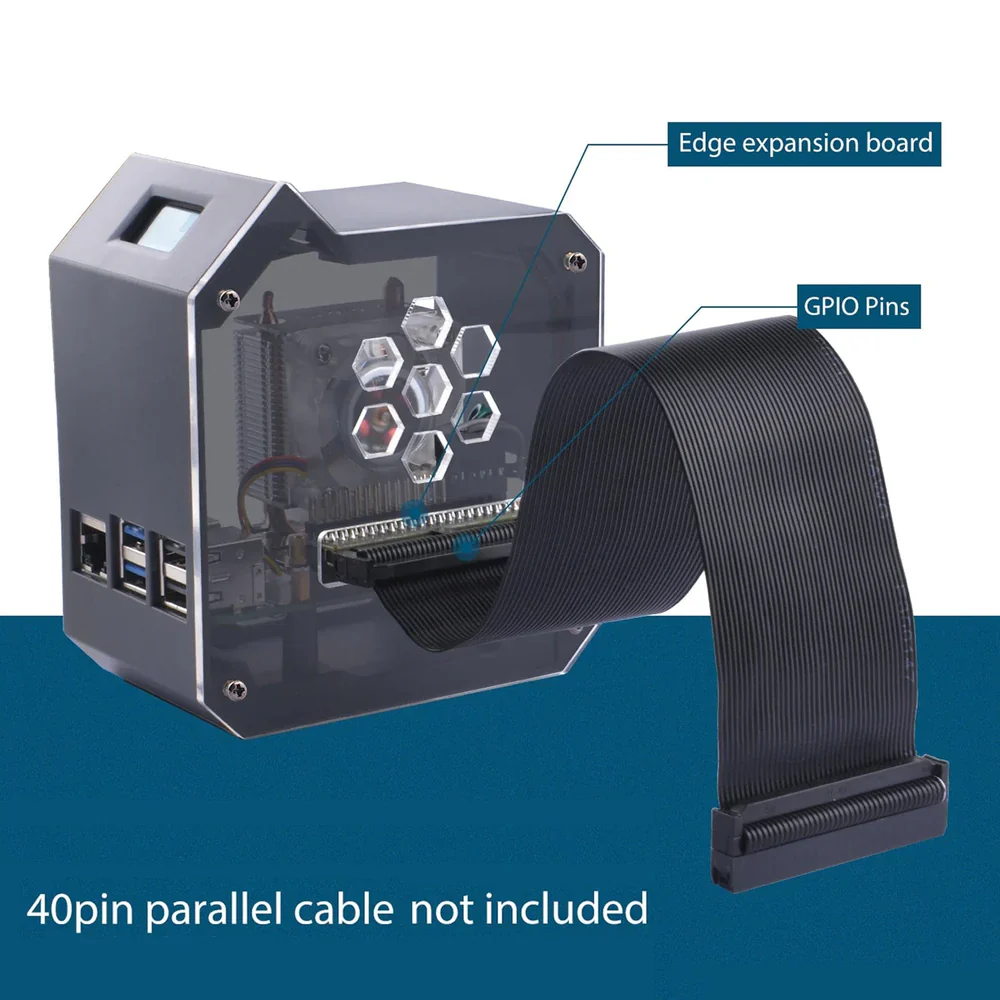

• GPIO Side Adapter – Expansion board gives side access to GPIO pins for ribbon cables
• Quick-Release OLED Mount – Tool-free OLED removal and repositioning
• Anti-Slip Rubber Feet – Non-slip base for stable placement

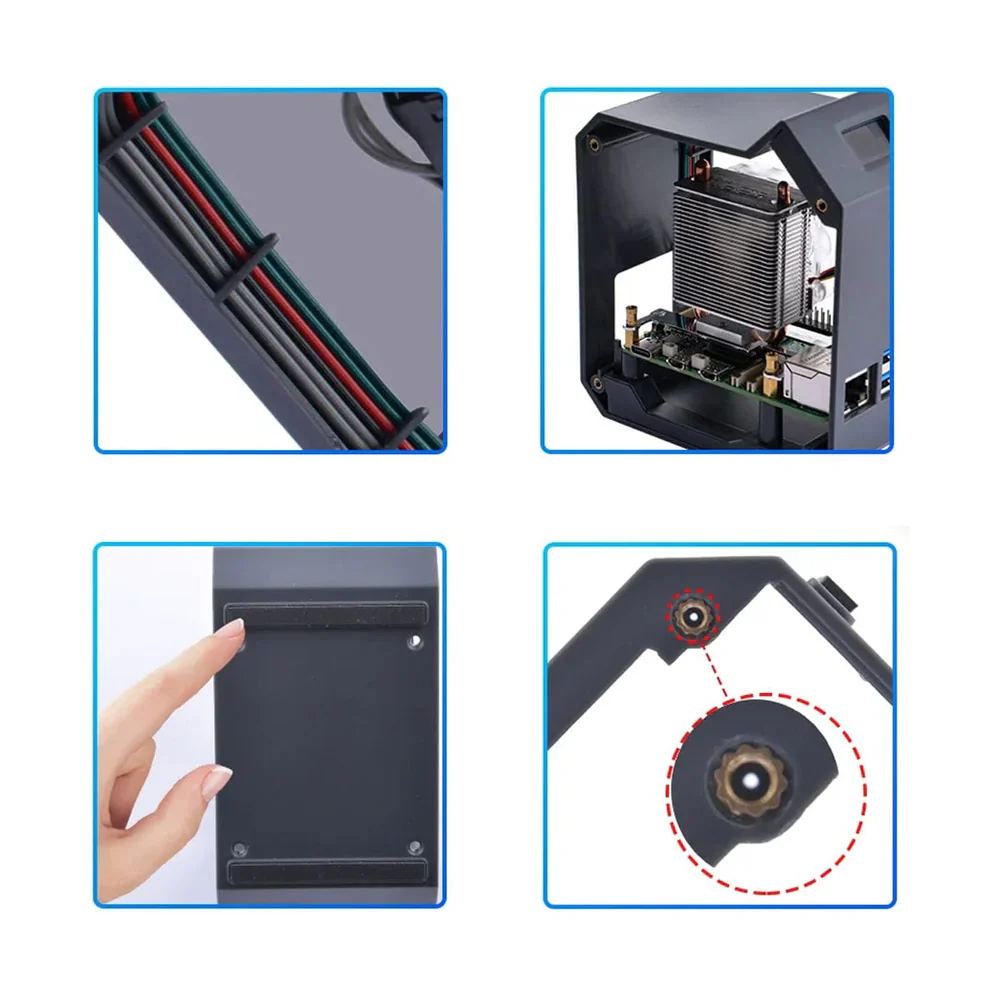

• Cable Management – Integrated routing for tidy cable organisation

Specifications

• OLED Display – 0.96", SSD1306, 128 × 64 pixels, I2C (default address: 0x3C)
• Fan – PWM adjustable speed, JST 4-pin connector
• Dimensions – 125 × 125 × 80 mm
• Weight – 340 g

Package Contents

• 1× Mini Tower ABS Core
• 2× Acrylic Side Panels
• 1× ICE Tower Cooler for Pi 5 with LED Fan
• 1× 0.96" OLED (pre-fitted)
• 1× Edge GPIO Expansion Board
• 2× Thermal Pads
• 1× Screwdriver
• 1× Fixings Pack

Resources

• Product Wiki

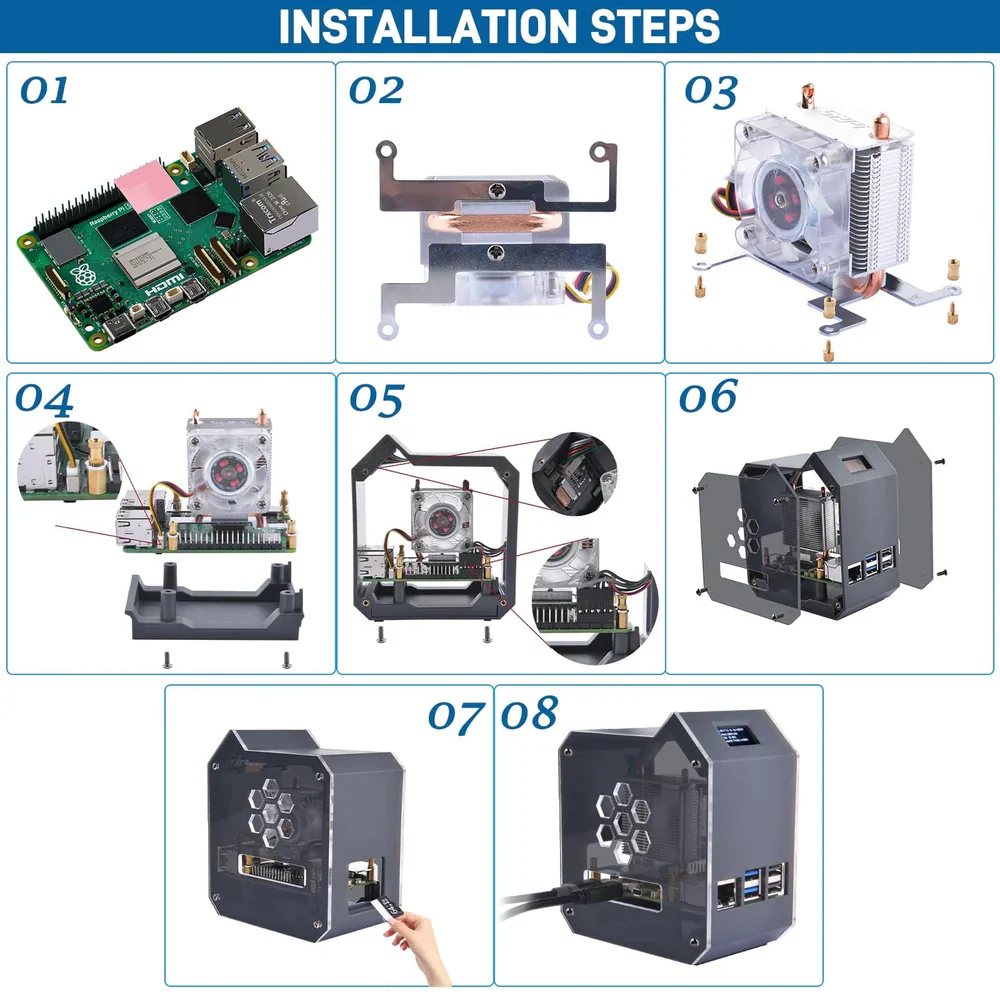

• Assembly Instructions
• Enabling the OLED Display
• Customising the Display
