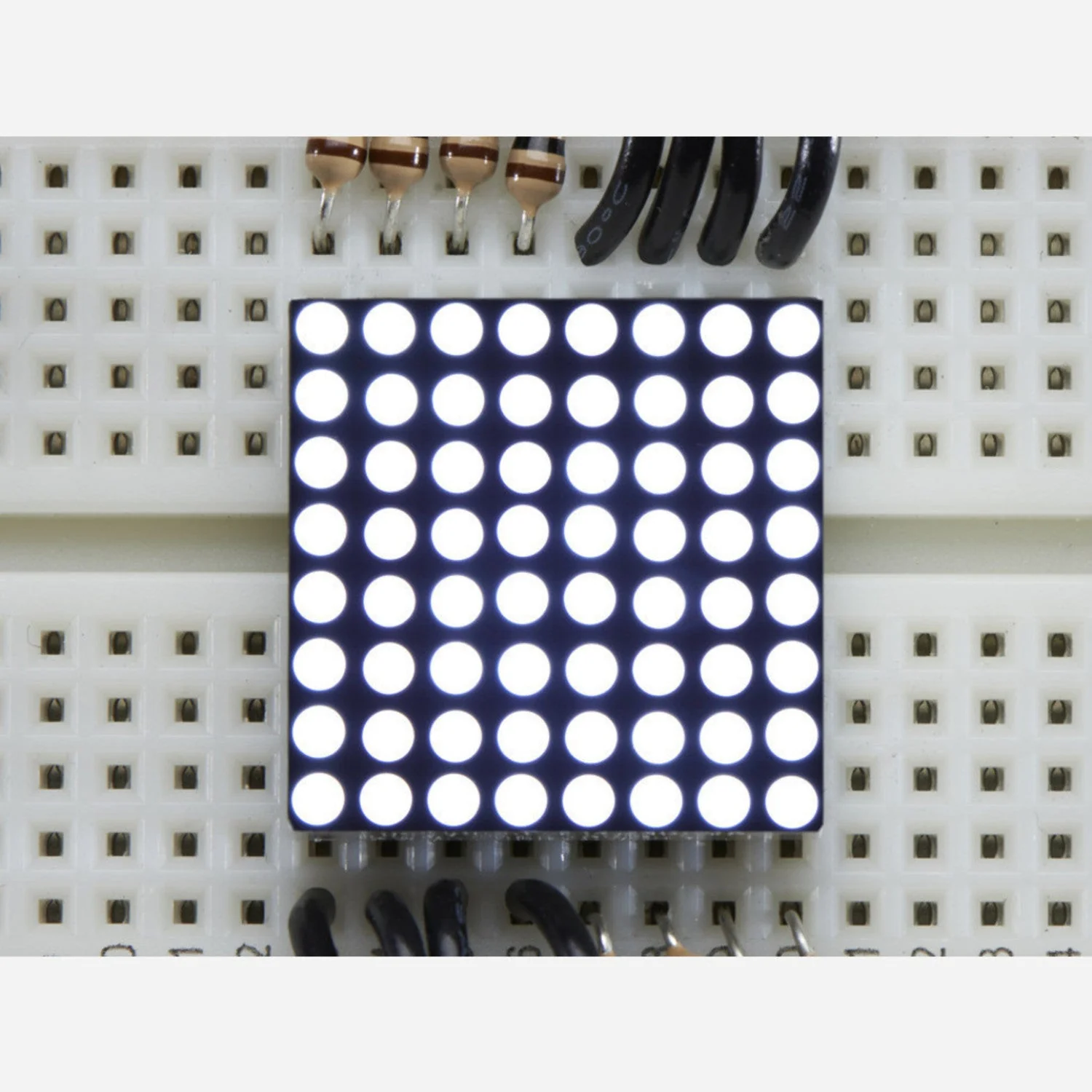

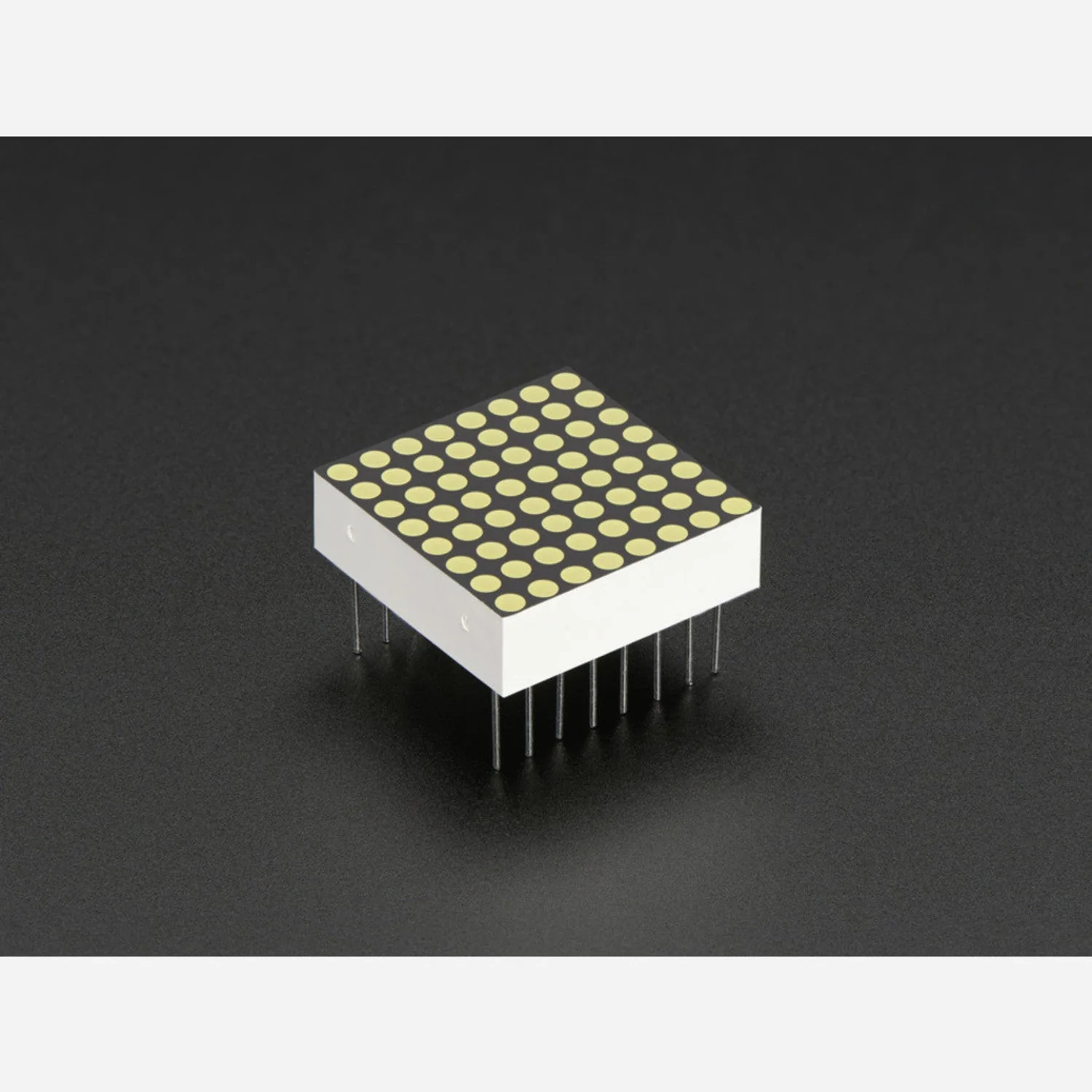

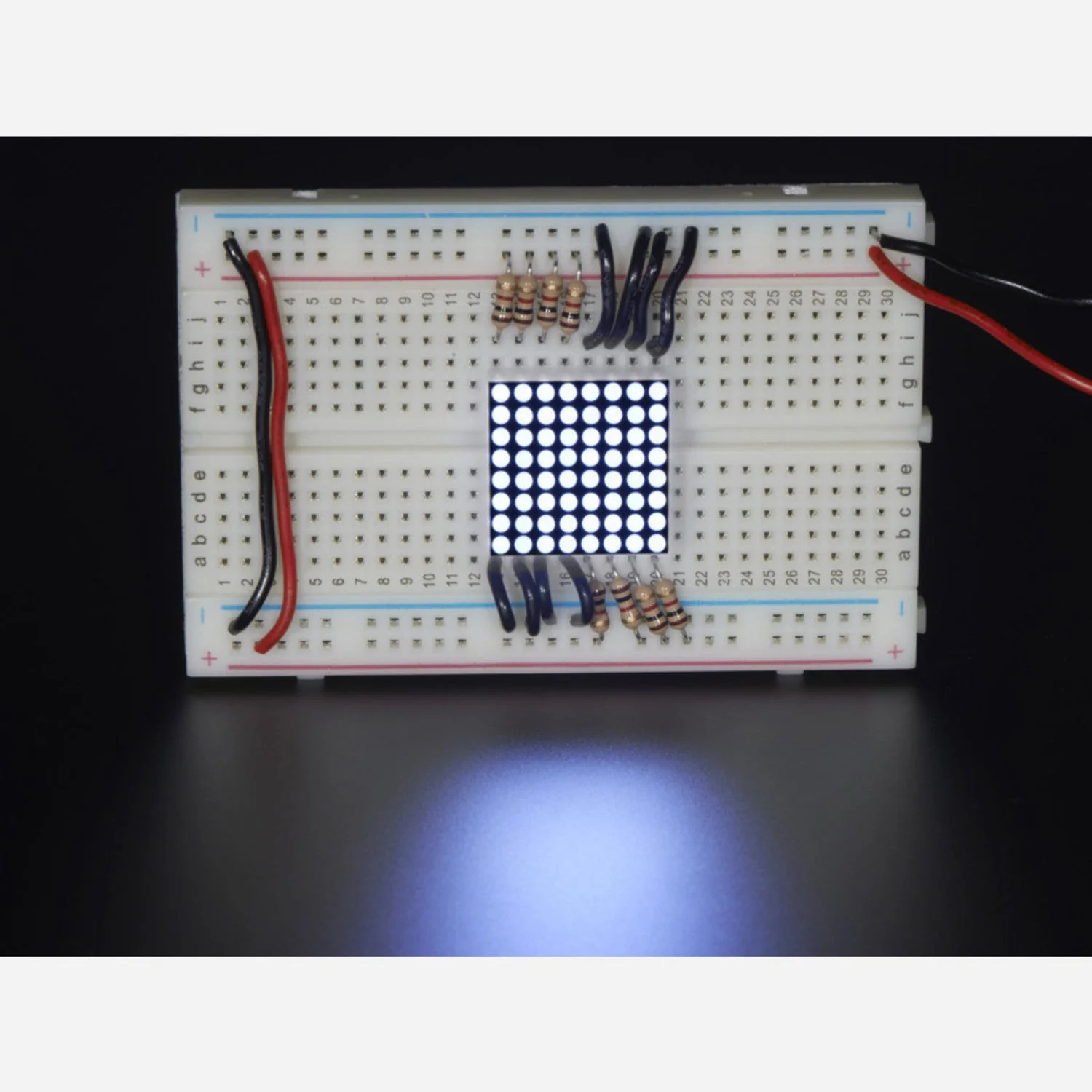

This miniature 8×8 LED matrix packs 64 bright white LEDs into a compact 0.8″ (20 mm) square package. The 16 pins (8 per side) are on standard 0.1″ spacing, so the module plugs directly into a breadboard with room to spare for wiring.

The matrix requires 1:8 multiplex driving — either use shift registers (such as a 74HC595 for anodes and a TPIC6B595 for cathodes) or a dedicated LED driver like the MAX7219 which handles all the multiplexing internally.

Key Features

• 64 White LEDs – 8×8 matrix of ultra-bright white LEDs
• Compact Size – 0.8″ (20 mm) square footprint
• Breadboard Friendly – 16 pins at 0.1″ (2.54 mm) spacing

Specifications

• LED Count – 64 (8×8 matrix)
• Colour – White
• Size – 0.8″ × 0.8″ (20 × 20 mm)
• Pin Count – 16 (8 anodes, 8 cathodes)
• Pin Spacing – 0.1″ (2.54 mm)
• Drive Method – 1:8 multiplex

Ideal For

• Scrolling text and animation displays
• Arduino and microcontroller display projects
• Compact indicator panels

Package Contents

• 1× Miniature 8×8 white LED matrix
