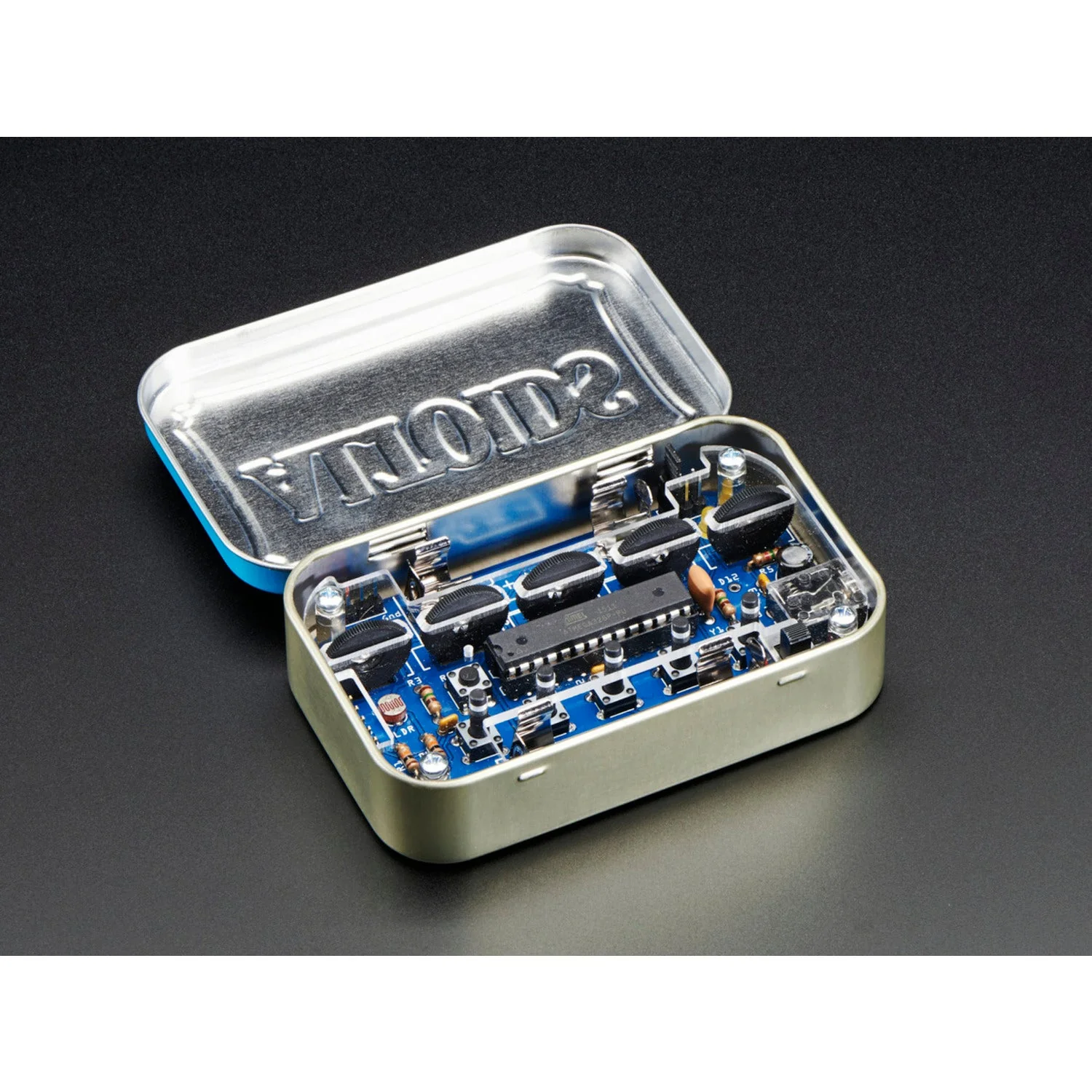

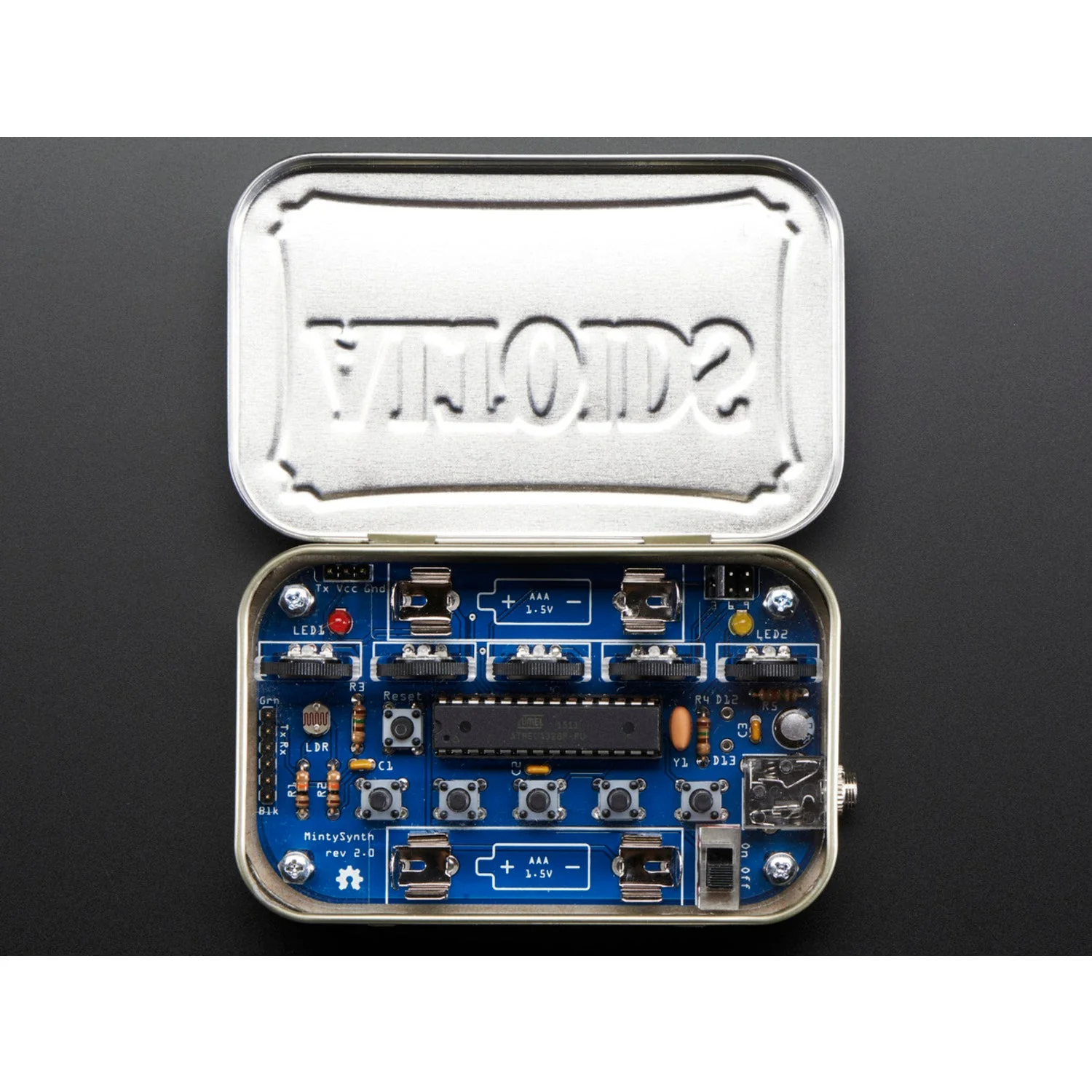

The MintySynth Kit 2.0 is an open-source, Arduino-compatible synthesiser kit designed to fit inside an Altoids-sized tin. It comes as an unassembled through-hole soldering kit with the software pre-loaded, so you can start making music as soon as assembly is complete.

The included firmware is a 4-voice, 16-step wavetable sequencer that lets you experiment with different instruments while controlling tempo, swing, key, and scale. Save up to four 16-note songs and loop them continuously. For custom programming, an FTDI cable is required as there is no onboard USB.

Key Features

• Arduino-Compatible – Open-source and fully hackable
• Pre-Loaded Firmware – 4-voice, 16-step wavetable sequencer ready to play
• Song Storage – Save and recall up to 4 songs
• Compact Design – Fits inside an Altoids-sized tin
• Through-Hole Soldering – Beginner-friendly assembly

Specifications

• Voices: 4
• Sequencer Steps: 16
• Synthesis Type: Wavetable
• Programming Interface: FTDI serial (no onboard USB)
• Form Factor: Altoids tin-sized PCB

Ideal For

• Learning electronics through music and sound
• Soldering practice with a fun end result
• Portable synthesiser and chiptune projects
• Arduino audio programming experiments

Package Contents

• 1× MintySynth 2.0 Kit (unassembled, firmware pre-loaded)

Resources

• MintySynth Project Site
