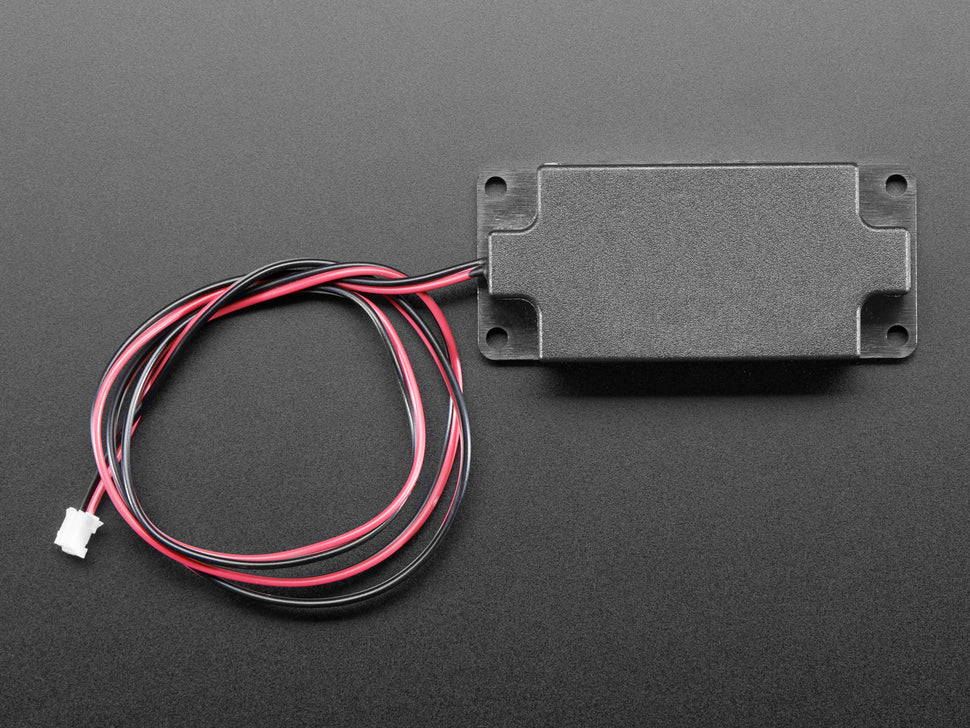

This compact enclosed mono speaker delivers clear audio at up to 1 W with 8 Ω impedance. The sealed enclosure provides better volume and sound quality compared to bare speaker drivers of a similar size, making it a practical choice for embedded audio projects, displays, and interactive installations.

A JST PH 2-pin connector (2.0 mm pitch) is pre-wired for easy connection to compatible amplifier boards and development platforms.

Key Features

• Enclosed Design – Sealed housing for improved audio quality and volume
• 1 W / 8 Ω – Standard impedance, compatible with most Class D amplifiers
• JST PH 2-Pin Connector – Pre-wired cable for plug-and-play connection
• Mounting Holes – Four 3.4 mm diameter holes in a 24 × 63 mm rectangle

Specifications

• Power Rating – 1 W
• Impedance – 8 Ω
• Connector – JST PH 2-pin (2.0 mm pitch)
• Cable Length – 570 mm (22.5")
• Speaker Dimensions – 70 × 30 × 17 mm
• Mounting Holes – 3.4 mm diameter, 24 × 63 mm spacing
• Weight – 26.4 g

Ideal For

• Audio feedback in embedded projects and displays
• Interactive installations and kiosks
• Pairing with Class D mono amplifier boards

Package Contents

• 1× Mono Enclosed Speaker (1 W, 8 Ω) with JST PH cable
