NeoPixel 1/4 60 Ring - WS2812 5050 RGB LED w/ Integrated Drivers

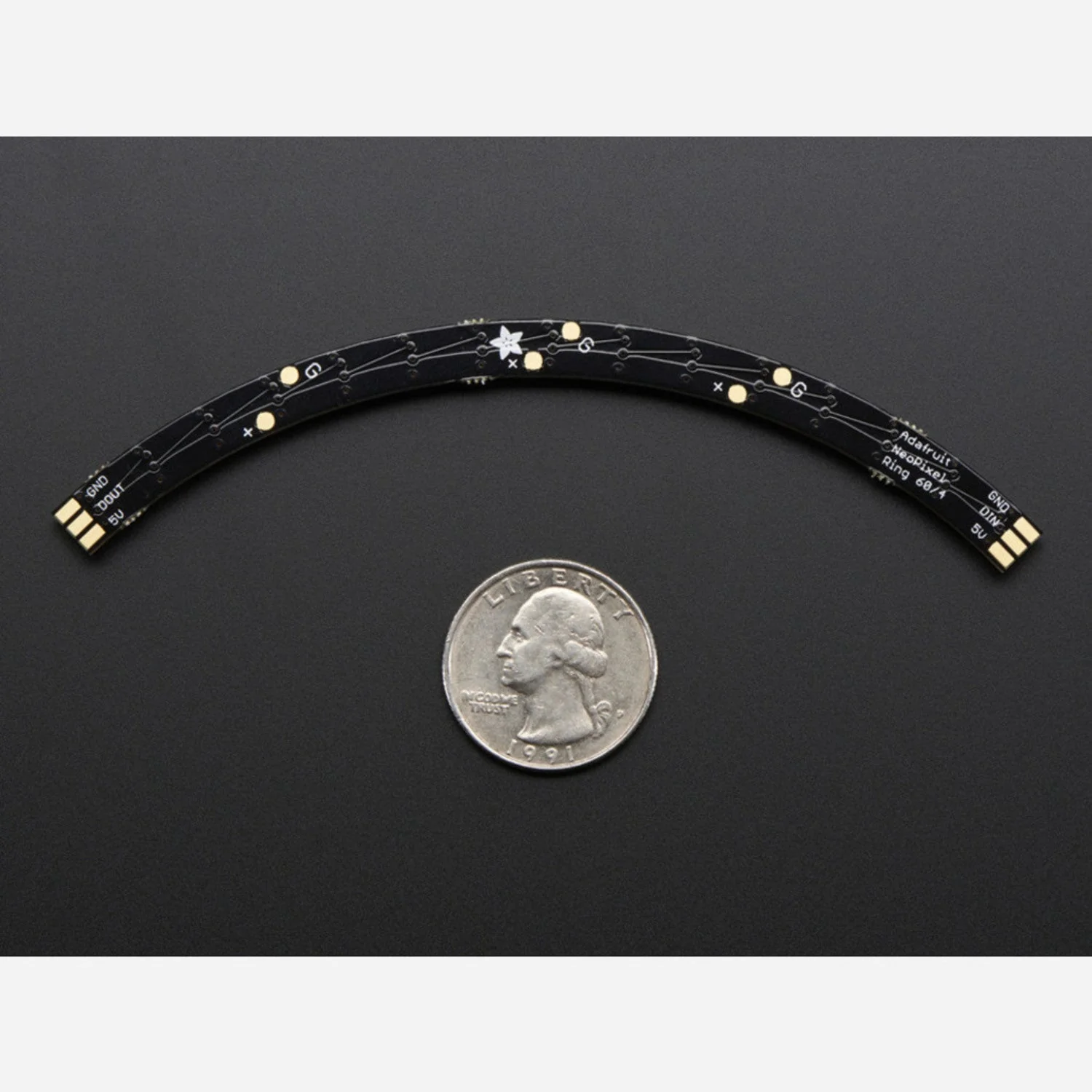

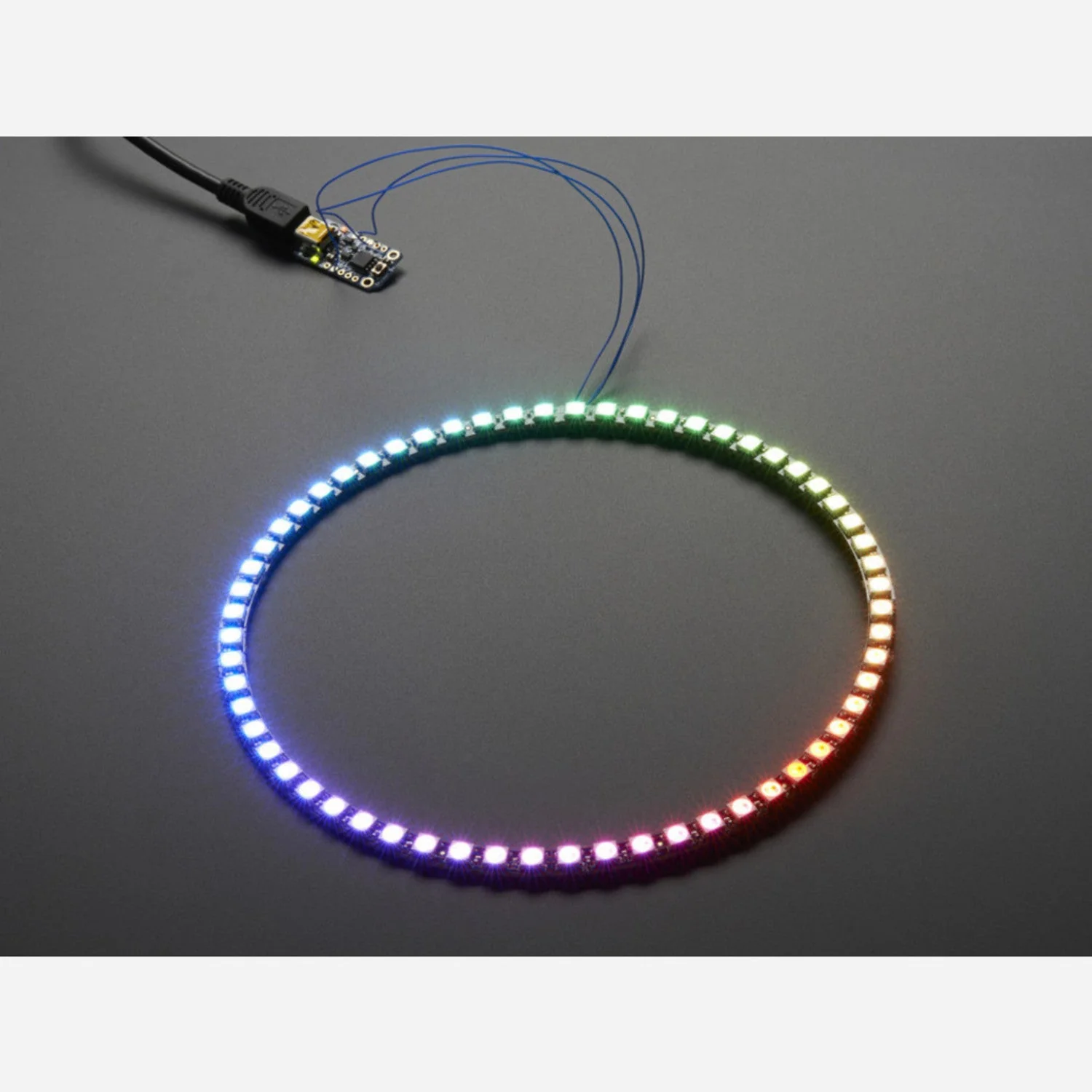

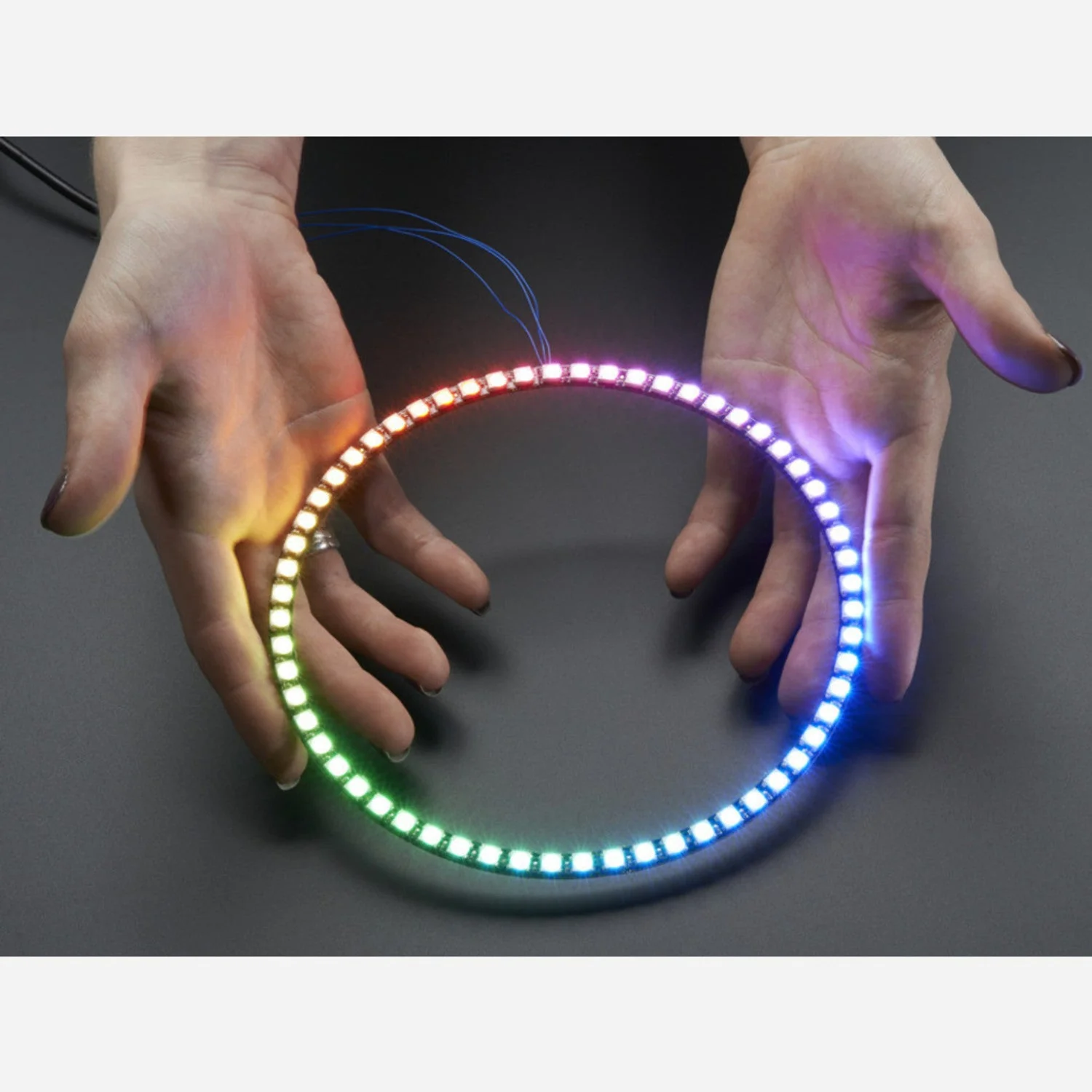

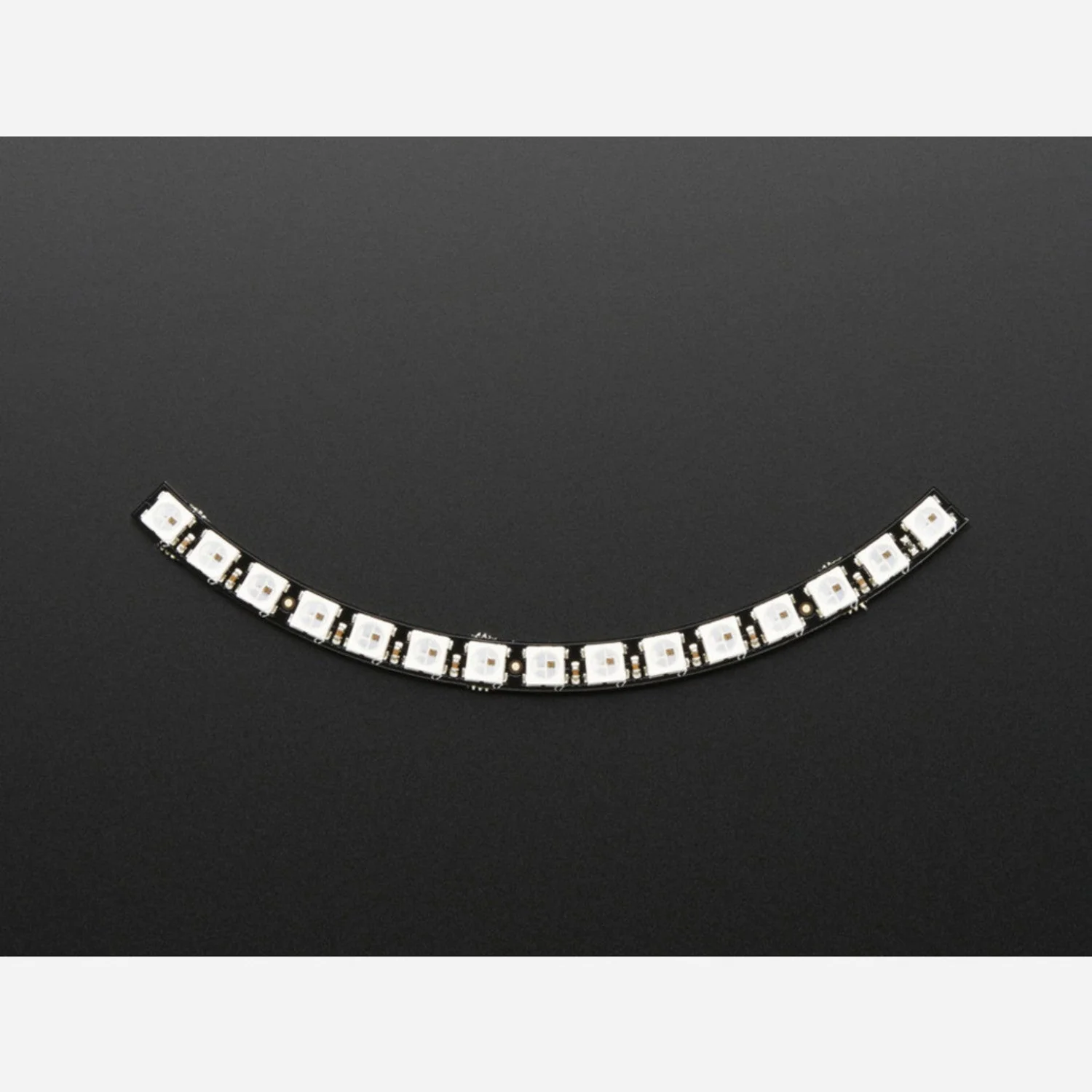

Build a large 60-LED NeoPixel ring with these quarter-ring segments. Each segment contains 15 individually addressable WS2812 5050 RGB LEDs arranged in a quarter circle — buy four and solder them together to complete the full 6.2" (157 mm) diameter ring.

Each LED has an integrated WS2812 driver with ~18 mA constant-current drive, delivering consistent colour regardless of voltage variation. The single-wire data protocol lets you daisy-chain segments and control them all from a single microcontroller pin. Power with 5 V DC and you're ready to go.

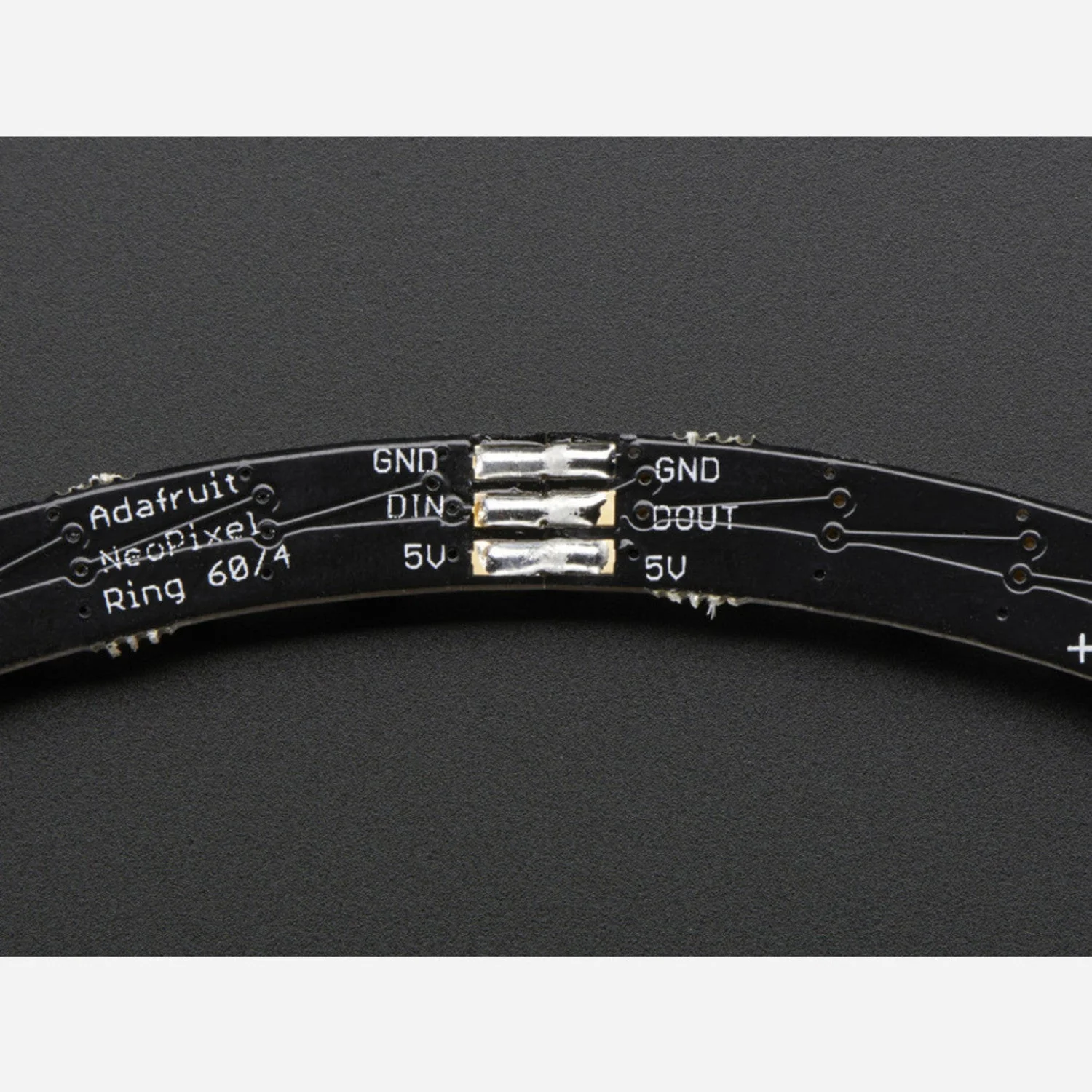

Note: Each order includes one quarter ring (15 LEDs). You need four of this item to build the complete 60-LED circle. The solder joints between segments carry electrical signals only — you will need to provide mechanical backing to hold the full ring together.

Key Features

  • 15 WS2812 RGB LEDs Per Segment – Individually addressable with integrated drivers
  • Chainable Design – Connect output to input across segments using a single data line
  • Constant-Current Drive – ~18 mA per LED for consistent colour output
  • No External Resistors – Driver circuitry is built into each LED for a slim profile
  • 5 V DC Operation – Standard logic-level power supply

Specifications

  • LEDs Per Segment: 15× WS2812 5050 RGB
  • Full Ring Diameter: 6.2" (157 mm) when 4 segments assembled
  • Operating Voltage: 5 V DC
  • Current Per LED: ~18 mA constant current
  • Data Protocol: Single-wire, timing-specific (NeoPixel/WS2812)
Tip: The WS2812 protocol requires a real-time microcontroller (Arduino, AVR, PIC, ARM, etc.) running at 8 MHz or faster. It is not compatible with Linux-based single-board computers or interpreted microcontrollers.

Package Contents

  • 1× NeoPixel Quarter Ring (15 RGB LEDs, assembled and tested)

Resources
