Individual WS2812B-compatible 5050 RGB LEDs with an integrated driver chip — the same LED used in NeoPixel strips and pixels. Each 5 × 5 mm package contains an RGB LED and controller with ~18 mA constant-current drive, delivering consistent colour regardless of voltage variation. No external resistors are needed.

The LEDs are chainable: connect the data output of one chip to the data input of the next. They operate at the 800 kHz high-speed protocol and require a real-time microcontroller (AVR, Arduino, PIC, or similar) running at 8 MHz or faster. They are not compatible with Linux-based microcomputers or interpreted controllers such as the Basic Stamp.

Key Features

• Integrated WS2812B Driver – No external driver chip or resistors required
• ~18 mA Constant Current – Consistent colour output across voltage variations
• Chainable – Single data line connects multiple LEDs in series

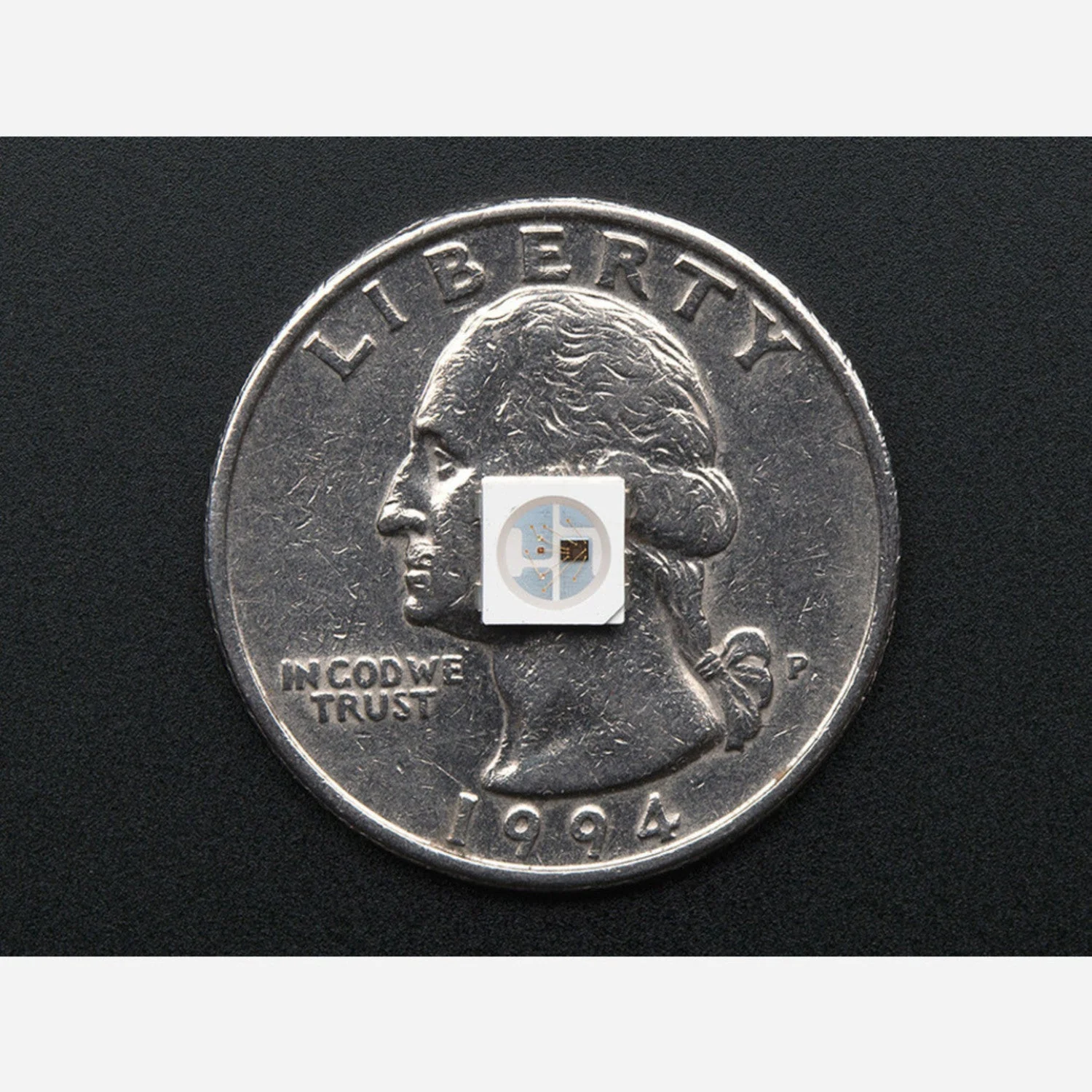

• 5050 Package – 5 × 5 mm SMD form factor
• 5 V Operation – Standard logic level power supply
• Built-In Polarity Protection – B-chip variant with reverse-polarity protection

Ideal For

• Custom PCB LED designs
• Wearable electronics and e-textiles
• Compact smart LED arrangements

Package Contents

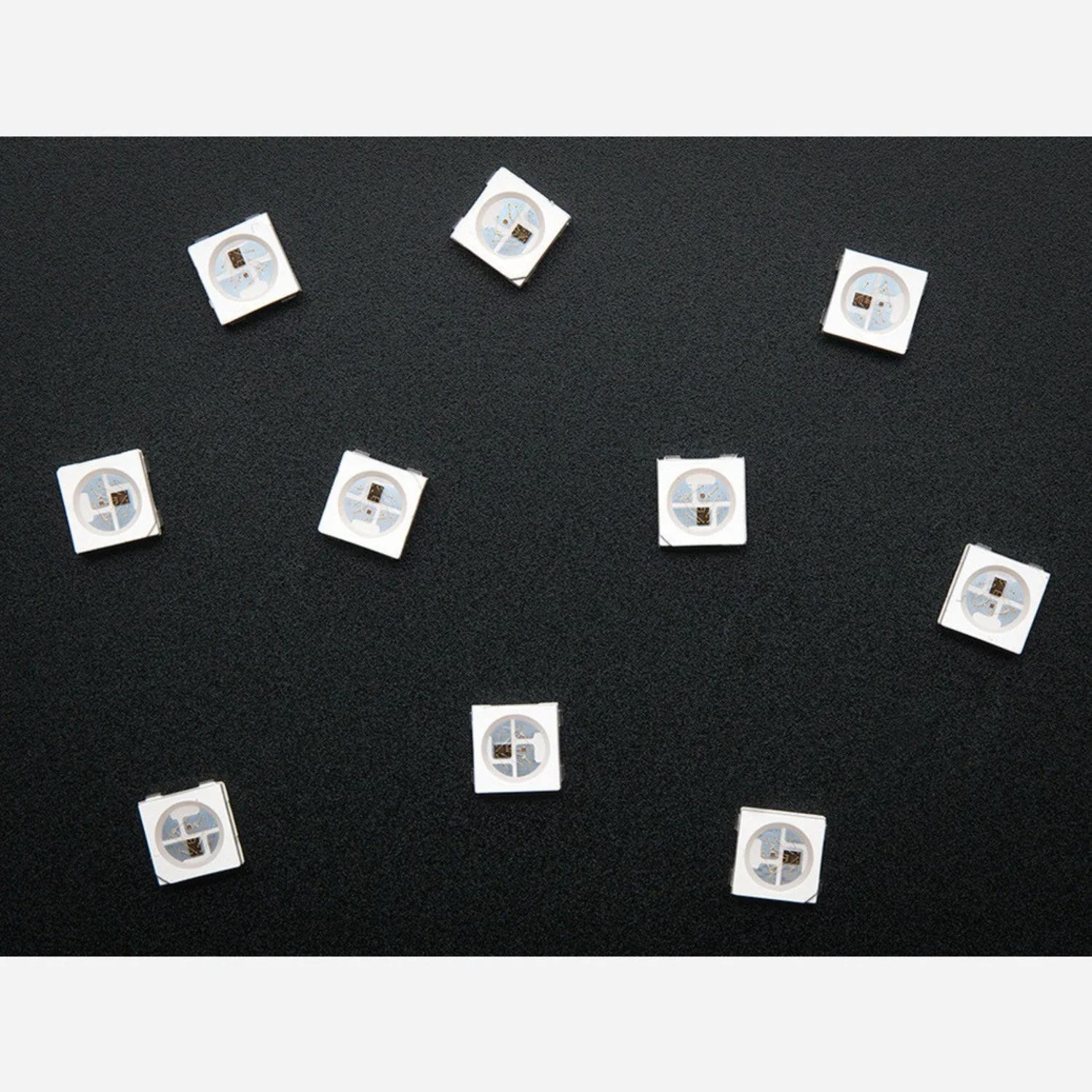

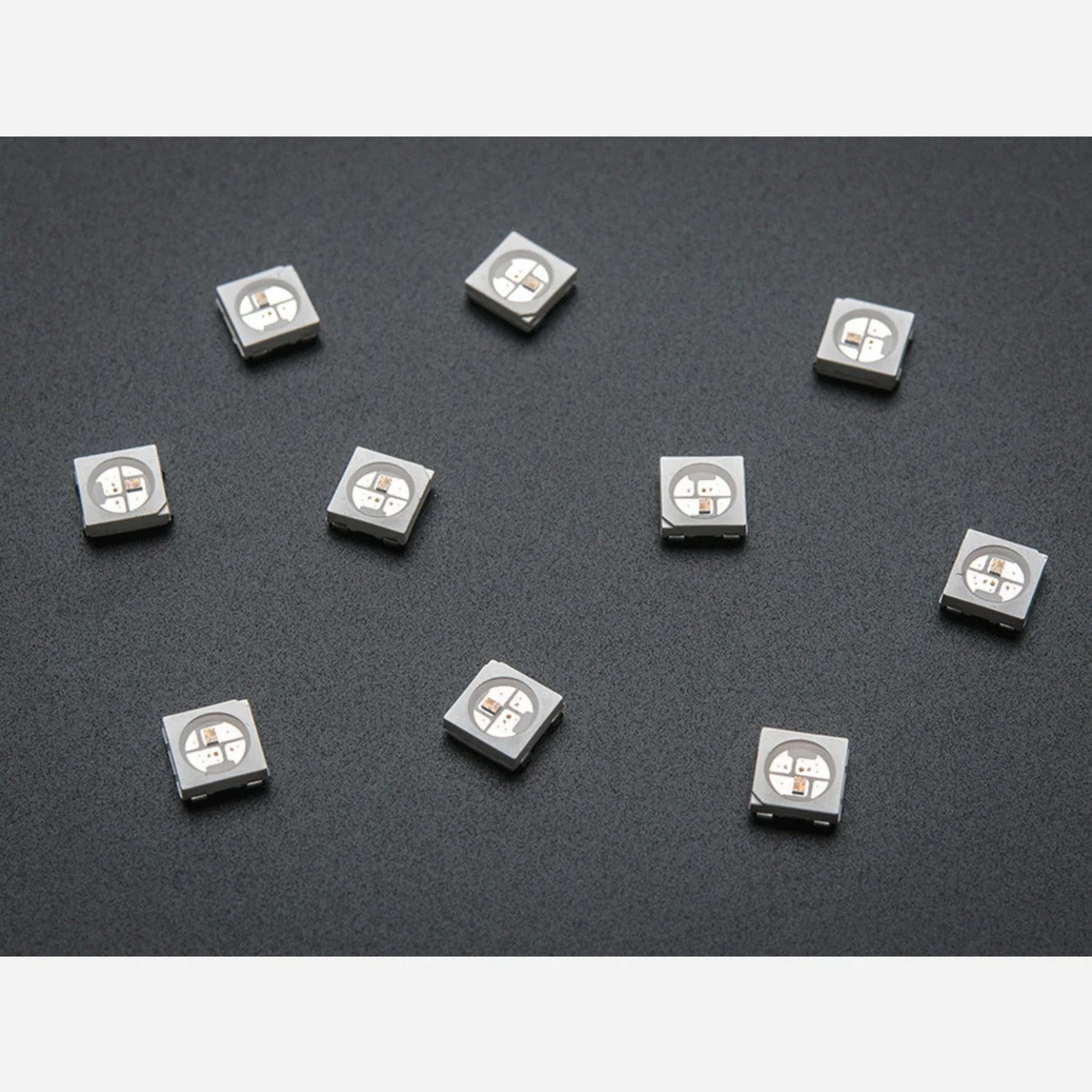

• 10× NeoPixel 5050 RGB LEDs (WS2812B)

Resources

• NeoPixel Arduino Library (GitHub)
• EAGLE Component Library (GitHub)
