NeoPixel FeatherWing - 4x8 RGB LED Add-on For All Feather Boards

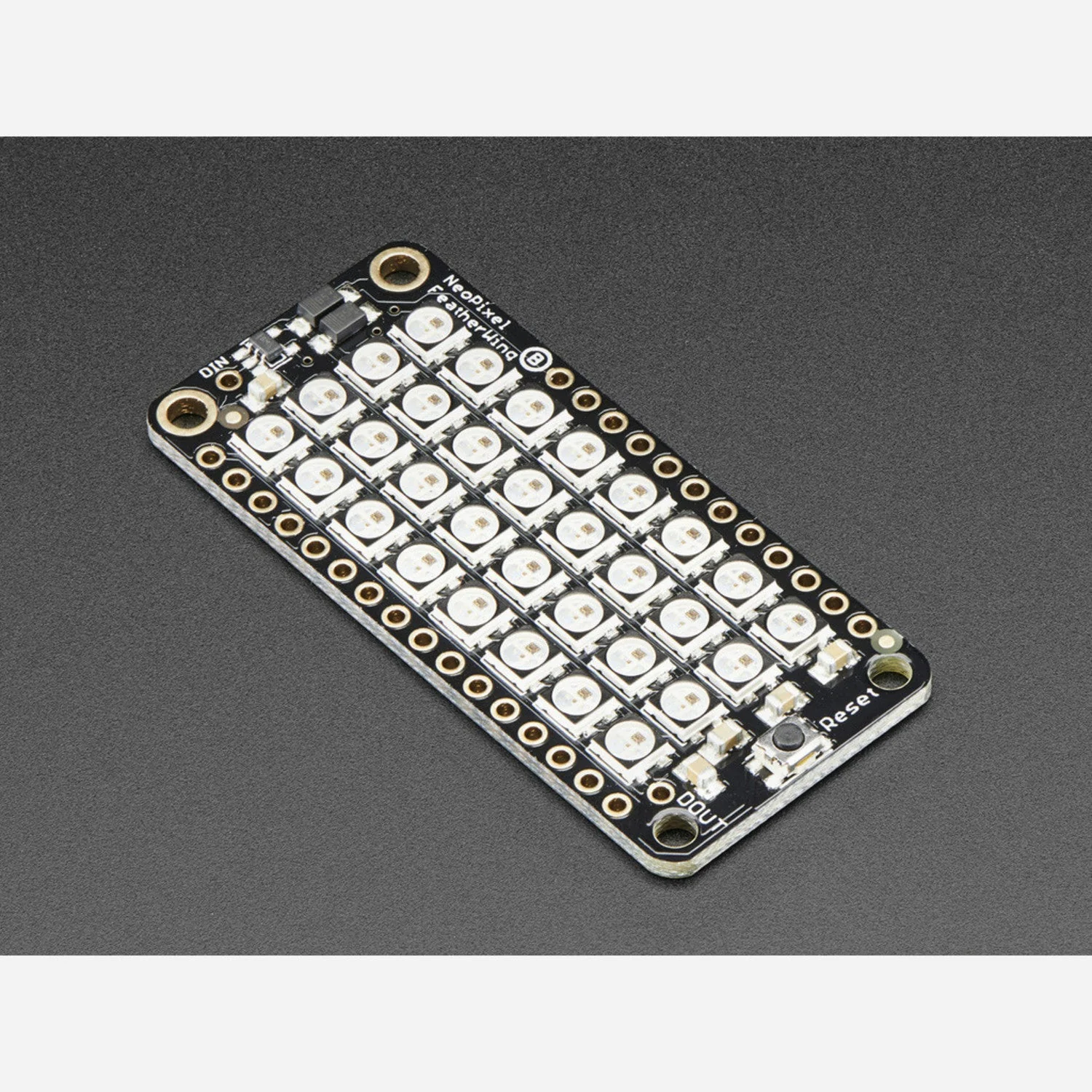

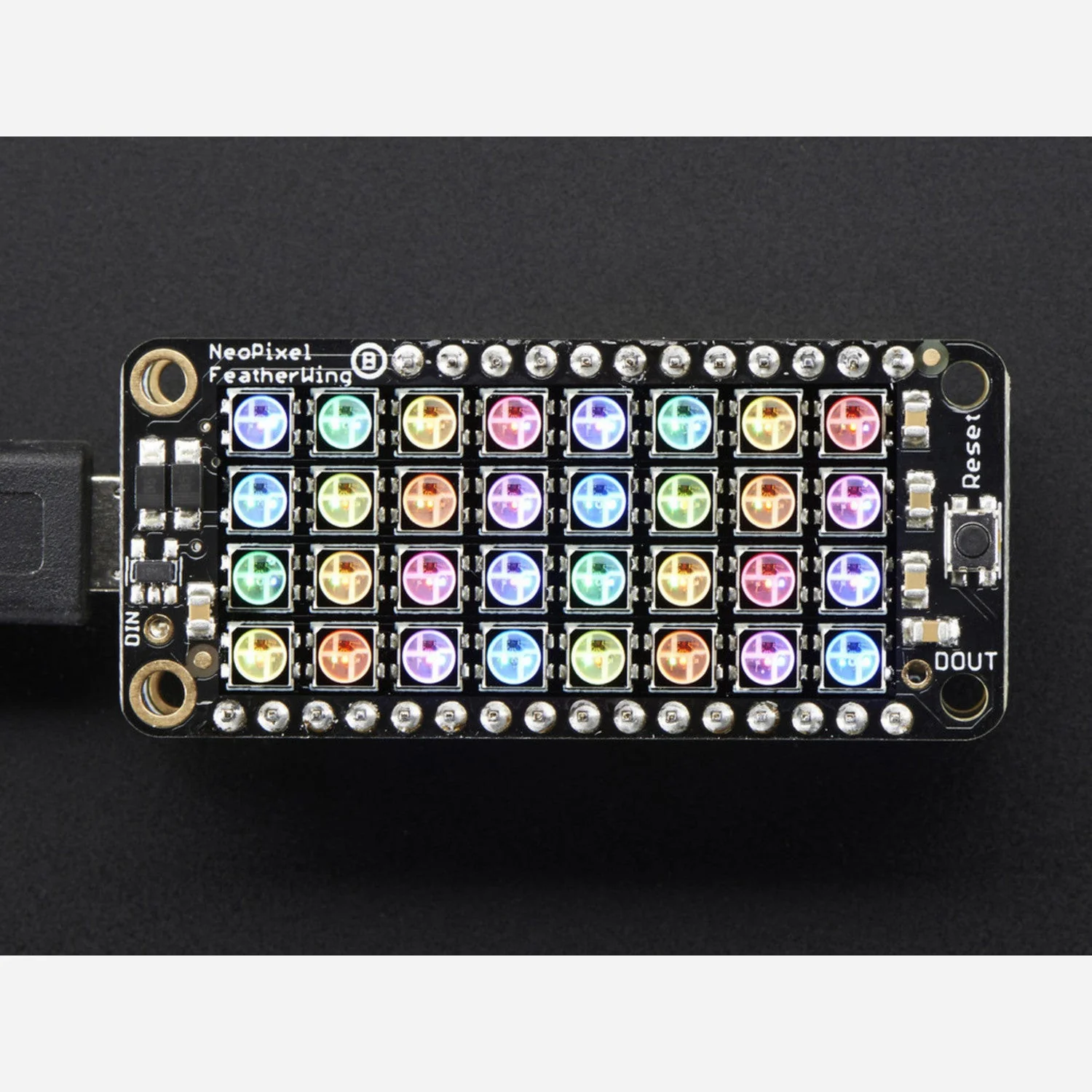

The NeoPixel FeatherWing adds a 4×8 matrix of 32 individually addressable RGB LEDs to any Adafruit Feather board. Using Feather stacking headers or female headers, the wing connects directly on top or bottom of your Feather for a compact, colourful display.
Only one pin is required to control all 32 NeoPixels, with configurable jumpers on the underside to select any I/O pin. A built-in level shifter converts 3.3 V logic to the power line voltage, and dual Schottky diodes automatically switch between USB and battery power. Multiple wings can be daisy-chained via the DOUT connection.
Key Features
- 32 RGB NeoPixels – 4×8 individually addressable LED matrix

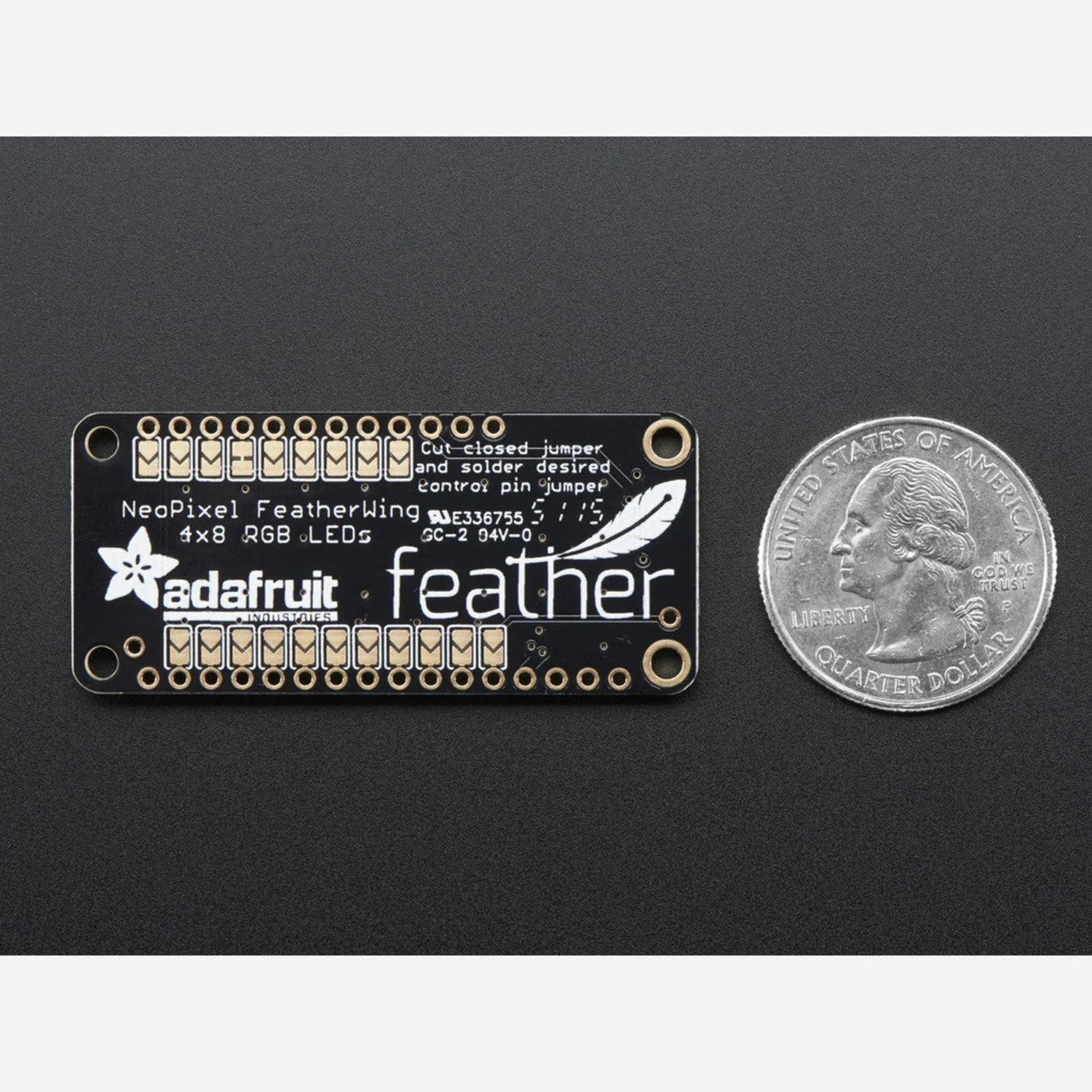

- Single-Pin Control – Default jumper selectable; cut trace to reassign to any I/O pin
- Level Shifter – Converts 3.3 V Feather logic to the LED power voltage
- Dual Power Source – Automatic switching between USB and battery via Schottky diodes (up to 1 A continuous, ~2 A peak)
- Chainable – Connect DIN of the next wing to DOUT, with independent 5 V supply for additional wings
- Universal Feather Compatibility – Works with all Feather boards
Resources
Original: $29.17
-70%$29.17
$8.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The NeoPixel FeatherWing adds a 4×8 matrix of 32 individually addressable RGB LEDs to any Adafruit Feather board. Using Feather stacking headers or female headers, the wing connects directly on top or bottom of your Feather for a compact, colourful display.
Only one pin is required to control all 32 NeoPixels, with configurable jumpers on the underside to select any I/O pin. A built-in level shifter converts 3.3 V logic to the power line voltage, and dual Schottky diodes automatically switch between USB and battery power. Multiple wings can be daisy-chained via the DOUT connection.
Key Features
- 32 RGB NeoPixels – 4×8 individually addressable LED matrix
- Single-Pin Control – Default jumper selectable; cut trace to reassign to any I/O pin
- Level Shifter – Converts 3.3 V Feather logic to the LED power voltage
- Dual Power Source – Automatic switching between USB and battery via Schottky diodes (up to 1 A continuous, ~2 A peak)
- Chainable – Connect DIN of the next wing to DOUT, with independent 5 V supply for additional wings
- Universal Feather Compatibility – Works with all Feather boards
