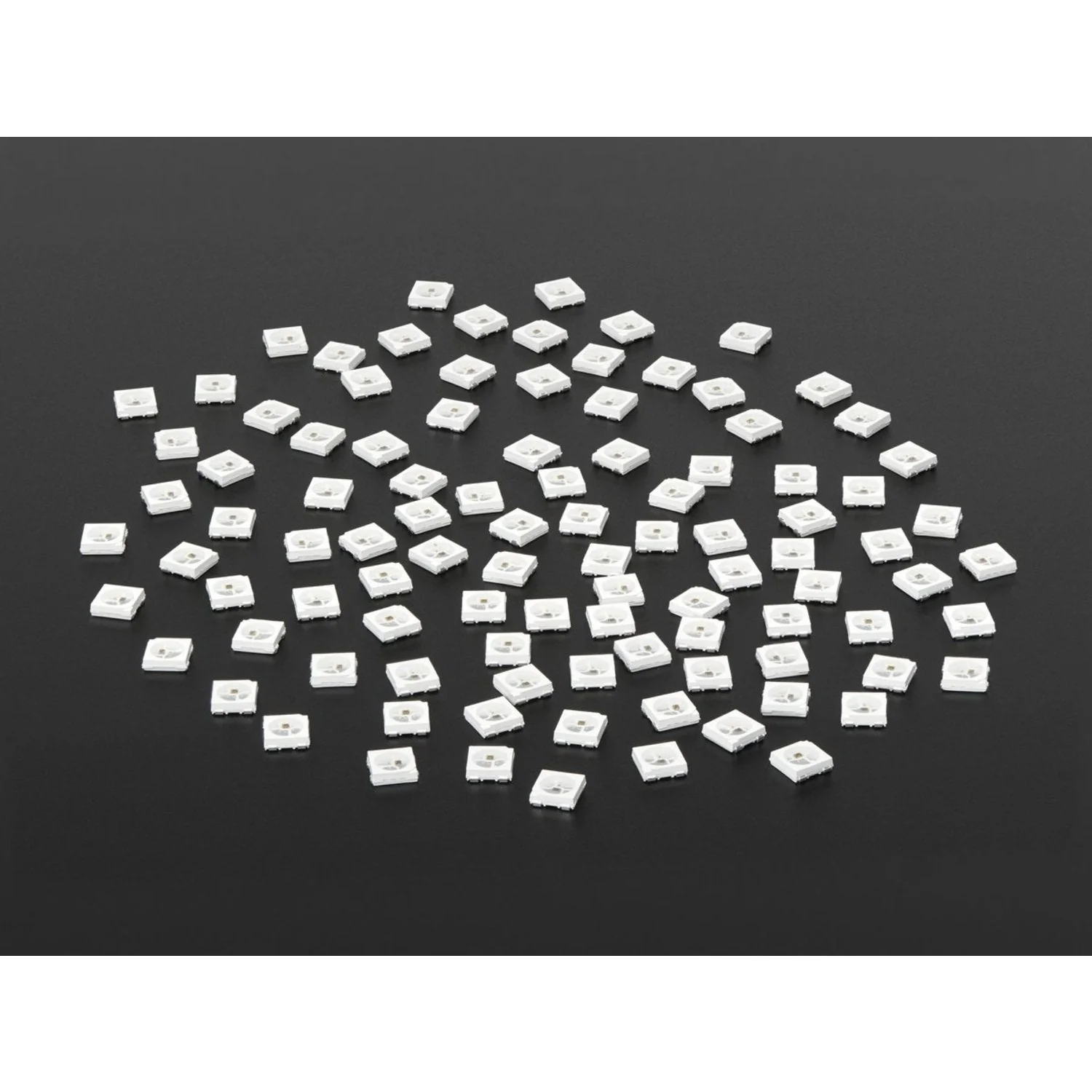

A 100-pack of individual NeoPixel RGB 5050 LEDs with integrated WS2812B-compatible driver chips. Each 5mm × 5mm LED includes ~18mA constant-current drive per channel, so colour remains consistent regardless of voltage variation — no external resistors needed. Power with 5VDC.

These are the 4-pin (WS2812B) variant with built-in reverse polarity protection. They are chainable — connect the data output of one LED to the data input of the next. Requires a real-time microcontroller (AVR, Arduino, PIC, etc.) running at 8MHz or faster. Not compatible with interpreted controllers or Linux-based microcomputers for direct driving.

Key Features

• Integrated Driver – WS2812B-compatible, 800KHz protocol
• Constant Current – ~18mA per channel, no external resistors needed
• 4-Pin Package – Built-in reverse polarity protection (B variant)
• Chainable – Single data line, daisy-chain multiple LEDs
• 24-bit Colour – 8-bit PWM per R/G/B channel

Specifications

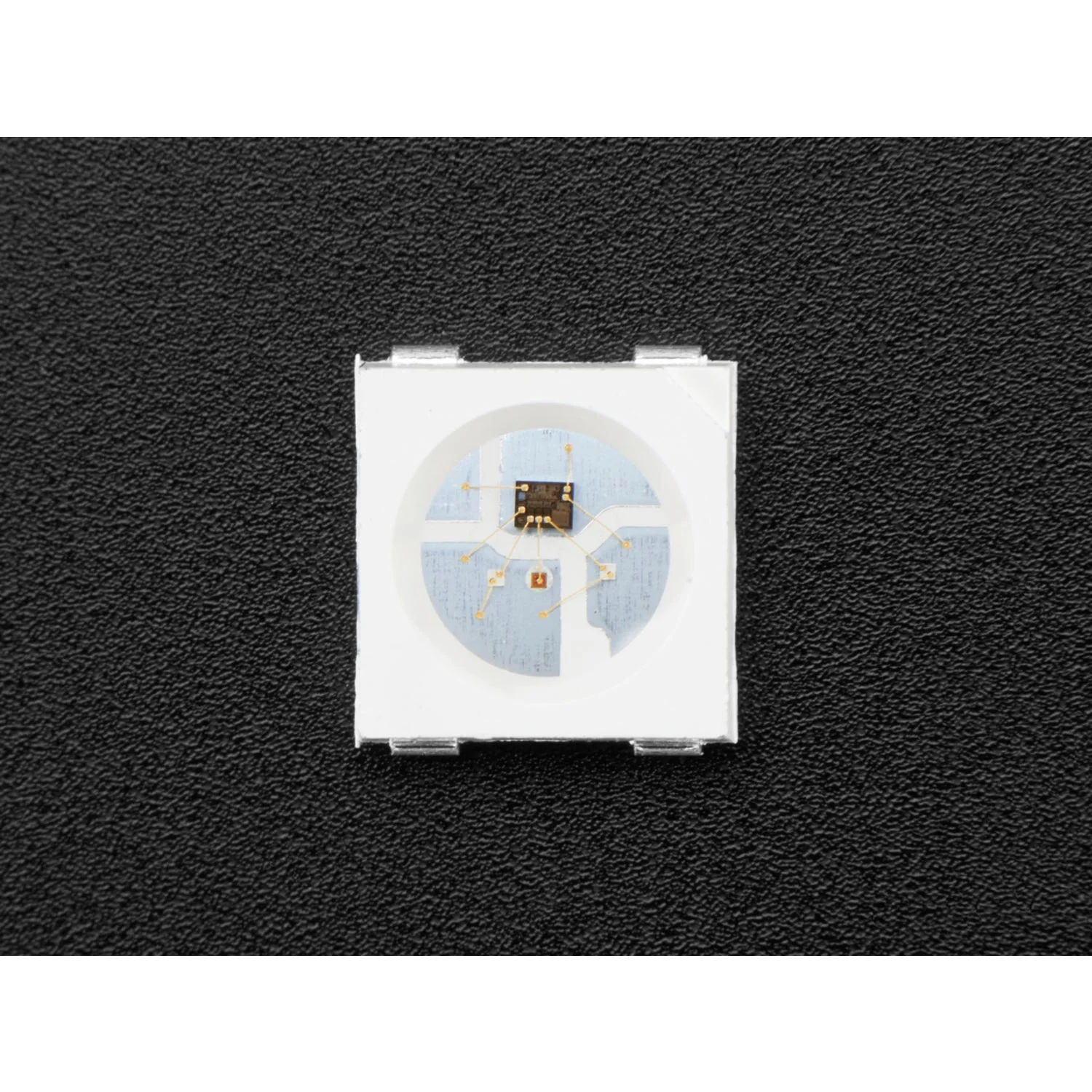

• LED Type – RGB 5050 with integrated driver
• Package Size – 5mm × 5mm
• Pins – 4 (VDD, GND, DI, DO)
• Operating Voltage – 5VDC
• Protocol – NeoPixel / WS2812B (800KHz)
• Minimum Processor Speed – 8MHz
• Quantity – 100 LEDs

Resources

• Adafruit NeoPixel Library (GitHub)
• Adafruit EAGLE Library (GitHub)
