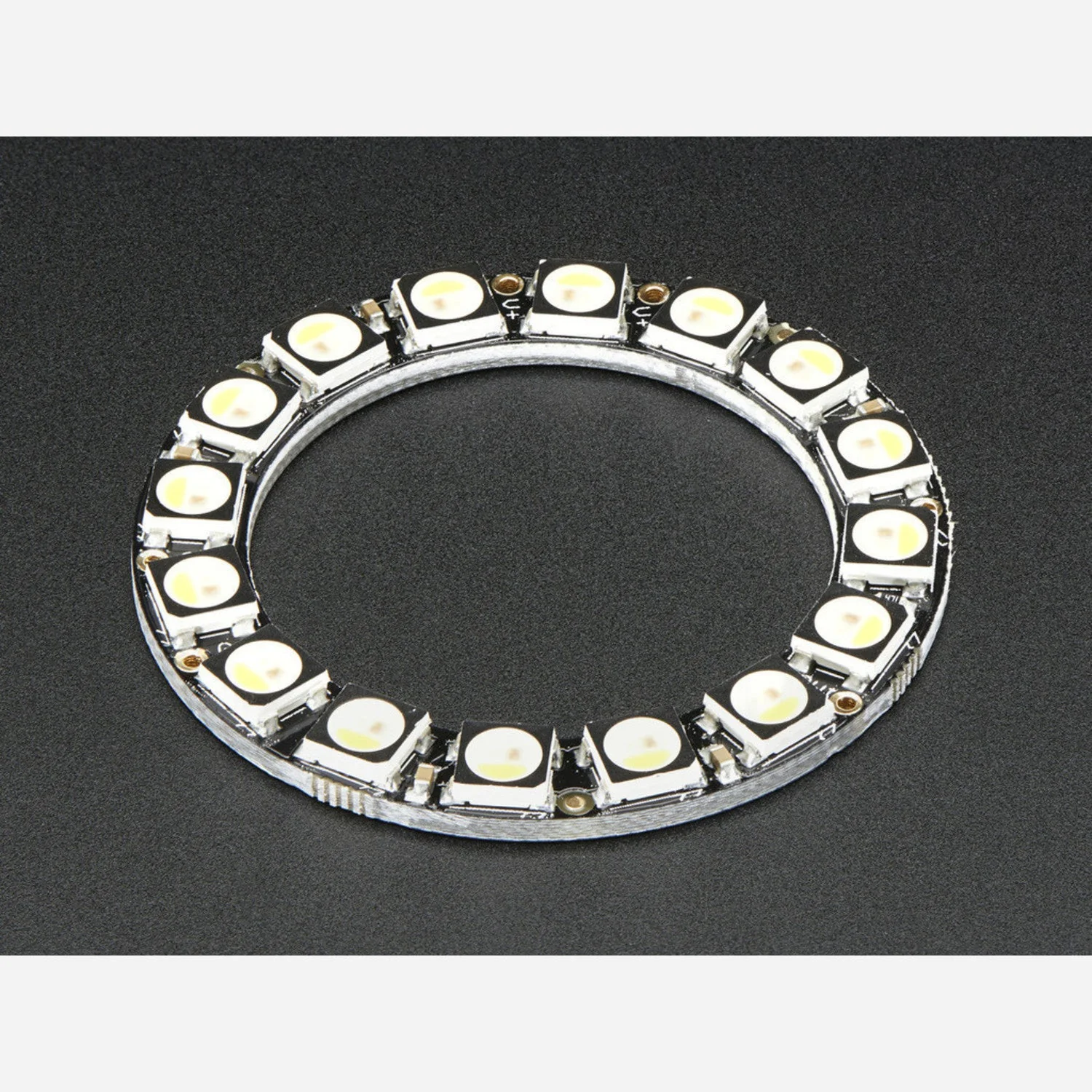

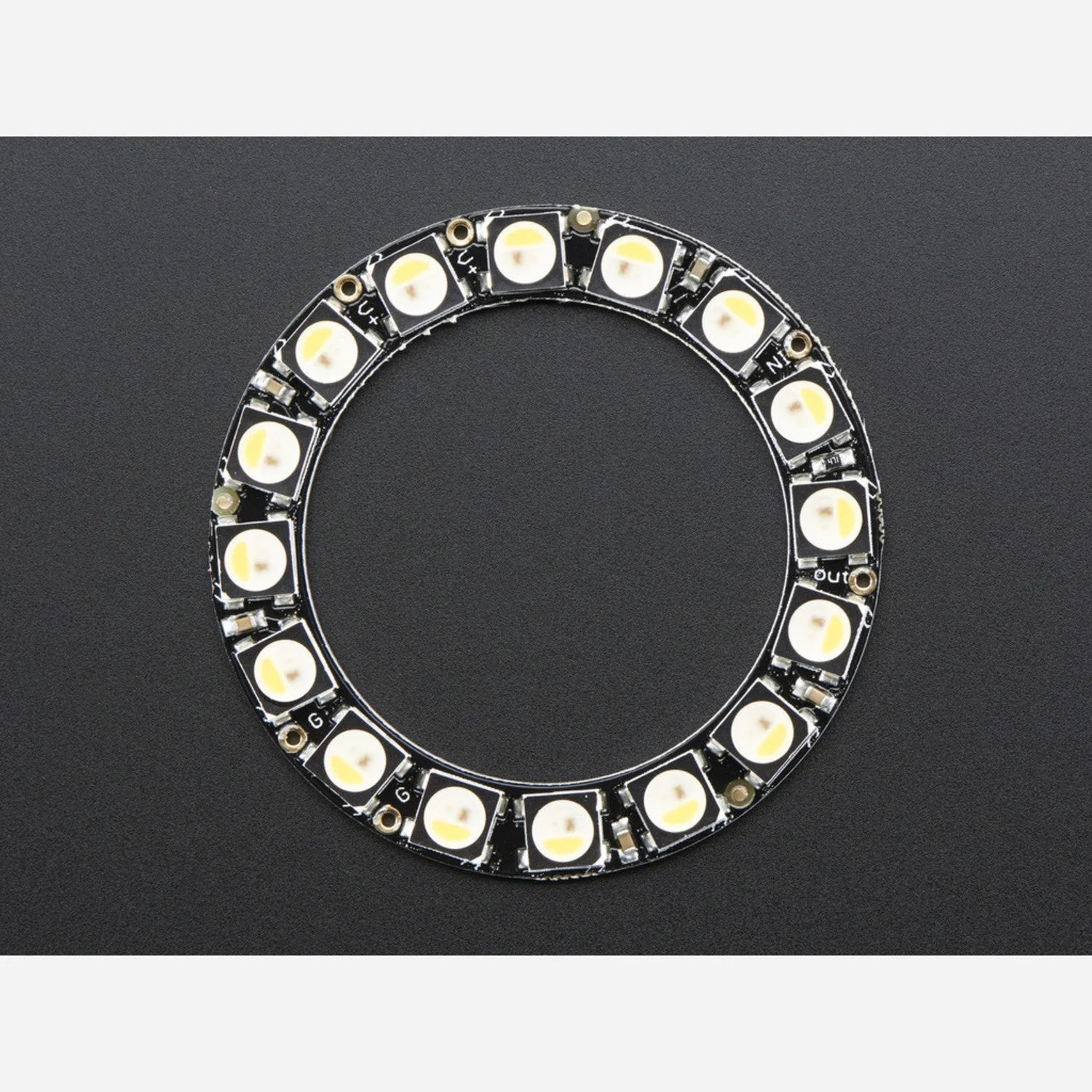

A ring of 16 individually addressable RGBW NeoPixel LEDs with a warm white (~3000 K) channel. Each 5050-sized LED contains red, green, blue, and white elements with integrated drivers, delivering vibrant colours plus a dedicated warm white for natural lighting effects.

The ring is chainable — connect the output of one ring to the input of another and control them all from a single microcontroller pin. Each LED draws ~18 mA constant current for consistent colour regardless of voltage variation, and no external resistors are required.

Key Features

• 16× RGBW NeoPixels – 5050-sized LEDs with integrated WS2812-style drivers
• Warm White Channel – Dedicated white LED (~3000 K) with yellow phosphor
• 32-Bit Colour – 8-bit PWM per channel (R, G, B, W)
• Chainable – Connect multiple rings using a single data pin
• Constant Current Drive – ~18 mA per LED for consistent colour
• Single-Pin Control – 800 KHz data protocol, ~400 Hz PWM refresh rate

Specifications

• LED Count: 16
• LED Type: 5050 RGBW with integrated driver
• Colour Temperature (White): ~3000 K (warm white)
• Outer Diameter: 44.5 mm (1.75″)
• Operating Voltage: 5 V DC
• Current per LED: ~18 mA constant current

Package Contents

• 1× NeoPixel RGBW Ring (16 LEDs, assembled and tested)

Resources

• NeoPixel Uberguide – Wiring, power calculations, and example code
