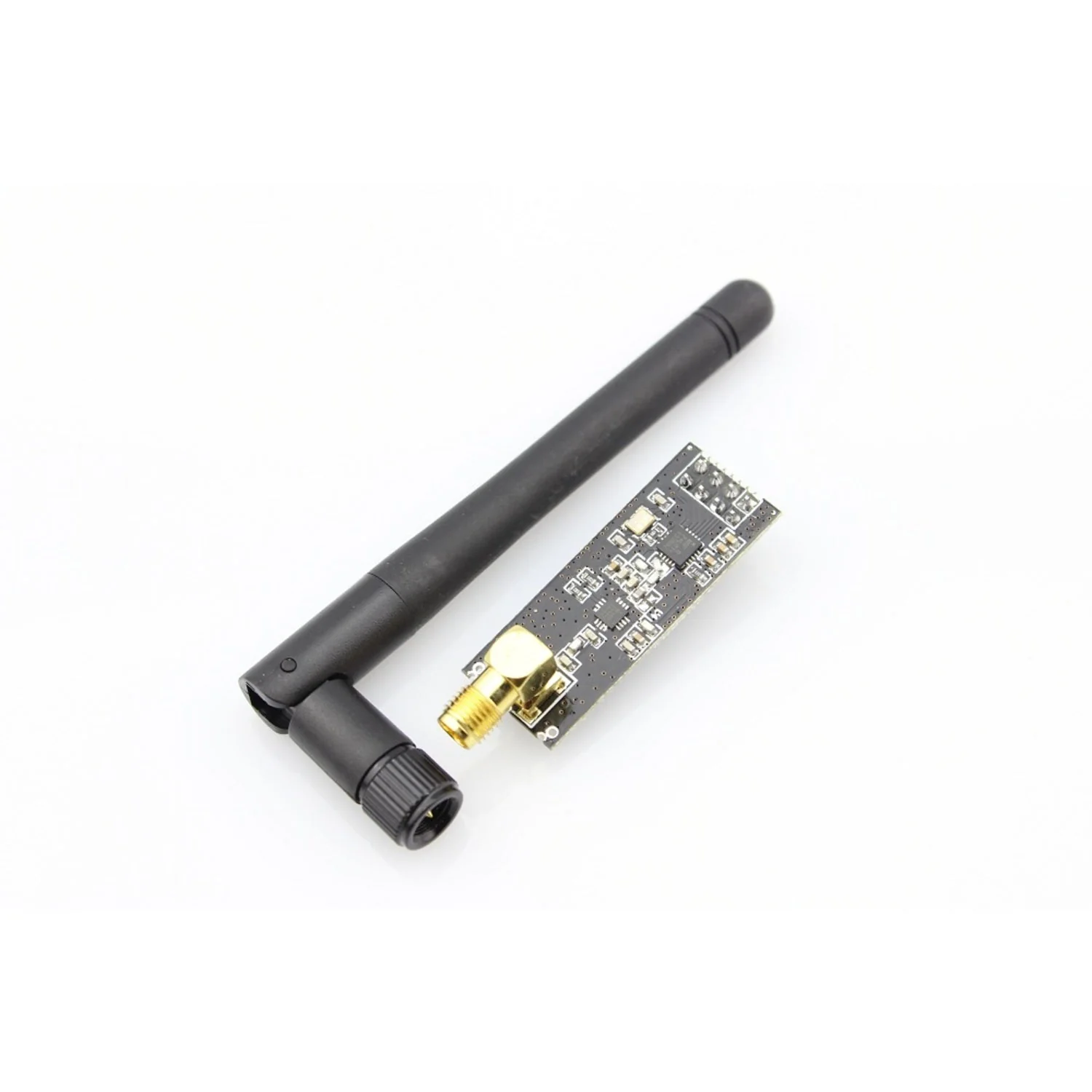

A long-range 2.4 GHz wireless transceiver module based on the NRF24L01+ chip with an integrated power amplifier (PA) and low-noise amplifier (LNA). The added PA and LNA significantly extend the effective communication range up to 1100 metres in open-air line-of-sight conditions. Connects via SPI to Arduino or any other microcontroller.

The module operates in the licence-free 2.4 GHz ISM band with 125 selectable frequency channels, supporting point-to-point and star network topologies. Software-compatible with standard NRF24L01 modules.

Key Features

• Extended Range – Up to 1100 m with PA (+20 dBm) and LNA (+10 dB gain)
• 2.4 GHz ISM Band – Licence-free, 125 frequency channels
• High Data Rate – Up to 2 Mbit/s
• 6-Channel Receive – Simultaneous multi-pipe data reception
• Auto Retransmit – Built-in packet loss recovery and acknowledgement
• SPI Interface – 8-pin connection to any microcontroller
• NRF24L01 Compatible – Drop-in software replacement for standard modules

Pinout

• Pin 1 (GND) – Ground
• Pin 2 (VCC) – 1.9–3.6 V power supply
• Pin 3 (CE) – RX/TX mode select (input)
• Pin 4 (CSN) – SPI chip select (input)
• Pin 5 (SCK) – SPI clock (input)
• Pin 6 (MOSI) – SPI data input
• Pin 7 (MISO) – SPI data output
• Pin 8 (IRQ) – Interrupt output

Specifications

• Operating Frequency – 2400–2524 MHz
• Modulation – GFSK
• Transmit Power – >+20 dBm
• Receiver Sensitivity – −95 dBm
• Operating Voltage – 2.7–3.6 V
• Max Transmit Current – 115 mA
• Max Receive Current – 45 mA
• PA Gain – 20 dB
• LNA Gain – 10 dB
• Operating Temperature – −45°C to +85°C
• Dimensions – 45.5 × 16.5 mm
