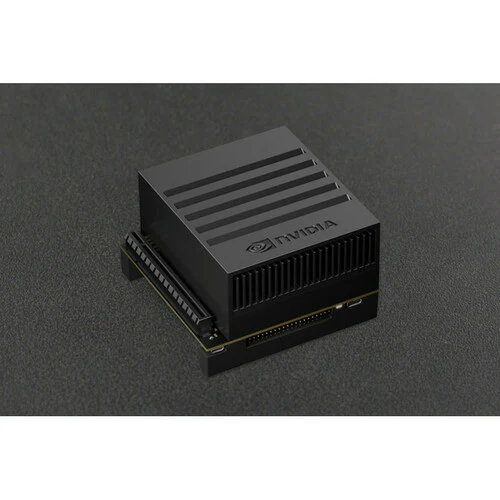

The NVIDIA Jetson AGX Xavier Developer Kit is a high-performance AI computing platform for robotics, autonomous machines, and edge AI applications. Powered by the Xavier processor with a 512-core Volta GPU and 8-core ARM CPU, it delivers over 20× the performance and 10× the energy efficiency of the Jetson TX2.

Supported by NVIDIA JetPack and DeepStream SDKs, along with CUDA, cuDNN, and TensorRT libraries, the kit provides a complete development environment for deploying end-to-end AI applications in manufacturing, delivery, retail, smart cities, and more.

Key Features

• Xavier Processor – 512-core Volta GPU with Tensor Cores and 8-core ARM v8.2 CPU
• 32 GB LPDDR4x Memory – 256-bit interface at 137 GB/s bandwidth
• 32 GB eMMC 5.1 Storage – On-module storage with NVMe expansion via M.2
• Dual NVDLA Engines – Dedicated deep learning accelerators
• Vision Processor – 7-way VLIW for computer vision workloads
• 4K Video – Dual 4Kp60 encode/decode with 12-bit support
• Full SDK Support – JetPack, DeepStream, CUDA, cuDNN, TensorRT

Specifications – Jetson AGX Xavier Module

• GPU – 512-core Volta with Tensor Cores
• CPU – 8-core ARM v8.2 64-bit, 8 MB L2 + 4 MB L3 cache
• Memory – 32 GB 256-bit LPDDR4x (137 GB/s)
• Storage – 32 GB eMMC 5.1
• DL Accelerator – 2× NVDLA engines
• Vision Accelerator – 7-way VLIW vision processor
• Encoder/Decoder – 2× 4Kp60 HEVC / 2× 4Kp60, 12-bit
• Dimensions – 105 × 105 × 65 mm

Developer Kit I/O

• PCIe – x16 slot (x8 PCIe Gen4 / x8 SLVS-EC)
• Ethernet – Gigabit RJ45
• USB-C – 2× USB 3.1 (DisplayPort and PD optional, debug/flash on 1 port)
• Camera – 16× CSI-2 lanes
• M.2 Key M – NVMe storage expansion
• M.2 Key E – PCIe x1 + USB 2.0 + UART (Wi-Fi/LTE), I2S, PCM
• 40-Pin Header – UART, SPI, CAN, I2C, I2S, DMIC, GPIOs
• HD Audio Header – High-definition audio output
• eSATAp + USB 3.0 Type-A – SATA via PCIe bridge + USB 3.0
• HDMI – HDMI 2.0 Type-A
• Card Socket – microSD / UFS

Ideal For

• AI robotics and autonomous machines
• Edge AI inference and computer vision
• Manufacturing and industrial automation
• Smart city and retail analytics

Package Contents

• 1× NVIDIA Jetson AGX Xavier Developer Kit

Resources

• Jetson Download Centre
