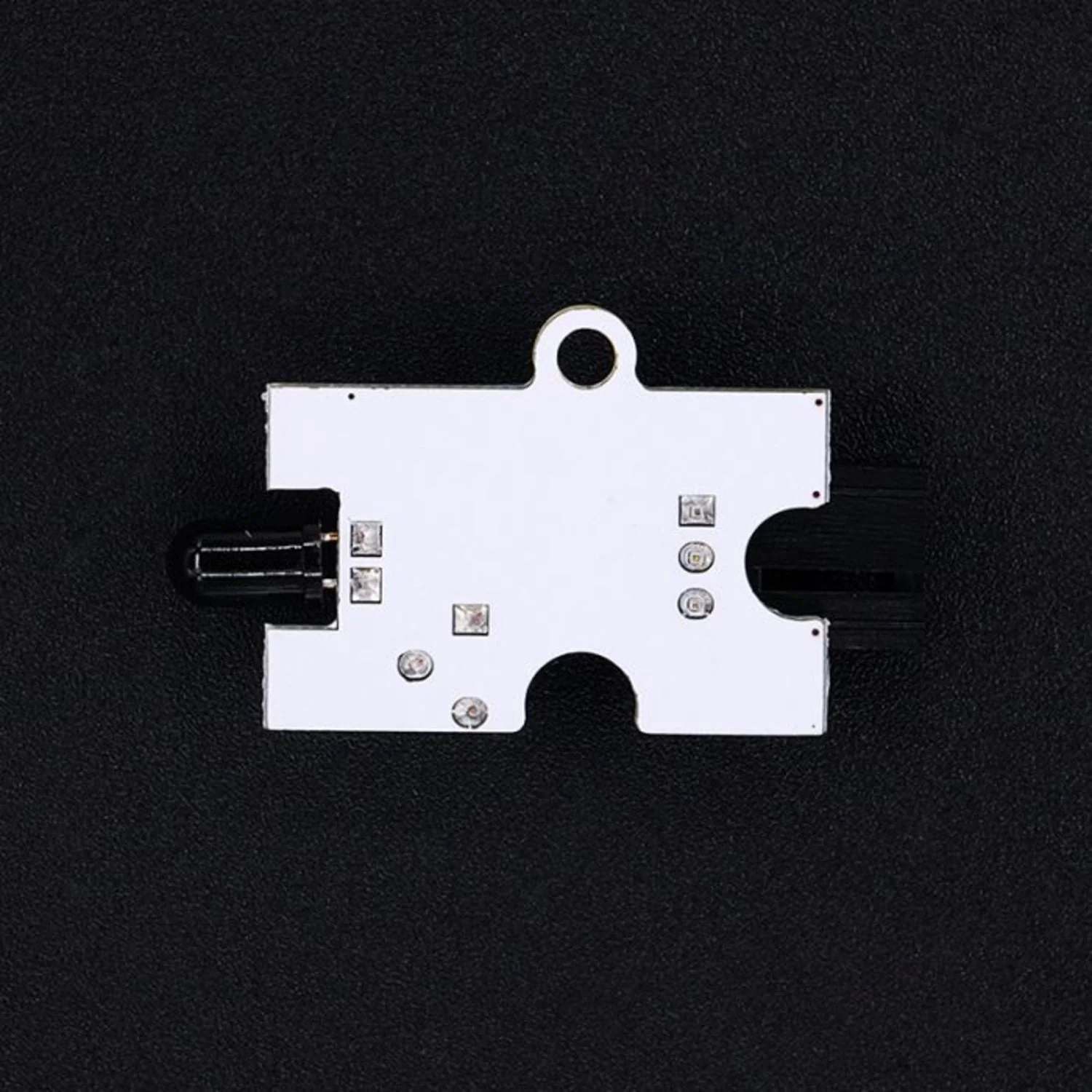

The Octopus Flame Sensor is a simple infrared-based module that detects the presence of a flame or fire source. Part of the Octopus Electronic Bricks system, it connects directly to Arduino and compatible boards with a standard 3-pin interface — just plug and play, no breadboard required.

The module outputs a digital high/low signal when a flame is detected, with an on-board potentiometer to adjust the detection sensitivity. Fast response and high sensitivity make it suitable for fire detection alarms, firefighting robots, and safety monitoring projects.

Key Features

• Infrared Flame Detection – Detects fire and flame sources via IR probe
• Adjustable Sensitivity – On-board potentiometer for tuning detection threshold
• Digital Output – High/low signal for easy microcontroller integration
• Plug-and-Play – 3-pin Octopus brick connector (Signal, VCC, GND)
• Fast Response – High sensitivity with stable, long-life operation

Specifications

• Operating Voltage – 5V
• Output Type – Digital switching (0/1)
• Interface – 3-pin analogue (Signal, VCC, GND)
• Sensor Type – Infrared receiver (IR probe)
• Sensitivity – Adjustable via on-board potentiometer

Ideal For

• Fire detection and alarm systems
• Firefighting robots
• Safety monitoring projects
• Arduino and maker projects

Package Contents

• 1× Octopus Flame Sensor Module
