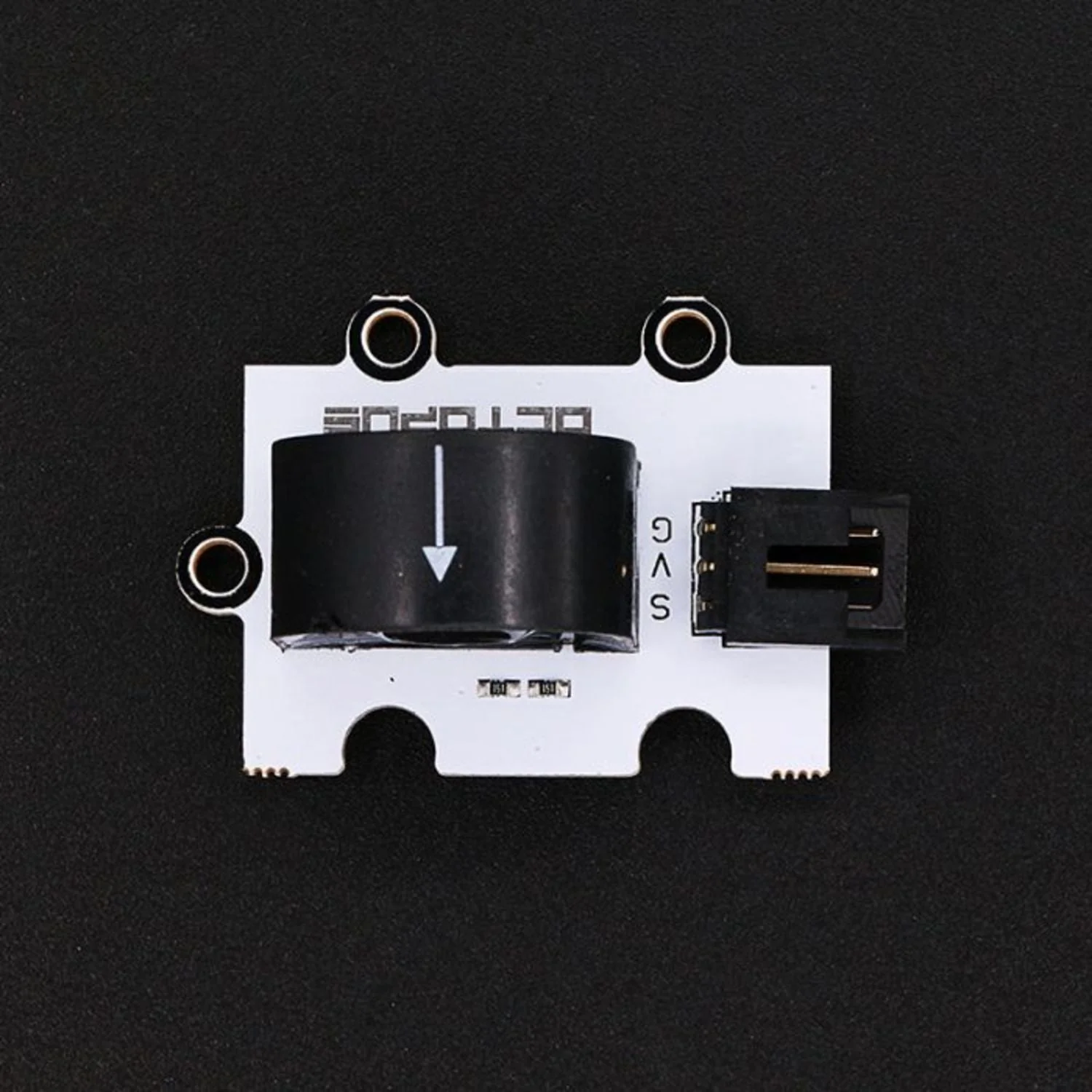

Octopus Non-invasive AC current sensor (TA17-03) Brick is Electronic building blocks, a transformer, an ammeter, a current sensor module, compatible with all kinds of Arduino electronic building blocks / sensor shield.

3P electronic building blocks interface, input 5V - GND, S pin for output an analog voltage value. For details, see product manual. You can conveniently connect to the Arduino board via the Freaduino sensor shield or Freaduino UNO and similar sensors / electronic building block shield.

Parameter:

Power supply needs: 5V

Interface type: Analog

Pin Definition: 1-Signal 2-VCC 3-GND

Wide detecting scope

Fast response and High sensitivity

Simple drive circuit

Stable and long life

Resources:

Please visit the ElecFreaks wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
