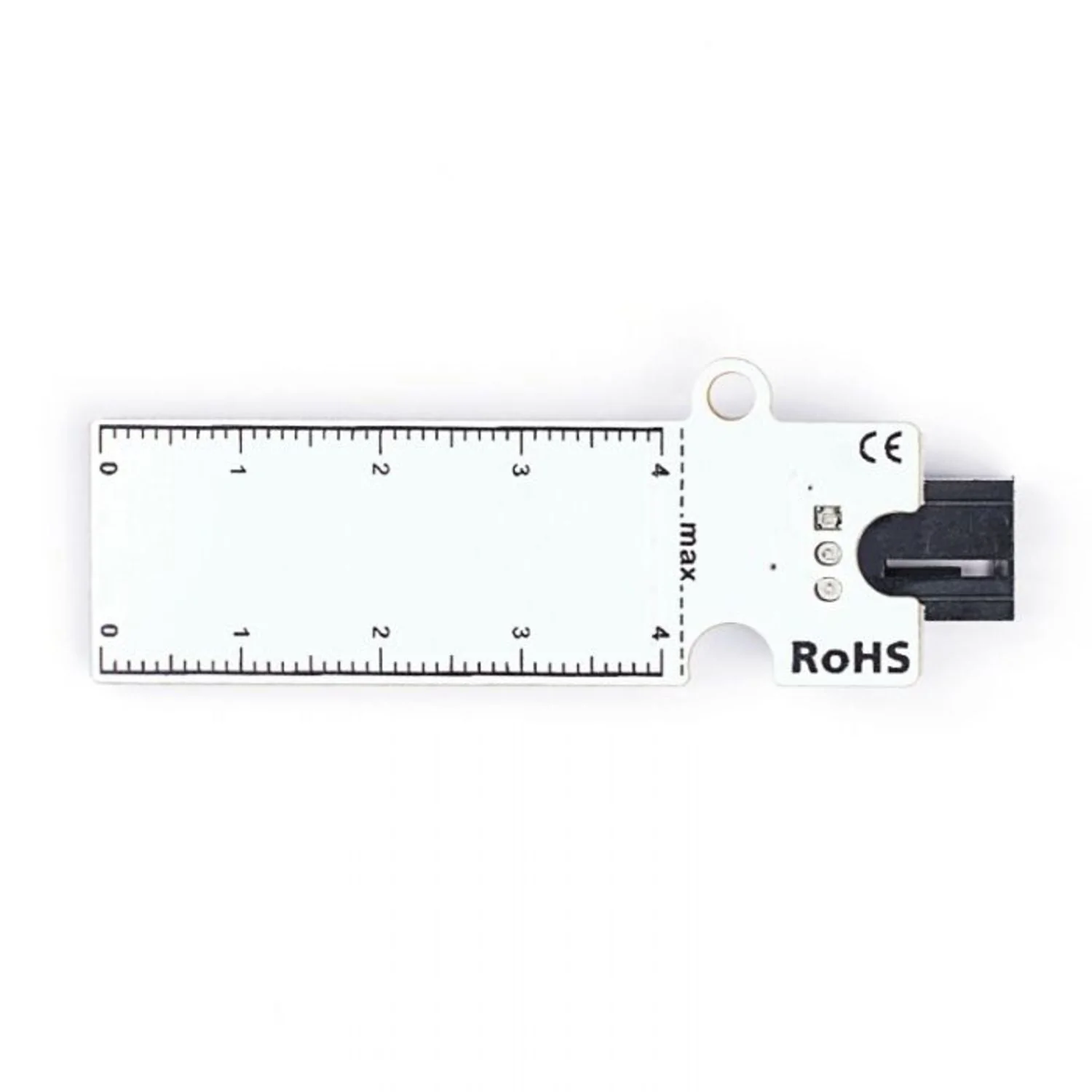

The Octopus Water Level Sensor detects water level using exposed parallel traces on the PCB. As the water level rises, more traces are submerged, producing a higher analogue signal output. Compatible with micro:bit (3 V) and other microcontrollers operating at 3–5.5 V.

Part of the ElecFreaks Octopus series, this sensor uses the standard 3-pin connector (GND, VCC, Signal) for easy plug-and-play connection with Octopus:bit and similar breakout boards.

Key Features

• Analogue Output – Signal proportional to water level for easy threshold detection
• 3-Pin Connection – GND, VCC, Signal for simple wiring
• micro:bit Compatible – Works at 3 V; read analogue values via MakeCode
• Compact – 59.15 × 19 mm, 5.5 g

Specifications

• Working Voltage: 3–5.5 V DC
• Connection: G (GND), V (VCC), S (Signal)
• Dimensions: 59.15 × 19 mm
• Weight: 5.5 g

Ideal For

• Water level monitoring and alarms
• micro:bit science projects
• Simple liquid level detection

Resources

• MakeCode Example Program
