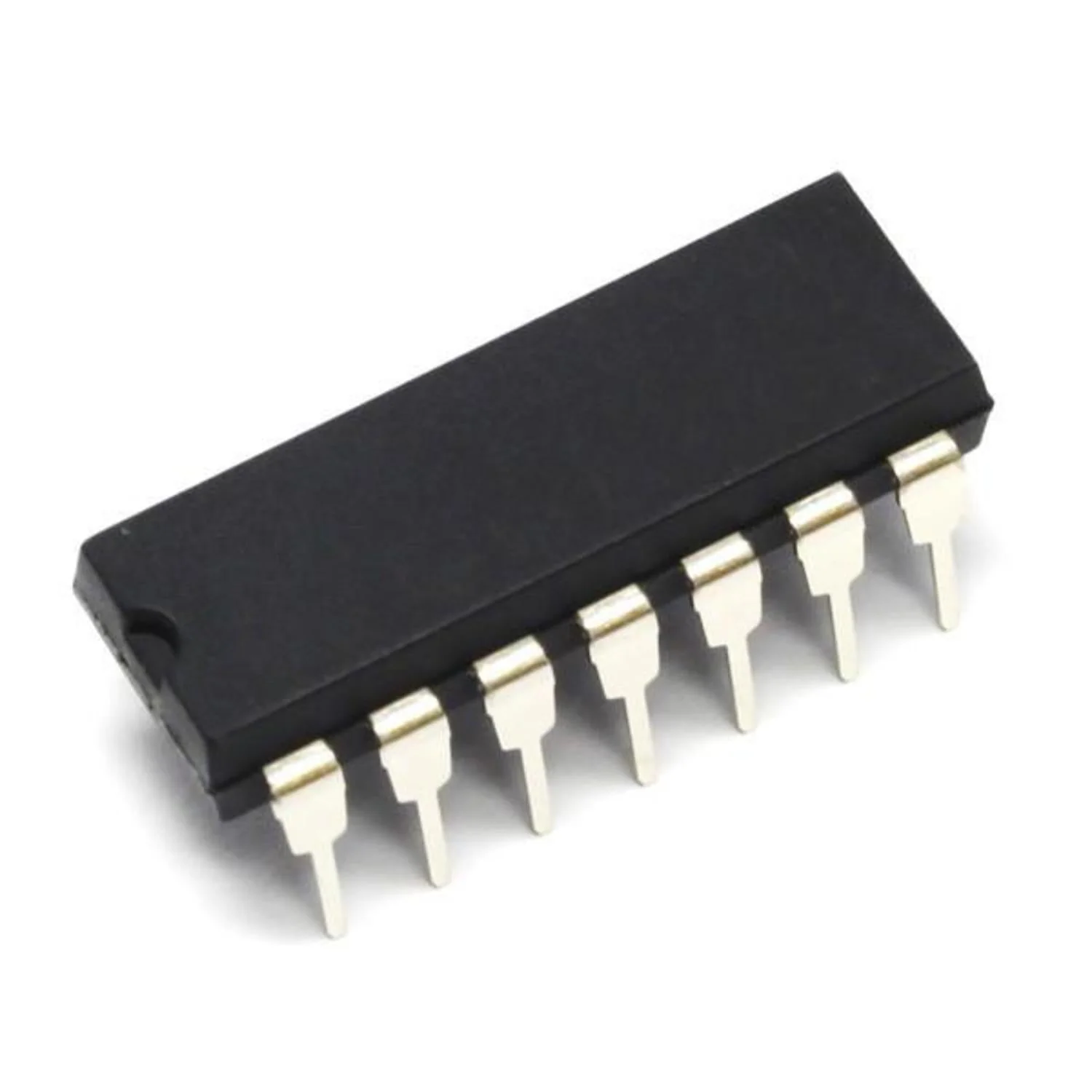

A pack of five LM224N quad general-purpose operational amplifiers in DIP-14 through-hole packages. Each IC contains four independent op-amps, making this pack ideal for analogue circuit prototyping, signal conditioning, and filter design.

Specifications

• Part Number – LM224N
• Type – General purpose op-amp
• Channels – 4 per IC
• Package – DIP-14 (through-hole)
• Supply Voltage – 3 V to 30 V (single), ±1.5 V to ±15 V (dual)
• Gain Bandwidth Product – 1.3 MHz
• Slew Rate – 0.4 V/µs
• Input Bias Current – 20 nA
• Input Offset Voltage – 2000 µV
• Output Current per Channel – 70 mA
• Supply Current – 1.5 mA
• Operating Temperature – -40°C to +105°C
• Quantity – 5 per pack

Ideal For

• Analogue signal conditioning and amplification
• Active filter design
• Comparator circuits
• Breadboard and perfboard prototyping

Package Contents

• 5× LM224N Quad Op-Amp (DIP-14)
