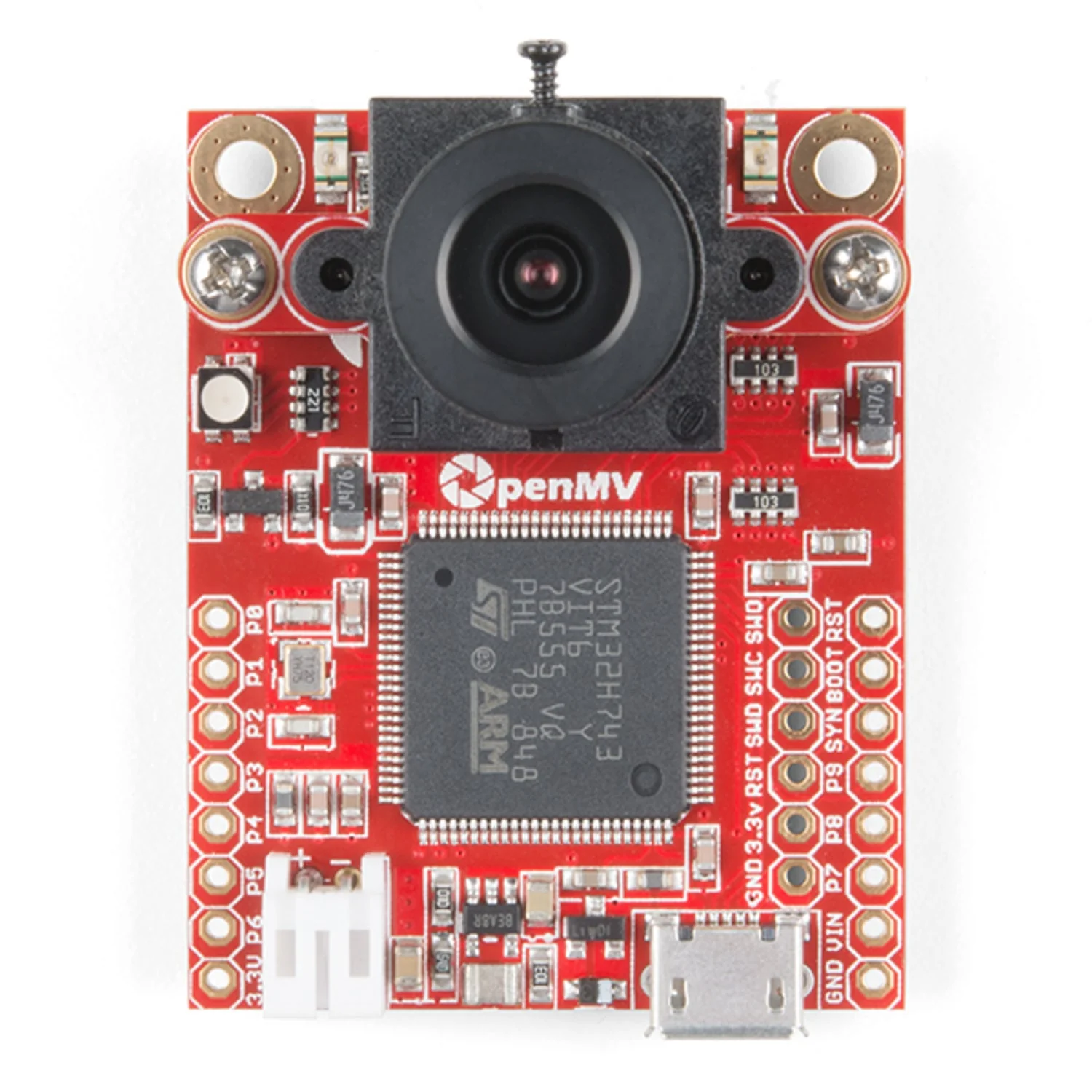

The OpenMV H7 is a compact, low-power machine vision camera that you program in MicroPython instead of C/C++. High-level Python scripting makes it easier to work with complex vision algorithm outputs and data structures while still providing full control over I/O pins, triggers, and image capture.

The included OV7725 sensor captures 640×480 grayscale (8-bit) or RGB565 (16-bit) images at up to 60 FPS above 320×240 resolution, and 120 FPS below. The H7 features removable camera modules, allowing you to swap in Global Shutter or FLIR Lepton sensors for advanced computer vision applications.

Key Features

• Processor – STM32H7 ARM Cortex-M7
• Image Sensor – OV7725 (removable module)
• Resolution – Up to 640×480 (grayscale or RGB565)
• Frame Rate – 60 FPS at 320×240+, 120 FPS below 320×240
• Programming – MicroPython (via OpenMV IDE)
• Camera Modules – Removable, supports Global Shutter and FLIR Lepton
• I/O – Full GPIO control from Python

Supported Vision Algorithms

• Frame differencing and motion detection
• Face detection and eye tracking
• Marker and shape detection
• QR code detection and decoding
• Colour tracking and blob detection

Ideal For

• Embedded machine vision prototyping
• Robotics with visual feedback
• QR code and barcode scanning
• Thermal imaging (with FLIR Lepton module)

Package Contents

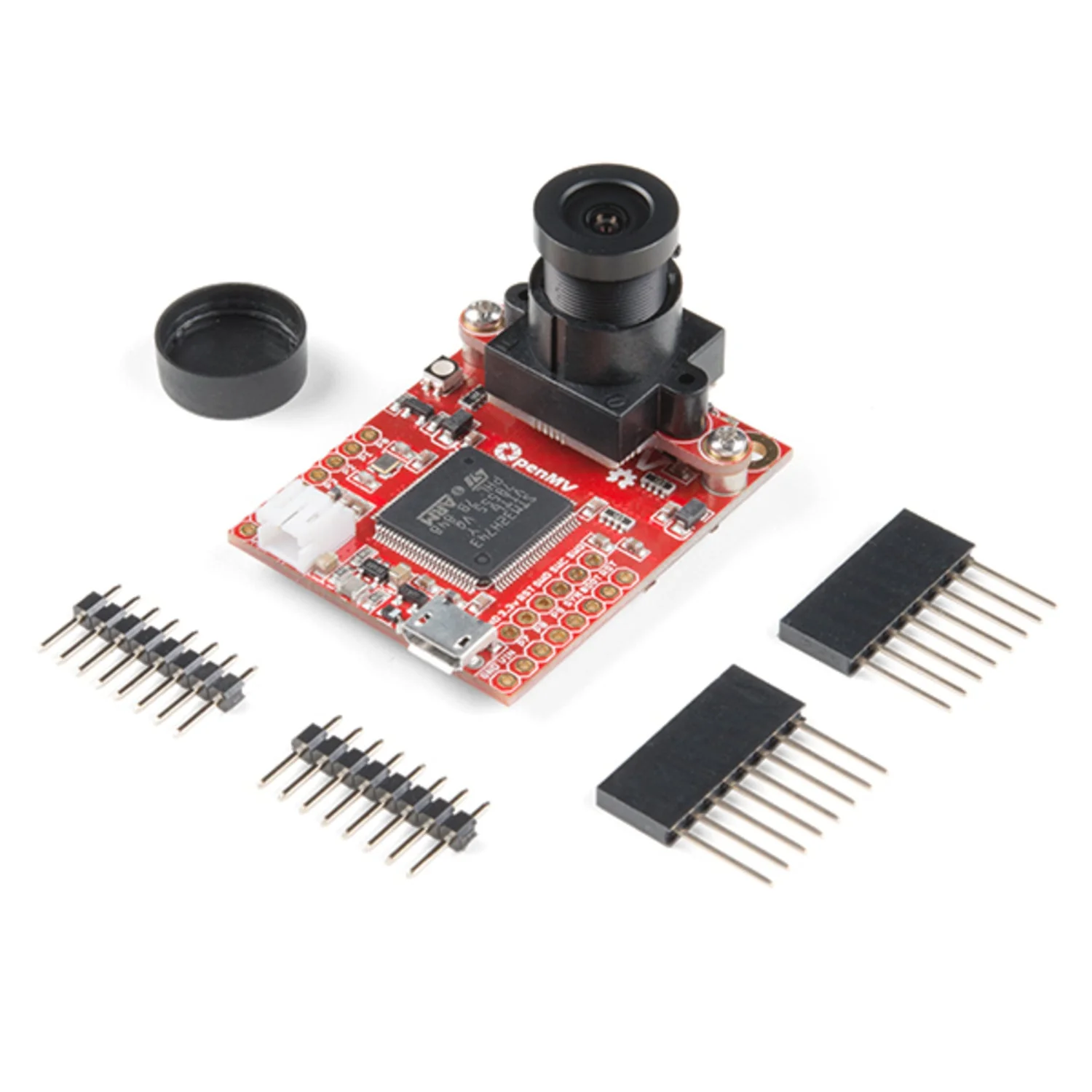

• 1× OpenMV H7 camera board with OV7725 sensor module
