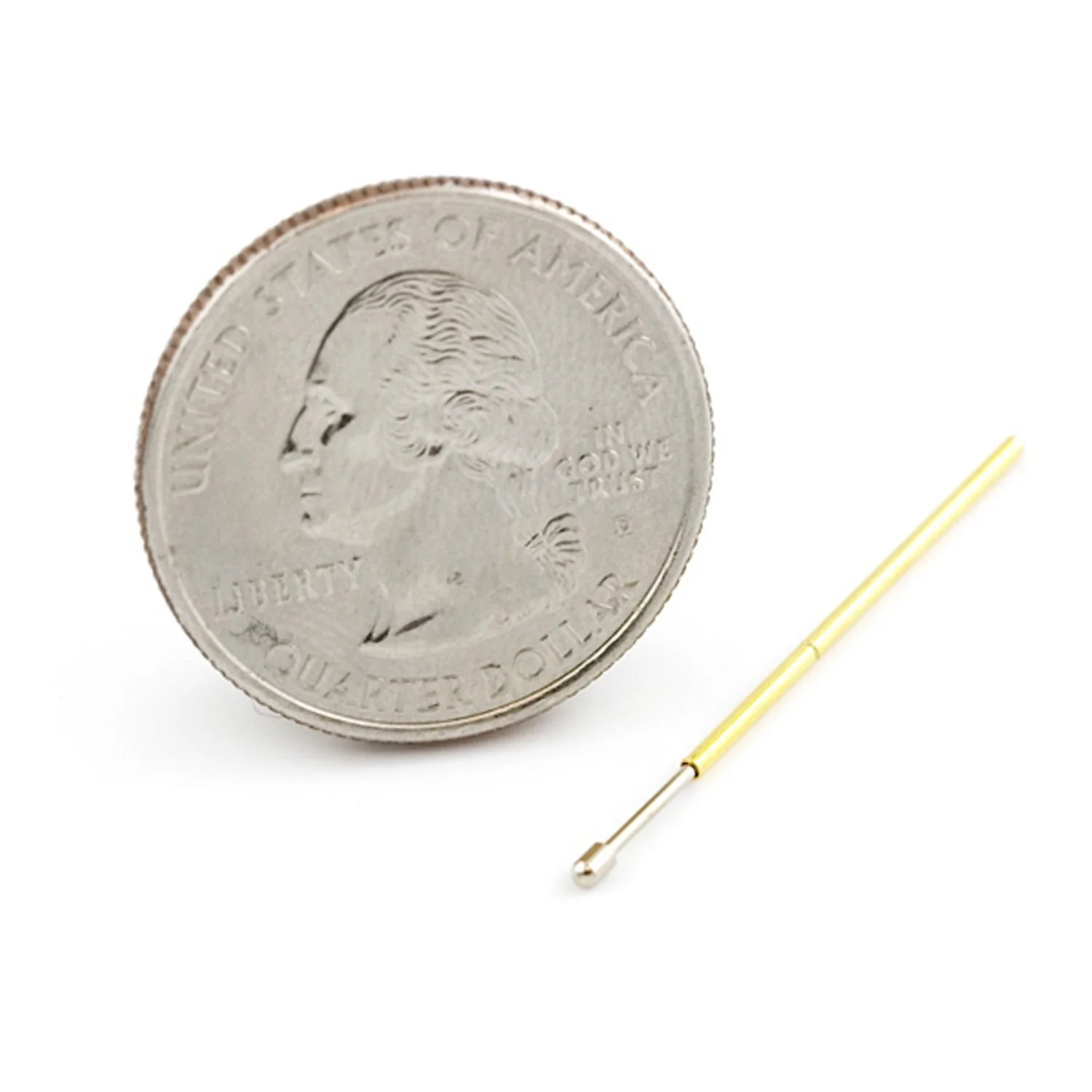

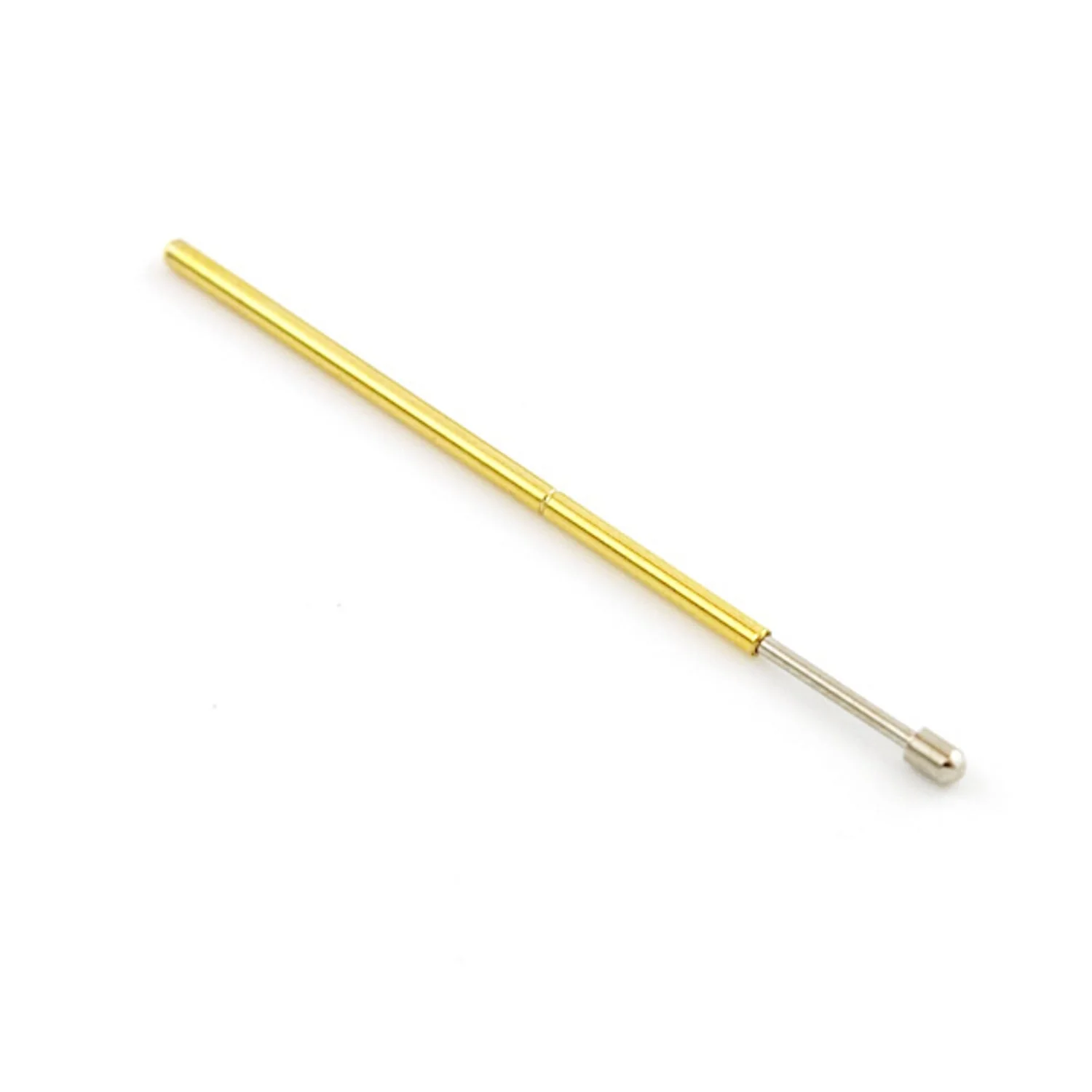

These spring-loaded pogo pins with round tips are ideal for programming jigs, test fixtures, and temporary connections where you don't want to solder permanent headers. The pins fit snugly into standard perfboard holes and can be soldered in place like regular wire.

Key Features

• Spring-Loaded – Reliable temporary contact without soldering to the target
• Round Tip – Good contact with flat pads and plated through-holes
• Perfboard Compatible – Fits standard 0.1" spaced holes
• Solderable – Solder into jigs like normal wire

Specifications

• Length: 33mm (1.3")
• Travel: 6.5mm (¼")
• Head Size: 1.3mm (0.05")
• Tip Type: Round

Ideal For

• Programming and test jigs
• Production testing fixtures
• Temporary board connections
• In-circuit programming without headers

Package Contents

• 1× Pogo Pin (Round Tip)

Resources

• Dimensional Drawing (PDF)
