Pololu Basic SPDT Relay Carrier with 5VDC Relay (Partial Kit)

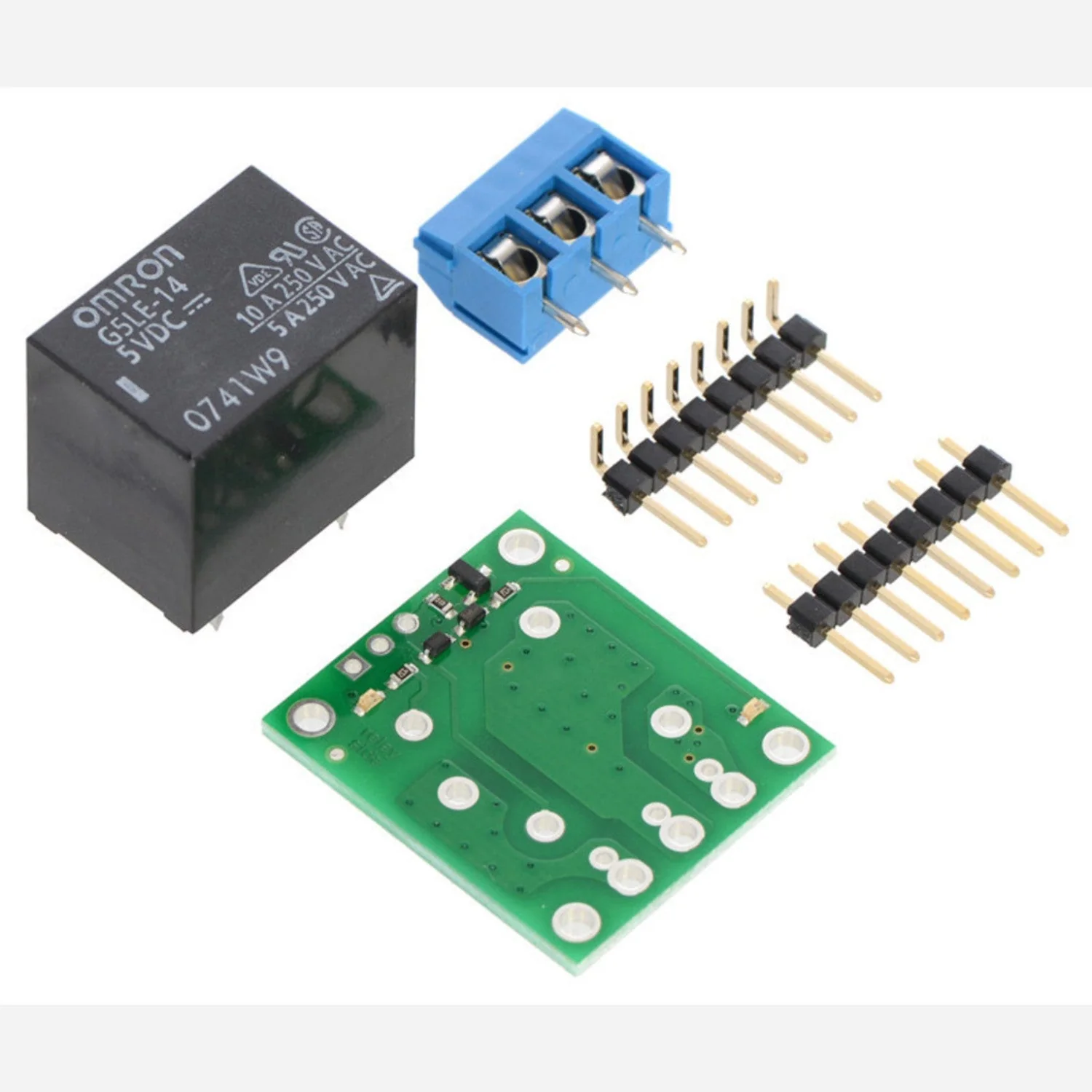

The Pololu basic relay carrier modules allow simple control of a single-pole, double-throw (SPDT) switch from low-voltage, low-current control signals. This item includes the basic carrier PCB along with an Omron G5LE-14-DC5 5 V relay, 5.0 mm terminal blocks, and 0.1" male headers in straight and right-angle versions. Surface-mount components are pre-assembled on the PCB, but the through-hole components are not installed. The included power relay is rated for up to 10 A under most conditions.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Pololu basic relay carrier modules allow simple control of a single-pole, double-throw (SPDT) switch from low-voltage, low-current control signals. This item includes the basic carrier PCB along with an Omron G5LE-14-DC5 5 V relay, 5.0 mm terminal blocks, and 0.1" male headers in straight and right-angle versions. Surface-mount components are pre-assembled on the PCB, but the through-hole components are not installed. The included power relay is rated for up to 10 A under most conditions.
