Qwiic Cable - 200mm

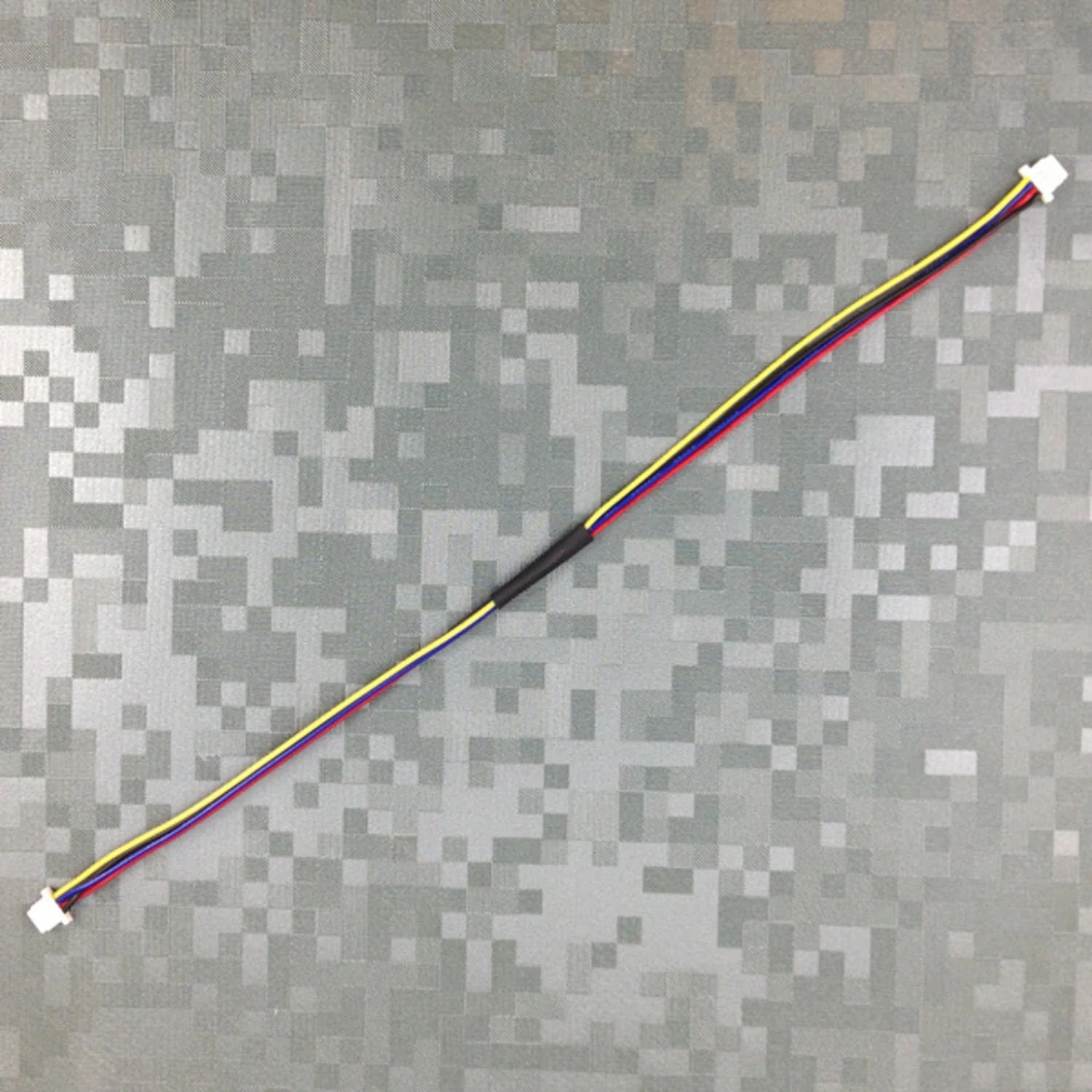

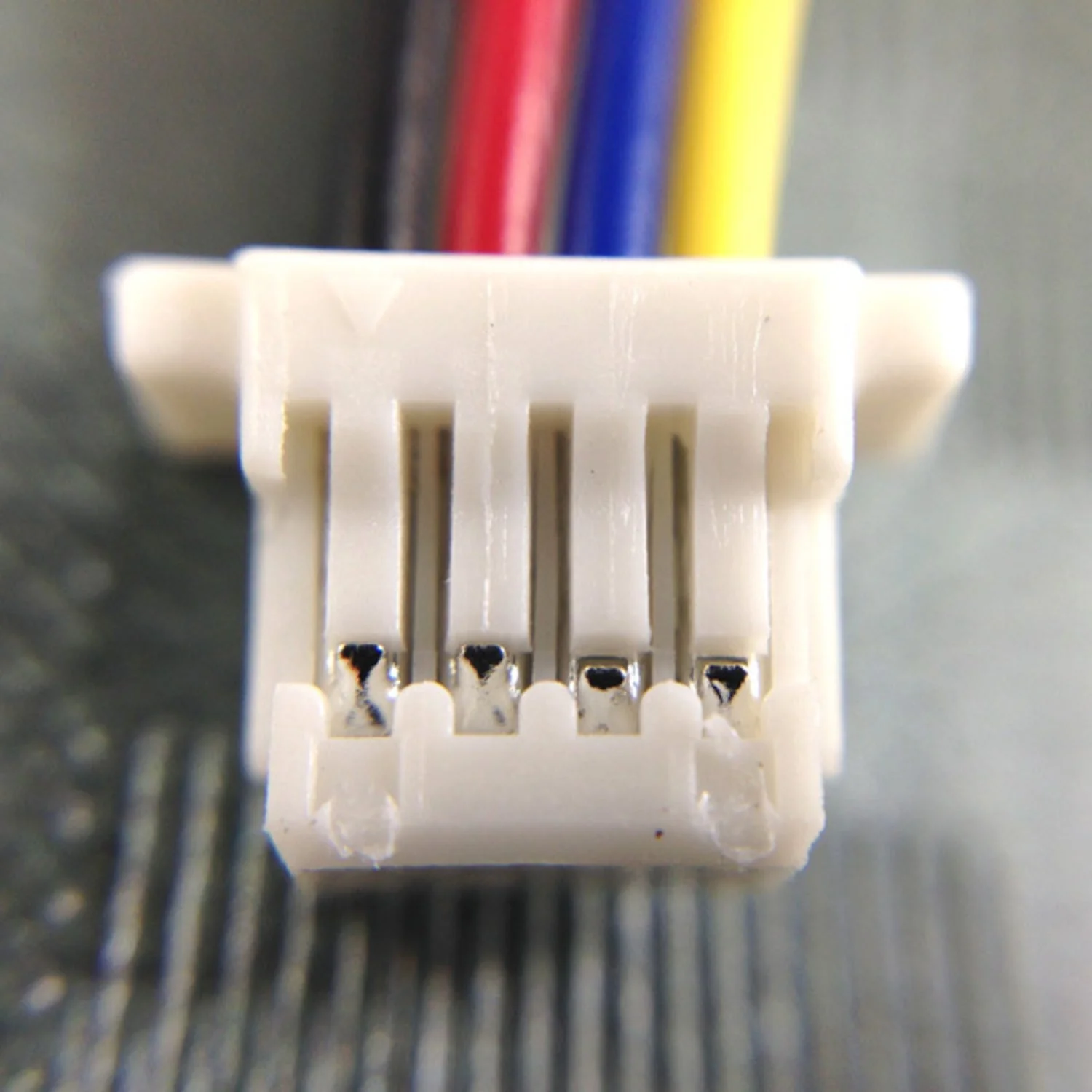

A 200 mm (7.87″) 4-conductor cable with 1 mm JST SH connectors on both ends. Used to connect Qwiic-compatible and STEMMA QT boards together for solderless I²C communication.
Specifications
- Length – 200 mm (7.87″)
- Wire Gauge – 28 AWG
- Connector – JST SH 4-pin (SHR04V-S-B)
- Mating Connector – SM04B-SRSS or equivalent
- Wiring – Straight through (Black/Red/Blue/Yellow)
- Conductors – 4 (GND, 3.3 V, SDA, SCL)
Ideal For
- Connecting Qwiic and STEMMA QT I²C boards
- Solderless sensor and actuator prototyping
- Daisy-chaining multiple I²C devices
$1.09
Original: $3.63
-70%Qwiic Cable - 200mm—
$3.63
$1.09Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A 200 mm (7.87″) 4-conductor cable with 1 mm JST SH connectors on both ends. Used to connect Qwiic-compatible and STEMMA QT boards together for solderless I²C communication.
Specifications
- Length – 200 mm (7.87″)
- Wire Gauge – 28 AWG
- Connector – JST SH 4-pin (SHR04V-S-B)
- Mating Connector – SM04B-SRSS or equivalent
- Wiring – Straight through (Black/Red/Blue/Yellow)
- Conductors – 4 (GND, 3.3 V, SDA, SCL)
Ideal For
- Connecting Qwiic and STEMMA QT I²C boards
- Solderless sensor and actuator prototyping
- Daisy-chaining multiple I²C devices
