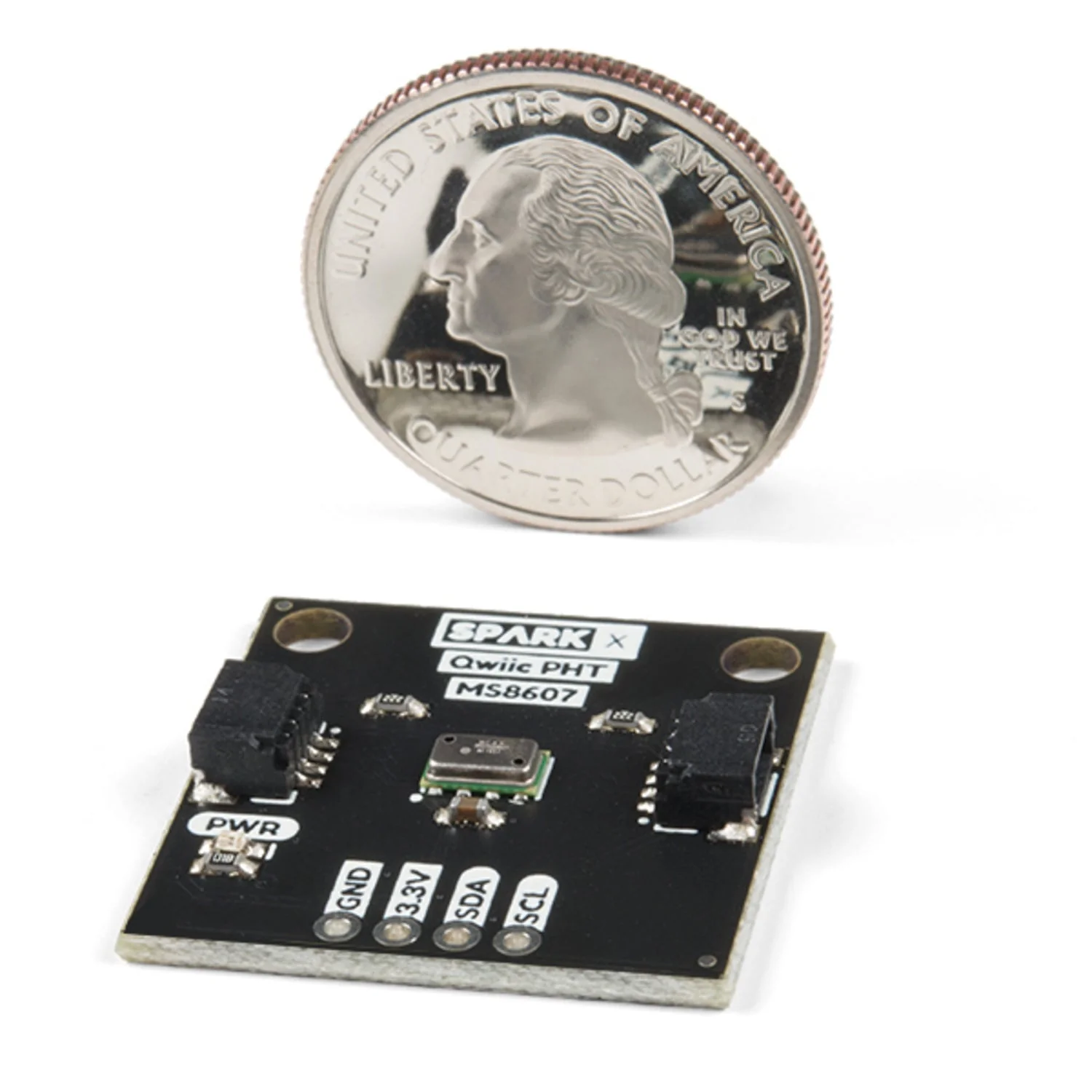

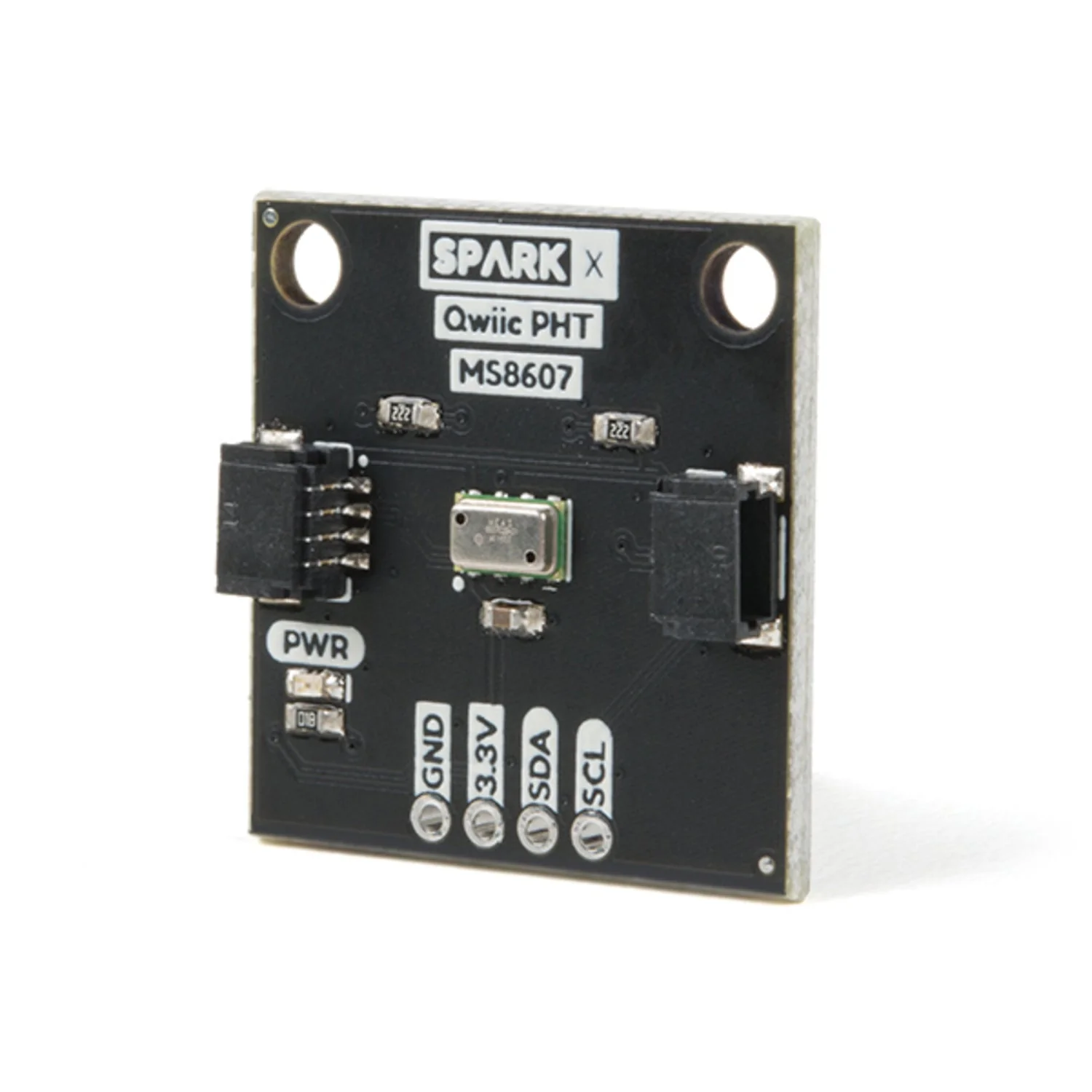

The MS8607 from TE Connectivity is a combined pressure, humidity, and temperature (PHT) sensor on a Qwiic-compatible breakout board. It delivers ±2 mbar pressure accuracy, ±3% humidity accuracy, and ±1°C temperature accuracy over I2C.

With the ability to sense pressure down to 10 mbar, the MS8607 is particularly well suited for high-altitude and low-pressure applications. The breakout includes a Qwiic connector for solderless I2C hookup and built-in 2.2 kΩ pull-up resistors (disableable if using multiple I2C devices on the same bus).

Key Features

• Three-in-One Sensor – Pressure, humidity, and temperature in a single package
• High Accuracy – ±2 mbar pressure, ±3% humidity, ±1°C temperature
• Low Pressure Capable – Measures down to 10 mbar for high-altitude use
• Qwiic / I2C Interface – Solderless connection with built-in 2.2 kΩ pull-ups
• Low Power – Minimal power consumption and fast conversion times

Specifications

• Sensor – TE Connectivity MS8607
• Pressure Accuracy – ±2 mbar
• Pressure Range – 10–2000 mbar
• Humidity Accuracy – ±3% RH
• Temperature Accuracy – ±1°C
• Interface – I2C (Qwiic connector)
• Pull-Up Resistors – 2.2 kΩ (built-in, disableable)

Ideal For

• Weather monitoring stations
• High-altitude and low-pressure sensing
• Environmental data logging
• Arduino and microcontroller projects

Package Contents

• 1× Qwiic PHT Sensor Breakout – MS8607

Resources

• MS8607 PHT Sensor Hookup Guide
