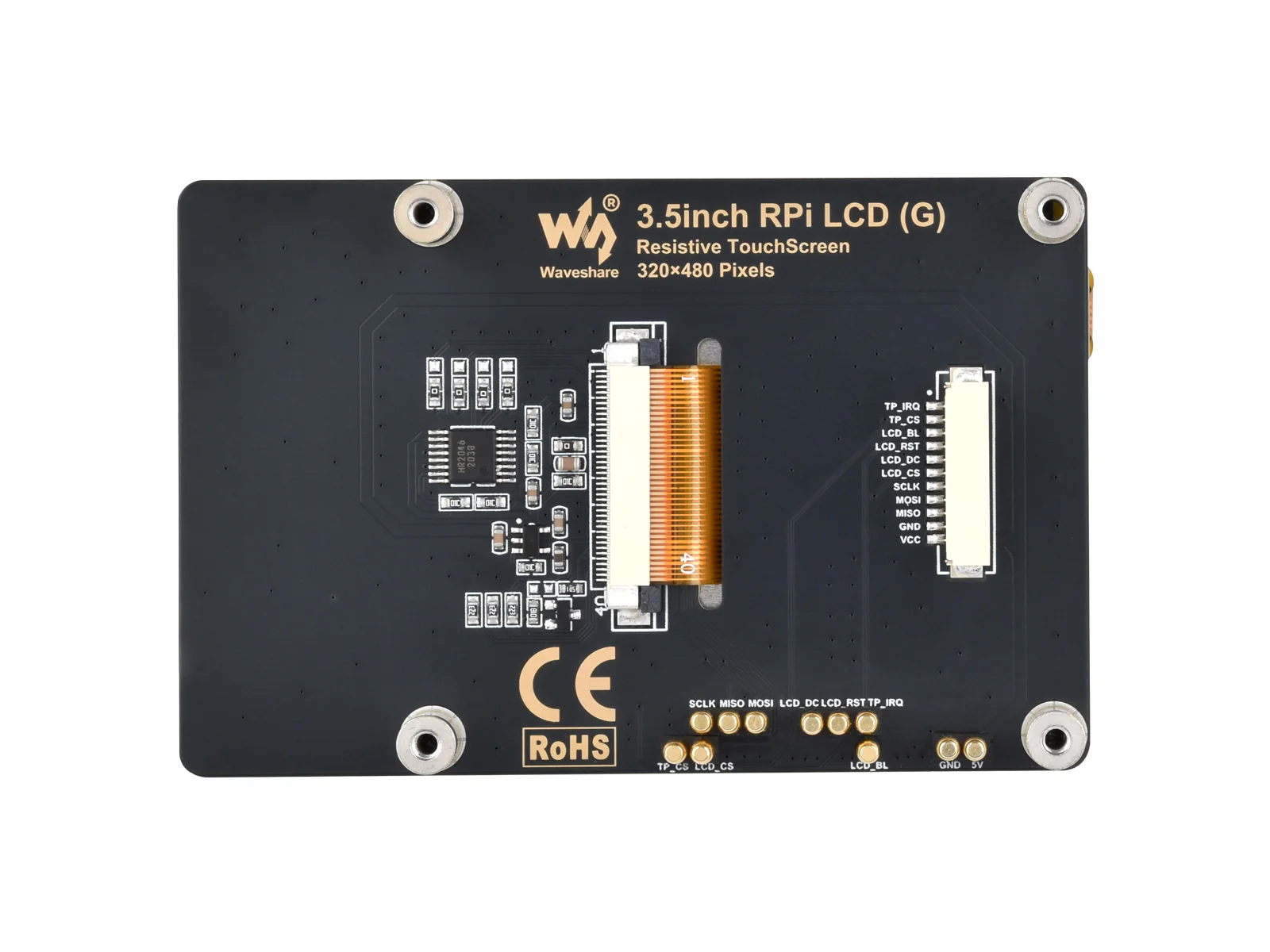

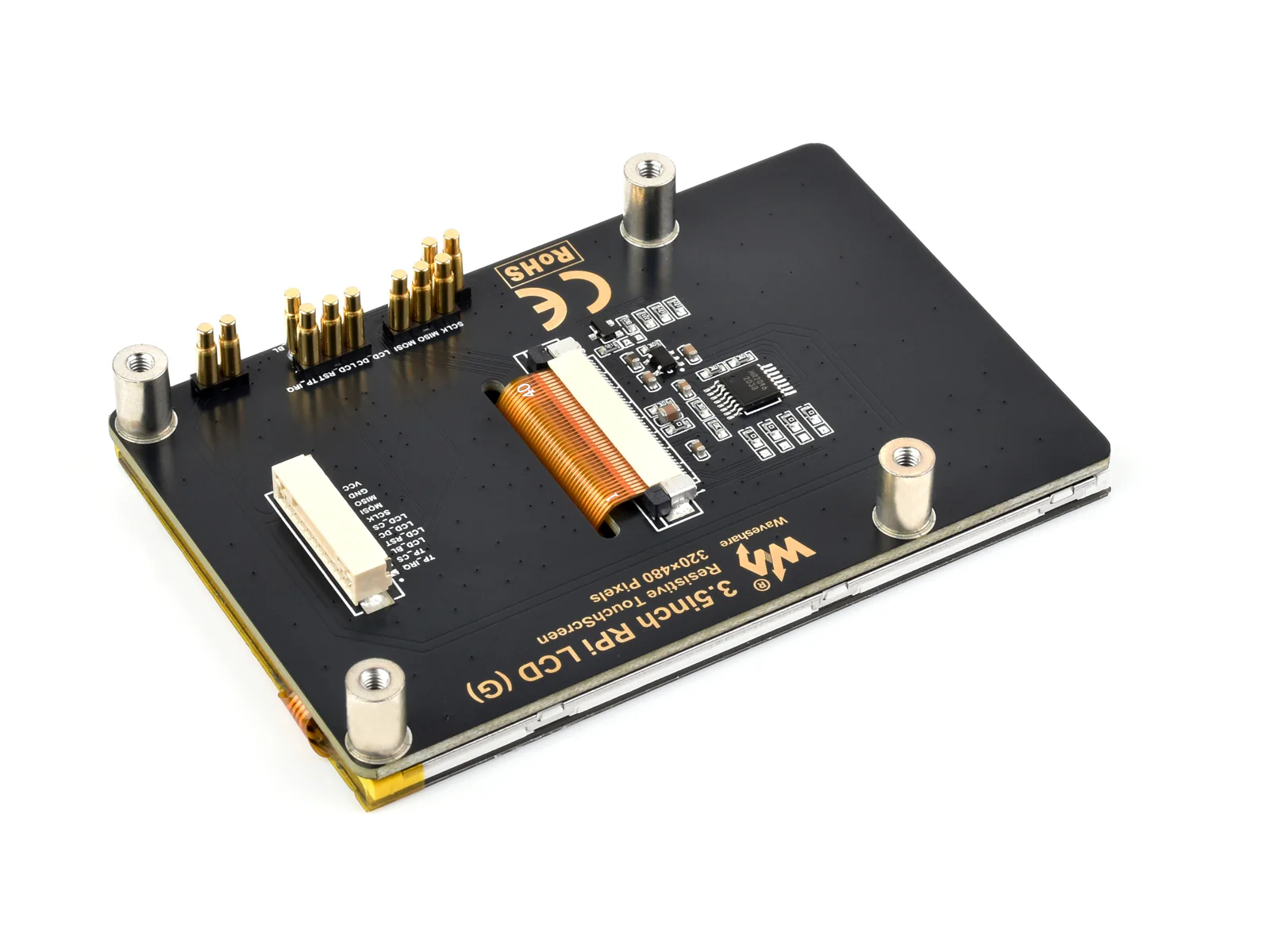

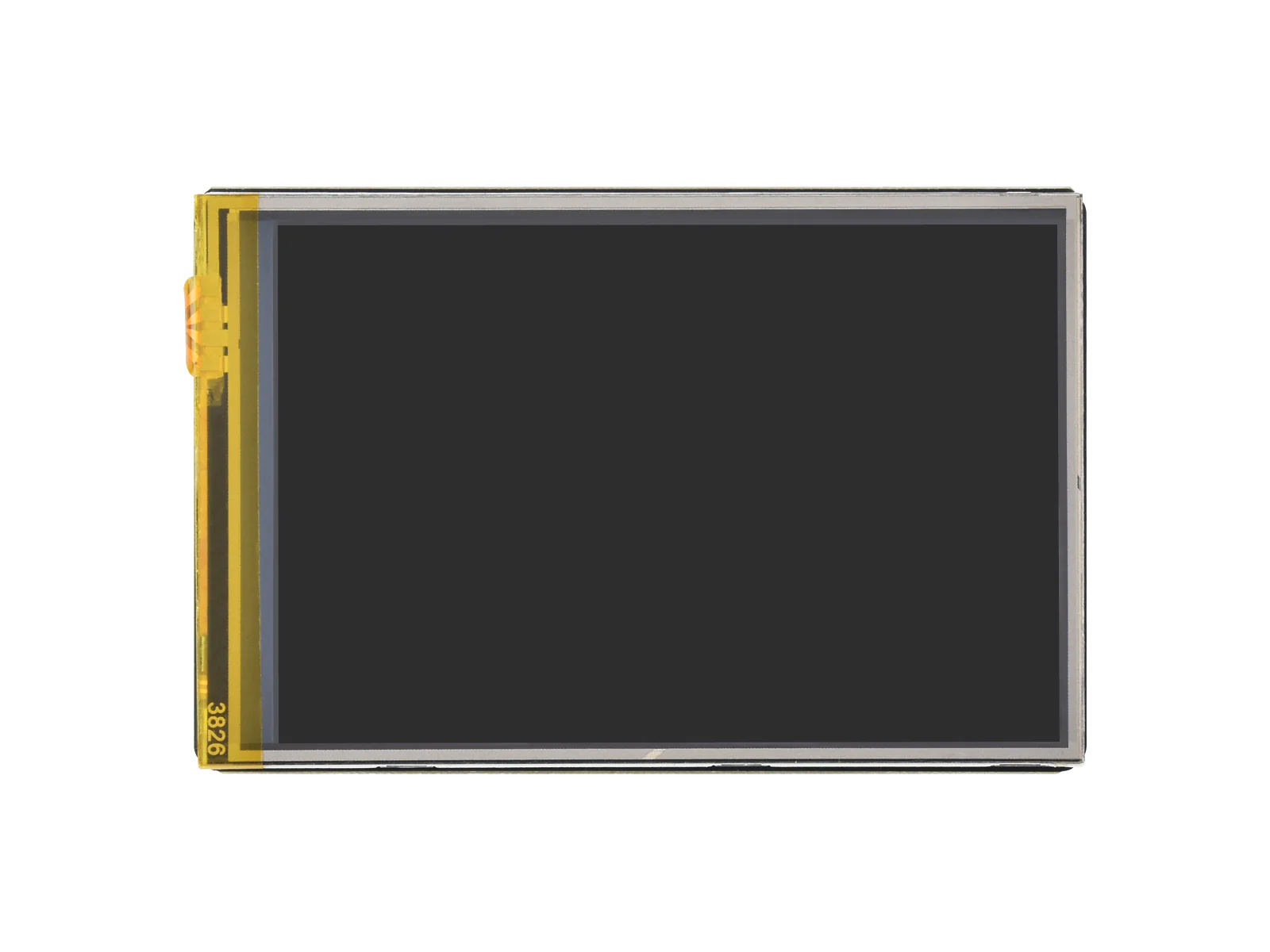

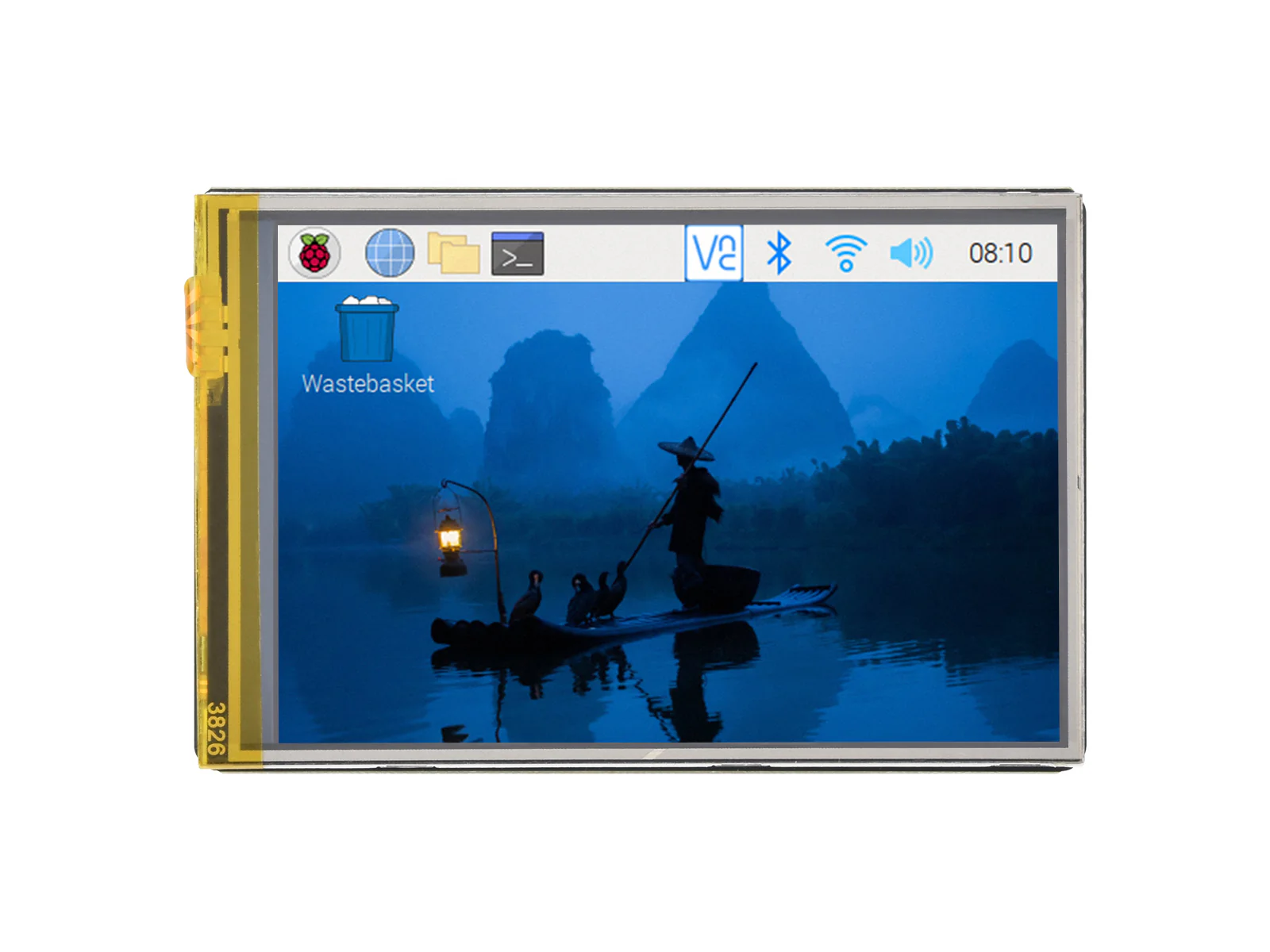

A 3.5-inch IPS touchscreen display with 320×480 resolution and resistive touch control. Connects via SPI interface, making it compatible with Raspberry Pi, Raspberry Pi Pico, ESP32, and Arduino. The embedded XPT2046 touch controller provides precise resistive touch input through a separate SPI channel.

The display defaults to portrait orientation but can be switched to landscape via software configuration. Development resources and example code are provided for all supported platforms.

Key Features

• Display Size – 3.5 inches
• Panel Type – IPS with 170° viewing angle
• Resolution – 320 × 480 pixels
• Colours – 262K
• Touch Type – Resistive (XPT2046 controller)
• Display Interface – SPI
• Touch Interface – SPI
• Operating Voltage – 5V
• Logic Level – 3.3V
• Orientation – Portrait (default), landscape via software
• PCB Finish – Immersion gold
• Certifications – CE and RoHS compliant

Ideal For

• Raspberry Pi dashboards and control panels
• Portable gaming devices
• IoT project interfaces
• Interactive displays with ESP32 or Arduino

Package Contents

• 1× 3.5-inch resistive touch IPS display
• 1× GH1.25 11-pin cable
• 1× Screws pack
