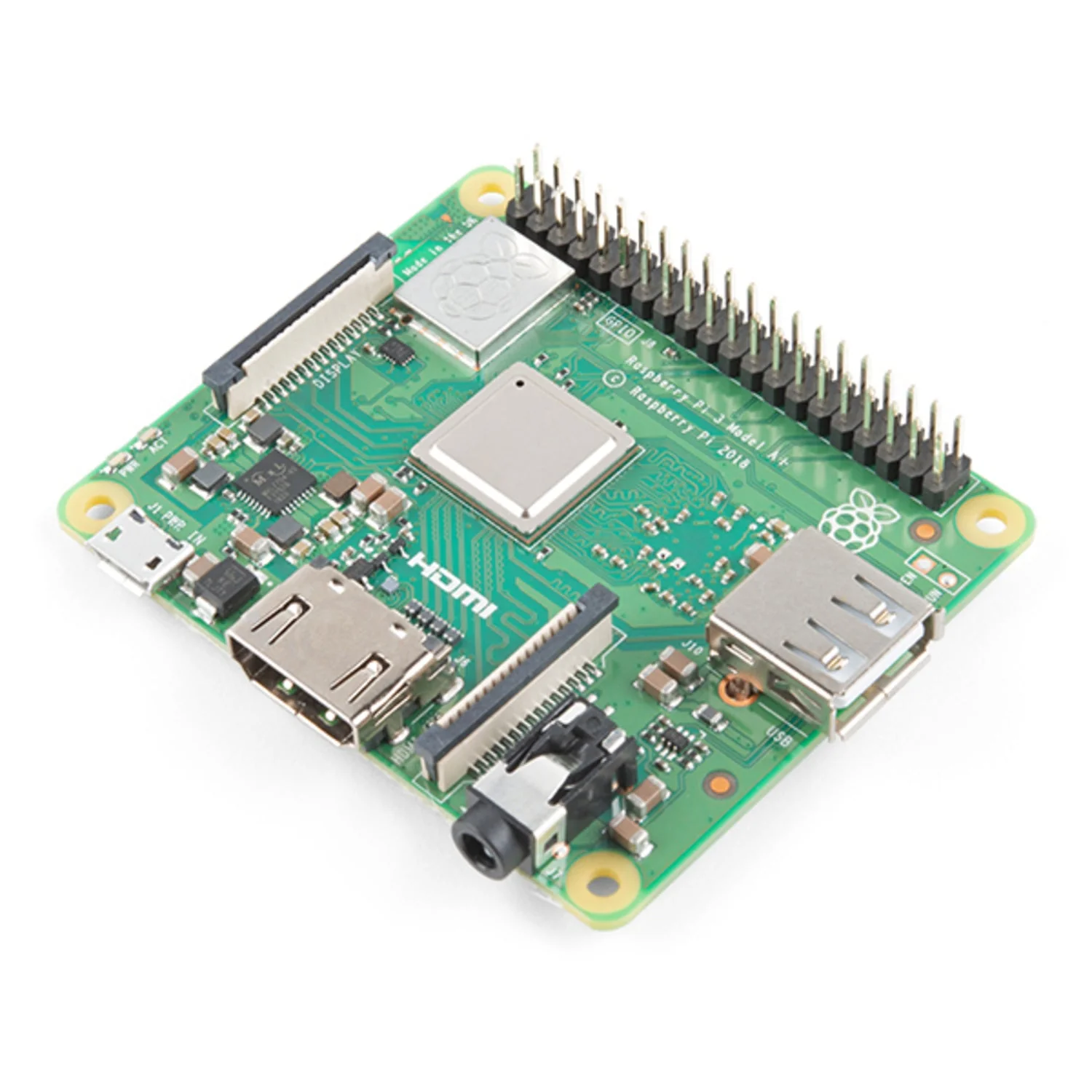

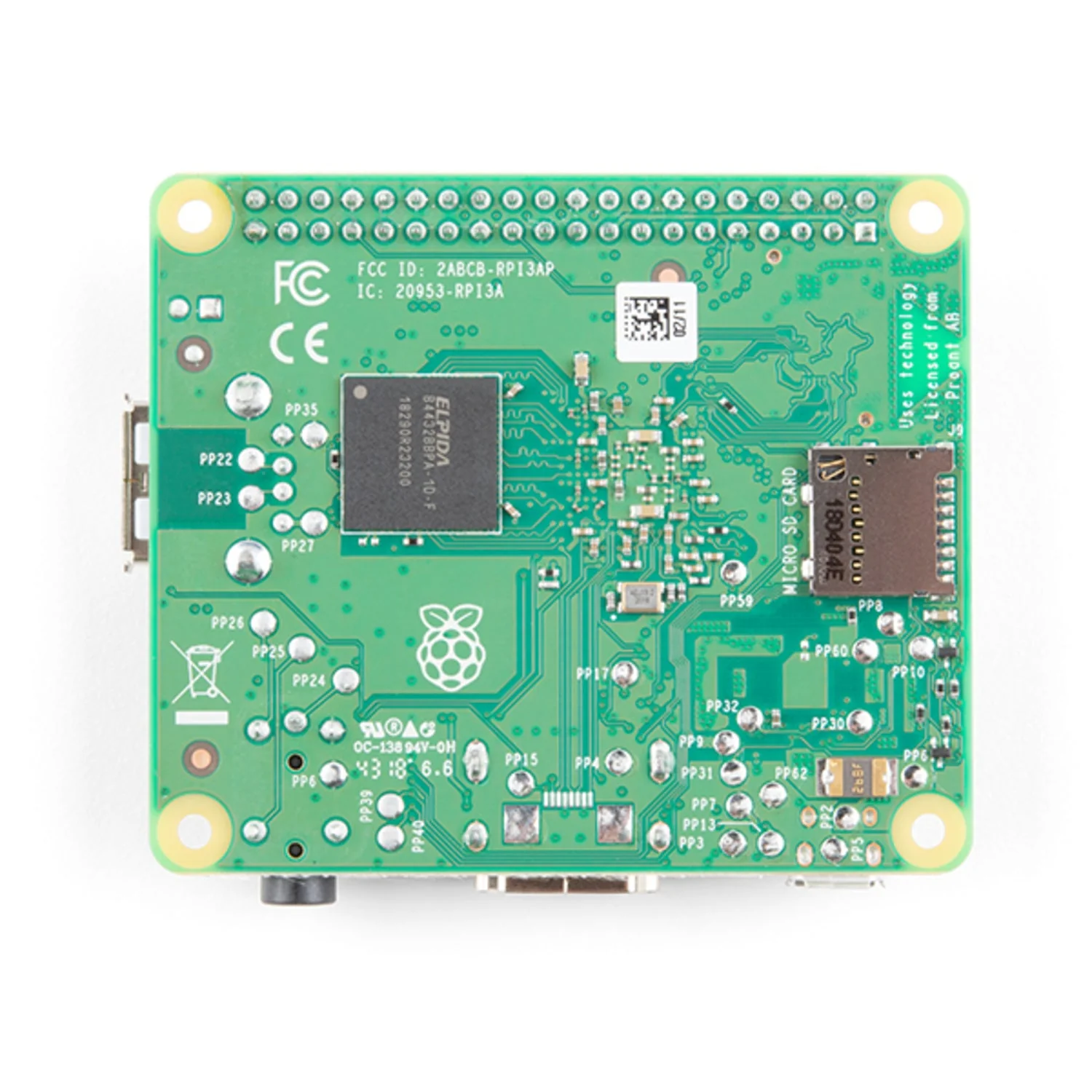

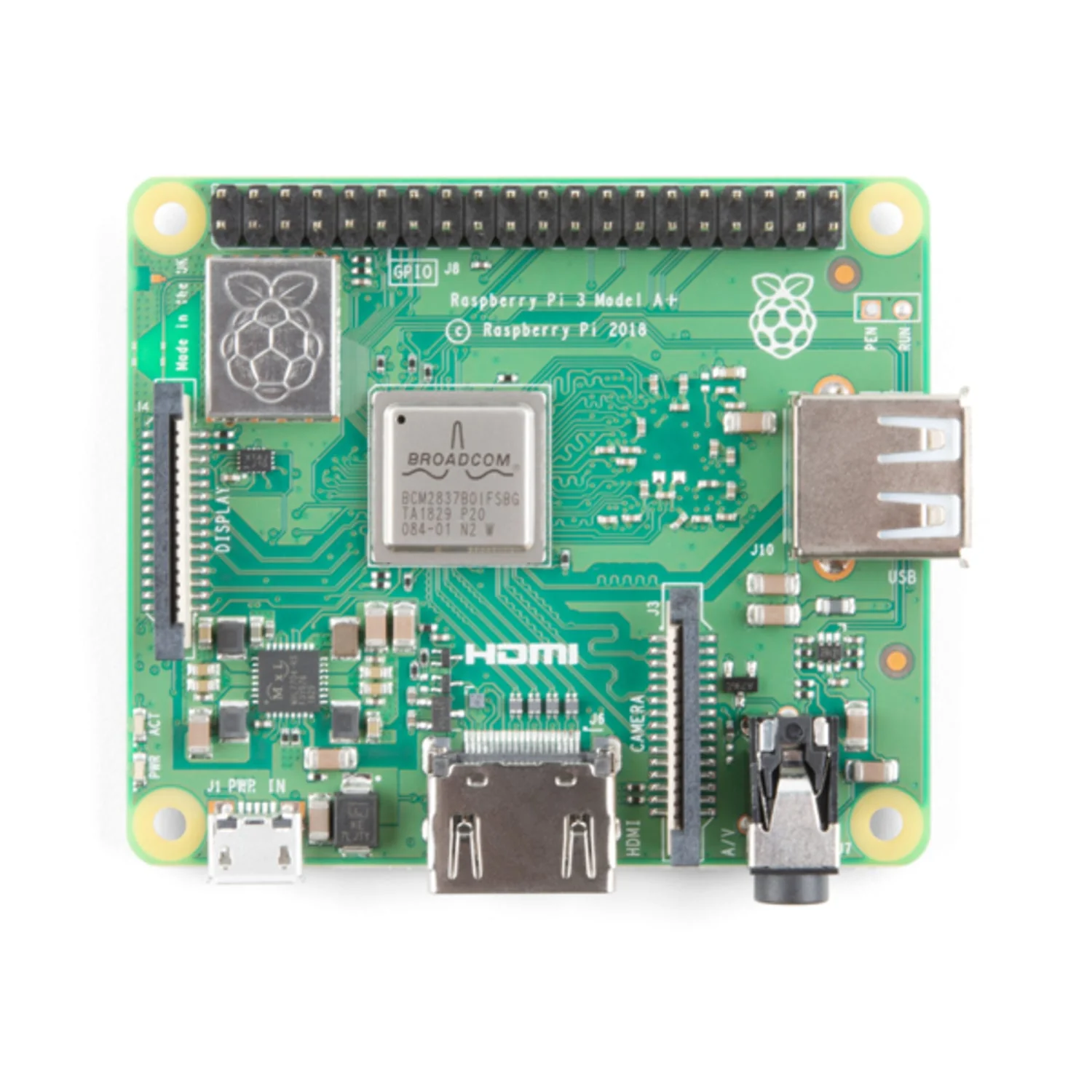

The Raspberry Pi 3 Model A+ is a compact, cost-effective single-board computer featuring the same 64-bit quad-core Broadcom BCM2837B0 processor as the Raspberry Pi 3 B+, running at 1.4 GHz. It includes dual-band Wi-Fi (2.4 GHz and 5 GHz) and Bluetooth 4.2/BLE in a smaller form factor.

Compared to the B+ model, the A+ removes the Ethernet port and three of the four USB ports, retaining a single USB 2.0 port. The 40-pin GPIO header, CSI camera connector, and DSI display connector remain identical, maintaining compatibility with existing HATs, cameras, and peripherals.

Key Features

• BCM2837B0 Processor – 64-bit quad-core ARM Cortex-A53 @ 1.4 GHz
• 512 MB RAM – LPDDR2 SDRAM
• Dual-Band Wi-Fi – 2.4 GHz and 5 GHz 802.11 b/g/n/ac
• Bluetooth 4.2/BLE – Built-in wireless connectivity
• 40-Pin GPIO – 27 GPIOs, UART, I2C, SPI, 3.3 V and 5 V power
• Single USB 2.0 Port – Expandable via USB hub
• CSI and DSI Connectors – For camera and display modules

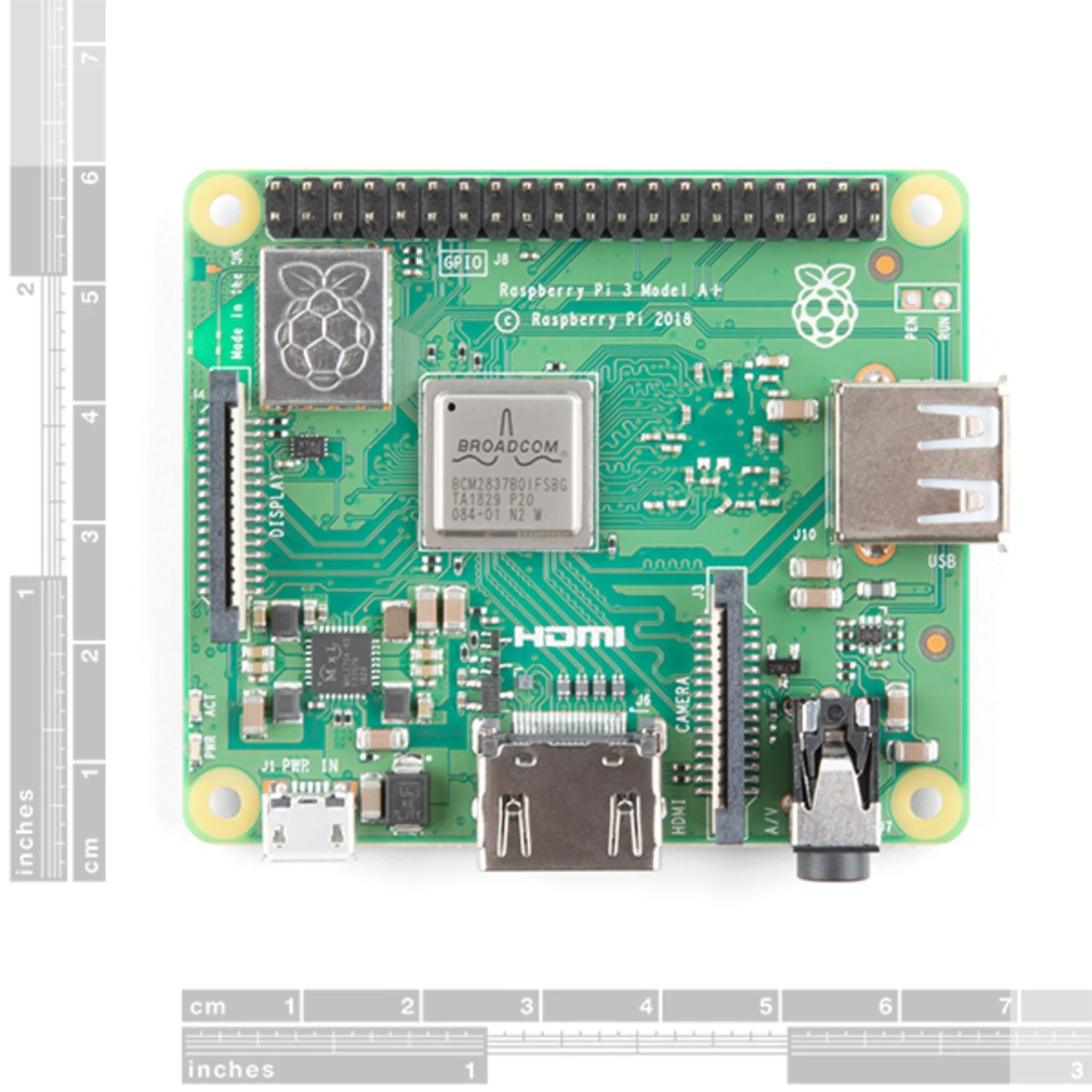

• Compact Form Factor – Smaller than the B+ model

Specifications

• SoC: Broadcom BCM2837B0
• CPU: Quad-core ARM Cortex-A53 @ 1.4 GHz
• RAM: 512 MB LPDDR2
• Wi-Fi: Dual-band 802.11 b/g/n/ac
• Bluetooth: 4.2, BLE
• USB: 1× USB 2.0
• GPIO: 40-pin header (2.54 mm pitch)
• Video: Full-size HDMI
• Storage: microSD card slot
• Power: 5 V / 2.5 A via Micro USB

Ideal For

• Embedded projects where space is limited
• IoT devices and headless applications
• Media players and lightweight desktop use
• Education and learning to code
