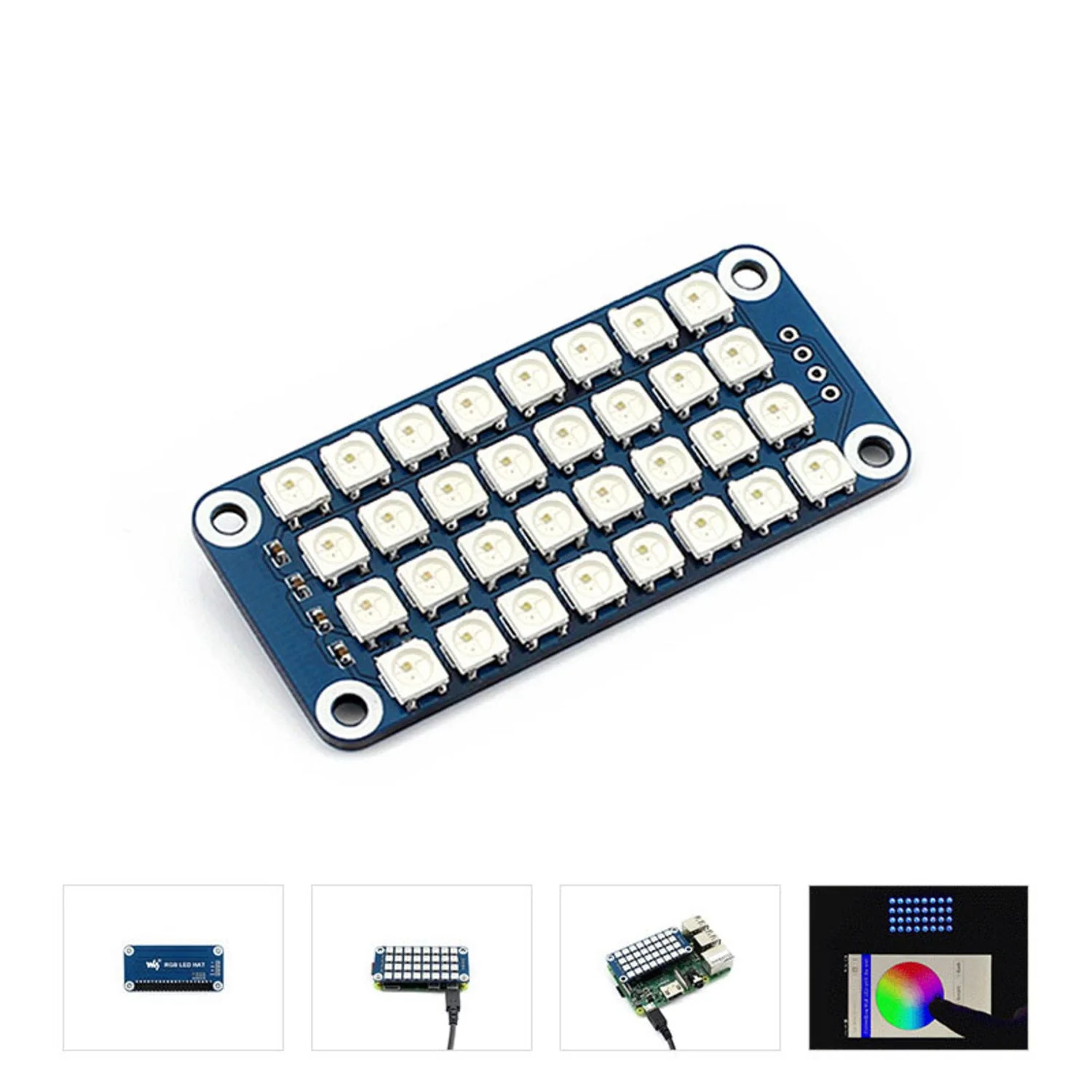

This RGB LED HAT adds a 4×8 matrix of individually addressable RGB LEDs to your Raspberry Pi. With 256 brightness levels and 24-bit colour depth (over 16.7 million colours), it's perfect for creating colourful displays, status indicators, and visual effects controlled by a single data pin.

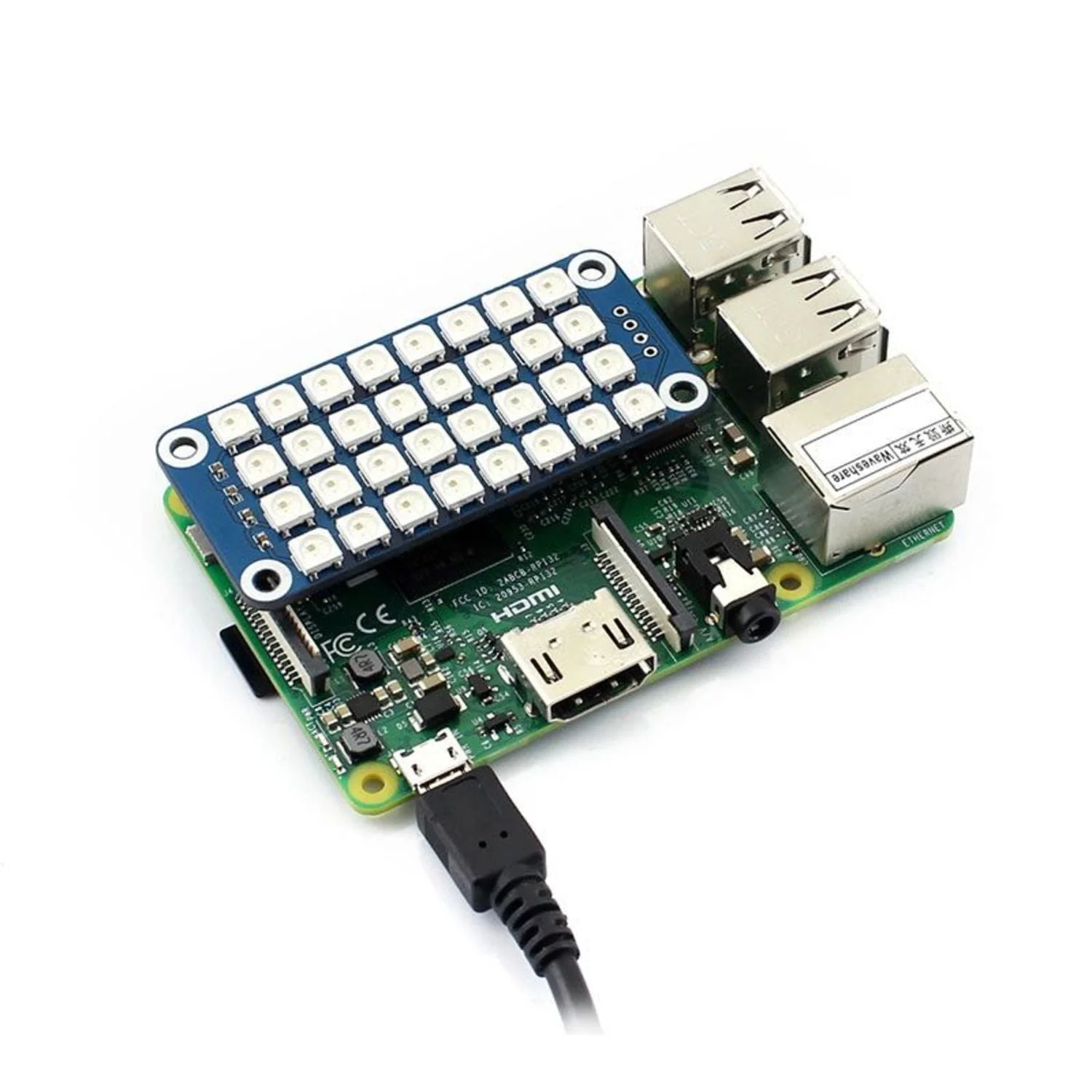

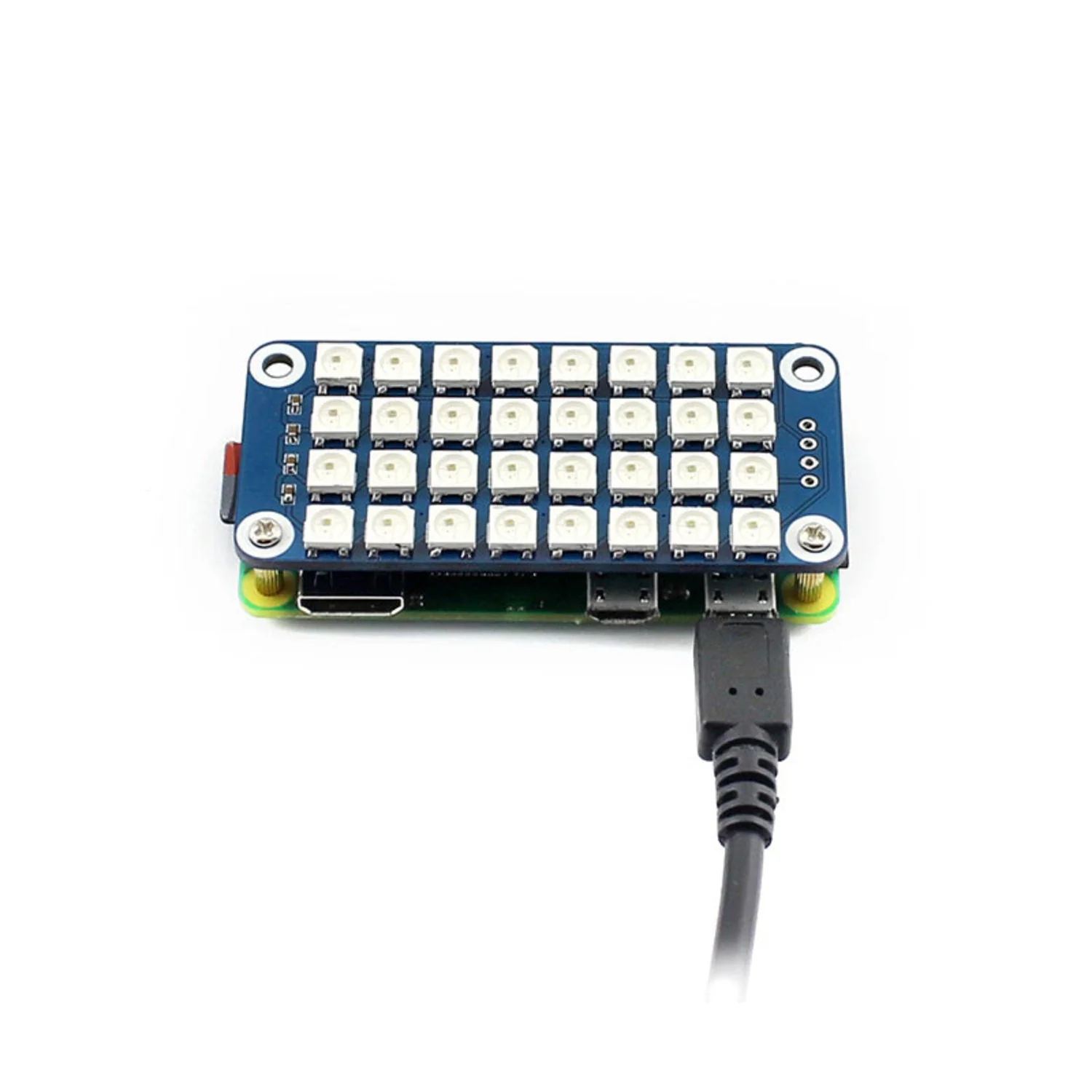

The HAT plugs directly onto any Raspberry Pi with a 40-pin GPIO header. Control pins are also broken out for use with other microcontrollers.

Key Features

• 4×8 RGB LED Matrix – 32 individually addressable LEDs
• 24-Bit Colour Depth – 256 levels per channel (16.7 million colours)
• 256 Brightness Levels – Adjustable intensity
• Single Pin Control – Only one signal pin required
• Chainable Output – DOUT pin for connecting additional LED modules
• Universal Pi Compatibility – Works with any 40-pin Raspberry Pi

Specifications

• Working Voltage – 5V
• Data Rate – 800 Kbps (typical)
• Dimensions – 65 × 30.2 mm
• Mounting Holes – 3.0 mm

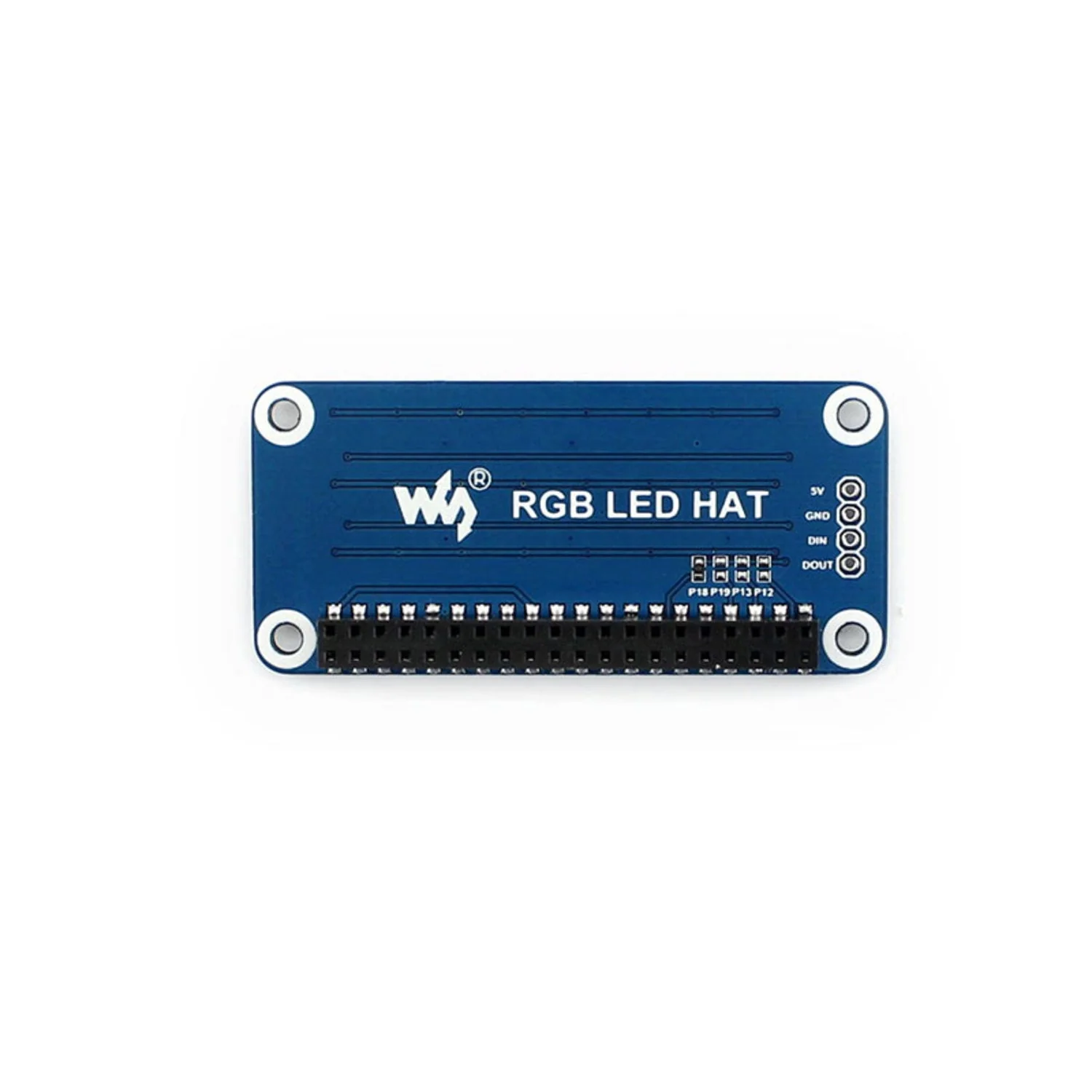

Pinout

• 5V – Power input
• GND – Ground
• DIN – Signal input
• DOUT – Signal output (optional, for chaining)

Ideal For

• Visual status indicators and notifications
• Animated LED displays and light art
• Raspberry Pi learning projects
• IoT dashboards with visual feedback

Package Contents

• 1× 4×8 RGB LED Matrix HAT for Raspberry Pi
