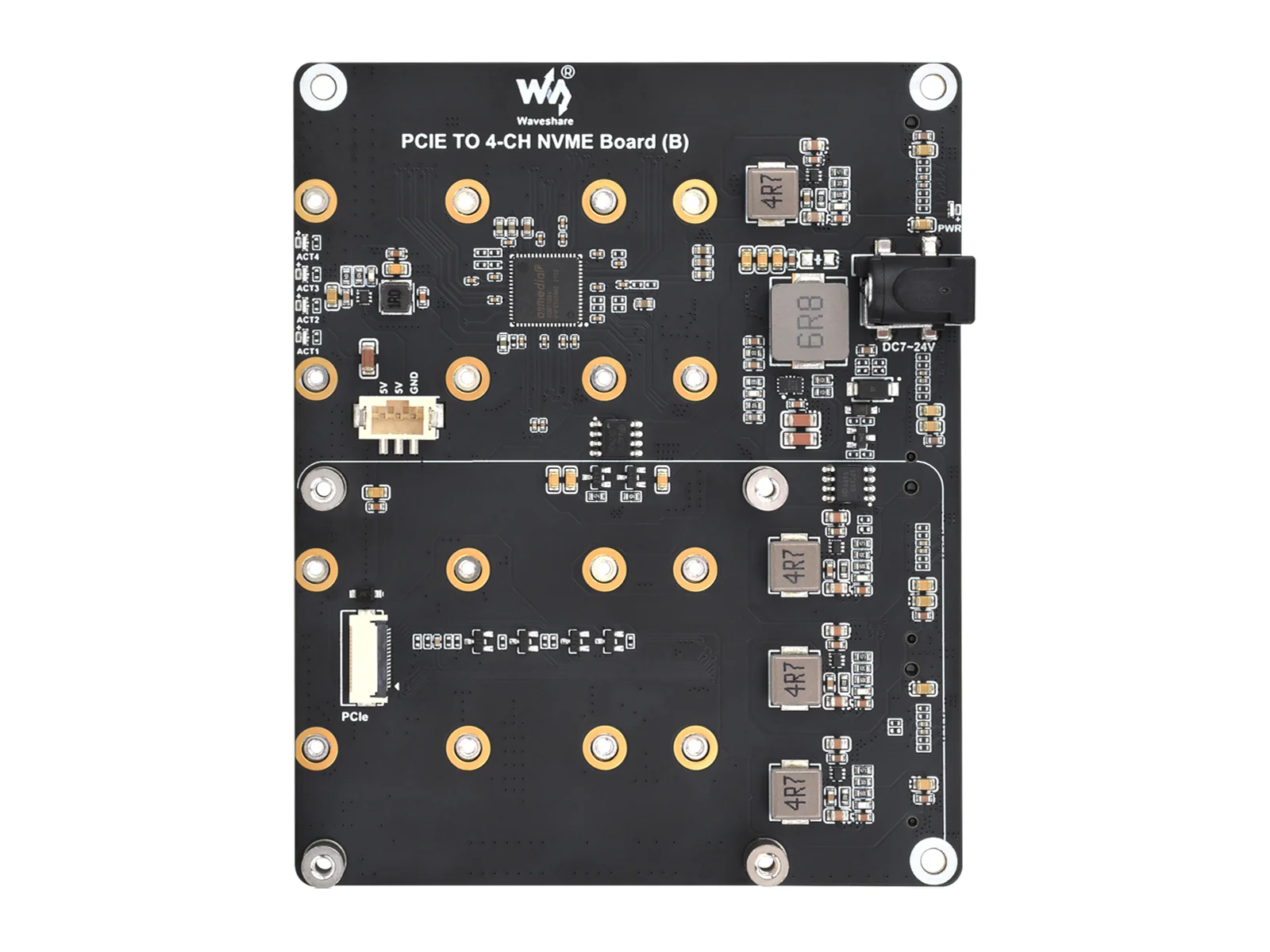

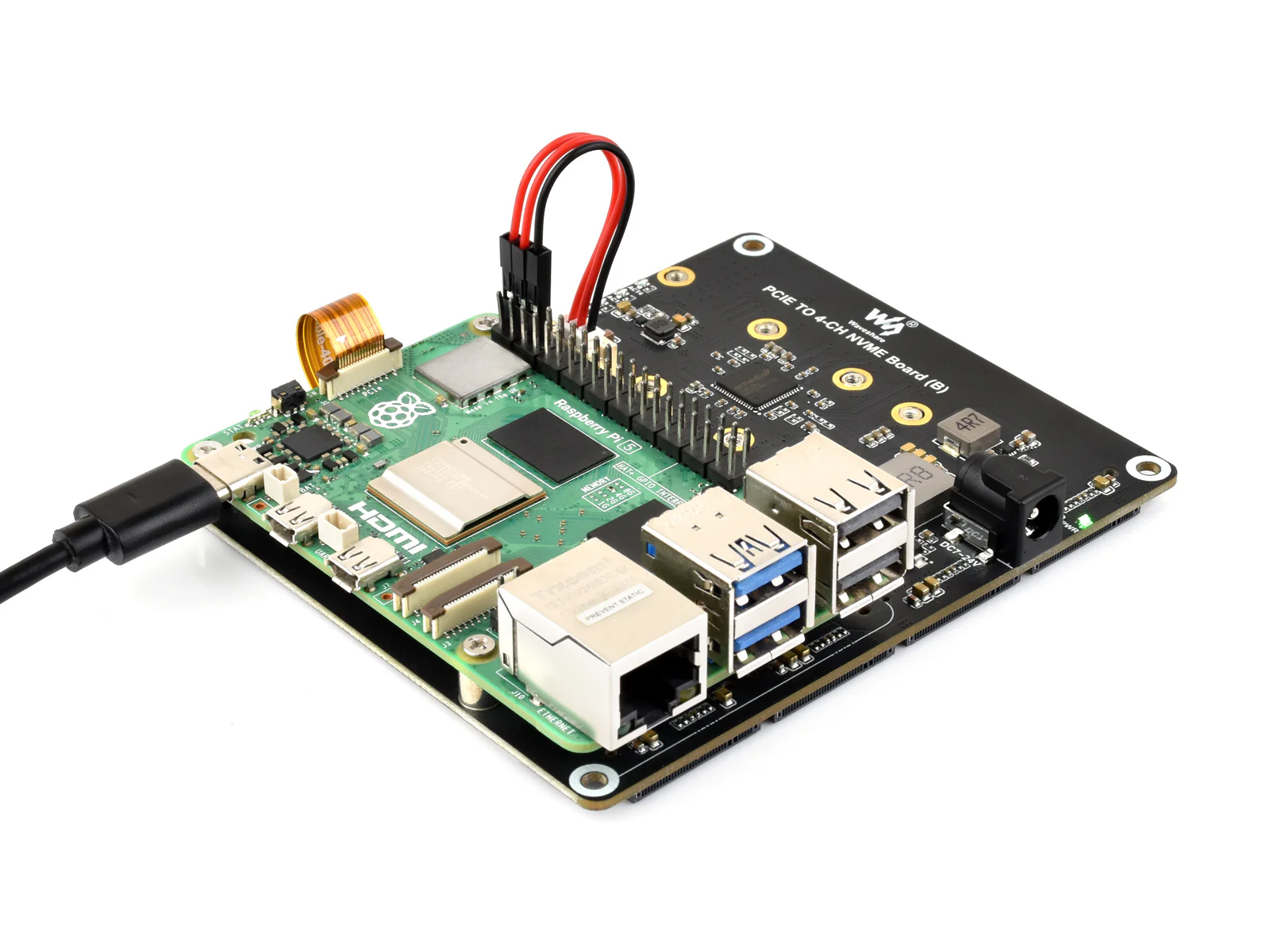

A PCIe adapter board for the Raspberry Pi 5 that supports up to four M.2 NVMe SSDs simultaneously. Connect via the Pi 5's PCIe interface using the included 16-pin cable and gain dramatically faster storage for NAS builds, data processing, and boot-from-SSD setups.

The board includes an on-board wide-voltage DC jack (7–24V) that can power your Raspberry Pi 5 via a 3-pin cable at up to 5V/5A, eliminating the need for a separate Pi power supply. Alternatively, the adapter can be powered directly from the Pi 5.

Key Features

• Quad SSD Support – Connect up to 4× M.2 NVMe SSDs (2280, 2260, 2242, 2230)
• Interface – PCIe to M.2 M-Key (PCIe x1 Gen2)
• Power Input – On-board DC jack (7–24V) powers Pi 5 via 3-pin cable (up to 5V/5A)
• Boot Support – Boot Raspberry Pi 5 directly from NVMe SSD
• LED Indicators – Per-SSD status LEDs for monitoring
• Weight – 66g

Ideal For

• Raspberry Pi 5 NAS and RAID storage builds
• Multi-drive data processing and backup systems
• High-performance boot and storage upgrades

Package Contents

• 1× PCIe to 4-Channel NVMe Adapter Board
• 1× PH2.0 3-Pin Power Cable
• 1× 16-Pin FPC Cable (40mm)
• 1× Screw Pack

Resources

• Waveshare Wiki & Documentation
