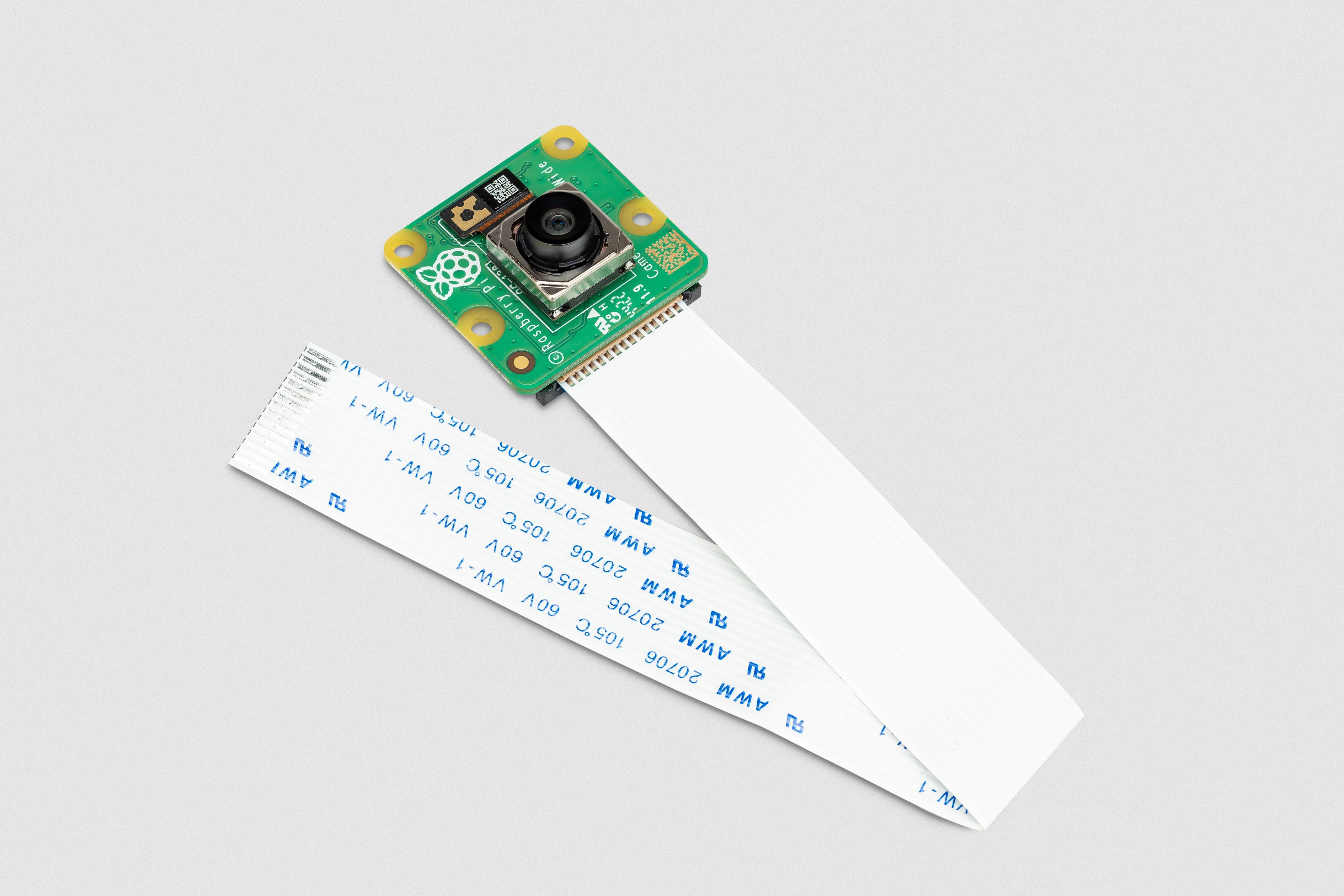

Raspberry Pi Camera Module 3 Wide
The Raspberry Pi Camera Module 3 Wide is a compact camera module that offers an IMX708 12-megapixel sensor with HDR and phase detection autofocus. It is available with or without an infrared cut filter, and can be used to record full HD video and take still photographs with HDR mode up to 3 megapixels. The camera is compatible with all Raspberry Pi computers and has a focus range of 5cm-infinity, a focal length of 2.75mm, a diagonal field of view of 120 degrees, a horizontal field of view of 102 degrees, a vertical field of view of 67 degrees, and a focal ratio (F-stop) of F2.2. The camera is not infrared-sensitive. It will remain in production until at least January 2030.
Specifications:
- Focus range: 5cm-infinity
- Focal length: 2.75mm
- Diagonal field of view: 120 degrees
- Horizontal field of view: 102 degrees
- Vertical field of view: 67 degrees
- Focal ratio (F-stop): F2.2
- Infrared-sensitive: No
- Sensor: Sony IMX708
- Resolution: 11.9 megapixels
- Sensor size: 7.4mm sensor diagonal
- Pixel size: 1.4μm × 1.4μm
- Common video modes: 1080p50, 720p100, 480p120
- Output: RAW10
- IR cut filter: Integrated in standard variants; not present in NoIR variants
- Autofocus system: Phase Detection Autofocus

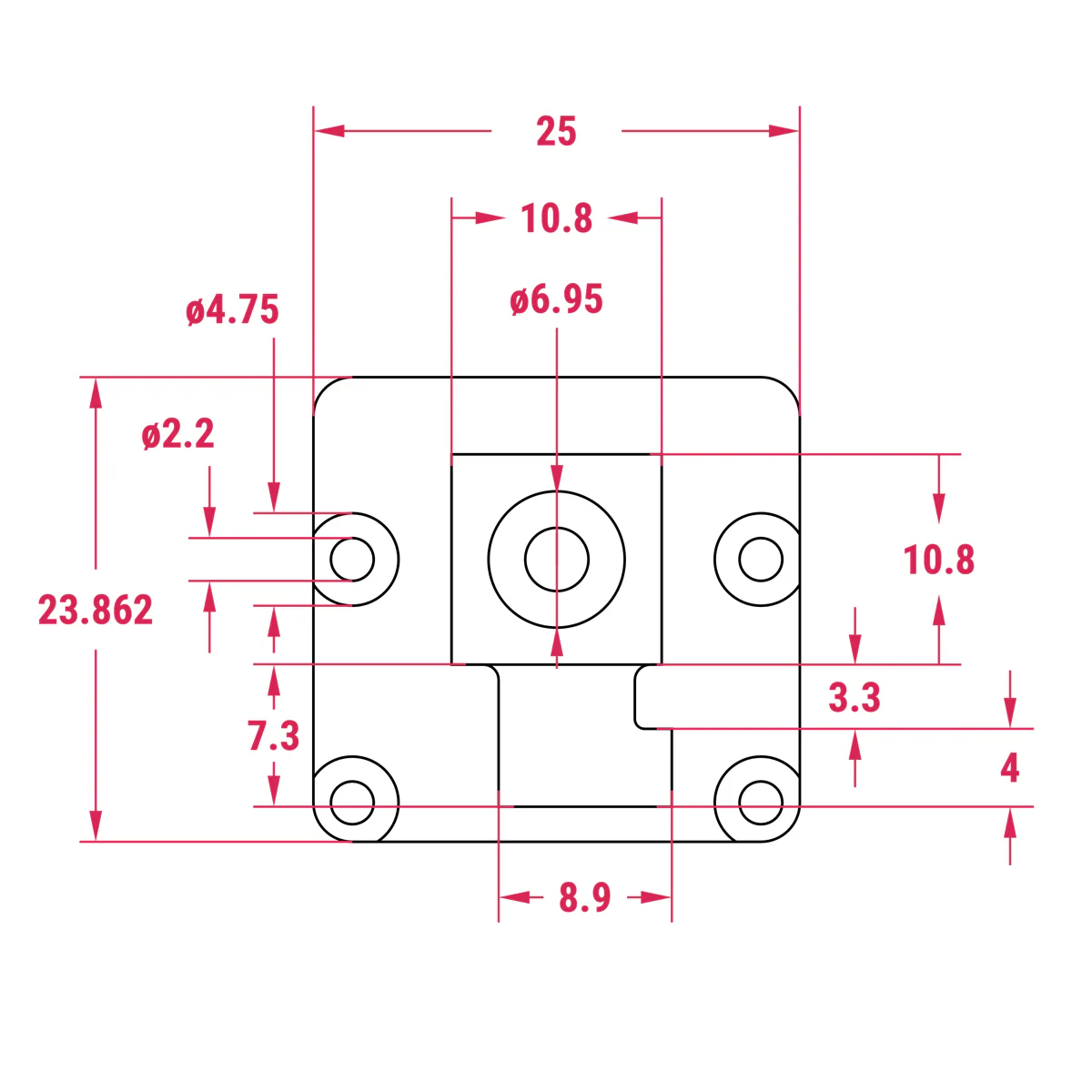

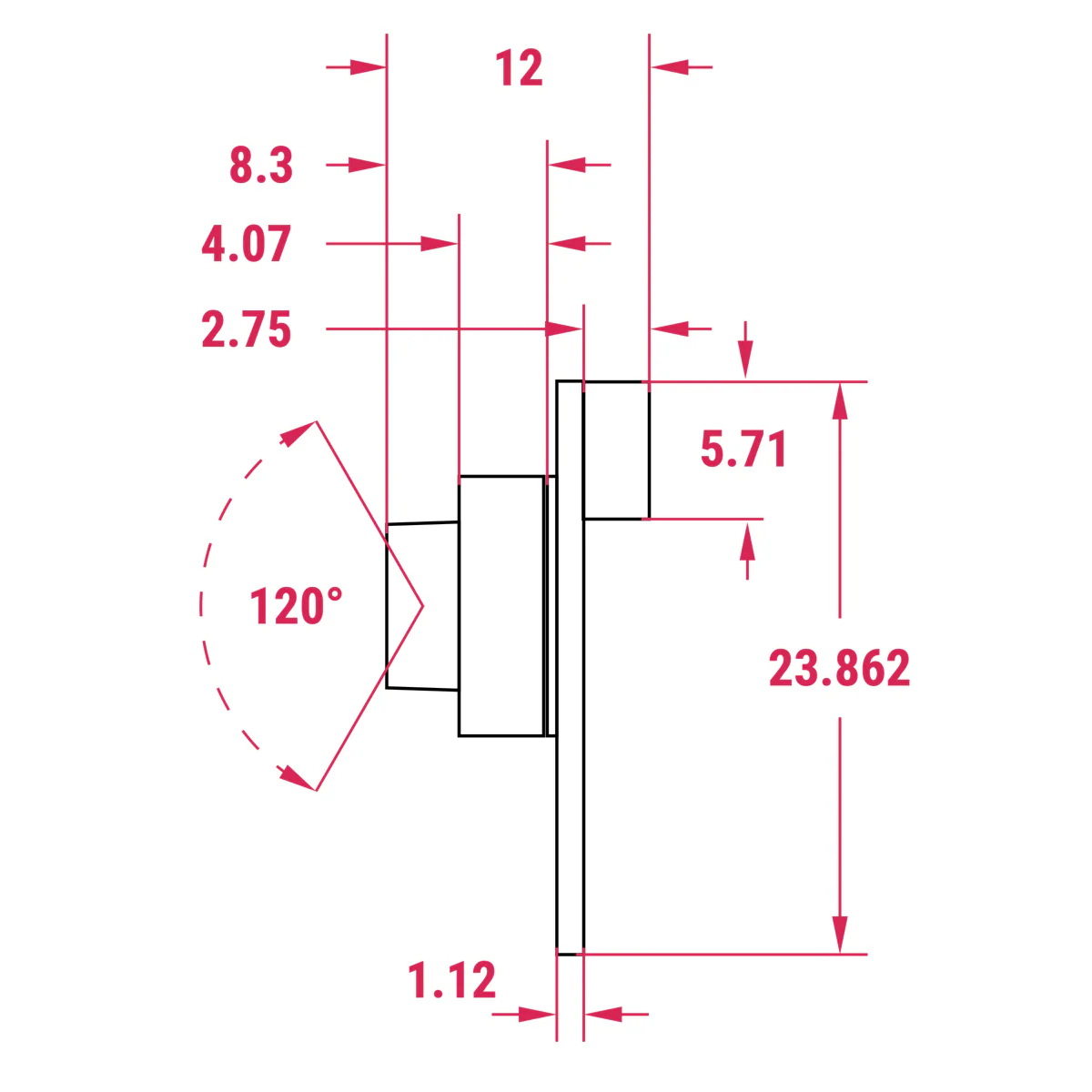

- Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)
- Ribbon cable length: 200mm
- Cable connector: 15 × 1mm FPC
- Compliance: FCC 47 CFR Part 15, Subpart B, Class B Digital Device Electromagnetic Compatibility Directive (EMC) 2014/30/EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
- Production lifetime: Raspberry Pi Camera Module 3 will remain in production until at least January 2030
Note for use with the Raspberry Pi 5 you will need a Mini cable
