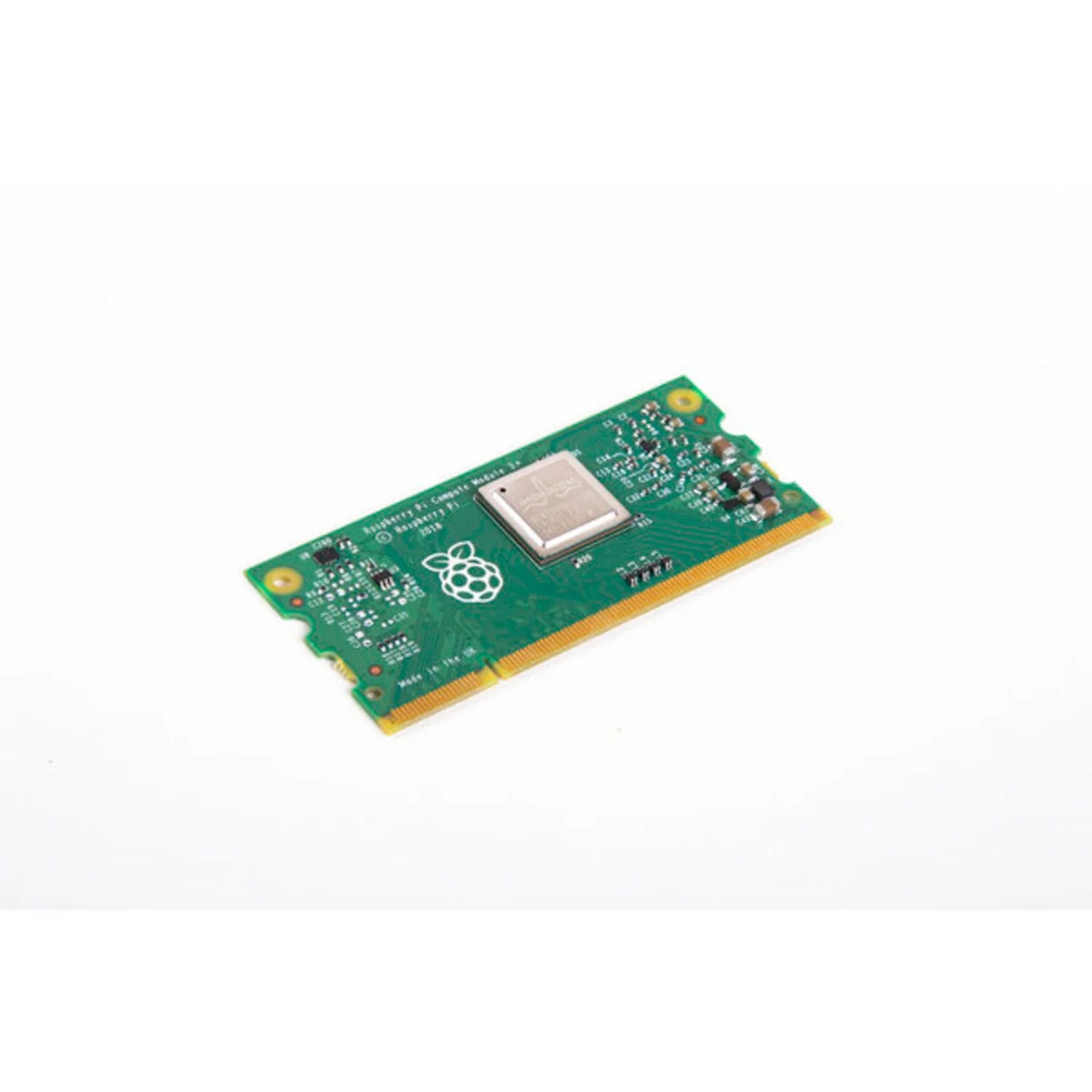

The Raspberry Pi Compute Module 3+ (CM3+/32GB) packs the processing power of a Raspberry Pi 3 Model B+ into a compact 200-pin SODIMM form factor. Designed for embedded and industrial applications, it allows you to build custom carrier boards tailored to your project's exact requirements.

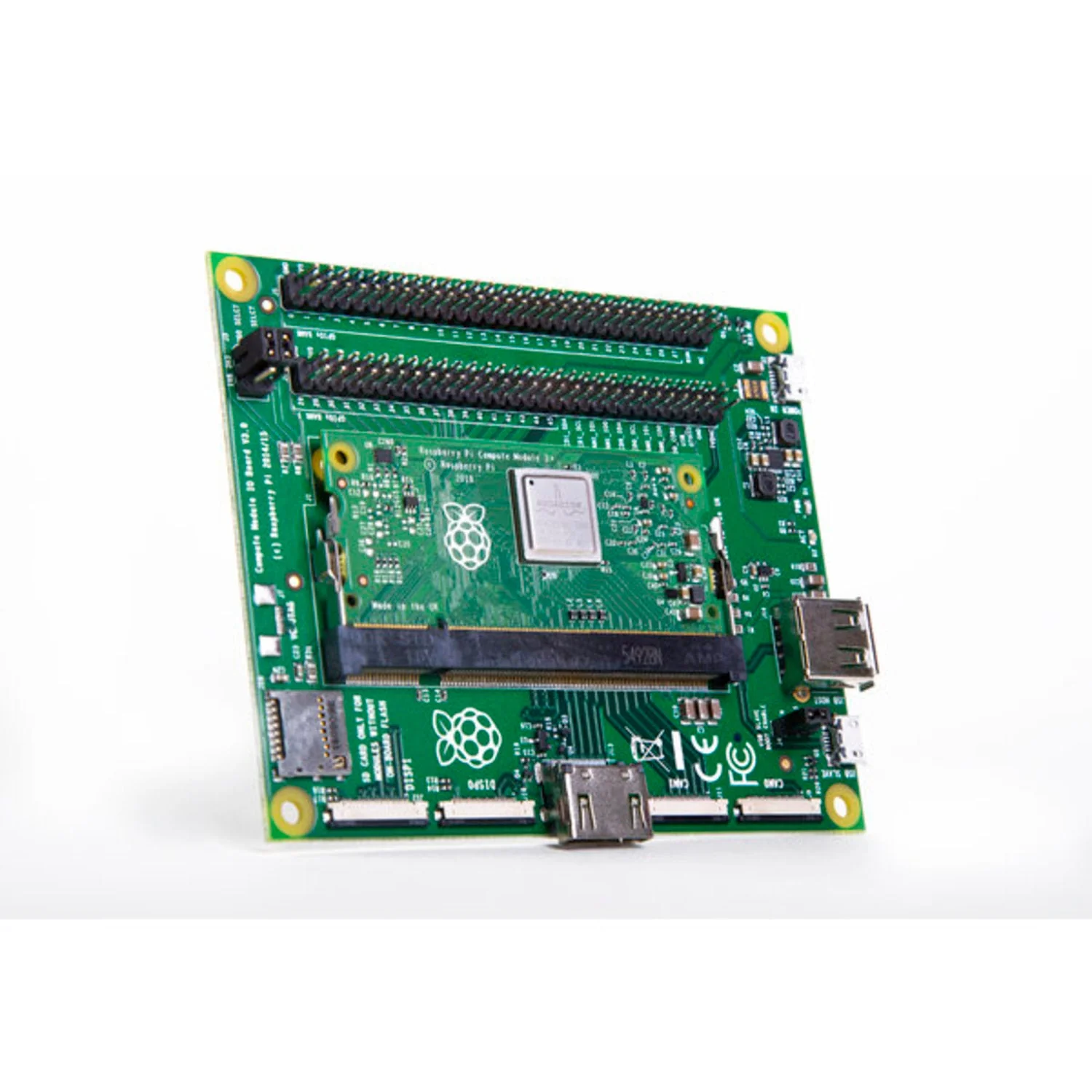

This 32 GB variant includes onboard eMMC flash storage, eliminating the need for an external SD card. The module is compatible with the Compute Module IO Board for development and prototyping.

Key Features

• BCM2837B0 SoC – Quad-core Cortex-A53 (64-bit) running at 1.2 GHz
• 1 GB LPDDR2 RAM – Same memory as the Raspberry Pi 3B+
• 32 GB eMMC Storage – Onboard flash for reliable embedded deployment
• 200-Pin SODIMM – Compact, standardised connector for custom carrier boards
• Hardware Video – H.264 encode and decode at 1080p30; OpenGL ES 1.1/2.0
• Extended Temperature Range – Operates from −20 to +70 °C

Specifications

• Processor: Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.2 GHz
• Memory: 1 GB LPDDR2 SDRAM
• Storage: 32 GB eMMC
• Form Factor: 200-pin DDR2 SODIMM (67.6 × 31 mm)
• Video: H.264 encode/decode (1080p30), OpenGL ES 1.1/2.0
• Operating Temperature: −20 to +70 °C

Ideal For

• Embedded and industrial applications
• Custom carrier board designs
• Digital signage and kiosk systems
• IoT gateways and edge computing

Package Contents

• 1× Raspberry Pi Compute Module 3+ (CM3+/32GB)

Resources

• Compute Module 3+ Product Page (Raspberry Pi)
• CM3+ Datasheet (PDF)
