Introduction

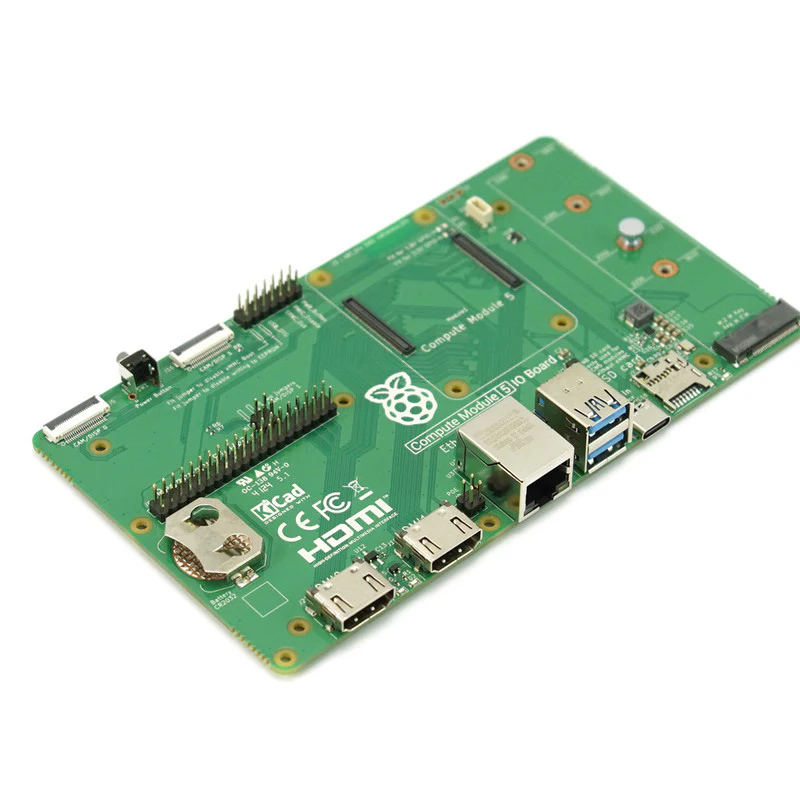

The Raspberry Pi Compute Module 5 IO Board (CM5IO) is a powerful development platform designed to integrate the Compute Module 5 (CM5) into industrial and embedded applications. Offering extensive connectivity, including full-size HDMI, Gigabit Ethernet, and USB 3.0 ports, it supports projects requiring high-performance computing and peripheral expansion. With PoE+ support and an M.2 PCIe slot, the CM5IO board is well-suited for IoT devices, network appliances, and custom computing solutions.

Wide Compatibility and Expansion Options

The CM5IO board supports all Compute Module 5 variants, ensuring seamless integration into diverse product designs. Expansion options include an M.2 M-Key PCIe socket and a HAT+ connector, enabling additional storage, networking, and peripheral customization.

Rich Connectivity

Featuring dual full-size HDMI 2.0 outputs, Gigabit Ethernet with PoE+ support, and multiple USB 3.0 ports, the board offers versatile connectivity for both consumer and industrial applications. These features enable reliable integration with various devices and networks.

Flexible Power Management

Powered via an external +5V USB-C PSU, the board includes a dedicated power button for controlled wake-up and shutdown of the Compute Module 5, ensuring efficient power management in embedded and industrial settings.

Applications

• Io
