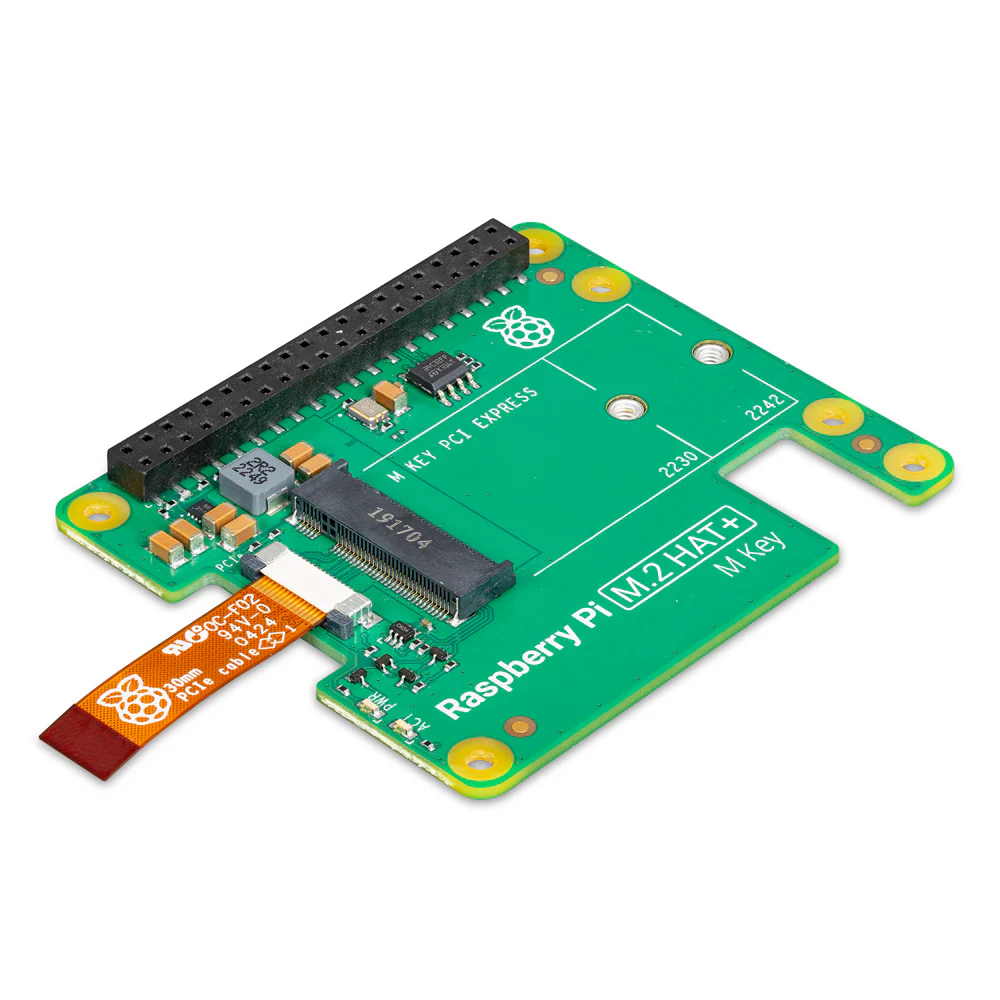

The Raspberry Pi M.2 HAT+ facilitates the connection of M.2 peripherals like NVMe drives and AI accelerators to the Raspberry Pi 5 through its PCIe 2.0 interface, offering quick data transfers up to 500 MB/s.

This adapter board features a 16-pin, 0.5mm-pitch FPC connector which is linked to the Raspberry Pi 5's single-lane PCI Express 2.0 interface. It is designed to fit M.2 devices that are compatible with the M Key edge connector and come in 2230 and 2242 form factors.

The board can provide up to 3A of power to these devices. Compliant with the Raspberry Pi HAT+ specification, the M.2 HAT+ is automatically recognised by the latest Raspberry Pi software and firmware. It comes with a 16mm stacking header and threaded spacers, allowing for installation alongside the Raspberry Pi Active Cooler.

Key Features:
- Supports a single-lane PCIe 2.0 interface with a maximum transfer rate of 500 MB/s.
- Compatible with M.2 M key edge connector devices.
- Suitable for devices in 2230 and 2242 form factors.
- Provides up to 3A of power to connected M.2 devices.
- Includes power and activity indicators.
- Meets the Raspberry Pi HAT+ specification standards.
- Comes with necessary installation accessories such as a ribbon cable, 16mm stacking header, threaded spacers, screws, and a knurled double-flanged screw for securing the M.2 peripheral.
- Operates within a 0°C to 50°C temperature range.
